A-40

A-40

Maritime Patrol Aircrafts
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
A-40
Designation
A-40
Alternate Designation
A-42PE (SAR variant powered by D-27 propfans), A-45 (propfan powered ASW aircraft), Be-40P (Airliner), Be-40PT (cargo/passenger combi aircraft), Be-42 Albatross (SAR aircraft), Mermaid (NATO nickname)
Equipment Type
Maritime Patrol Aircrafts
Manufacturer
Beriev, IRKUT Corporation
Date of Introduction
1989
Description

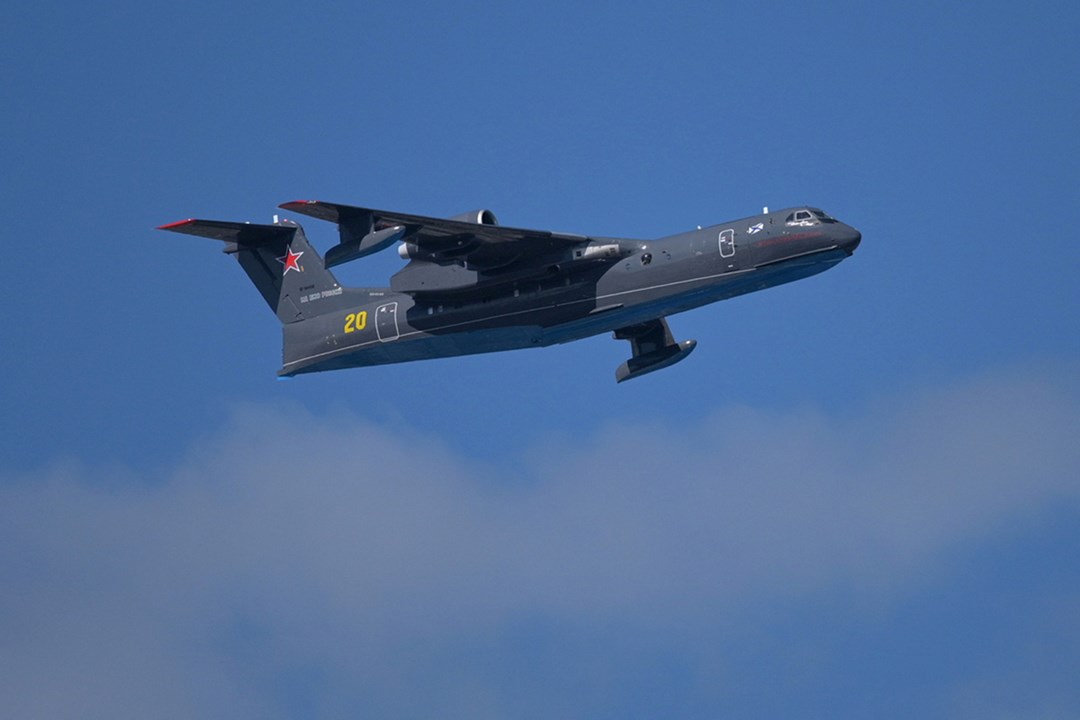

The Beriev A-40/Be-42 is the world's largest amphibious airplane. It was developed to meet the requirements of the Soviet Union's Navy for a single platform to replace Be-12 and Il-38 maritime patrol and ASW aircraft. The A-40/Be-42 is powered by two D-30KPV turbofan engines rated at 26,500-pound of thrust each, equipped with booster turbojets and mounted over the fuselage between the wings and the tail. Besides its stability and controllability in the water is remarkable due to variable rise hull. Its development began in the early 1980s and by 1989 the aircraft had achieved operational capability within the Soviet Union's Navy. the Beriev design bureau also envisaged the development of new variants powered by turboprop engines in lieu of turbojets. The A-45 was the designation for ASW variant powered by turboprop engines, the Be-40P was a 105-seat airliner and the Be-40PT was a combi cargo/passenger airplane. Apparently, these further developments were put on hold following the Soviet Union collapse. However, Beriev continued development work on a shortened fuselage version intended for the commercial/civil segment and named the Be-200. Approximately 20 to 50 A-40/Be-42/Be-200 aircraft have been produced for the Commonality of Independent States (CIS) and export customers.

Air & Air Defense Specifications
Crew 4
Max Speed 800.0 km/h
Range 5500.0 km
Service Ceiling 9700 m
Wingspan 42.50 m
Overview (Deagel)
Group Maritime Patrol Aircrafts
Status Active
Also Known As A-42PE (SAR variant powered by D-27 propfans), A-45 (propfan powered ASW aircraft), Be-40P (Airliner), Be-40PT (cargo/passenger combi aircraft), Be-42 Albatross (SAR aircraft), Mermaid (NATO nickname)
Origin Russia
Contractors Beriev, IRKUT Corporation
Initial Operational Capability (IOC) 1989
First Flight December 1986
Total Production ?
Specifications (Deagel)
Crew 4
Number of Engines 2
Troops 54
Dimensions — Height 11 meter
Dimensions — Length 45.7 meter
Dimensions — Wingspan 42.5 meter
Mass — Max Takeoff Thrust 66,137 pound
Mass — Max Takeoff Weight 86,000 kilogram
Mass — Payload 10,000 kilogram
Performance — Ceiling 9,700 meter
Performance — Landing Run Distance 700 meter
Performance — Max Range 5,500 kilometer
Performance — Operational Altitude 8,000 meter
Performance — Take Off Run Distance 1,000 meter
Speed — Cruise Speed 200 mps
Speed — Top Speed at High Altitude 800 kph
Gear (Deagel)
Item 1 Turbofan Engines: D-30KPV (2)
Item 2 Turboprop Engines: D-27 (2)
Variants
Variant 1 A-40

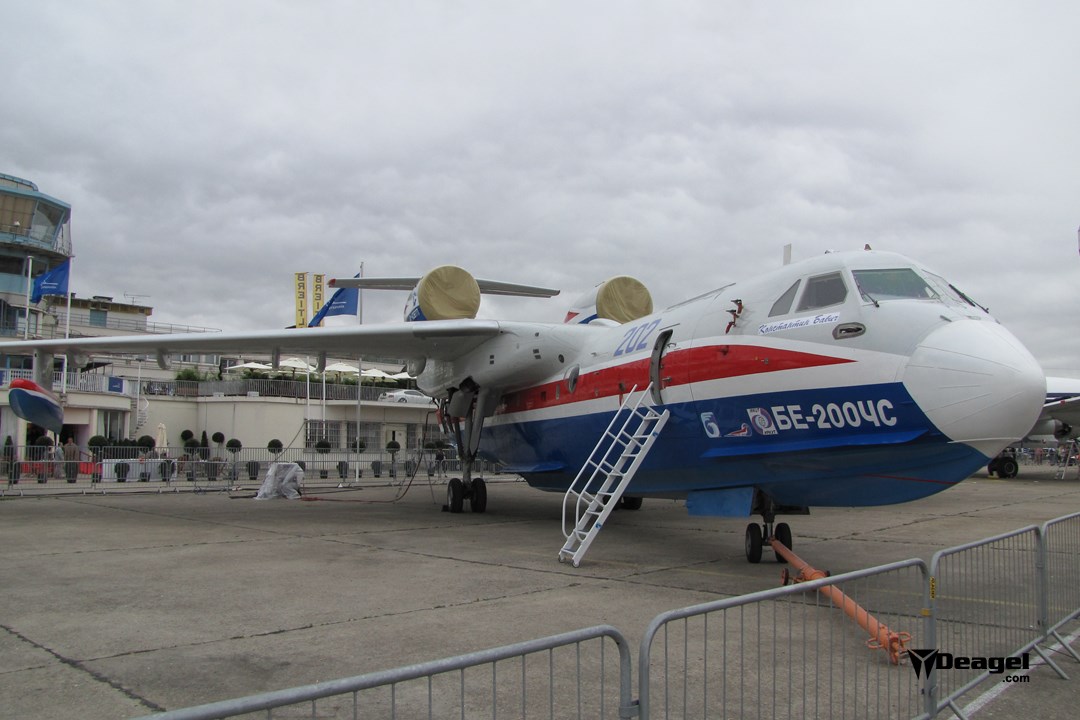

Variant 2 Be-200ES
Details
Country of Origin Russia
Category Maritime Patrol
Air > Maritime Patrol
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
45.7 m
Width
42.5 m
Height
11 m
Weight
86000 kg
Operators (2)
Russia
Soviet Union
