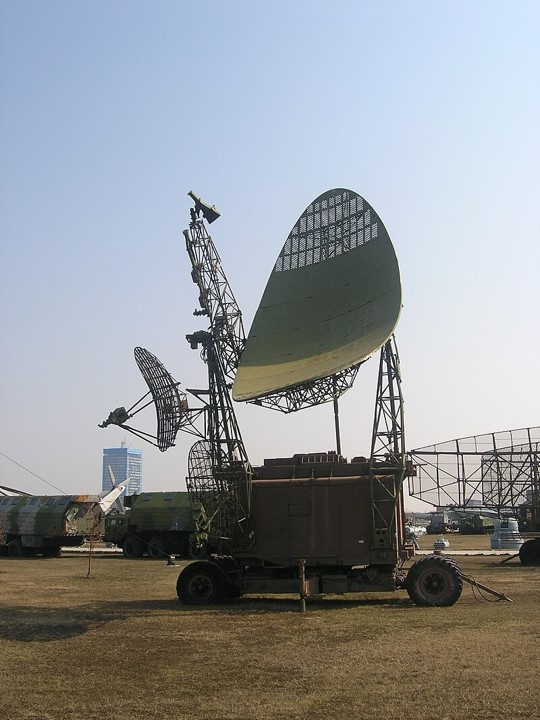

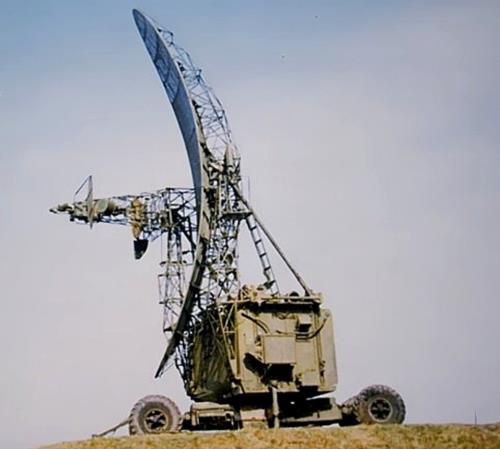

Pelena-1 Russian High Power S-Band Counter-AWACS Radar Jammer
Pelena-1
High Power S-Band Counter-AWACS Radar Jammer
Other
Basic Information
Name
Pelena-1 Russian High Power S-Band Counter-AWACS Radar Jammer
Designation
Pelena-1
Alternate Designation
Pelena-1; Russian: Пелена-1
Equipment Type
High Power S-Band Counter-AWACS Radar Jammer
Manufacturer
—
Date of Introduction
2015
Description
The Pelena-1 Russian High Power S-Band Counter-AWACS Radar Jammer is designed to jam airborne early warning radars of AWACS-type aircraft. The system denies detection by AEW radars of the protected installations with radar cross-sections of up to 15 sq.m. --- COGINT Report Data (7 June 2023, UNCLASSIFIED) --- Bandwidth/Frequencies: 2–4 GHz, S Band Range: 50-80 km installations protected, up to 250 km for radar jamming Performance Specifications: • Airborne early warning [AEW] radar suppression sector [deg]: ±45 • Angular coverage limits [deg]: azimuth: 360, elevation: -1 to +25 • Automatic azimuth scan sector [deg]: 30; 60; 120 • Power consumption [kW]: 80 • Crew [people]: 7
Ground Specifications
Crew
7
Mobility Type
Wheeled (4x4)
Range
250.0 km
System
Alternative Designation
Pelena-1
Type
High Power S-Band Counter-AWACS Radar Jammer
Manufacturer
INA
Configuration
4x4
Crew
7 ea
Composition
P-02 powerplant trailer; P-03 control trailer; 5E96 electric power station; spare parts, tools and accessories kit; cable sets; operational documentation.
Effective Range
It is effective at a range of 50-80 km from installations protected and up to 250 km from radars being jammed.
Jamming Sector
45 deg
Probability of Radar Suppression
at least 0.8
Probability of System Kill by Antiradar Missiles
up to 0.2
Scanning Range, Azimuth
0 - 360 deg
Scanning Range, Elevation
-1 to +25 deg
Sector of automatic Azimuth Scanning
30 Deg; 60 Deg; 120 Deg
Power Consumption
80 kW
Details
Country of Origin
Russia
Category
Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Operators (2)
Russia
Syria
