Krivak III Class (Project 11351 Nerey Class) Russian Frigate
Frigate
Other
Basic Information
Name
Krivak III Class (Project 11351 Nerey Class) Russian Frigate
Designation
—
Alternate Designation
—
Equipment Type
Frigate
Manufacturer
Zalyv Shipbuilding Yard
Date of Introduction
1982
Description

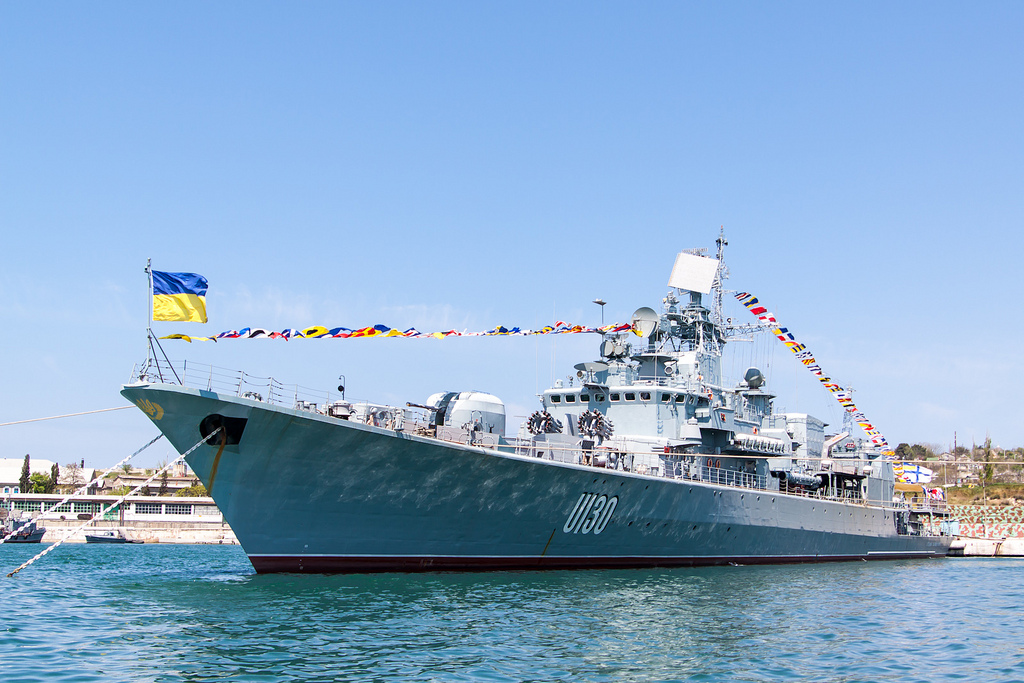

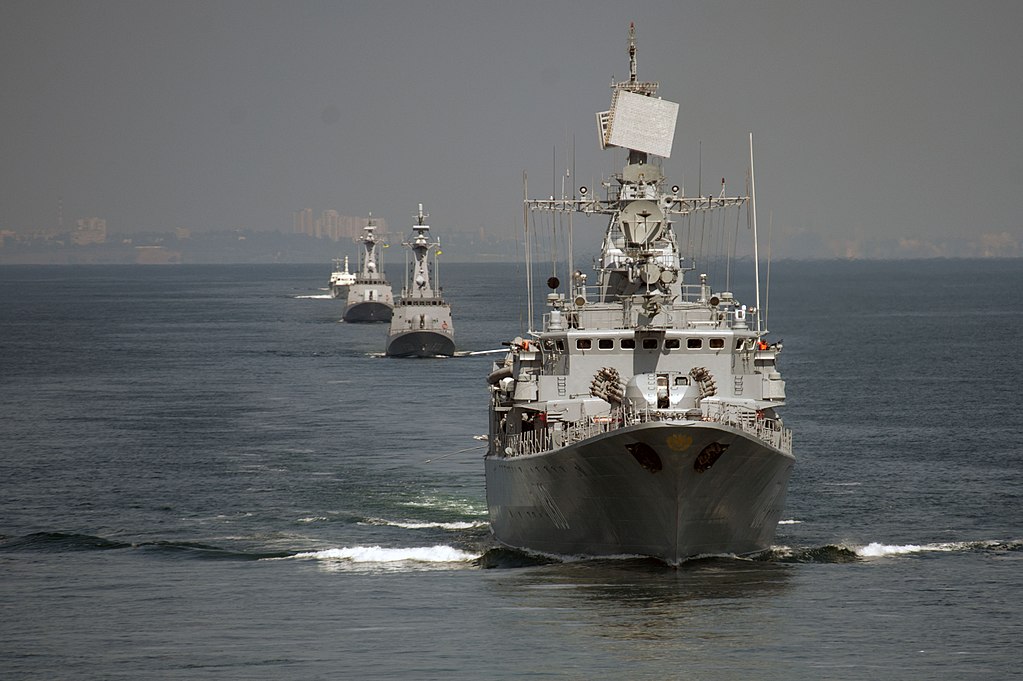

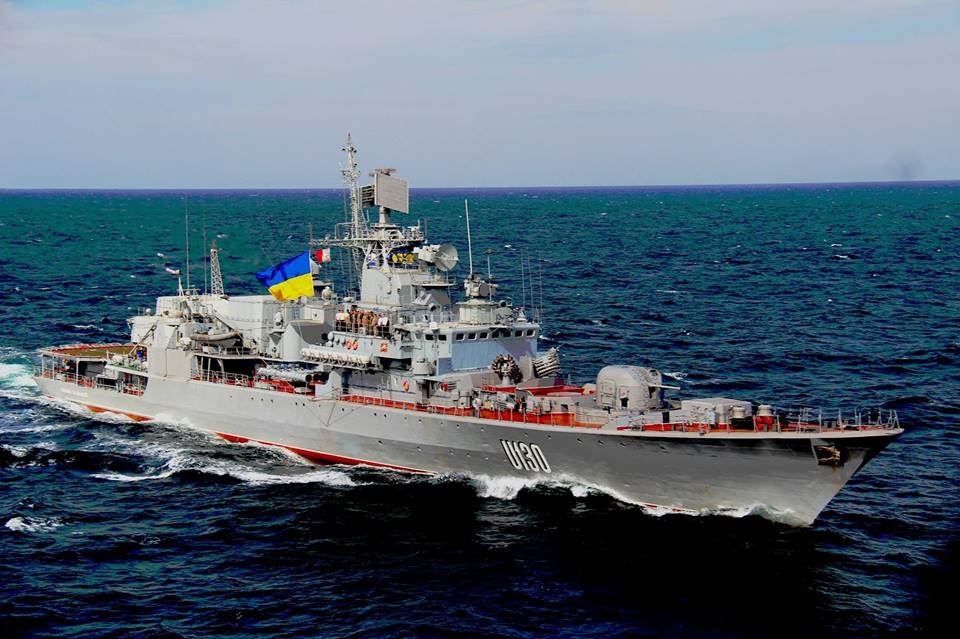

Krivak III Class (Project 11351 Nerey Class) lacked the SS-N-14 missile system, which was replaced by a helicopter and hangar, and only one 100 mm gun at the bow of the ship. All ships were built in Kerch and were intended for the Soviet Border Troops under the KGB. Nowadays, 2 ships remain in service with the Russian FSB Coast Guard and 1 ship is in service with the Ukrainian Navy. It is believed that a single incompleted Krivak III hull (Hetman Bayda Vyshnevetsky c. 1995) from Ukraine was transferred to Russia and then to the Korean People's Navy. NATO referred to these ships as Krivak III-class.
Naval & Littoral Specifications
Crew
193
Beam
14.20 m
Draft
4.80 m
Max Speed
31.0 knots
Range
3636.0 nm
Engine Power
7 hp
Variants
MENZHINSKIY
Commissioned: 1982
Status: Reserve
DZERZHINSKIY
Commissioned: 1982
Status: Reserve
DZERZHINSKIY
Commissioned: 1984
Status: Active
OREL
Commissioned: 1986
Status: Active
PSKOV
Commissioned: 1982
Status: Stricken
ANADYR
Commissioned: 1989
Status: Stricken
KEDROV
Commissioned: 1990
Status: Reserve
VOROVSKIY
Commissioned: 1990
Status: Active
System
Alternative designations
Krivak III Class; Project 11351 Nerey Class
Type
Frigate
Builders
Zalyv Shipbuilding Yard
Crew
193 total (22 off. + 171 enl.)
Dimensions
Length
122.98 m
Beam
14.2 m
Draft
4.8 m
Displacement, Standard
3,274 tons
Displacement, Fully Loaded
3,642 tons
Automotive
Engine Name
COGAG M-7K plant: 2 M-62 cruise gas turbines; 2 M-8K boost gas turbines
Engine Type
Gas Turbines
Engine Power
COGAG M-7K plant: 2 M-62 cruise gas turbines (7,475 shp each); 2 M-8K boost gas turbines (20,000 shp each)
Range
3,636 nm at 14 knots; 1,600 nm at 30 knots
Maximum Speed
31 knots
Communications
Note
The communications suite is called Tayfun-3.
Armament
Weapon Station # 1
Name
1x AK-100 100mm Naval Gun
Type
Naval Gun
Caliber
100 mm
Length
INA
Weight
35,000 kg
Traverse
360 degrees
Traverse Rate
35 degrees / sec
Maximum Rate of Fire
60 rds / min
Maximum Firing Range
INA
Weapon Station # 1 Ammunition
Type
FRAG
Caliber
100 mm
Cartridge
INA
Basic Load
2,000 rds
Weapon Station # 2
Name
2 x AK-630m CIWS
Type
Close-In Weapon System
Caliber
30 mm
Quantity
2 x Close-in Weapon System (CIWS) Turrets
Barrel Length
1,629 mm (64 in)
Height
1,070 mm (42 in) (above deck)
Weight
1,000 kg (2,200 lb)
Barrels
6
Rate of Fire
4,000–5,000 rounds/min
Muzzle Velocity
880-900 m/s
Feed System
Belt
Sights
Radar / TV-optical
Maximum Effective Range, Aerial Targets
4,000 m (13,000 ft)
Maximum Effective Range, Surface Targets
5,000 m (16,000 ft)
Weapon Station # 2 Ammunition
Shell
HEI-Frag, Frag-T, APDS-T
Caliber
30 mm
Shell Weight
0.39 kg (HEIF, FT)
0.30 kg (APDS-T)
Basic Load
3,000 rds
Weapon Station # 3
Name
Type 533 Torpedo System
Type
53 cm (21 inch) torpedoes
Primary Function
ASUW torpedo
Length
7.2 m
Diameter
53 cm
Weight
2,070–2,300 kg
Range
18,000 meters (20,000 yd)
Speed
45 kn (52 mi/h, 83 km/h)
Guidance System
Wake homing
Warhead
307.6 kilograms (678 lb) high explosive
Weapon Station # 4
Name
2 x12 RBU-6000 Smerch-2
Type
Anti-Submarine Rocket Launcher
Weight
3,100 kg (empty)
Length
2.0 m
Width
1.75 m
Height
2.25 m
Elevation
-15 deg to +65 deg
Traverse
180 deg
Mine System
Note
These ships can carry 12 KSM, 14 KRAB or 16 IGDM-500 mines.
Aviation Facilities
Onboard Aviation Storage
Yes
Aircraft
1 x Helix-A (Ka-27PS) helicopter
Radar Systems
Air and Search Radar
1 x MR-760 Fregat/Top Plate 3-D air search
Naviation Radar
1 x MR-212/201 Vaygach-U (Palm Frond**) navigation
Sonar Systems
Hull-Mounted Low-Frequency Sonar
1 x MGK-335S Platina-S hull-mounted, low frequency
Low-Frequency VDS Sonar
1 x MG-345 Bronza low-frequency VDS system
Fire Control Systems (FCS)
AK-100 100mm Naval Gun FCS
1 x MR-145 Lev-218-100 fire control system
AK-630M CIWS FCS
2 x MR-123 Vympel fire control system
RBU-6000 Smerch-2 FCS
2 x Burya fire control system
Protection
Hull Armor
The superstructure is built of aluminum-magnesium alloy, welded to the hull with bimetallic inserts. There are 14 watertight compartments.
Electronic Warfare Suite
1 x Smerch suite:
EW Radar Intercept/Jammer
2 x Start-2 (Bell Shroud) Intercept/Jammer
EW Jammer
2 x MP-401S Start (Bell Squat A/B) Jammers.
Decoys
4 x 16-round PK-16 fixed decoy launchers with a total of 128 rockets carried onboard.
Torpedo Decoys
2 x towed torpedo decoys
Reflector Decoys
3 x sets corner-reflector decoys
Image Sources
Notes
https://navyrecognition.com/index.php/naval-news/naval-news-archive/2022/january/11261-ukrainian-naval-forces-to-upgrade-hetman-sahaidachny-frigate.html; https://www.navalnews.com/naval-news/2022/01/analysis-russia-to-dominate-the-black-sea-in-case-of-ukraine-conflict/; https://en.wikipedia.org/wiki/Ukrainian_frigate_Hetman_Sahaidachny;
Details
Country of Origin
Russia
Category
Naval
Naval
Filter Label
K
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
122.98 m
Width
14.2 m
Height
—
Weight
—
Operators (2)
Russia
Ukraine
