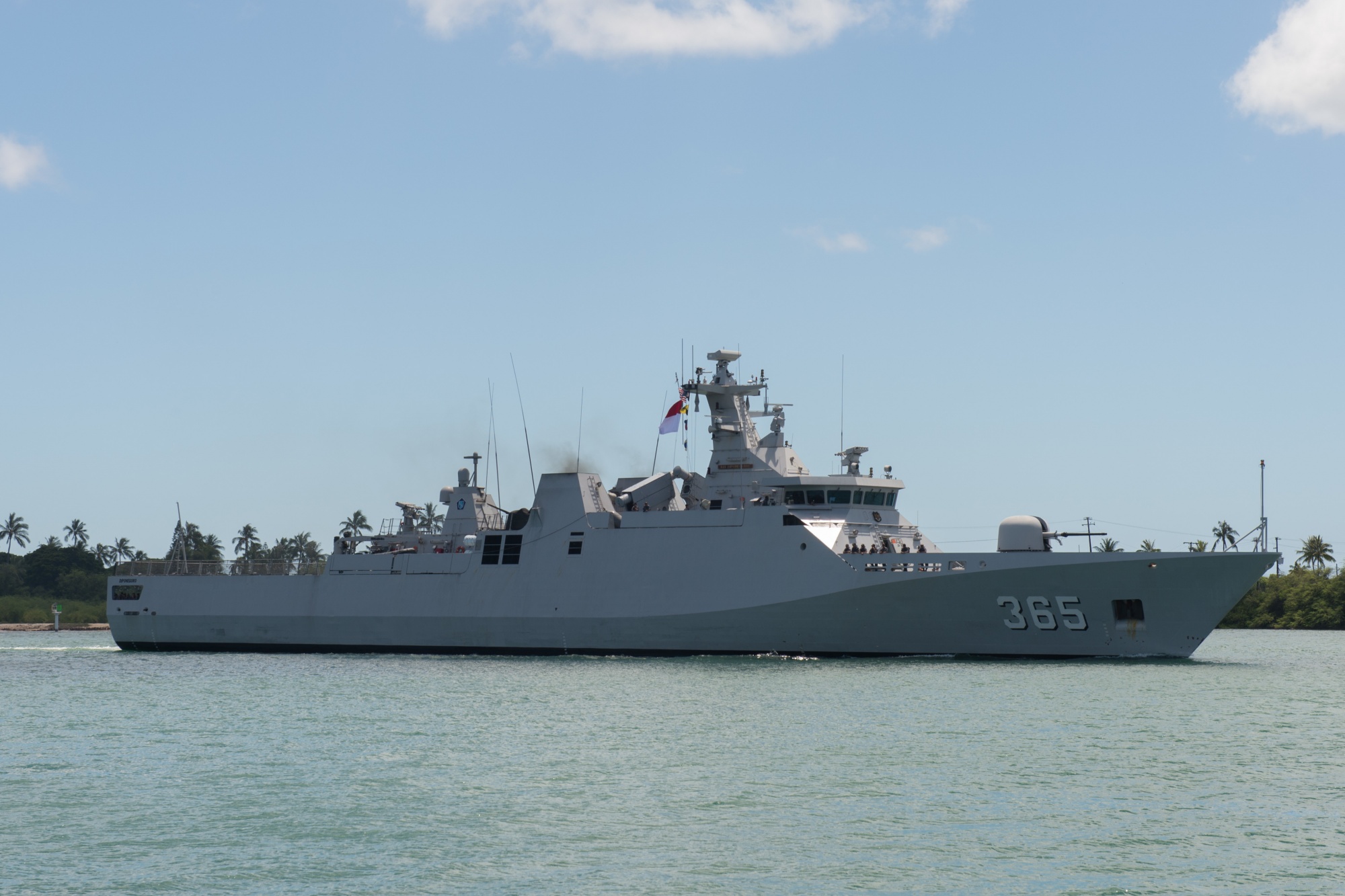

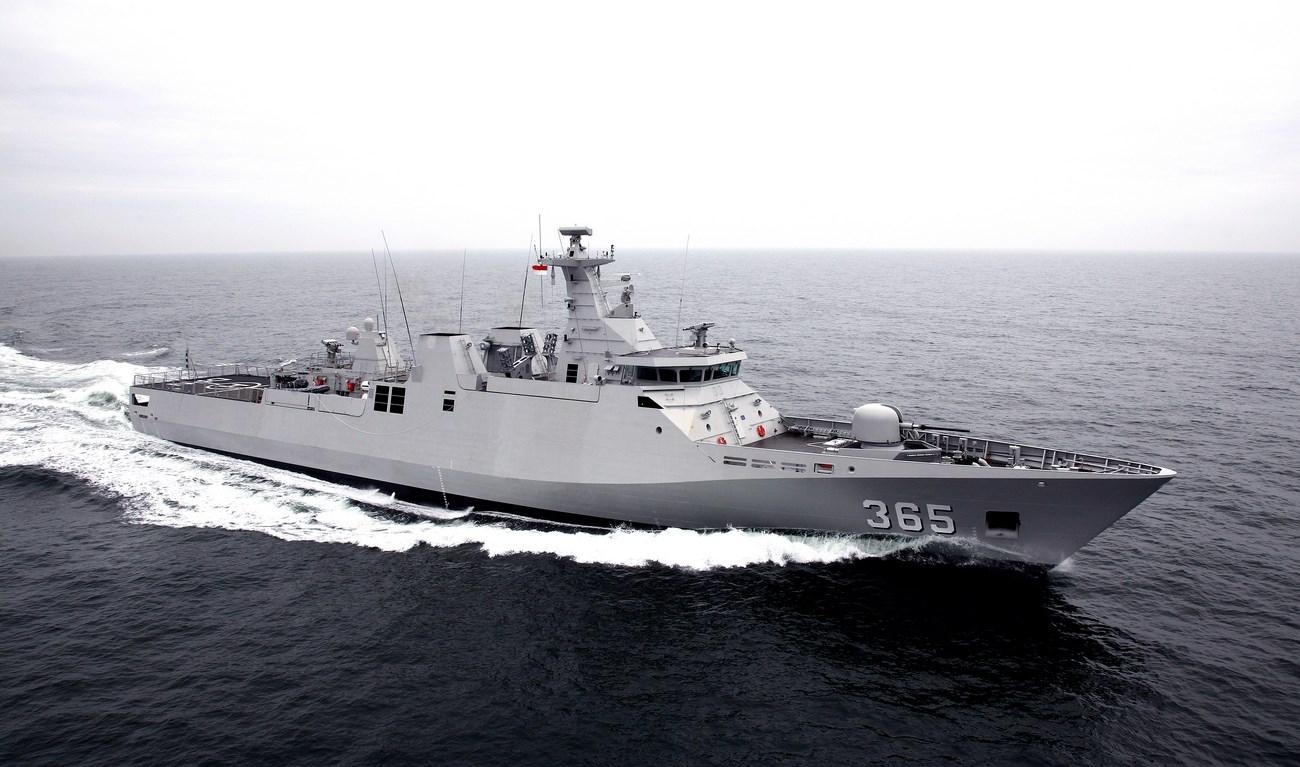

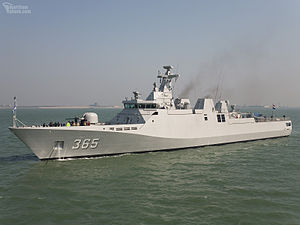

Diponegoro Class (SIGMA 9113 Class) Indonesian Corvette
Diponegoro Class
Corvette
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
Diponegoro Class (SIGMA 9113 Class) Indonesian Corvette
Designation
Diponegoro Class
Alternate Designation
Diponegoro Class; SIGMA 9113 Class
Equipment Type
Corvette
Manufacturer
Schelde Naval Shipbuilding
Date of Introduction
2007
Description
Indonesia's SIGMA-class (or DIPONEGORO-class) corvettes are based on a Dutch modular design to produce three different sizes of naval patrol vessels. SIGMA is an acronym for "ship integrated geometrical modularity approach." The ships are based on a common design defined by a set of geometric parameters, which are applied throughout the entire range of the class and which provide a repetition of identical units, both in the dimensions of the ship's spaces and in the layout. The corvettes for Indonesia cost an estimated $212 million for the first two and $339 million for the second two
Naval & Littoral Specifications
Crew
80
Beam
13.02 m
Draft
3.60 m
Variants
DIPONEGORO
Commissioned: 2007
Status: Active
HASANUDDIN
Commissioned: 2007
Status: Active
SULTAN ISKANDER MUDA
Commissioned: 2008
Status: Active
FRANS KAISIEPO
Commissioned: 2009
Status: Active
System
Alternative Designation
Diponegoro Class; SIGMA 9113 Class
Type
Corvette
Builder
Schelde Naval Shipbuilding, Vlissingen, Netherlands
(a subsidiary of Damen Shipyards Group)
Crew
80 ea
Dimensions
Length
90.71 m
Beam
13.02 m
Draft
3.60 m
Displacement, Standard
INA
Displacement, Full Load
1,692 tons
Propulsion System
Engine Name
2 x SEMT Pielstick 20PA6B STC diesels
Engine Type
Diesel
Engine Power
INA
Generators
4 x Caterpillar 3460C diesel generators
Propellers
2 x Rolls Royce KaMeWa controllable-
pitch propellers
Maximum Range
3,600 nm at 18 knots; 4,800 nm at 14 knots
Maximum Speed
28 knots
Gun Weapon Systems
Gun Weapon System #1
Name
OTO Melara
Type
Naval Gun
Caliber
76 mm
Quantity
1 x OTO Melara Naval Gun
Barrel Length
4,724.4 mm
Weight
7.5 tons
Crew
Remote Controlled
Elevation
−15°/+85°
speed: 35°/s (acceleration: 72°/s²)
Traverse
360°
speed: 60°/s (acceleration: 72°/s²)
Rate of Fire
Compact: 85 rounds/min
Super Rapid: 120 rounds/min
Maximum Firing Range
915 m/s
Muzzle Velocity
HE-PFF 16,000 m
SAPOMER 20,000 m
VULCANO 40,000 m
Feed System
Magazine capacity:
80 ready rounds on Compact gun mount
Gun Weapon Systems #1 Ammunition
Type
Rifle
Caliber
76 mm
Shell
76×636mmR
Basic Load
INA
Gun Weapon System #2
Name
2 x 20 mm modèle F2 Naval Guns
Type
Naval Gun
Caliber
20 mm
Quantity
2 x 20 mm modèle F2 Naval Guns
Length
INA
Weight
332 kg (732 lb) (without ammunition)
Action
Gas unlocked, delayed blowback
Elevation
−15° to + 65°
Rate of Fire
720 round/min
Muzzle Velocity
1,050 m/s
Effective FIring Range
1,500 m (4,900 ft) against aerial targets
Gun Weapon System #2 Ammunition
Type
Rifle
Caliber
20 mm
Cartridge
20×139mm
Basic Load
INA
Missile Weapon System
Missile #1
Name
SM 39 Exocet
Type
Anti-Ship Missile
Launchers
2 x twin MM40 Exocet Block II SSM launchers
Length
5.80 m
Diameter
348 mm
Wingspan
1.14 m
Weight
666 kg
Engine
2 x SNPE double-base Nitramite smokeless solid-propellant rockets; 1 x Epervier booster with 2.4 sec burn; 1 x Eole V sustainer with 200-220 sec burn
Warhead
165 kg Hexolite blast fragmentation
Speed
1,100 kph, Mach 0.93
Maximum Range
50 km
Minimum Range
4 km
Peak Altitude
50 m
Sensors/Electronics
TRT AHV-7 radio altimeter inertial navigation during first part of flight
Electronique Marcel Dassault ADAC or Super ADAC I/J-band active radar homing in terminal phase that begins search approx.
5.4 nm (6.2 mi, 10 km) from target's estimated position.
Basic Load
INA
Missile #2
Name
Mistral
Type
MANPAD
Launchers
2 x quad Tetral SATCP Mistral SAM launchers (1 forward, 1 aft)
Length
1.86 m
Diameter
90 mm
Weight
INA
Crew
1 ea
Engine
Solid Rocket Motor
Warhead
High Explosive with high density tungsten balls
Warhead Weight
2.95 kg
Detonation Mechansim
Laser proximity or impact triggered
Maximum Speed
800 m/s
Effective Firing Range
up to 6 km
Guidance System
Infrared homing
Basic Load
INA
Torpedoes
Note
2 x triple 324-mm B-515 torpedo launchers [unknown no. of EuroTorp A244S Mod 3 torpedoes carried]
Fire Control Systems
FCS Name
1 x LIROD Mark 2 tracking-surveillance fire-control
Computerized FCS
Yes
Radar Systems
Surveillance Radar
1 x Thales MW 08 3D multi-beam surveillance
Navigation Radar
1 x Sperry Marine BridgeMaster-E ARPA
navigation
Sonar Systems
Name
1 x Thales Kingklip medium frequency active
Type
Hull Mounted
Protection
Active Protection System
INA
Countermeasures
Yes
NBC Water Washdown System
Yes
EW
1 x Thales DR3000 system; 1 x Racal Scorpion 2L system jammer; 2 x 12-barreled PK-16 chaff decoy rocket
launchers
Details
Country of Origin
Indonesia
Category
Naval
Naval
Filter Label
D
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
90.71 m
Width
13.02 m
Height
—
Weight
1692000 kg
Operators (1)
Indonesia
