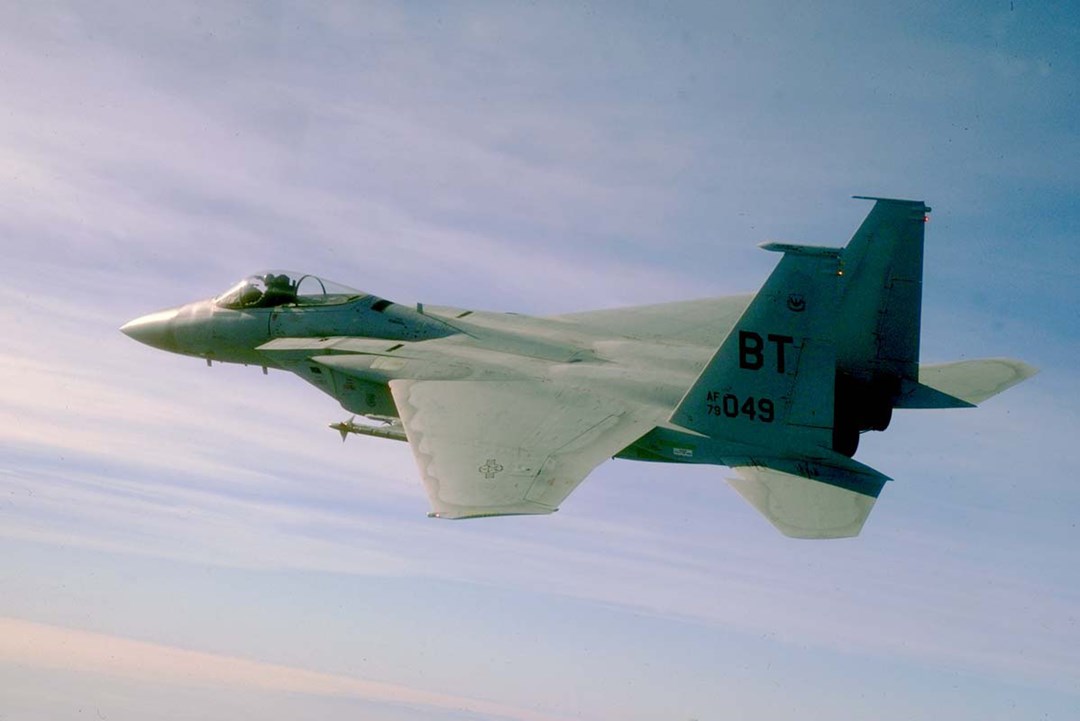

F-15C Eagle

F-15C Eagle

Air Defense Fighters
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
F-15C Eagle
Designation
F-15C Eagle
Alternate Designation
F-15C Baz (Israel), F-15J, F-15JSI, F-15MJ
Equipment Type
Air Defense Fighters
Manufacturer
Boeing
Date of Introduction
1979
Description

The single-seat F-15C Eagle entered the US Air Force inventory beginning in 1979 and deliveries continued until the late 1980s. The C model has additional internal fuel, provision for carrying external conformal fuel tanks, and increased maximum takeoff weight. The most part of F-15A operational shortfalls were solved in the C model. In addition to the United States of America, Japan, Israel and Saudi Arabia are the only foreign operators of the combat-proven F-15C Eagle, F-15J designation for Japanese Eagles. The US Air Force F-15C/D aircraft are equipped with APG-63 and APG-70 radars. The APG-63(V)1, APG-63(V)2 and APG-63(V)3 upgraded radars were provided to over a hundred aircraft in the 2000s as part of a modernization effort. The entire US Air Force F-15C/D fleet is slated for retirement in the 2020-2025 timeframe or earlier depending on the defense budget cuts.

Air & Air Defense Specifications
Crew 1
Max Speed 3087.0 km/h
Range 3900.0 km
Service Ceiling 19812 m
Wingspan 13.10 m
Overview (Deagel)
Group Air Defense Fighters
Status Active
Also Known As F-15C Baz (Israel), F-15J, F-15JSI, F-15MJ
Origin United States of America
Contractor Boeing
Initial Operational Capability (IOC) 1979
Total Production 805
Unitary Cost USD $34 million
Specifications (Deagel)
Crew 1
Number of Engines 2
Area — Radar Cross Section (RCS) 99.5 square meter
Dimensions — Height 5.7 meter
Dimensions — Length 19.5 meter
Dimensions — Main Gun Caliber 20 millimeter
Dimensions — Wingspan 13.1 meter
G-load — Max Maneuvering Load Factor 9 g
Mass — Empty Weight 12,970 kilogram
Mass — Fuel Load 6,100 kilogram
Mass — Max Takeoff Thrust 47,680 pound
Mass — Max Takeoff Weight 30,850 kilogram
Performance — Ceiling 19,812 meter
Performance — Ferry Range 5,550 kilometer
Performance — Max Range 3,900 kilometer
Performance — Radius of Operation 1,967 kilometer
Speed — Climb Rate 50,000 fpm
Speed — Top Speed at High Altitude 2.5 mach
Speed — Top Speed at Sea Level 1.2 mach
Gear (Deagel)
Item 1 Air-to-Air Missiles: AAM-4B (4)
Item 2 Air-to-Air Missiles: AIM-120B AMRAAM (4)
Item 3 Air-to-Air Missiles: AIM-7M Sparrow (4)
Item 4 Air-to-Air Missiles: AIM-9M-9 Sidewinder (4)
Item 5 Air-to-Air Missiles: AIM-9X Sidewinder (4)
Item 6 Air-to-Air Missiles: Type 04 (4)
Item 7 Communications Devices: Talon HATE (1)
Item 8 Decoy Systems: AN/ALE-45
Item 9 Decoy Systems: BOL
Item 10 ESM & Warning Systems: AN/ALR-56
Item 11 Fighter Aircraft Engines: F100-PW-220 (2)
Item 12 Jamming Systems: AN/ALQ-135 (1)
Item 13 Jamming Systems: AN/ALQ-188 (1)
Item 14 Jamming Systems: AN/ALQ-239 (1)
Item 15 Jamming Systems: AN/ALQ-250 EPAWSS (1)
Item 16 Medium Caliber Cannons: M61A1 (1)
Item 17 Optronic Systems: F-15C IRST (1)
Item 18 Optronic Systems: Legion (1)
Item 19 Radar Systems: AN/APG-63 (1)
Item 20 Radar Systems: AN/APG-63(V)1 (1)
Item 21 Radar Systems: AN/APG-63(V)3 (1)
Item 22 Radar Systems: AN/APG-70 (1)
Variants
Variant 1 F-15A Eagle
Variant 2 F-15B Eagle
Variant 3 F-15C Eagle
Variant 4 F-15D Eagle
Variant 5 F-15E Strike Eagle
Variant 6 F-15K Slam Eagle
Variant 7 F-15SG
Variant 8 F-15SA Advanced Eagle
Variant 9 F-15 Silent Eagle
Variant 10 F-15CX Super Eagle
Variant 11 F-15EX Eagle II
Details
Country of Origin United States
Category Multirole Aircraft
Air > Multirole Aircraft
Sources

deagel.com: https://www.deagel.com/x/x/a000535

Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
19.5 m
Width
13.1 m
Height
5.7 m
Weight
30850 kg
Operators (4)
United States
Israel
Japan
Saudi Arabia
