ZBD04

Tracked Armored Vehicles

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

ZBD04

Designation

ZBD04

Alternate Designation

Type 04, VN11, ZBD-04, ZBD97

Equipment Type

Tracked Armored Vehicles

Manufacturer

—

Date of Introduction

2002

Description

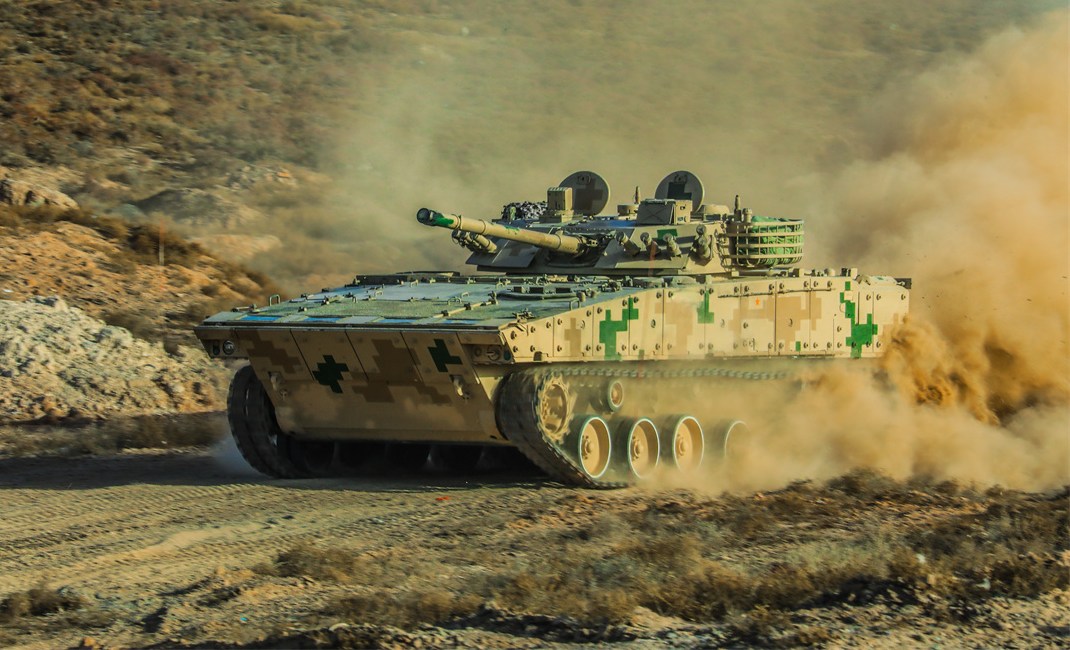

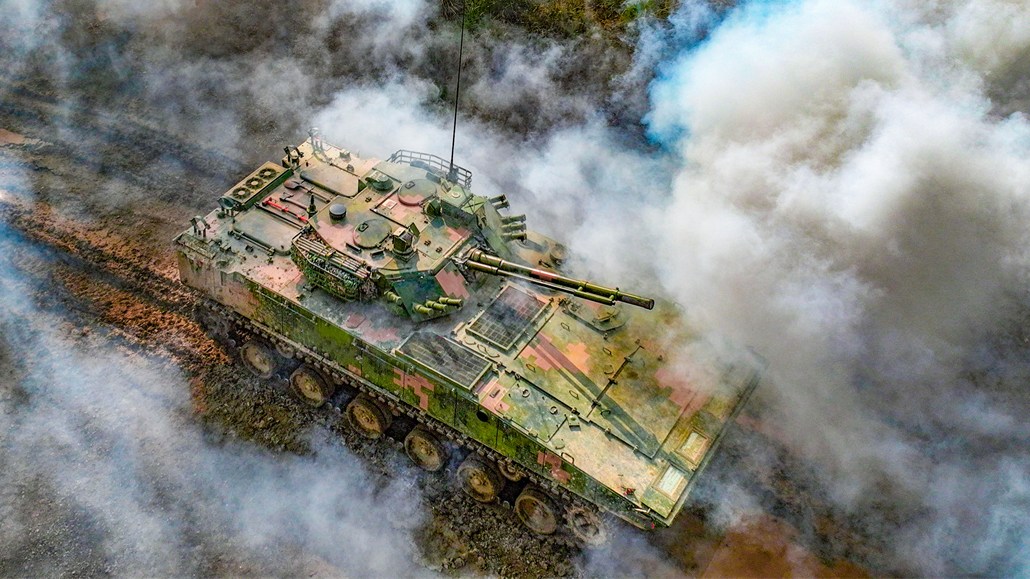

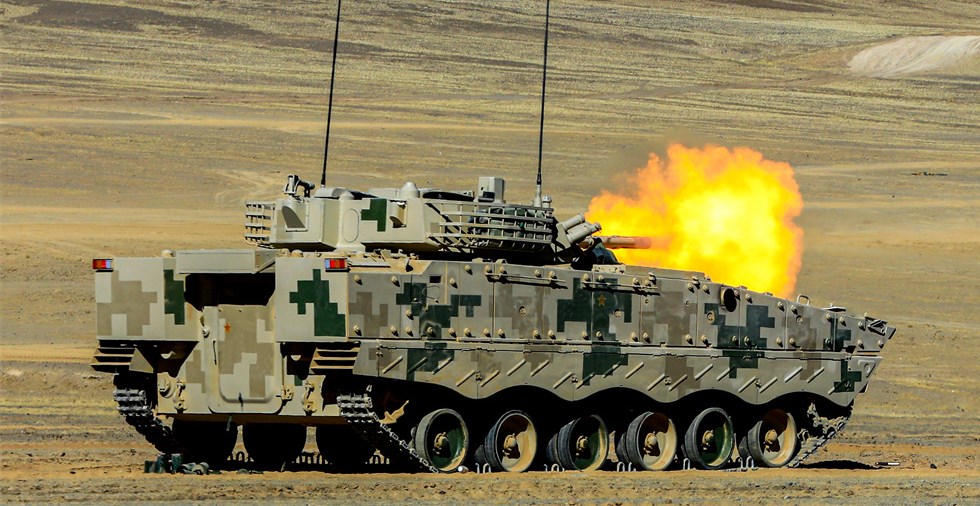

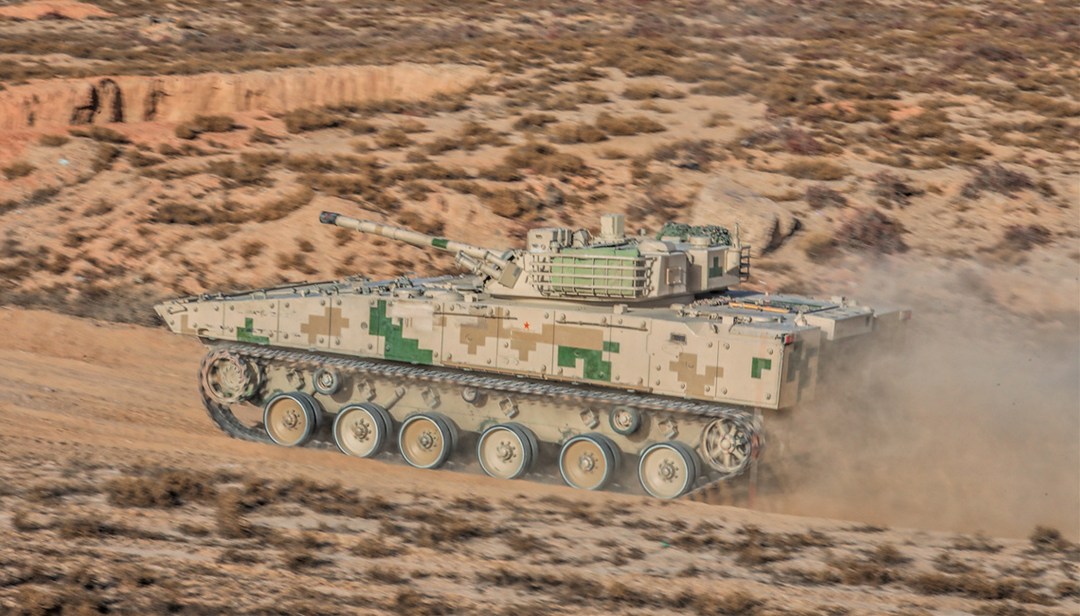

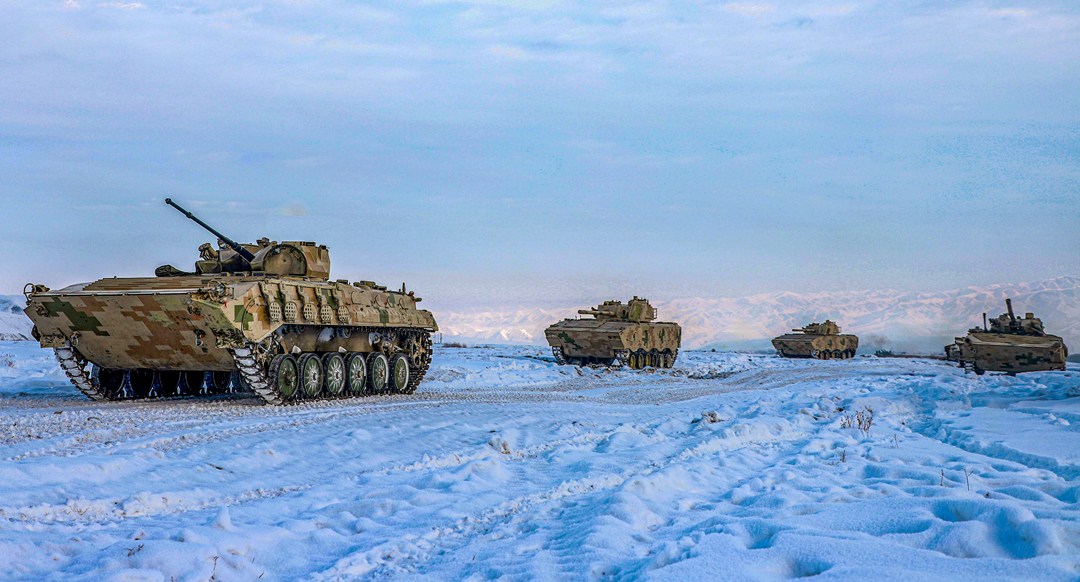

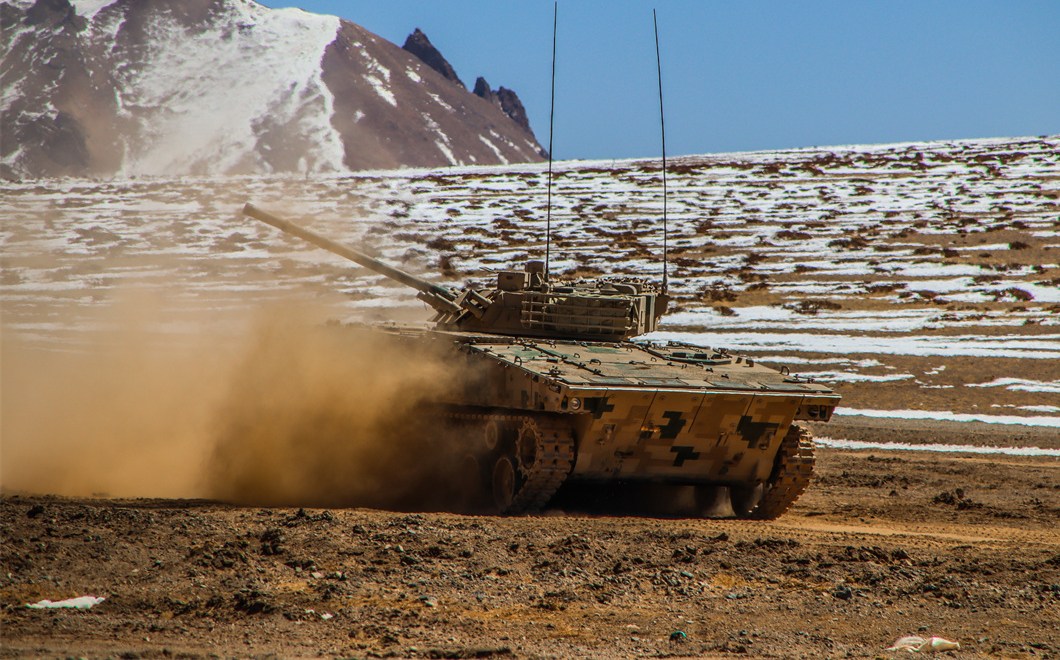

The People's Liberation Army (PLA) ZBD-04 or Type 04 is a 20-ton class, medium armored, amphibious, infantry fighting vehicle (IFV) evolved from the tracked chassis of the of the ZBD97. The ZBD-04 features improved armor and a more compact design for enhanced survivability compared with its predecessor. Protection against Nuclear, Bacteriological and Chemical (NBC) agents is included as standard equipment. The fire control system was improved as well. The vehicle is powered by a diesel engine allowing a top speed in excess of 65 kilometers per hour (kph) over a distance of 500 kilometers. Waterjets are provided to allow amphibious operations with a maximum speed on water of 20 kph. The ZBD-04 IFV entered service with the Chinese PLA by 2010.

Ground Specifications

Crew 3

Troop Capacity 7

Max Speed 65.0 km/h

Range 500.0 km

Overview (Deagel)

Group Tracked Armored Vehicles

Status Active

Also Known As Type 04, VN11, ZBD-04, ZBD97

Origin China

Initial Operational Capability (IOC) 2002

Total Production 500

Specifications (Deagel)

Crew 3

Rolling Rubber Wheels 6

Troops 7

Dimensions — Height 2.5 meter

Dimensions — Length 7.2 meter

Dimensions — Main Gun Caliber 100 millimeter

Dimensions — Width 3.2 meter

Mass — Combat Weight 20,000 kilogram

Performance — Max Range 500 kilometer

Power — Power 590 hp

Speed — Top Speed 65 kph

Speed — Top Swimming Speed 20 kph

Variants

Variant 1 ZBD04

Variant 2 ZBD-97 ARV

Variant 3 ZBD04A

Variant 4 ZBD04A AT

Variant 5 ZBD04A RV

Variant 6 ZBD04 APC

Details

Country of Origin China

Sources

deagel.com: https://www.deagel.com/x/x/a002983

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

7.2 m

Width

3.2 m

Height

2.5 m

Weight

20000 kg

Operators (1)

China
