PGM 2000 (IR)

PGM 2000 (IR)

Standoff Weapons
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
PGM 2000 (IR)
Designation
PGM 2000 (IR)
Alternate Designation
Hakim B
Equipment Type
Standoff Weapons
Manufacturer
MBDA
Date of Introduction
1998
Description

The PGM is a modular family of subsonic high precision weapons designed to destroy high value ground targets reducing collateral damage as much as possible. The PGM also allows aircraft to attack targets safely at standoff distances from the enemy's air defenses. The PGM's targets can be programmed during the flight before firing the PGM or pre-programmed before the flight. The last option is suitable for aircraft without data link bus. The PGM features 3 interchangeable seekers (IR, TV and laser) which enable the use of the PGM in all weather, day and night, and short ranges conditions. PGM's accuracy is 1 meter CEP. The IR and TV guided PGMs can send post-launch images back to an aircraft 100 km away, they can be controlled remotely allowing retargeting and mission abortion. Released from high altitude a PGM can hit targets 60 km away, from low altitude the PGM can hit targets 15 km away. There are two variants of the PGM according to its blast fragmentation warhead weight: the PGM 500 and the PGM 2000. All variants include selectable fuzing options of impact or proximity/airburst detonation. The PGMs have been integrated on the Mirage 2000 and the F-16 aircraft.

Ground Specifications
Range 60.0 km
Overview (Deagel)
Group Standoff Weapons
Status Active
Also Known As Hakim B
Origin France
Contractor MBDA
Initial Operational Capability (IOC) 1998
Total Production ?
Specifications (Deagel)
Dimensions — Diameter 460 millimeter
Dimensions — Length 4.6 meter
Dimensions — Wingspan 1.5 meter
Mass — Weight 1,060 kilogram
Performance — CEP 1 meter
Performance — Max Range 60,000 meter
Performance — Min Range 15,000 meter
Variants

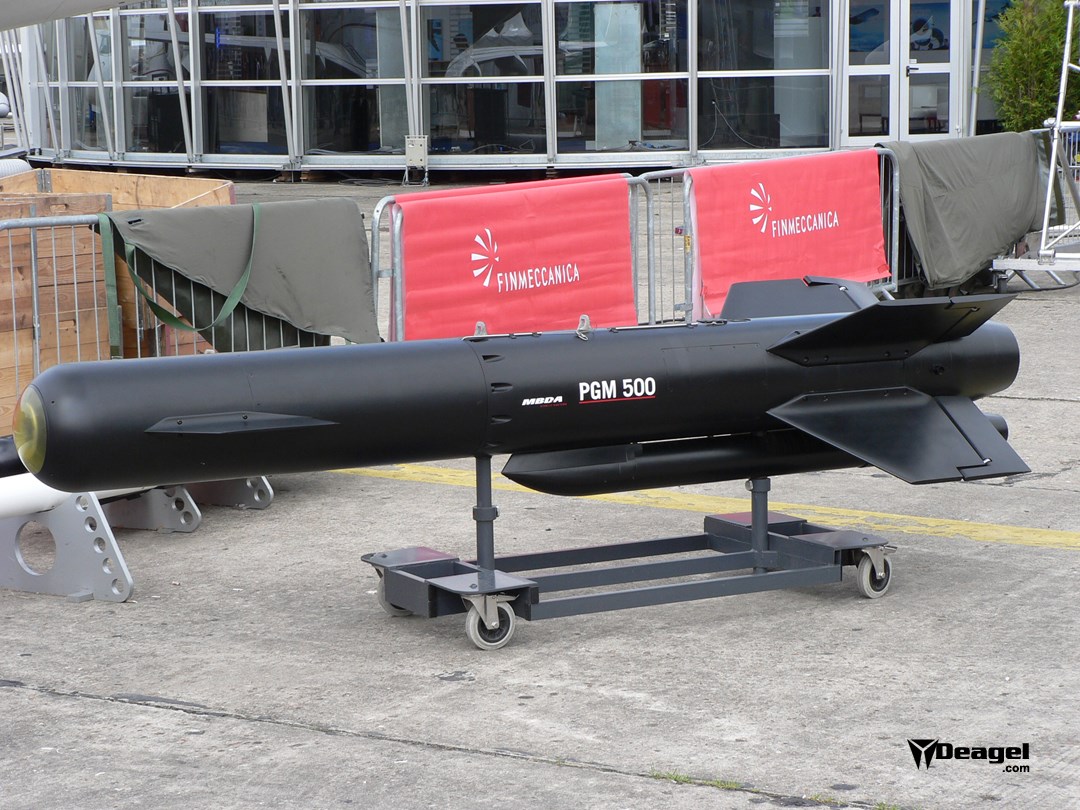

Variant 1 PGM 500 (laser)
Variant 2 PGM 500 (TV)
Variant 3 PGM 500 (IR)
Variant 4 PGM 2000 (laser)
Variant 5 PGM 2000 (IR)
Variant 6 PGM 2000 (TV)
Details
Country of Origin France
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4.6 m
Width
Height
Weight
1060 kg
Operators (1)
France
