Mi-8MTPR1

Utility & Transport Helicopters

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Mi-8MTPR1

Designation

Mi-8MTPR1

Alternate Designation

—

Equipment Type

Utility & Transport Helicopters

Manufacturer

Kazan Helicopters, KRET, Mil Helicopter, Russian Helicopters

Date of Introduction

2015

Description

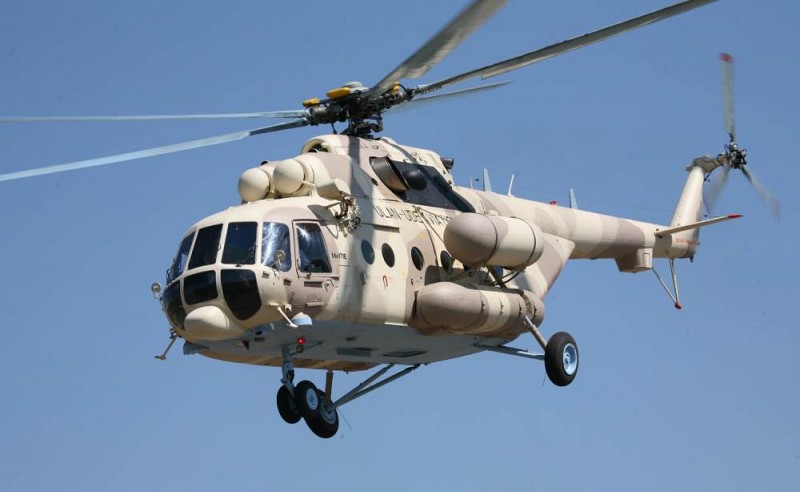

The Mi-8MTPR1 is a variant of the Mi-8MTV5-1/Mi-17V-5 transport helicopter equipped with the Richag-AV radar and sonar jamming system. The purpose of the Mi-8MTPR1 is to protect aircraft, helicopters, drones, ground and naval forces against air defenses and air-to-air missiles from distances of several hundred kilometers away. The Mi-8MTPR1's Richag-AV blinds any radiofrequency-based weapon system. In a combat situation, the helicopter will operate as part of an aviation shock group aimed at breaking through any defense system, blinding everything including the Patriot air defense system. The Russian Armed Forces ordered 18 Mi-8MTPR1 helicopters worth 11.5 billion Rubles and to be delivered through October 2016. The first batch of three helicopters was delivered on March 4, 2015.

Air & Air Defense Specifications

Crew 4

Max Speed 250.0 km/h

Range 580.0 km

Service Ceiling 6000 m

Overview (Deagel)

Group Utility & Transport Helicopters

Status Active

Origin Russia

Contractors Kazan Helicopters, KRET, Mil Helicopter, Russian Helicopters

Initial Operational Capability (IOC) March 2015

Total Production 18

Unitary Cost RUB 638 million

Specifications (Deagel)

Crew 4

Main Rotor Blades 5

Number of Engines 2

Tail Rotor Blades 3

Area — Main Rotor Disc Area 356 square meter

Dimensions — Height 5.7 meter

Dimensions — Length 18.2 meter

Dimensions — Main Rotor Diameter 21.3 meter

Mass — Max Takeoff Weight 13,000 kilogram

Performance — Ceiling 6,000 meter

Performance — Max Range 580 kilometer

Power — Max Power at TakeOff 5,400 hp

Speed — Top Speed at High Altitude 250 kph

Gear (Deagel)

Item 1 Jamming Systems: Richag-AV (1)

Item 2 Turboshaft Engines: VK-2500 (2)

Variants

Variant 1 Mi-8

Variant 2 Mi-14

Variant 3 Mi-171A1

Variant 4 Mi-171Sh

Variant 5 Mi-17V-5

Variant 6 Mi-171M

Variant 7 Mi-8AMTSh-V

Variant 8 Mi-8MTPR1

Variant 9 Mi-8AMTSh-VA

Variant 10 Mi-171A2

Variant 11 Mi-171Sh-VN

Variant 12 Mi-171A3

Details

Country of Origin Russia

Category Transport Helicopter

Air > Transport Helicopter

Sources

deagel.com: https://www.deagel.com/x/x/a000692

Classification

Domain

Air & Air Defense

Equipment Status

Active

Dimensions

Length

18.2 m

Width

—

Height

5.7 m

Weight

13000 kg
