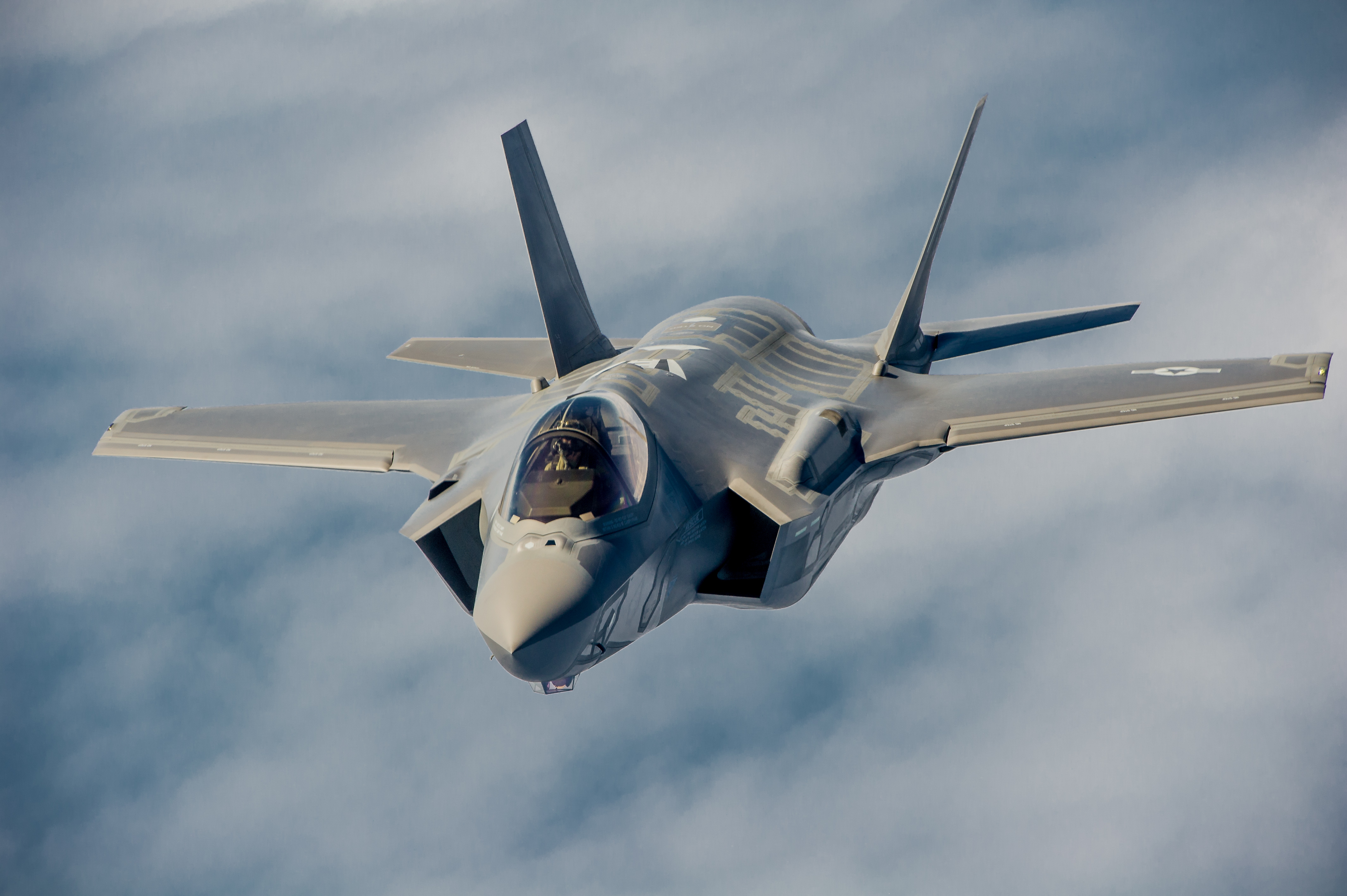

F-35C Lightning II

F-35C Lightning II

Multi-Role Fighters
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
F-35C Lightning II
Designation
F-35C Lightning II
Alternate Designation
F-35 CV, Joint Strike Fighter, JSF
Equipment Type
Multi-Role Fighters
Manufacturer
Lockheed Martin, BAE Systems, Northrop Grumman
Date of Introduction
2019
Description

The Carrier-based (CV) F-35C was developed to replace the F/A-18C/D onboard the US Navy's aircraft carriers. The F-35C aircraft features larger wings and greater wing area as well as larger tail control surfaces for low-speed aircraft carrier operations. It also features strengthened landing gear and airframe to handle the loads associated with catapult launch and arrested landing operations. A refueling probe on the right side of the forward fuselage has been provided to the F-35C instead of the hose and dogue used by the F-35A. The United Kingdom's Royal Air Force and Navy studied the possibility of purchasing the F-35C variant but finally opted for the USMC F-35B STOVL aircraft. The F-35C performed its maiden flight on June 6, 2010, and is expected to achieve Initial Operational Capability (IOC) n the 2018-2020 timeframe. The US Navy plans call for the procurement of 260 aircraft and the US Marine Corps plans call for the acquisition of 80 F-35Cs replacing its F/A-18C/Ds operating from the US Navy's aircraft carriers. No export orders are expected for the F-35C.

Air & Air Defense Specifications
Crew 1
Max Speed 1975.7 km/h
Range 2222.4 km
Service Ceiling 18288 m
Wingspan 13.11 m
Overview (Deagel)
Group Multi-Role Fighters
Status Active
Also Known As F-35 CV, Joint Strike Fighter, JSF
Origin United States of America
Contractors Lockheed Martin*, BAE Systems, Northrop Grumman
Initial Operational Capability (IOC) March 28, 2019
First Flight June 6, 2010
Total Production 158
Unitary Cost USD $122 million
Specifications (Deagel)
Crew 1
External Stations 6
Internal Stations 4
Number of Engines 1
Service Life Flight Hours 8000
Sorties a day 0
Area — Radar Cross Section (RCS) 0.10 square meter
Area — Wing Area 668 square foot
Dimensions — Height 14.7 foot
Dimensions — Length 51.5 foot
Dimensions — Main Gun Caliber 25 millimeter
Dimensions — Wingspan 43 foot
G-load — Max Maneuvering Load Factor 7.5 g
Mass — Empty Weight 34,800 pound
Mass — Fuel Load 19,750 pound
Mass — Max Takeoff Thrust 40,000 pound
Mass — Max Takeoff Weight 70,000 pound
Mass — Payload 18,000 pound
Percentage — Availability 37 %
Performance — Ceiling 60,000 foot
Performance — Max Range 1,200 nautical mile
Performance — Radius of Operation 600 nautical mile
Speed — Top Speed at High Altitude 1.6 mach
Gear (Deagel)
Item 1 Air-to-Air Missiles: AIM-120D AMRAAM (2)
Item 2 Anti-Ship Missiles: AGM-184 JSM (2)
Item 3 Bombs: GBU-12 Paveway II (2)
Item 4 Bombs: GBU-32 JDAM (2)
Item 5 Bombs: GBU-49 Paveway II (2)
Item 6 Bombs: GBU-53/B StormBreaker (2)
Item 7 Communications Devices: AN/ASQ-242 (1)
Item 8 Fighter Aircraft Engines: F135-PW-100 (1)
Item 9 Fighter Aircraft Engines: F136 (1)
Item 10 Helmets: F-35 HMDS (1)
Item 11 Helmets: JSF HMD (1)
Item 12 Jamming Systems: AN/ASQ-239 (1)
Item 13 Medium Caliber Cannons: GAU-22/A (1)
Item 14 Optronic Systems: EO DAS (1)
Item 15 Optronic Systems: EOTS (1)
Item 16 Radar Systems: AN/APG-81 (1)
Variants
Variant 1 F-35B Lightning II
Variant 2 F-35A Lightning II
Variant 3 F-35I Adir
Variant 4 F-35C Lightning II
Variant 5 F-35E
Details
Country of Origin United States
Category Multirole Aircraft
Air > Multirole Aircraft
Sources

deagel.com: https://www.deagel.com/x/x/a000547

Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
15.7 m
Width
13.11 m
Height
4.48 m
Weight
31751.44 kg
Related Equipment (1)
Variant of

F-35 Lighting II American Multirole Combat Aircraft

F-35

Multirole Fighter AircraftUnited States
View details
Operators (2)
United States
United Kingdom
