ALTV

ALTV

Tactical Vehicles
Spotted an error? Sign in to suggest an edit.
ALTV
Operational Photo
deagel.com
Basic Information
Name
ALTV
Designation
ALTV
Alternate Designation

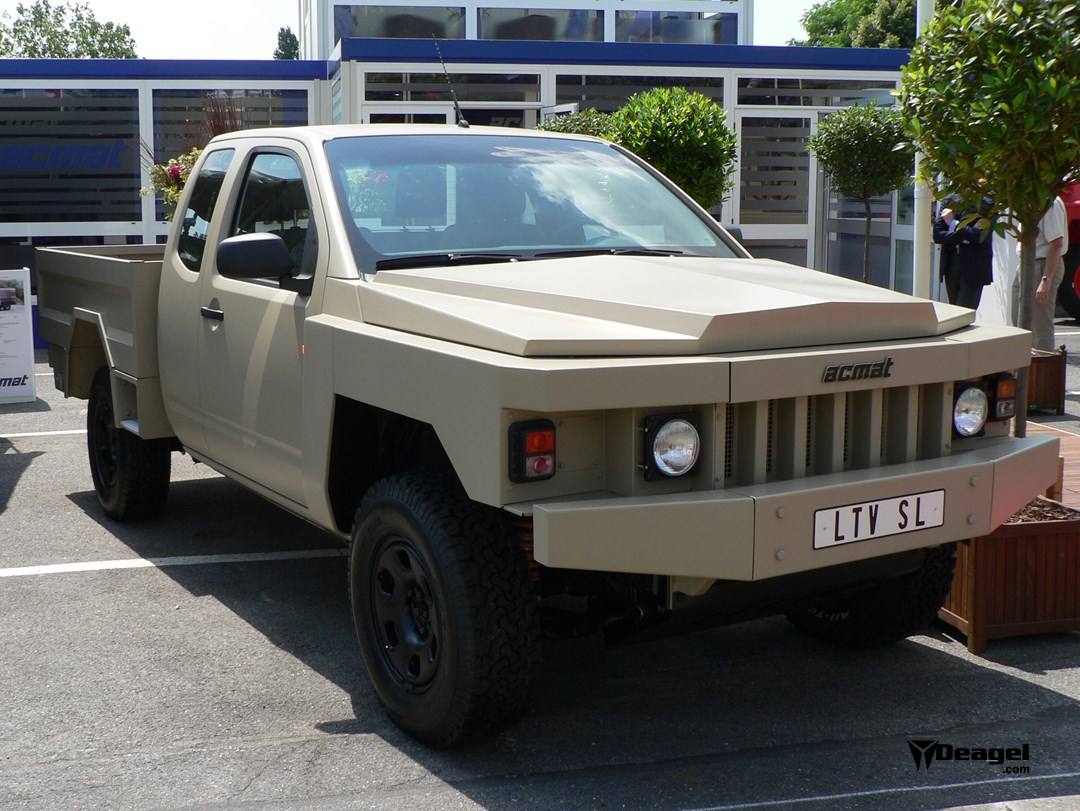

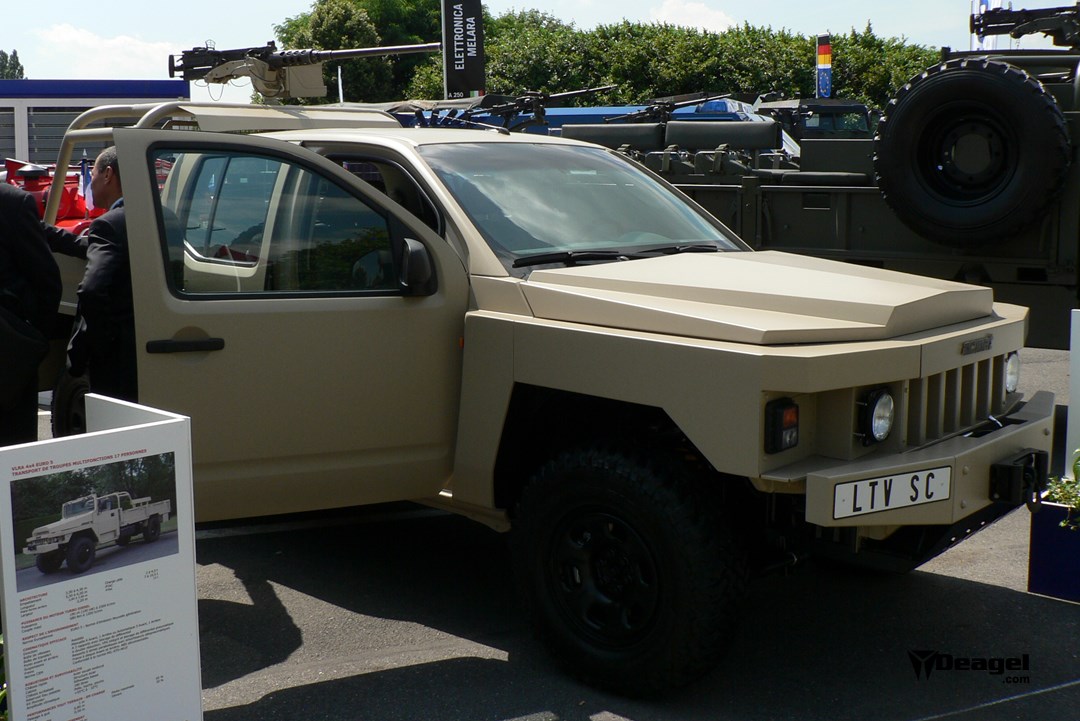

ACMAT Light Tactical Vehicle, ALTV DC (double cab version), ALTV SC (short cab version), LTV SL
Equipment Type
Tactical Vehicles
Manufacturer
ACMAT
Date of Introduction
2008
Description

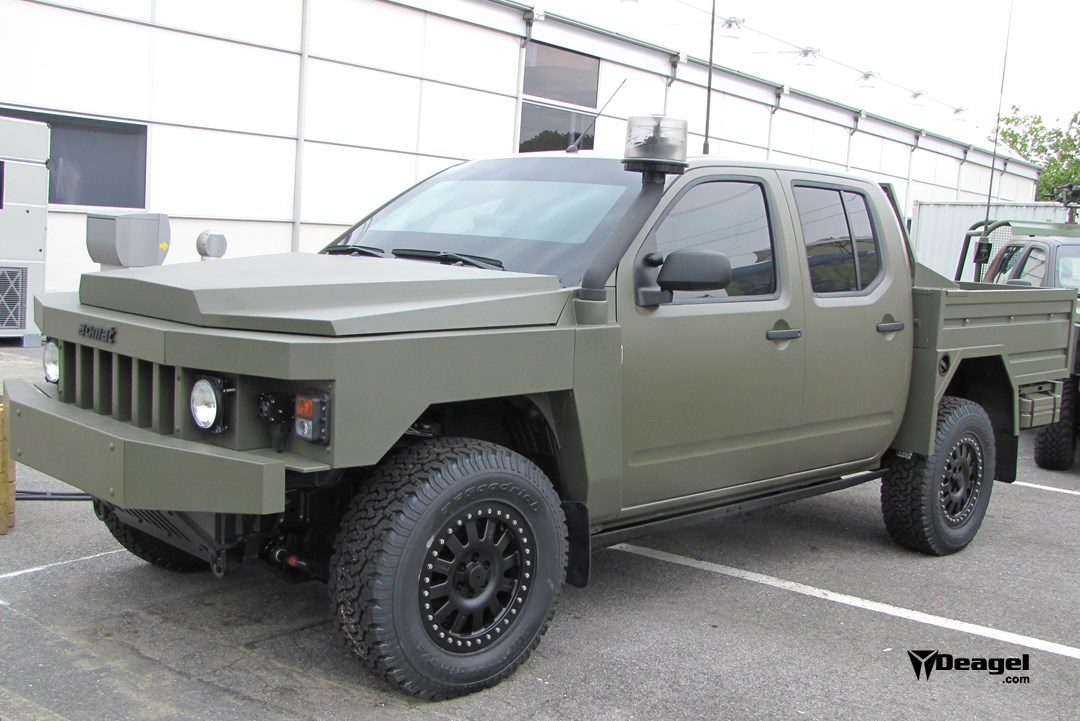

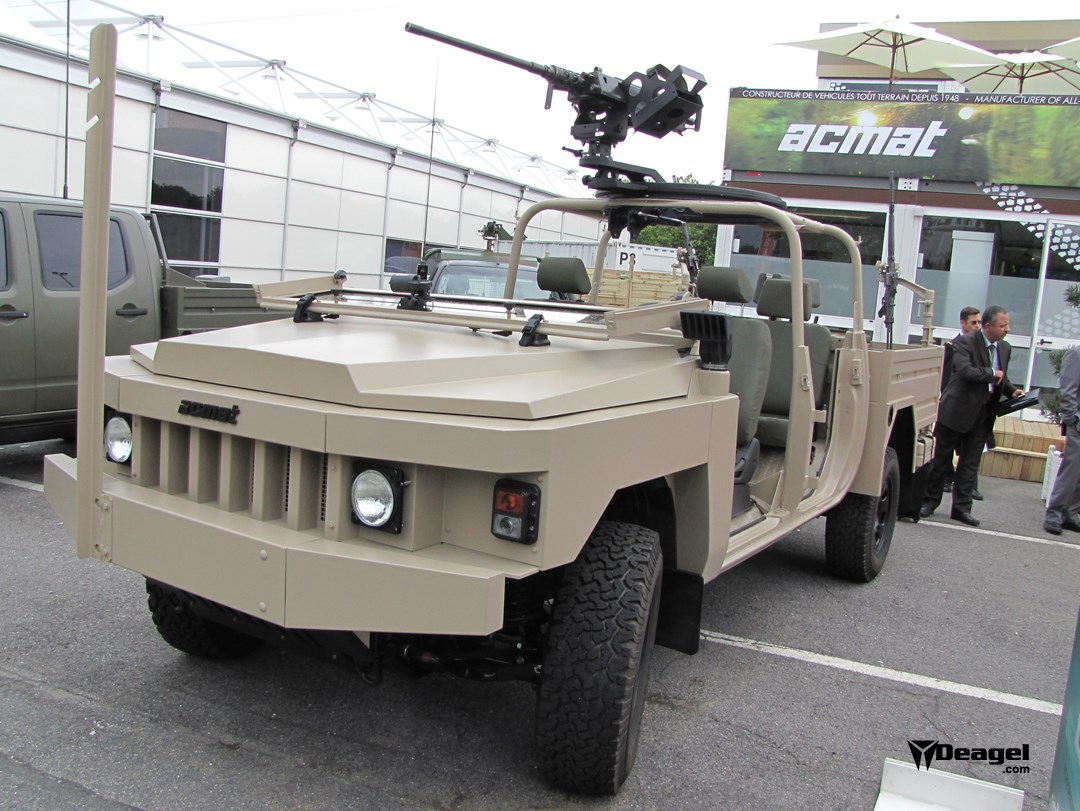

The ALTV (ACMAT Light Tactical Vehicle) is a 5-ton class 4x4 modular vehicle family designed to provide maximum flexibility. Thanks to its Euro 2 and 4 emissions compliant turbo diesel engine developing 170-hp it can achieve a maximum speed of 170 kph. The ALTV can transport up to 10 persons, four inside cabin and six in the rear compartment, or a 1.4-ton payload over ranges from 800 to 1,600 kilometers. The vehicle can be airlifted by C-130, C-160 and A400M aircraft or CH-53 helicopter. The ACMAT LTV vehicle family is available in ALTV SC (short cab) and ALTV DC (double cab) versions. The ALTV can be equipped with small caliber weapons such as 12.7mm and 7.62mm machine guns or a 40mm automatic grenade launcher as well as anti-tank and anti-air missile systems.

Ground Specifications
Crew 10
Troop Capacity 10
Mobility Type Wheeled (4x4)
Max Speed 170.0 km/h
Range 1600.0 km
Overview (Deagel)
Group Tactical Vehicles
Status Active
Also Known As ACMAT Light Tactical Vehicle, ALTV DC (double cab version), ALTV SC (short cab version), LTV SL
Origin France
Contractor ACMAT
Initial Operational Capability (IOC) 2008
Total Production ?
Specifications (Deagel)
Troops 10
Wheel Drive 4
Wheels 4
Degree — Approach Angle 35 °
Degree — Departure Angle 30 °
Dimensions — Ground Clearance 300 millimeter
Dimensions — Height 1.8 meter
Dimensions — Length 5.3 meter
Dimensions — Track 1.6 meter
Dimensions — Wheelbase 3.2 meter
Dimensions — Width 1.9 meter
Energy — Max Torque 400 Nm
Mass — Cargo 1.4 ton
Mass — Max Weight 5.8 ton
Mass — Operational Weight 3.5 ton
Percentage — Gradient 80 %
Performance — Ditch Crossing Ability 0.50 meter
Performance — Fording Depth 0.50 meter
Performance — Max Range 1,600 kilometer
Performance — Step Climbing Ability 0.35 meter
Performance — Turning Radius 6.7 meter
Power — Power 170 hp
Speed — Top Speed 170 kph
Volume — Fuel Tank Capacity 170 liter
Details
Country of Origin France
Sources

deagel.com: https://www.deagel.com/x/x/a002186

Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.3 m
Width
1.9 m
Height
1.8 m
Weight
5800 kg
