Type 75 Japanese 155mm Self-Propelled Howitzer (SPH)

Type 75

Self-Propelled Howitzer (SPH)

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Type 75 Japanese 155mm Self-Propelled Howitzer (SPH)

Designation

Type 75

Alternate Designation

Type 75

Equipment Type

Self-Propelled Howitzer (SPH)

Manufacturer

—

Date of Introduction

1975

Description

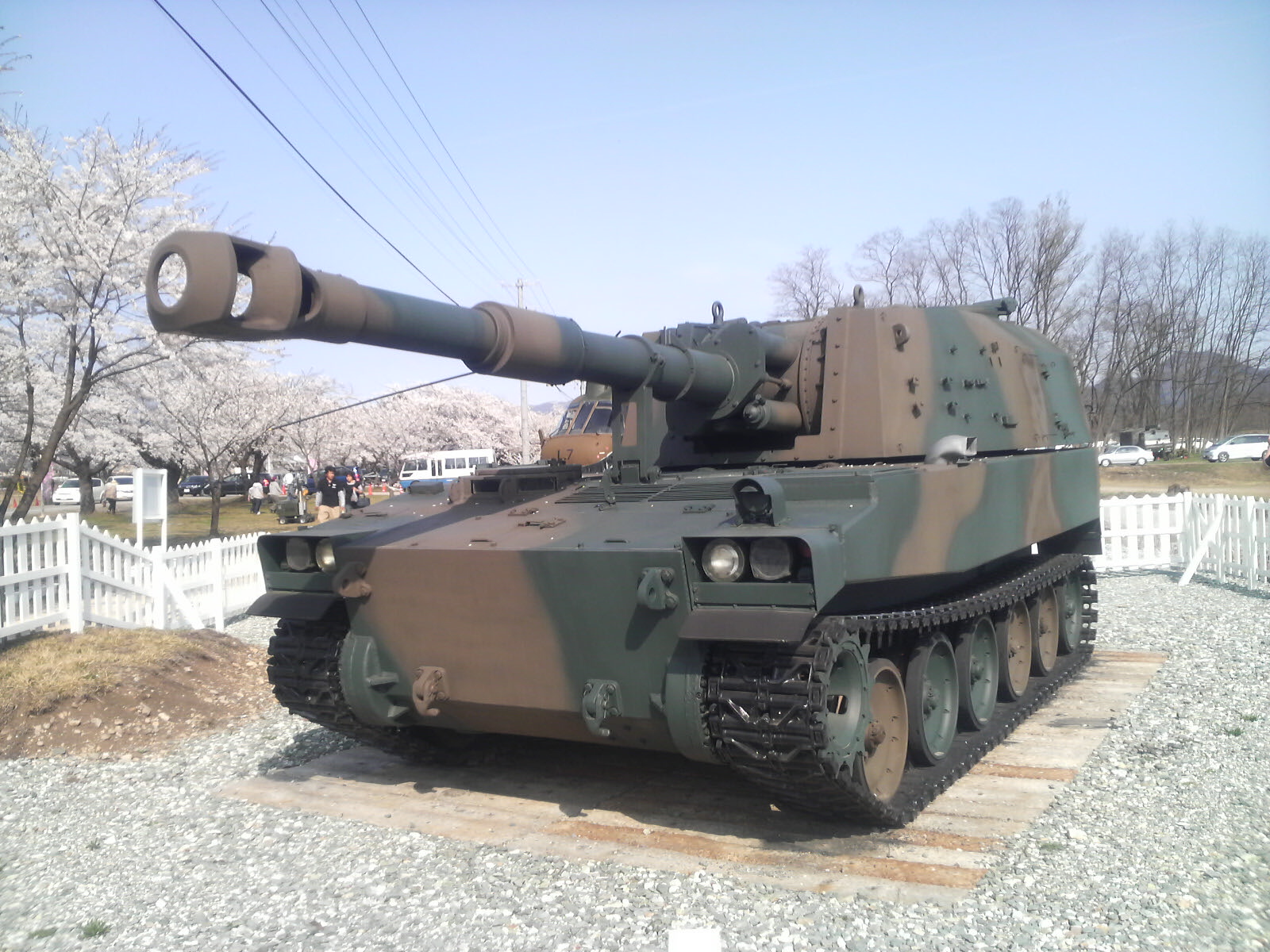

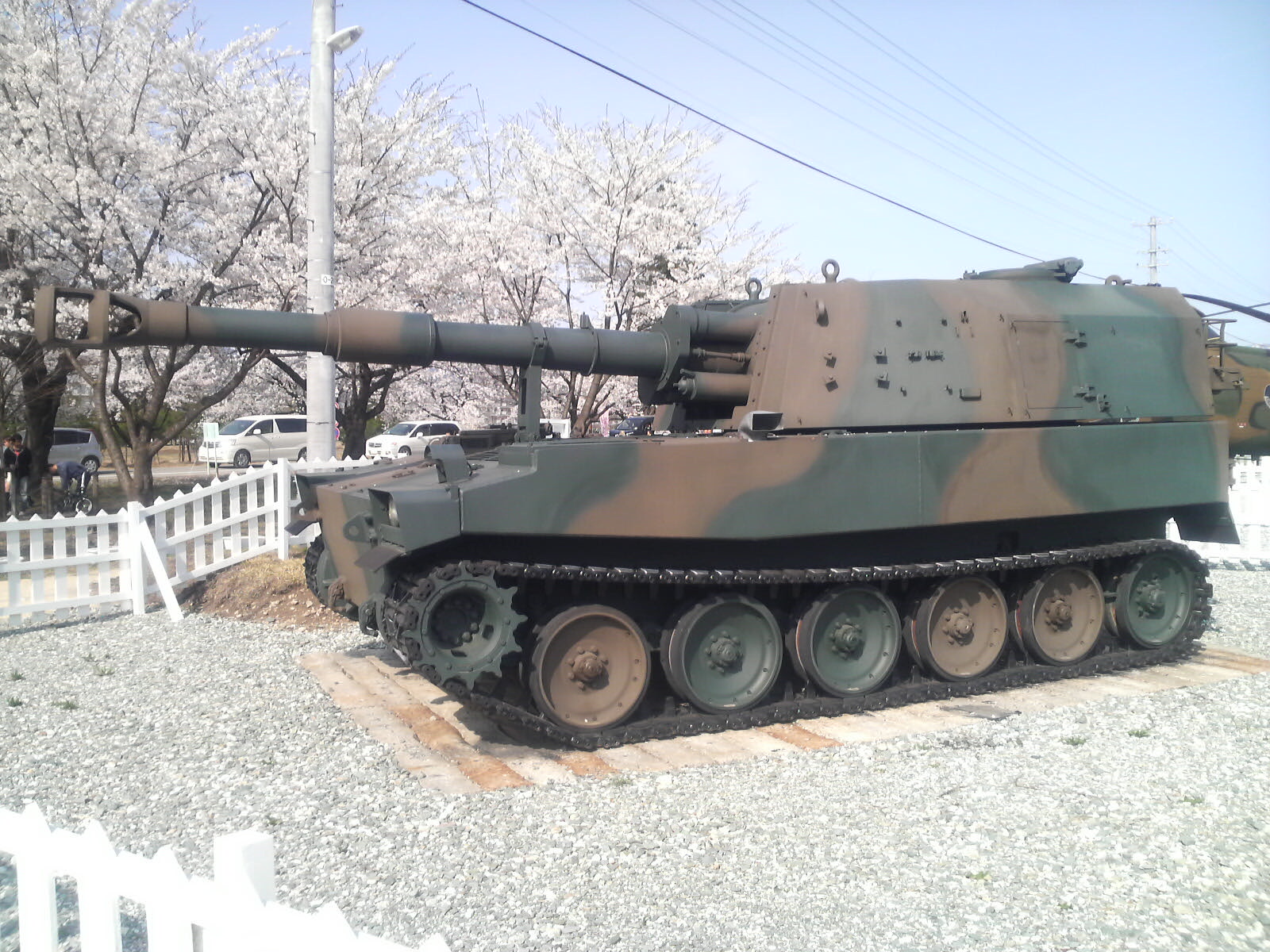

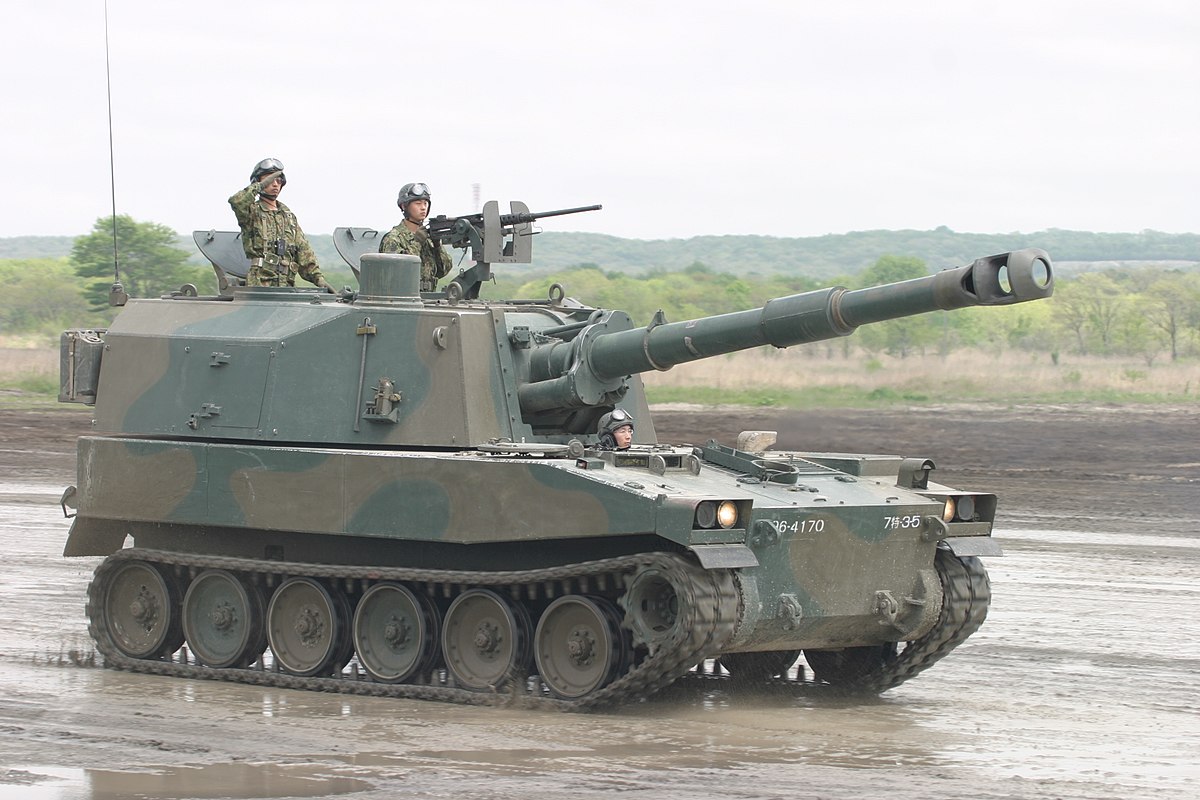

The Type 75 howitzer looks like the U.S. M109A1 self-propelled howitzer. Mitsubishi Heavy Industries, Japan built the hull and conducted the final assembly. Japan Iron Works built the howitzer and turret. It is fitted with a semi-automatic loading system consisting of two drum-type rotating magazines, a loaded tray, and a hydraulic rammer. The rotating magazines each hold 9 projectiles. The howitzer returns to a 6-degree elevation for reloading after firing. Upon completion of reloading the howitzer returns to its firing elevation. Secondary armament consists of a roof-mounted 12.7 mm heavy machine gun with a small shield for protection. Armor of the Type 75 provides protection against small arms fire and artillery shell splinters. The vehicle is fitted with NBC protection system as well as a fire-suppression system. The Type 75 is no longer being produced and is being replaced by the Type 99 SPH.

Ground Specifications

Crew 6

Engine Air cooled, 2 stroke, 6-cyl diesel (445 hp)

Active Protection None

NBC Protection Yes

Range 300.0 km

System

Alternative Designation Type 75

Type Self-Propelled Howitzer (SPH)

Caliber 155 mm

Crew 6 ea

Chassis Type 75

Displacement Time INA

Emplacement Time INA

Dimensions

Length,Hull 6.64 m

Length, Gun Forward 7.79 m

Width 3.09 m

Height, Overall 2.55 m

Weight 25,300 kg

Ground Pressure 0.64 kg/cm sq

Track, Length on Ground 5.20 m

Track width 500 mm

Ground Clearance 400 mm

Automotive

Engine Name 1 x Mitsubishi 6ZF

Engine Type Air cooled, 2 stroke, 6-cyl diesel

Engine Power 445 hp hp

Fuel Capacity 650 liters

Power-to-Weight Ratio 17.8 hp/metric ton

Transmission Manual: 1 reverse/4 forward gears

Range 300 km

Speed, Maximum Road 47 km/h

Speed, Average Cross INA

Speed Maximum Swim Not Amphibious

Side Slope 30 %

Gradient 60 %

Vertical Step 0.70 m

Trench 2.50 m

Fording Depth 1.30 m

Suspension Torsion bar with 6 road wheels on both sides with front drive. The 6th road wheel acts as an idler. There are hydraulic shock absorbers located on the 1st and 5th road wheels. There are no return rollers.

Main Gun

System

Name 1 x L30 155mm Howitzer

Type Rifled Howitzer

Caliber 155mm/30 cal

Length INA

Barrel Length 30 calibers

Weight INA

Cannon Groves INA

Rifling INA

Breech Type step thread, interrupted screw

Recoil System hydropneumatic

Elevation -5/+65 deg (-53/+1,333 mils)

Traverse 360 deg (6,400 mils)

Maximum Firing Range 24,000 m (rocket assisted)

Maximum Rate of Fire INA

Sustained Rate of Fire 6 rpm

Ammunition (Option 1)

Name INA

Type Frag-HE

Caliber 155 mm

Length INA

Weight INA

Maximum Range 19,000 m

On Board Load 28 Rounds

Note The Type 75 is capable of firing the US M107 projectile.

Auxiliary Weapon System

System

Name 1 x M2 Browning

Type Heavy Machine Gun

Caliber 12.7mm

Length 1,654 mm

Barrel Length 1,143 mm

Weight 58 kg with tripod and T&E (Traverse and Elevation Mechanism)

Action Short recoil-operated

Rate of Fire 450–600 rounds/min

Muzzle Velocity 890 m/s

Maximum Firing Range 7,400 m

Effective Firing Range 1,800 m

Feed System Belt-fed (M2 or M9 links)

Sights INA

Ammunition

Type Rifle

Caliber 12.7 mm

Cartridge 12.7×99mm NATO

Basic Load 1,000 rds

Fire Control

Computerized FCS No

Thermal Sight Vehicle Commander INA

Thermal Sight Gunner INA

Main Gun Stabilization No

Night Vision Devices Yes

Protection

Hull Armor Aluminum armor of the Type 75 provides protection against small arms fire and artillery shell splinters.

Turret Armor Protection against small arms fire and artillery shell splinters.

Applique Armor No

Explosive Reactive Armor No

Active Protection System No

Mine Clearing No

Self-Entrenching Blade No

NBC Protection Yes

Smoke Equipment No

Fire Suppression Yes

Image Sources

Notes https://commons.wikimedia.org/wiki/File:JGSDF_Type75_15HSP.jpg; https://www.wikidata.org/wiki/Q11590683; https://commons.wikimedia.org/wiki/File:JGSDF_Type75_155mm_Self-propelled_howitzer20090419-02.jpg;

Details

Country of Origin Japan

Category Self-Propelled Gun/Howitzer Artillery Systems

Land > Artillery > Self-Propelled Gun/Howitzer Artillery Systems

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

—

Width

3.09 m

Height

2.55 m

Weight

25300 kg

Operators (1)

Japan
