Type 054
Type 054
Frigates
Spotted an error? Sign in to suggest an edit.

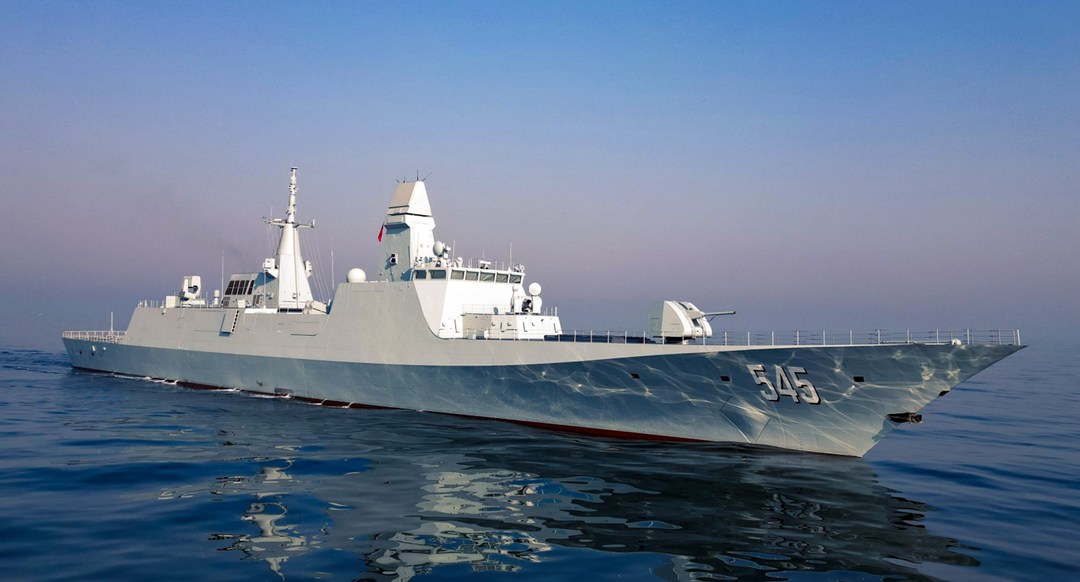

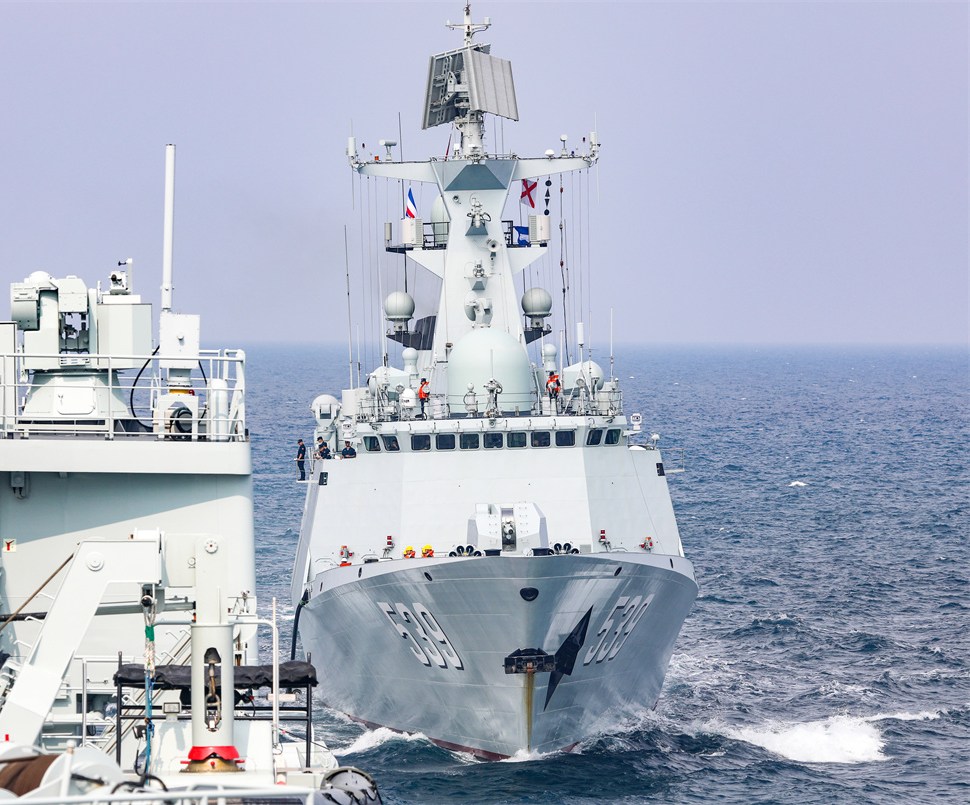

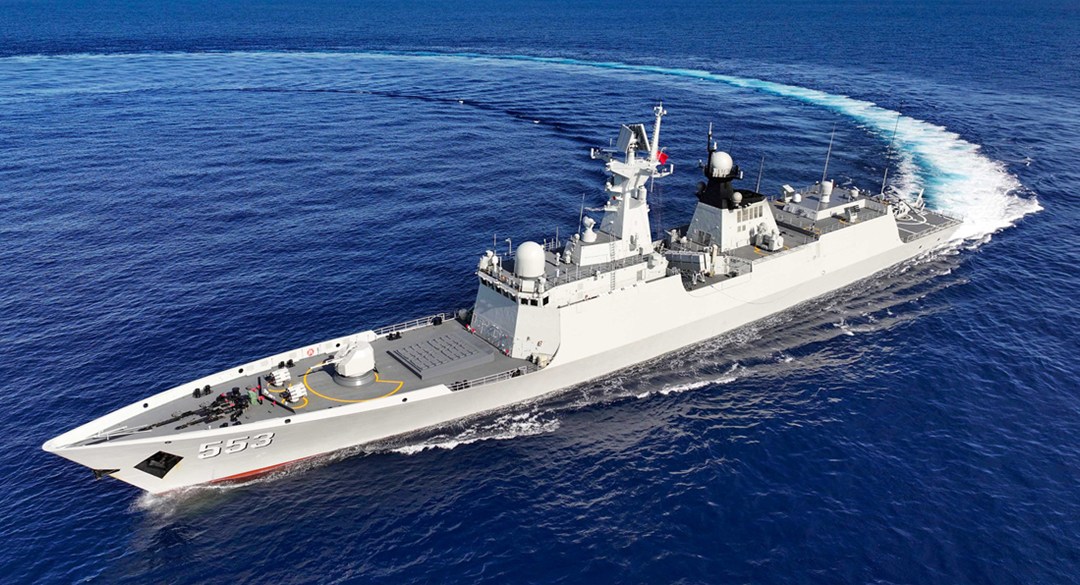

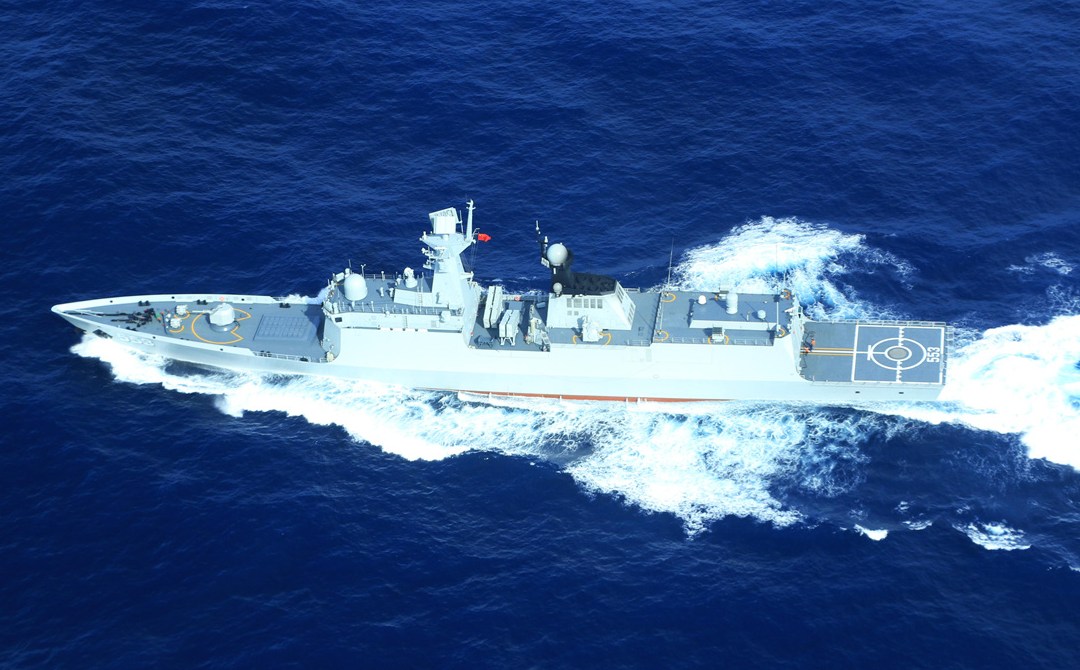

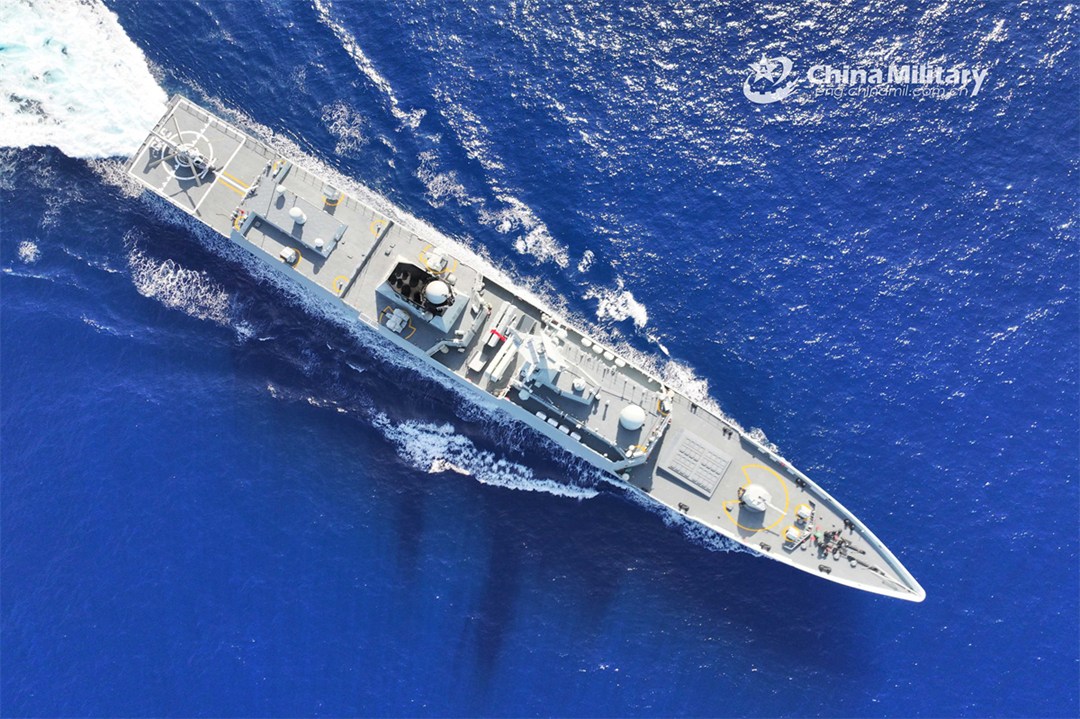

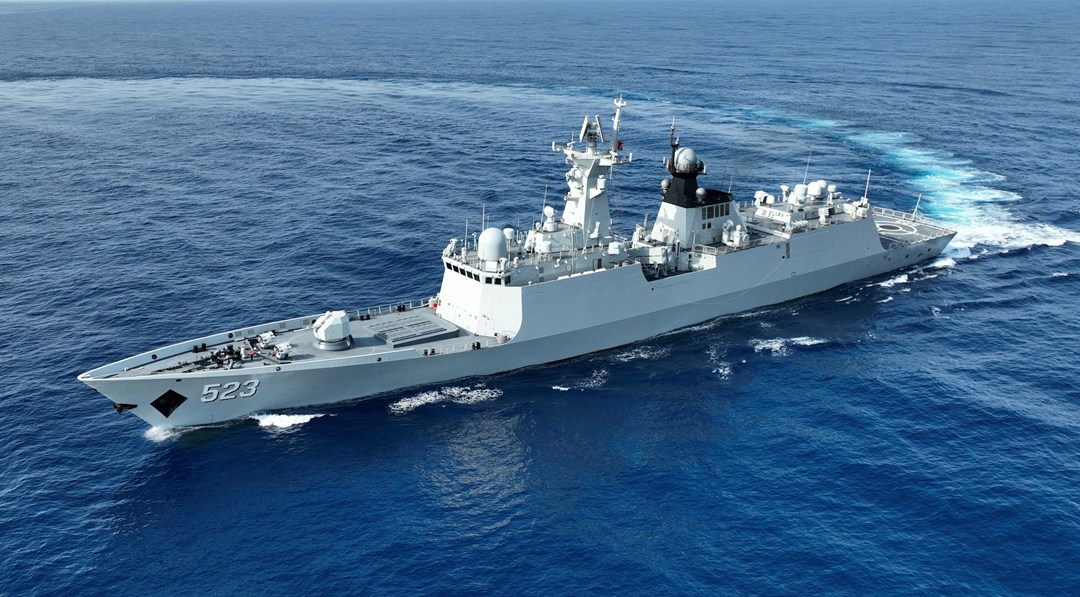

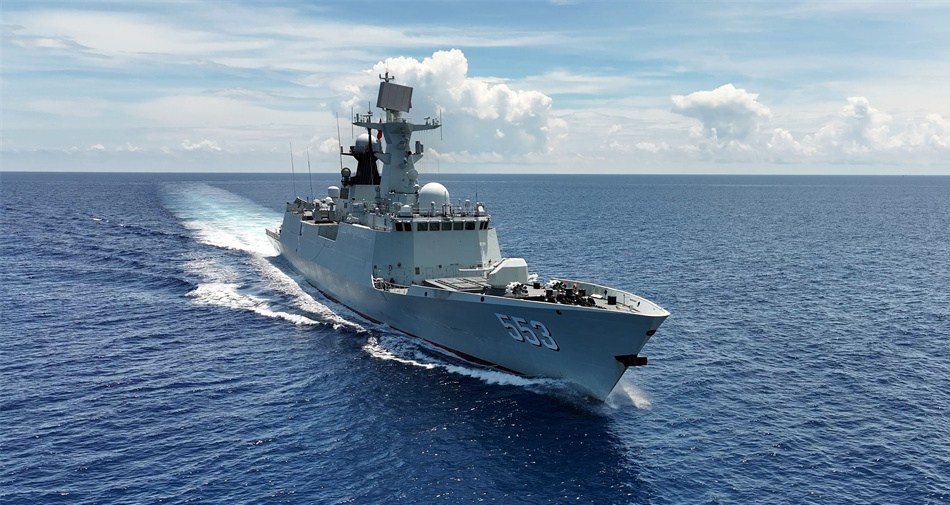

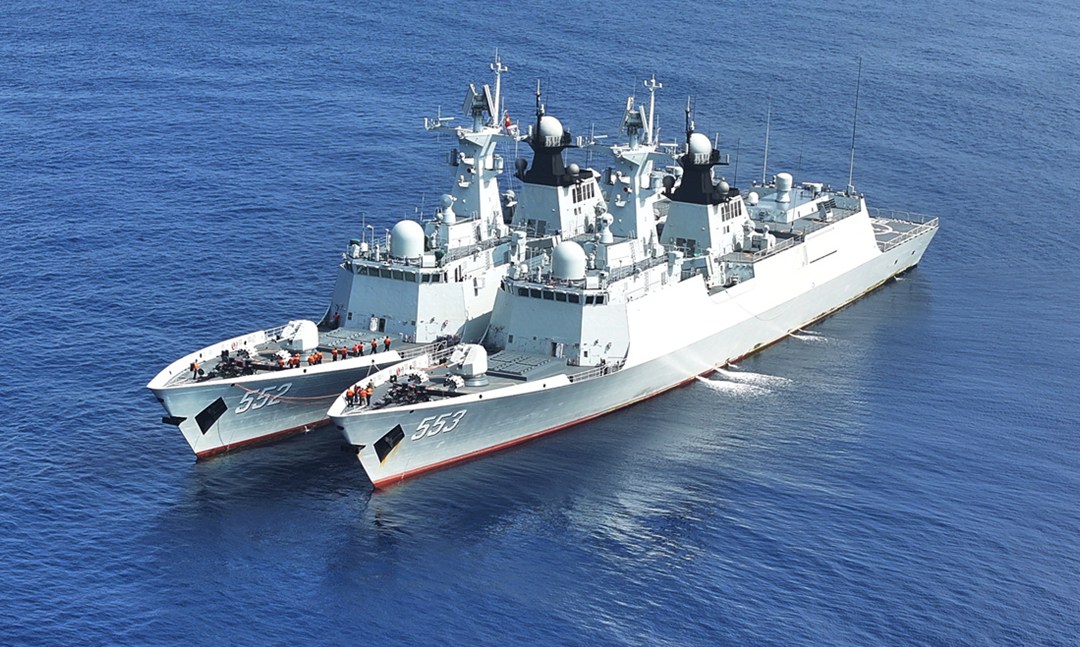

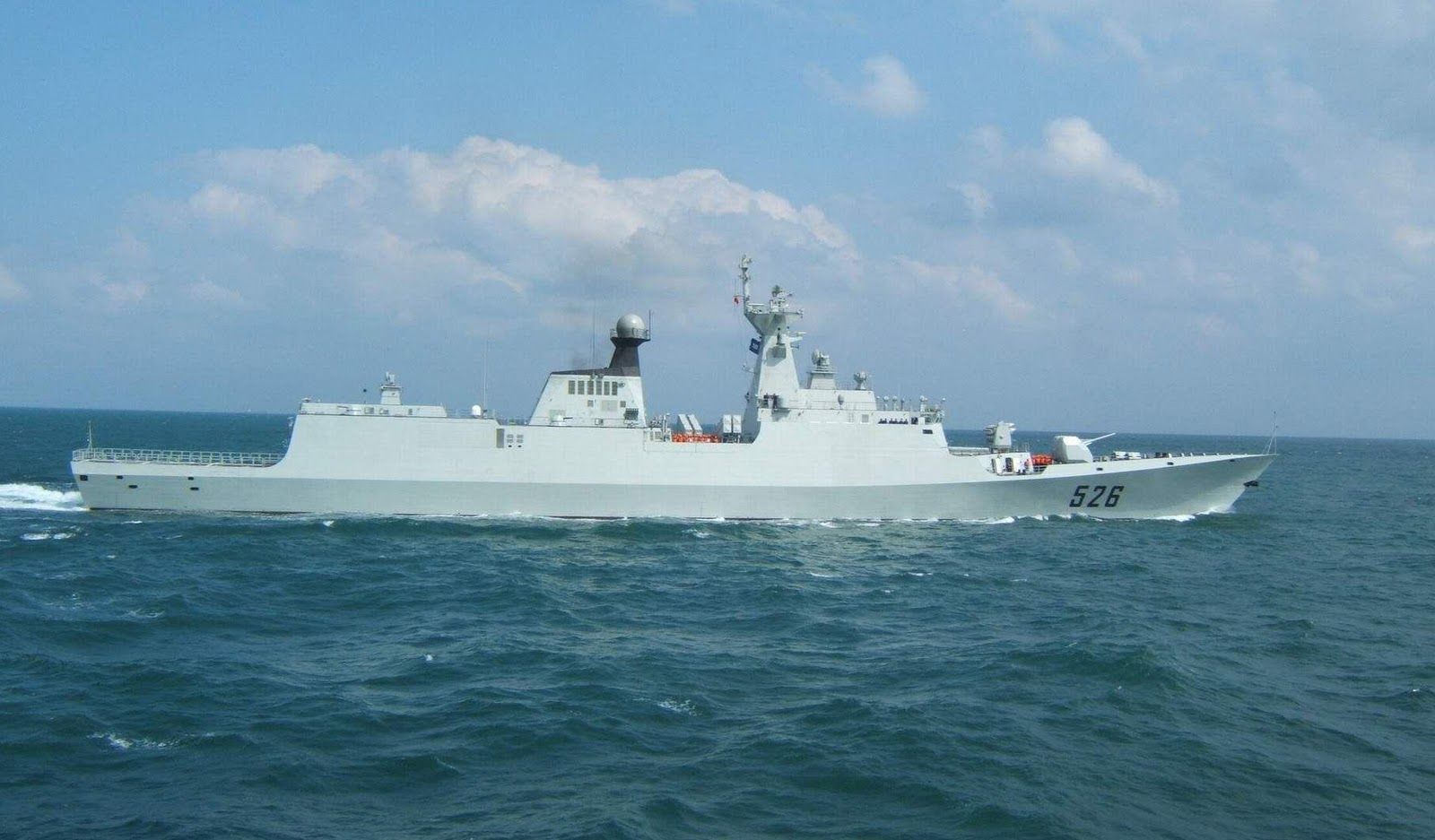

Operational Photo
Basic Information
Name
Type 054
Designation
Type 054
Alternate Designation
Jiangkai (NATO codename), Ma'anshan (lead ship name)
Equipment Type
Frigates
Manufacturer
Guangzhou Huangpu Shipyard, Hudong-Zhonghua Shipbuilding
Date of Introduction
2005
Description
The Type 054 class frigate has a flight deck and hangar at the stern for a medium-sized ASW helicopter such as Ka-28 or Z-9C. The ship's weapon system includes eight (2x4) YJ-83 anti-ship missiles; an eight-cell Crotale/HQ-7 short-range air defense missile system and a 100mm gun at the bow; and four Russian AK-630 six-barrel 30mm guns for close-in air defense against aircraft and missile threats. The CODAD-based propulsion system comprises two French-made diesel engines developing 21,000-hp and two secondary diesel engines developing 8,840-hp.
Naval & Littoral Specifications
Displacement
3400.00 tonnes
Beam
16.00 m
Draft
5.00 m
Max Speed
27.0 knots
Overview (Deagel)
Group
Frigates
Status
Active
Also Known As
Jiangkai (NATO codename), Ma'anshan (lead ship name)
Origin
China
Contractors
Guangzhou Huangpu Shipyard, Hudong-Zhonghua Shipbuilding
Initial Operational Capability (IOC)
2005
Total Production
2
Specifications (Deagel)
Number of Aircraft
1
Number of Weapons
16
Torpedo Tubes
3
Dimensions — Beam
16 meter
Dimensions — Draft
5 meter
Dimensions — Length
134 meter
Dimensions — Main Gun Caliber
100 millimeter
Mass — Full Displacement
3,400 ton
Performance — Max Range
8,000 nautical mile
Power — Total Combined Power
21,000 hp
Speed — Economical Speed
18 knot
Speed — Top Speed
27 knot
Gear (Deagel)
Item 1
Anti-Ship Missiles: YJ-83 (8)
Item 2
ASW Helicopters: Ka-28 (1)
Item 3
ASW Helicopters: Z-9C (1)
Item 4
Naval Gun Systems: PJ87 (1)
Item 5
Ship Power Plants: PA6 STC (4)
Item 6
Surface-to-Air Missiles: HQ-7 (8)
Variants
Variant 1
Type 054
Variant 2
Type 054A
Variant 3
Type 054B
Details
Country of Origin
China
Category
Frigates
Naval > Frigates
Sources
deagel.com: https://www.deagel.com/x/x/a001840
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
134 m
Width
16 m
Height
—
Weight
3400000 kg
Related Equipment (1)
Operators (1)
China
