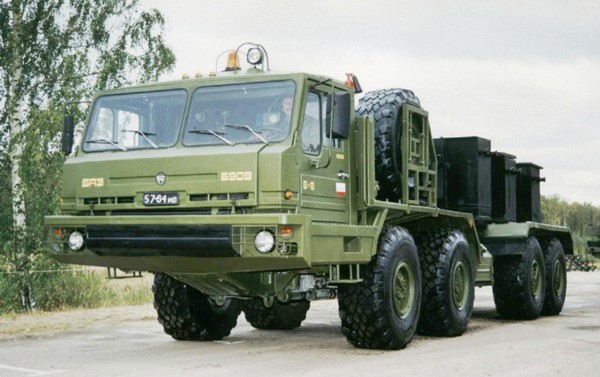

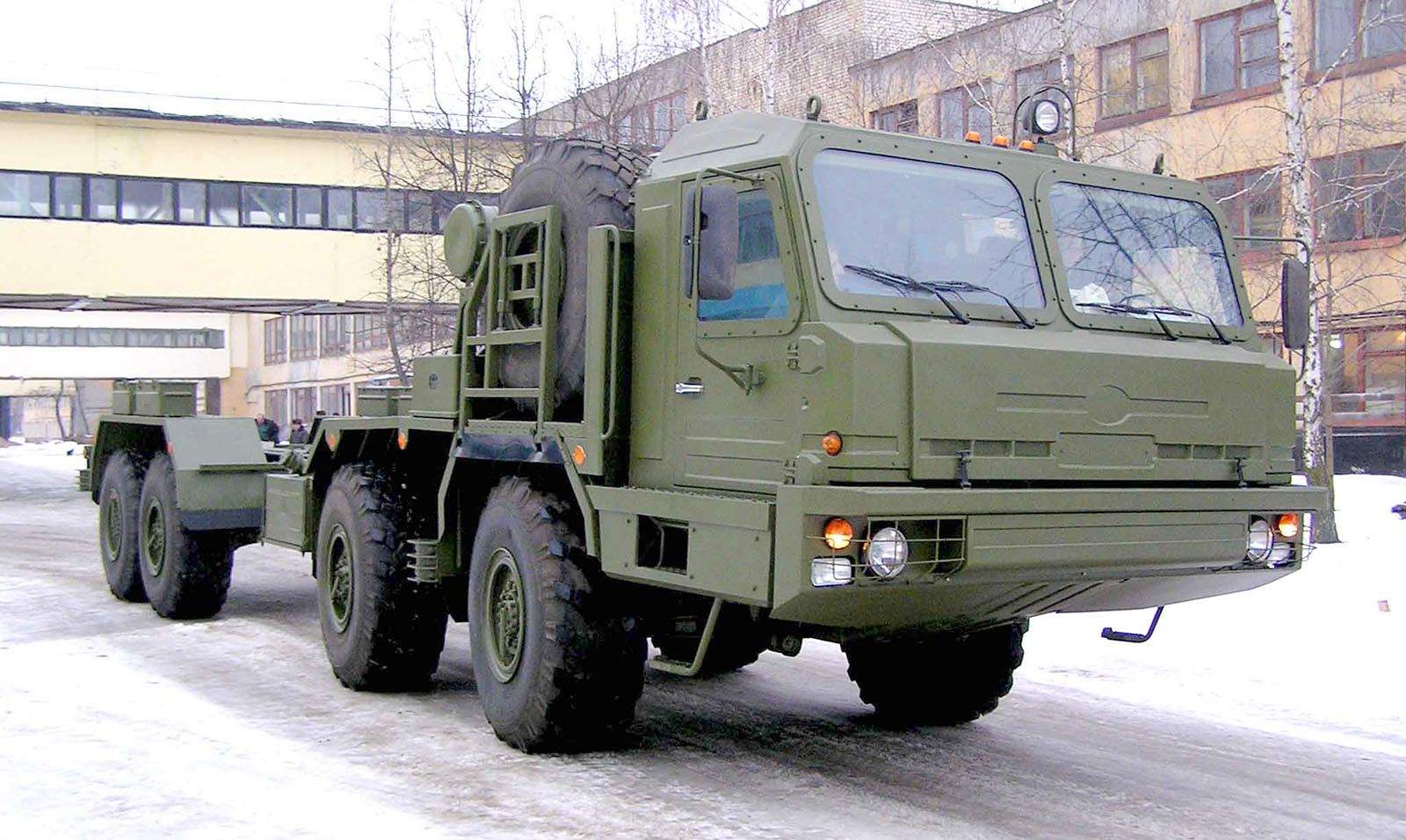

BAZ-6909 Russian 8x8 Special Wheeled Chassis
BAZ-6909
8x8 Special Wheeled Chassis
Other
Basic Information
Name
BAZ-6909 Russian 8x8 Special Wheeled Chassis
Designation
BAZ-6909
Alternate Designation
BAZ-6909
Equipment Type
8x8 Special Wheeled Chassis
Manufacturer
Bryansk Automobile Plant
Date of Introduction
1990
Description
The BAZ-6909 is a Russian artillery tractor and missile vehicle that was developed as a successor to the MAZ-537 and MAZ-7310 by Bryansk Automobile Plant. It can haul semi-trailers and loads with a mass of 13-21 metric tons, both on and off-road. It uses a YaMZ-8424.10 diesel engine with 500 hp
Ground Specifications
Crew
3
Active Protection
None
NBC Protection
Yes
Variants
BAZ-6402
6x6 tractor truck
BAZ-69092
6x6 special wheeled chassis
BAZ-6306
8x8 artillery tractor
BAZ-6403
8x8 tractor truck
BAZ-6910
8x8 shelter carrier;
REM-KS
8x8 repair and recovery vehicle
BAZ-69069
10x10 special wheeled chassi
BAZ-69099
12x12 special wheeled chassis
System
Alternative Designation
BAZ-6909
Type
8x8 Special Wheeled Chassis
Manufacturer
Bryansk Automobile Plant
Family
BAZ
Mission
The BAZ-6909 is of conventional design. It was designed to carry specialized military equipment, such as weapons, missiles, shelters and radars.
Crew
3 ea
Payload Capacity
18-20 tons
Note
It can be airlifted by An-22, An-124 or Il-76 transport aircraft
Dimensions (Chassis: BAZ-6909)
Length
11.3 m
Width
2.75 m
Height
2.85 m
Weight, Empty
22 tons
Automotive (Chassis: BAZ-6909)
Engine Name
YaMZ-8424.10
Engine Type
Diesel
Engine Power
470 hp
Cruising Range
1,000 km
Speed, Maximum Road
70 km/h
Speed, Average Cross
INA
Speed Maximum Swim
Not Amphibious
Gradient
60 %
Side Slope
40 %
Vertical Step
0.6 m
Trench
2.0 m
Fording Depth
1.2 m
Climate Operational Range
-50°C to +45°C
Communications
Primary
INA
Protection
Armor
Vehicle is fitted with a three-person armored cab
Applique Armor
Available
Active Protection System
No
Mine Clearing
No
Self-Entrenching Blade
No
NBC Protection
Yes
Smoke Equipment
No
IR Signature
No
Details
Country of Origin
Russia
Category
Transportation
Land > Combat Support Vehicles > Transportation
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
22000 kg
Operators (1)
Russia
