PGZ-09
PGZ-09
Local Air Defenses

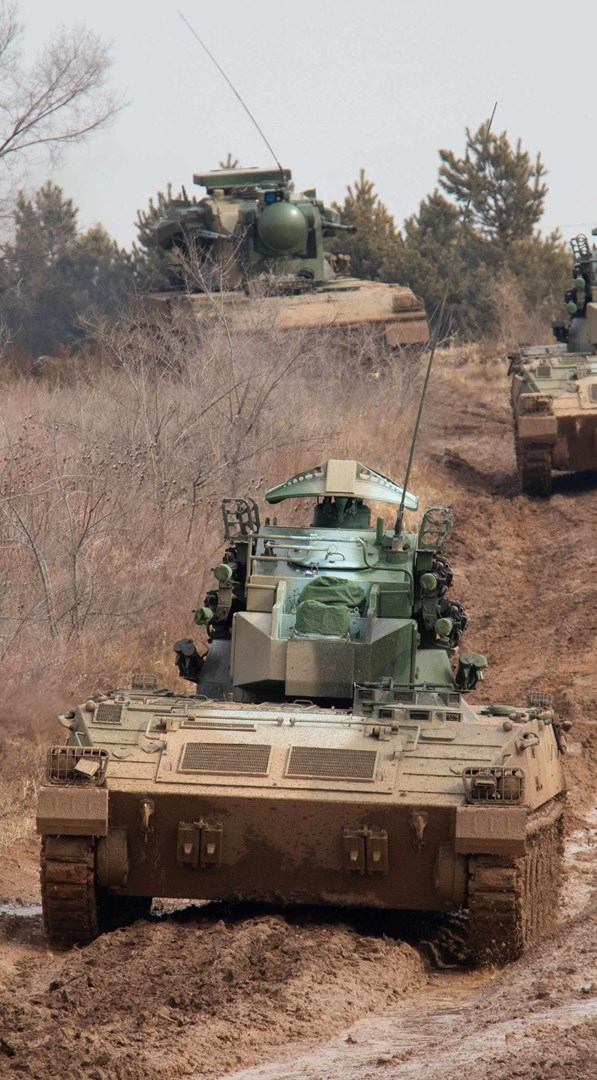

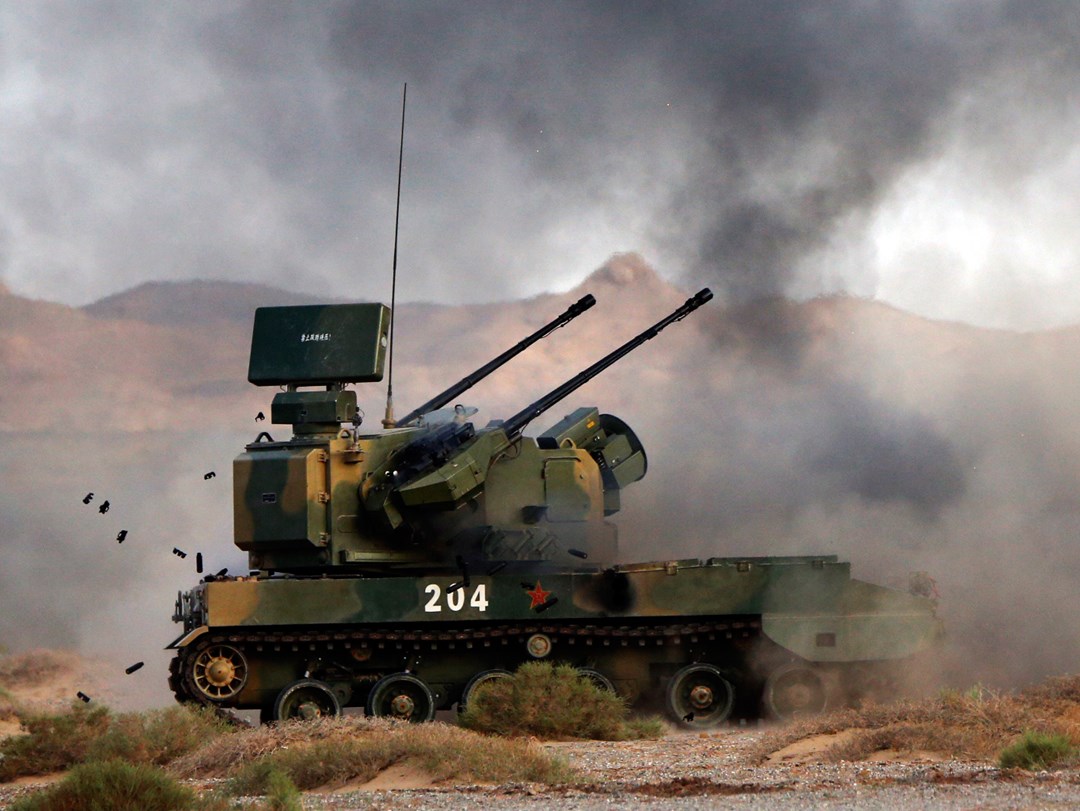

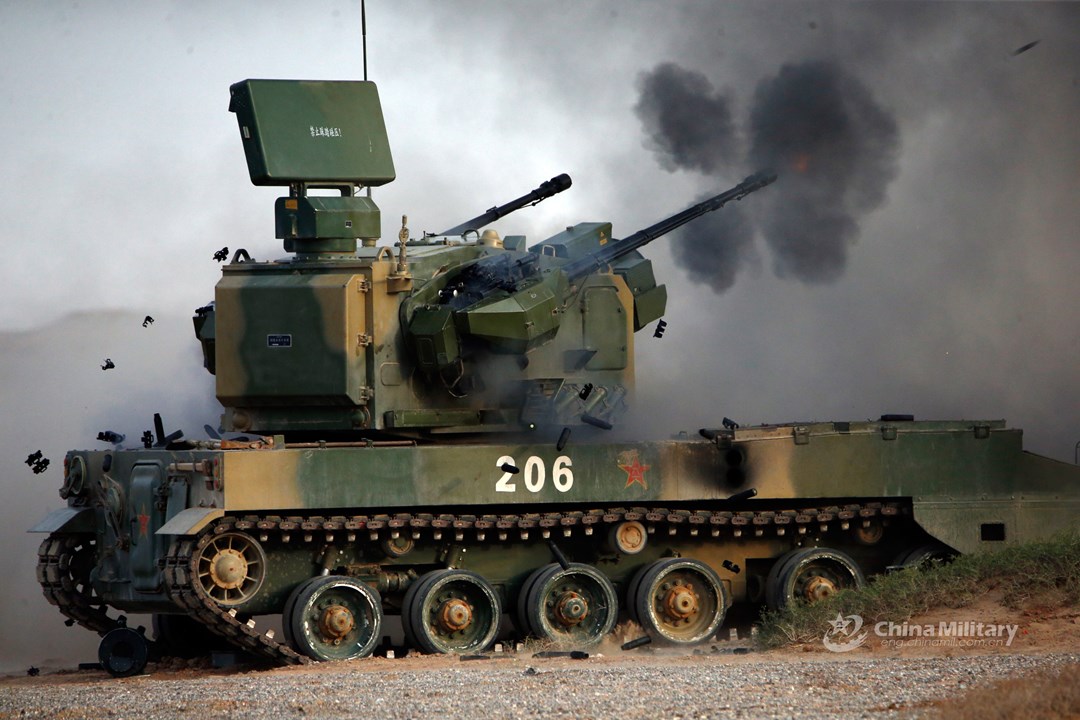

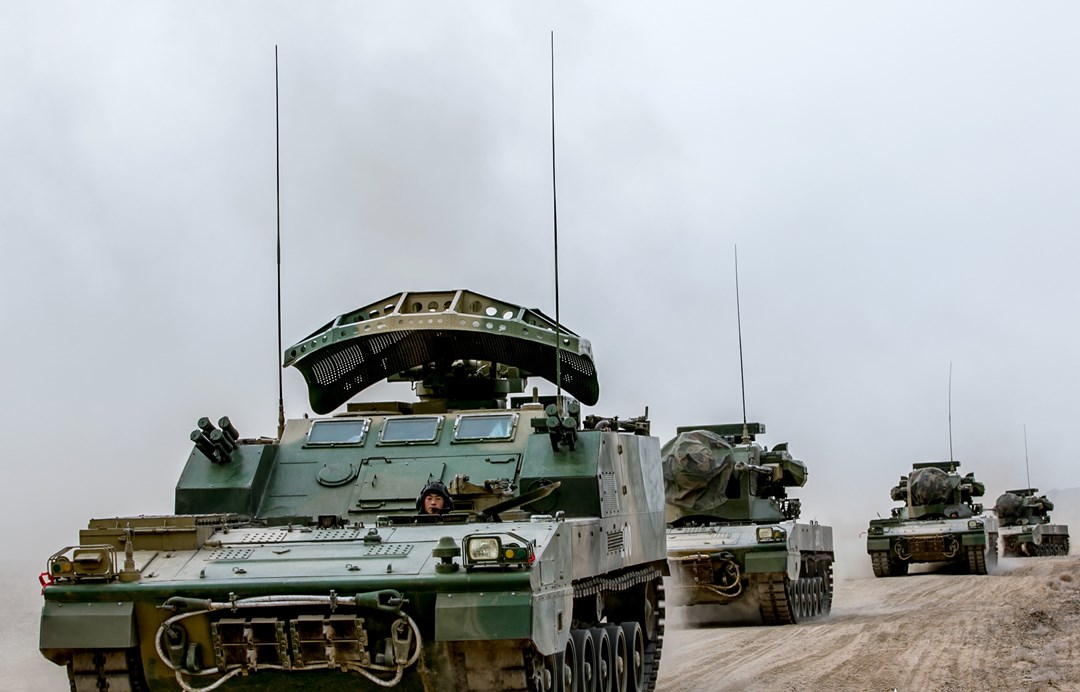

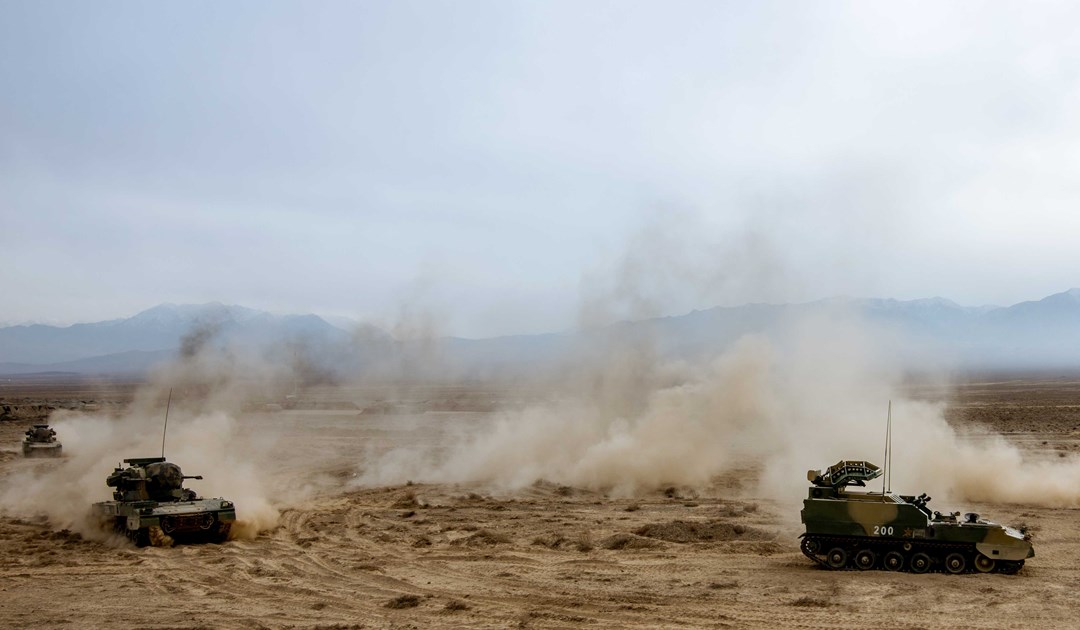

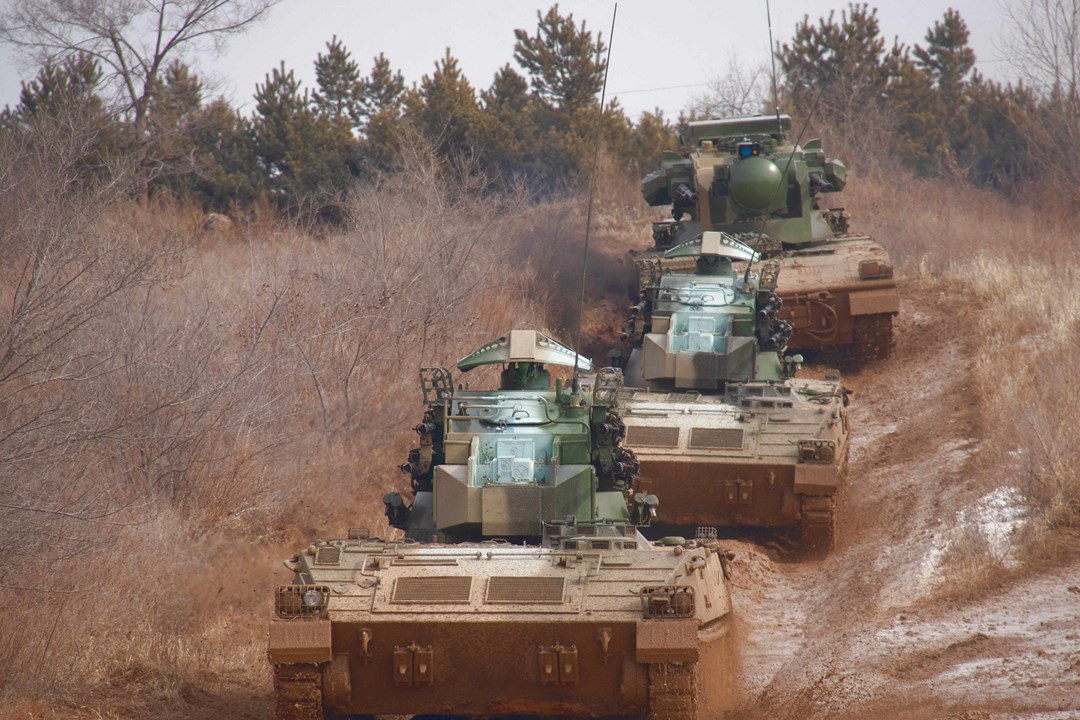

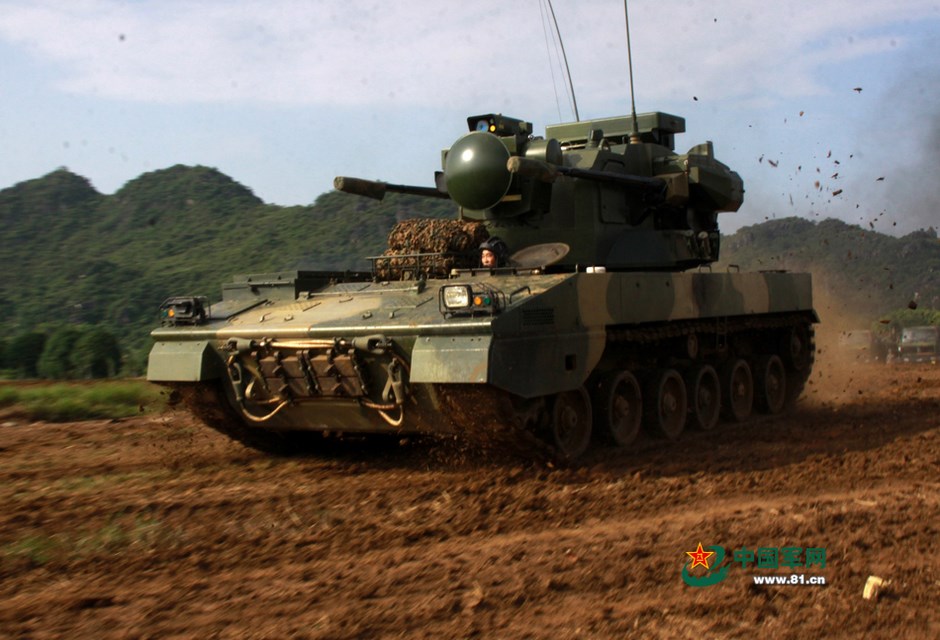

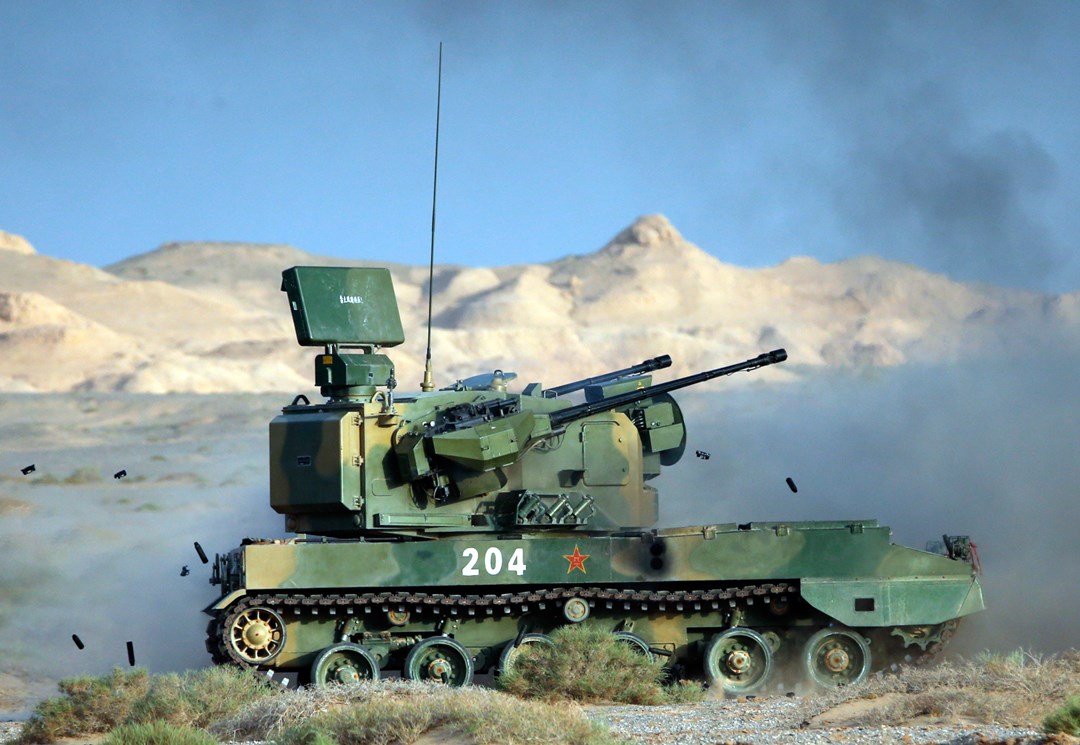

Operational Photo
Basic Information
Name
PGZ-09
Designation
PGZ-09
Alternate Designation
PGZ-07, Type 07, Type 09
Equipment Type
Local Air Defenses
Manufacturer
NORINCO
Date of Introduction
2009
Description
The PGZ-09, also known as Type 07, Type 09 or ZBD97 anti-aircraft (AA) artillery system, uses the PLZ-05 self-propelled howitzer chassis to provide air defense for Chinese armored formations against combat helicopters and strike aircraft flying at low altitude. The PGZ-09 uses two 35mm cannons mounted on turret which also features a radar-based fire control system.
Ground Specifications
Crew
5
Overview (Deagel)
Group
Local Air Defenses
Status
Active
Also Known As
PGZ-07, Type 07, Type 09
Origin
China
Contractor
NORINCO
Initial Operational Capability (IOC)
2009
Total Production
100
Specifications (Deagel)
Ammunition Load
2380
Crew
5
Number of Cannons
2
Rolling Rubber Wheels
6
Dimensions — Height
4.8 meter
Dimensions — Length
6.7 meter
Dimensions — Main Gun Caliber
35 millimeter
Dimensions — Width
3.2 meter
Mass — Combat Weight
35,000 kilogram
Performance — Main Gun Max Range
5,000 meter
Performance — Main Gun Min Range
50 meter
Performance — Max Detection Range
20 kilometer
Rate — Max Rate of Fire
1,100 roundperminute
Details
Country of Origin
China
Category
Air Defense
Land > Air Defense
Sources
deagel.com: https://www.deagel.com/x/x/a001855
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.7 m
Width
3.2 m
Height
4.8 m
Weight
35000 kg
Related Equipment (1)
Operators (1)
China
