LTSD-4-3 Russian Laser Rangefinder/Designator
LTSD-4-3
Lightweight Laser Designator Rangefinder (LLDR)
Other
Basic Information
Name
LTSD-4-3 Russian Laser Rangefinder/Designator
Designation
LTSD-4-3
Alternate Designation
LTSD-4-3
Equipment Type
Lightweight Laser Designator Rangefinder (LLDR)
Manufacturer
—
Date of Introduction
2018
Description

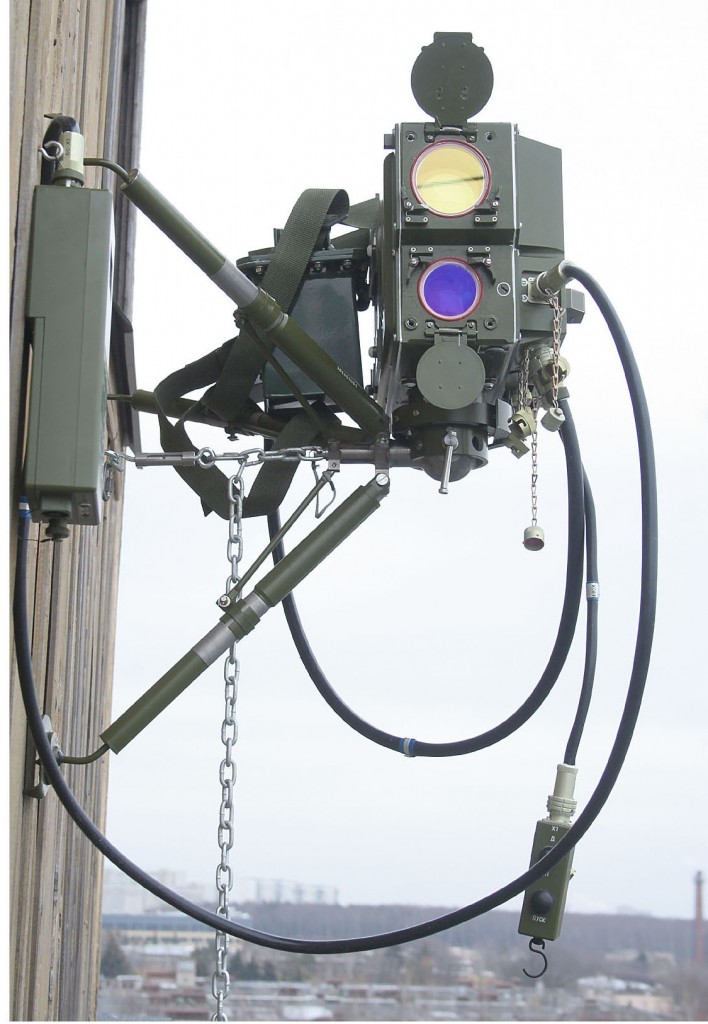

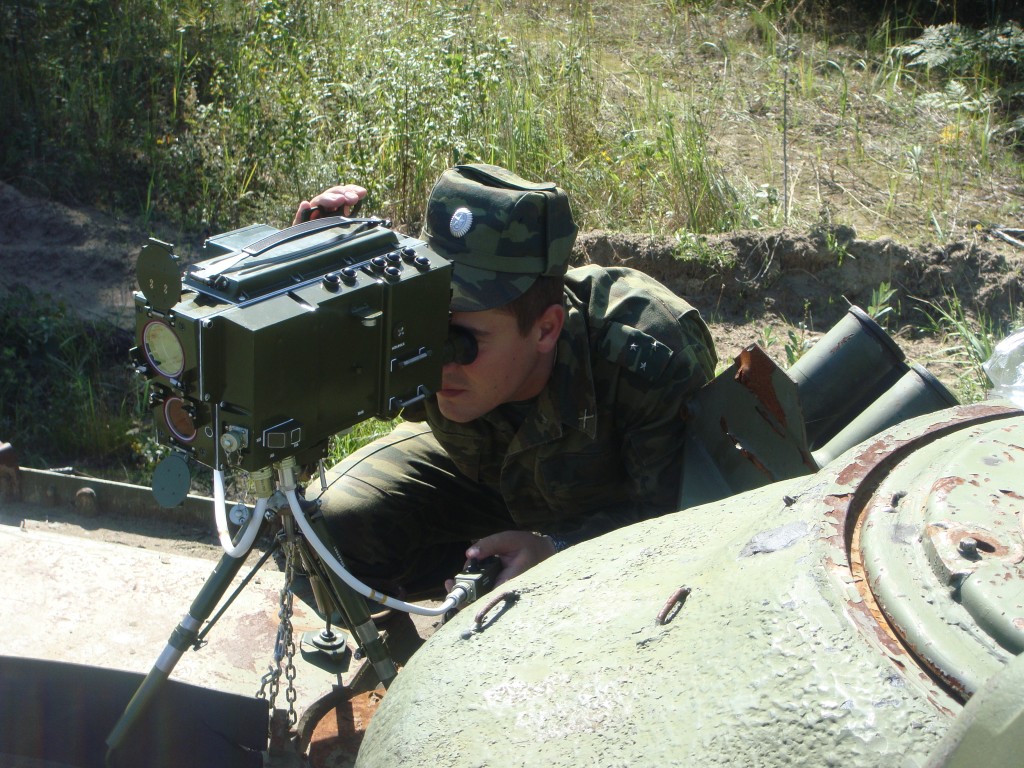

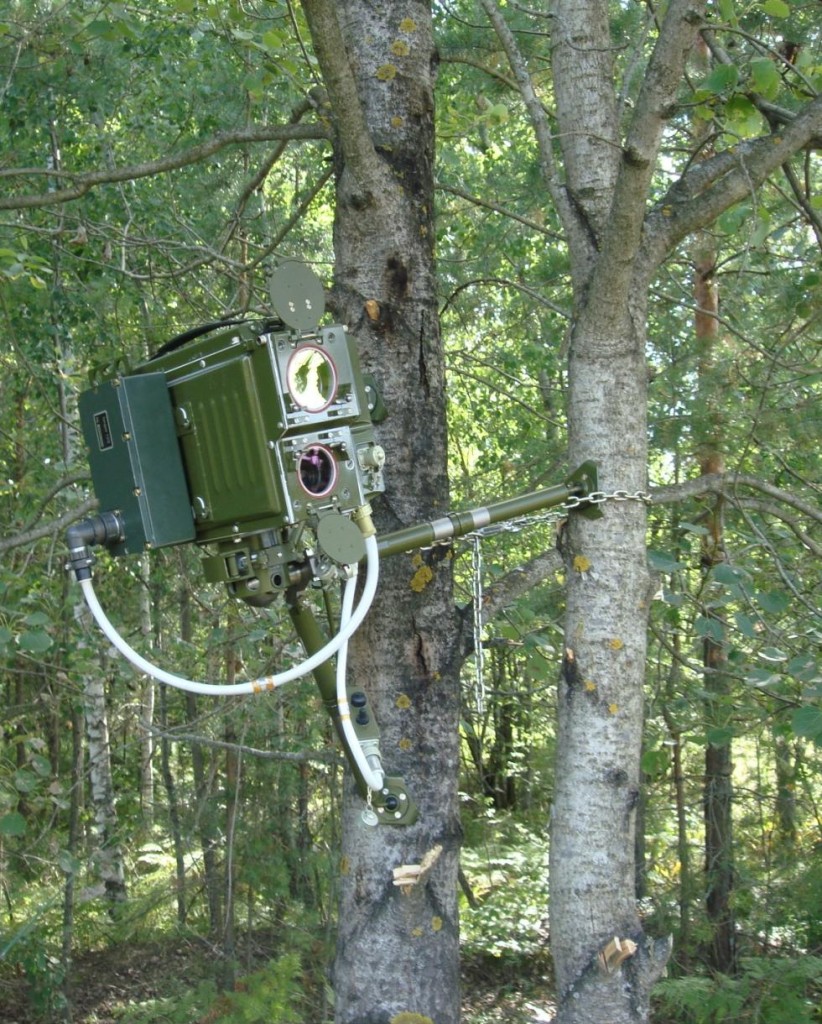

The LTSD-4-3 Laser Rangefinder/Designator is designed for ground target reconnaissance, correction of artillery and air firing in daylight and at night including the use of high-accuracy ammunition fitted with laser homing heads when illuminating the stationary and moving targets, military equipment and offensive fortifications by a laser light from ground observation points. It may be also used in automated fire control systems. SYSTEM COMPOSITION *PP-20 transceiver *Set for fastening PP on terrain *1E77 synchronization unit *1E67M accumulator battery (2 pcs.) *Accessory set *Transport case including two flexible packs for carrying *Instruction manual
Ground Specifications
Crew
2
System
Alternative Designation
LTSD-4-3
Type
Laser Rangefinder/Designator
Crew
2 ea
Tank-sized target in the daytime
5,000...7,000 m
Surface Target
5,000...15,000 m
Night Vision, Tank-sized Target at Night
1,000...3,000 m
Thermal Imager, Tank-Sized Target at Night
3,000...4,000 m
Measurement Range at 5m Accuracy
100...20,000 m
Boresight Magnification
x10
Field of View
5°
Dioptric adjustment
±5 diopters
Maximum duration of laser designation, Artillery Mode
15 sec
Maximum duration of laser designation, Air Mode
100 sec
Dimensions
Length
INA
Width
INA
Height
INA
Weight, Combat
14 kg
Details
Country of Origin
Russia
Category
Land Based Sensors
Land > Land Based Sensors
Filter Label
L
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
14 kg
Operators (1)
Russia
