Project 1154.0

Project 1154.0

Frigates
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Project 1154.0
Designation
Project 1154.0
Alternate Designation
Neustrashimy, Yastreb
Equipment Type
Frigates
Manufacturer
Khabarovsk Shipyard, Yantar
Date of Introduction
1993
Description

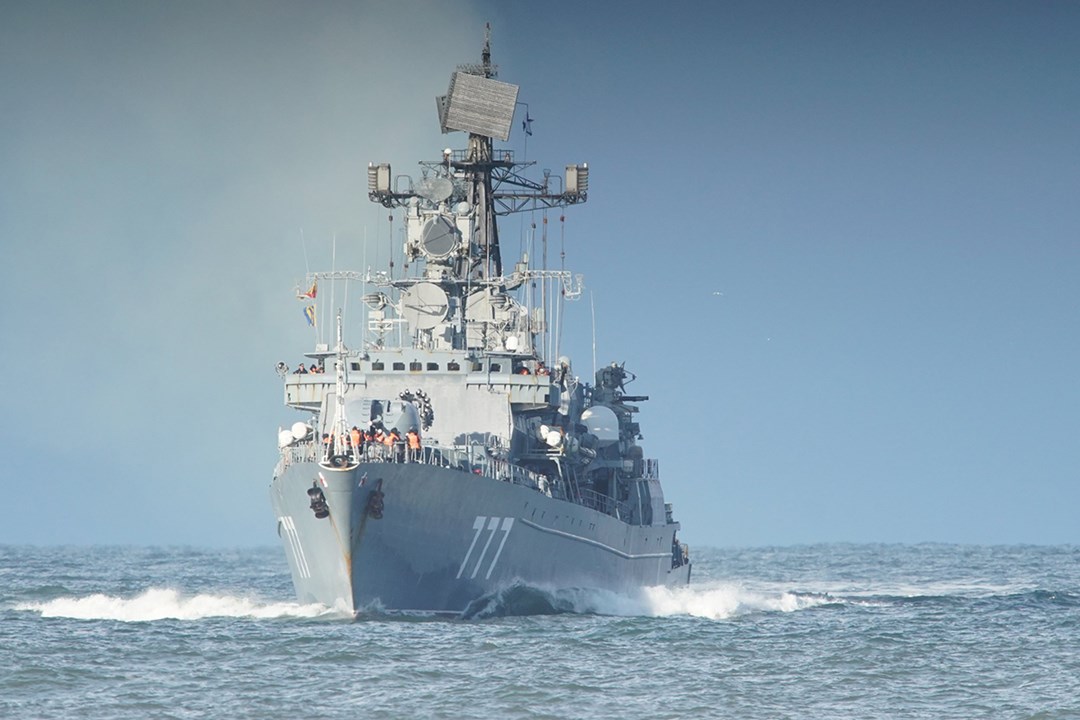

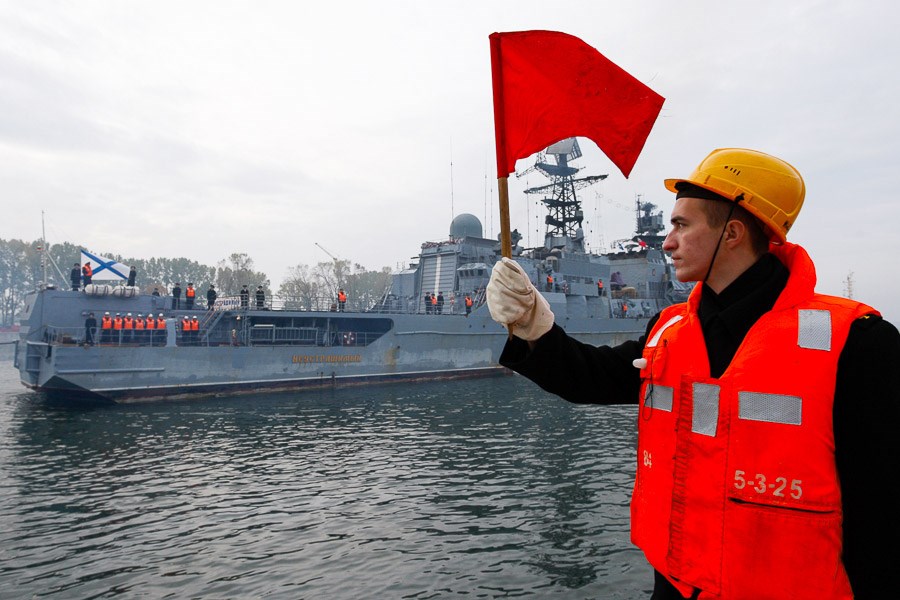

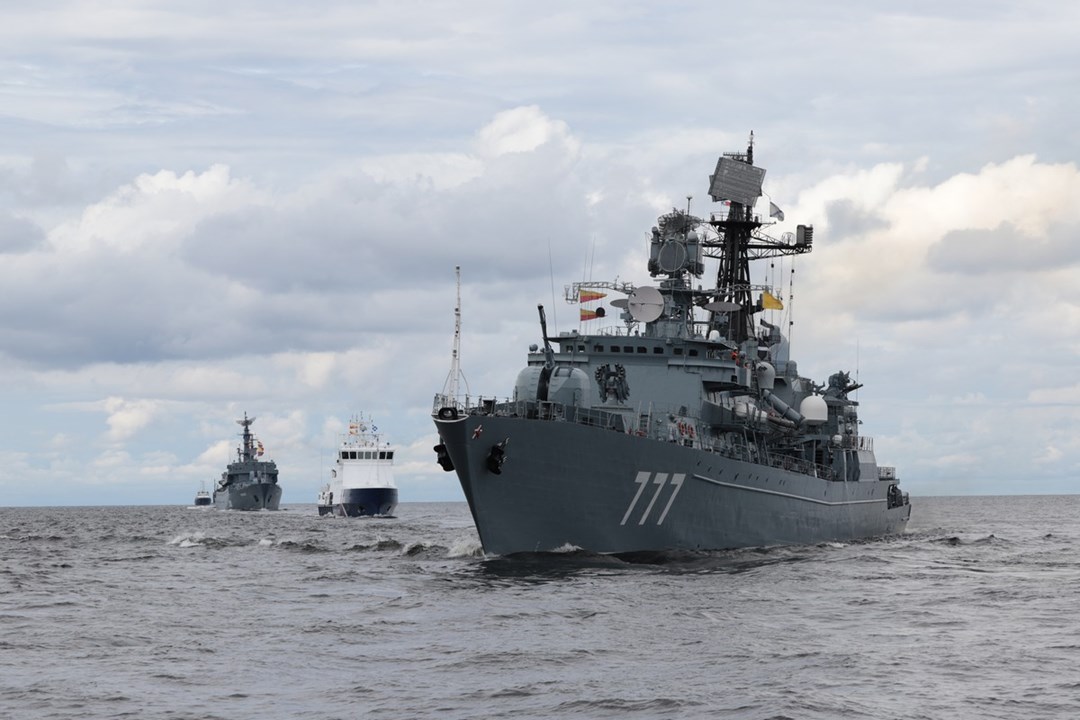

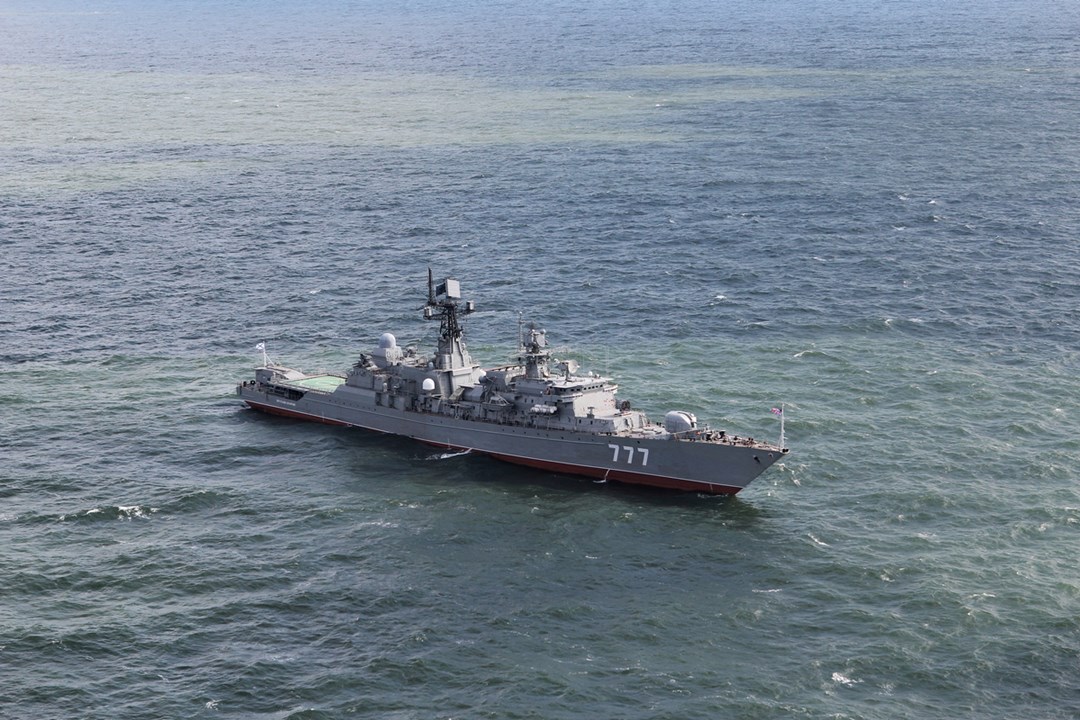

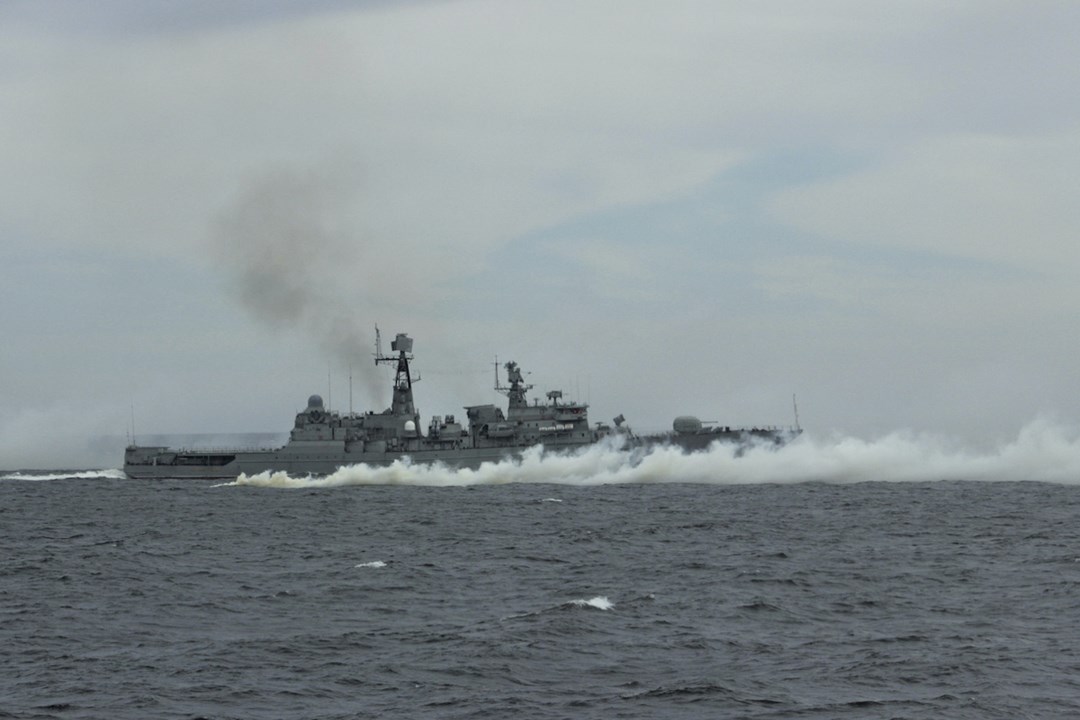

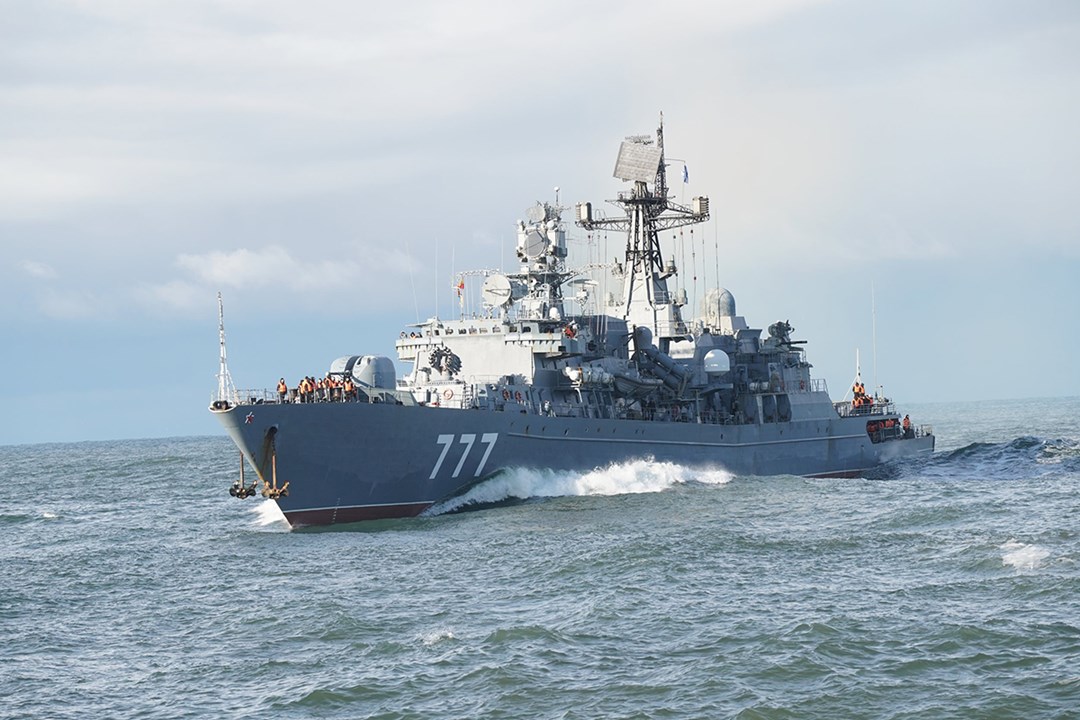

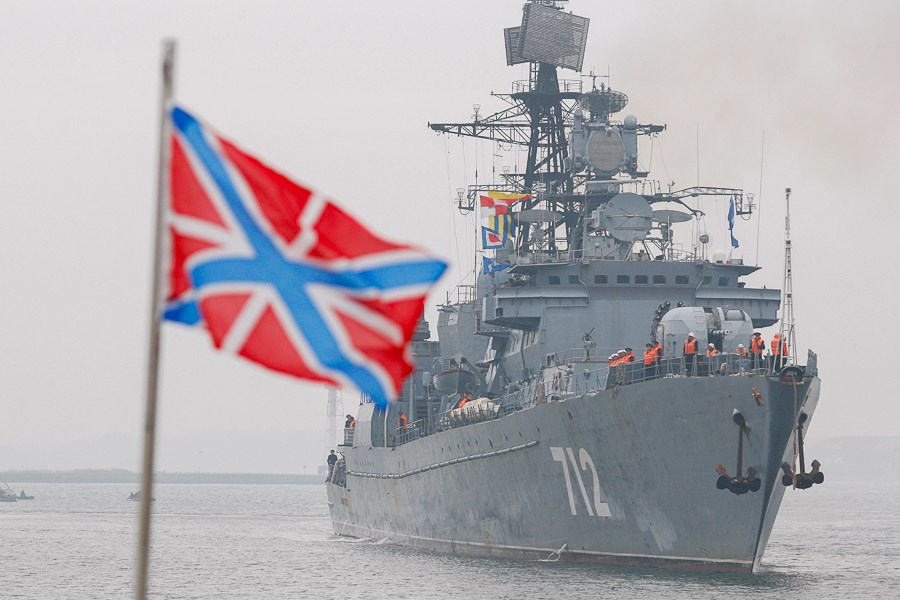

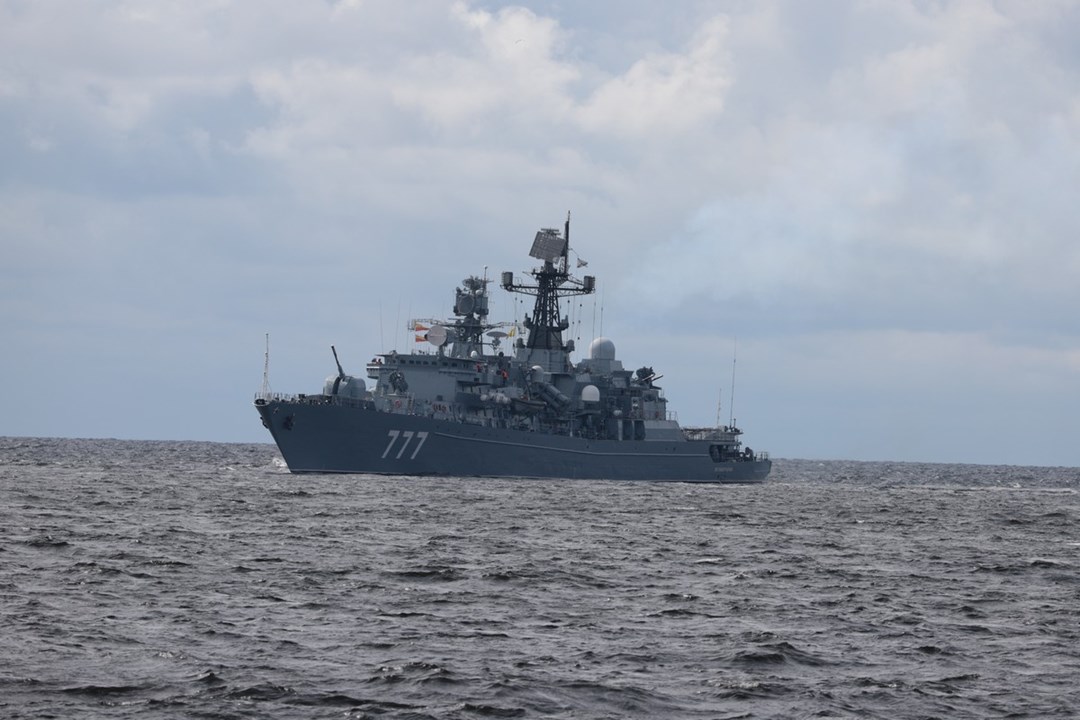

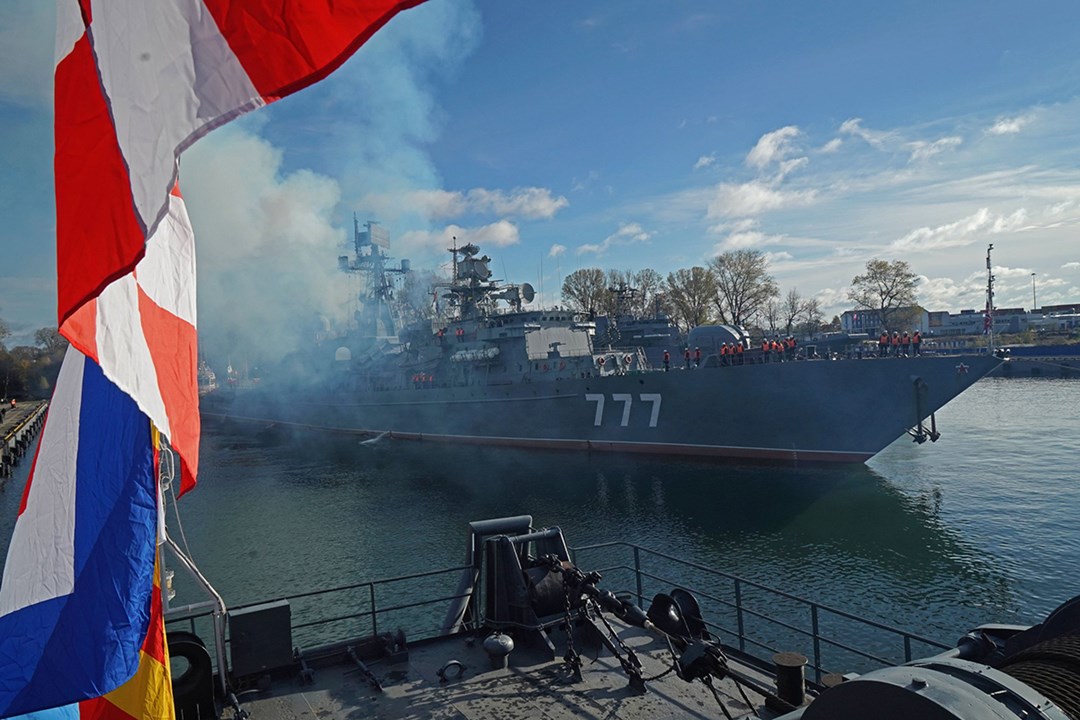

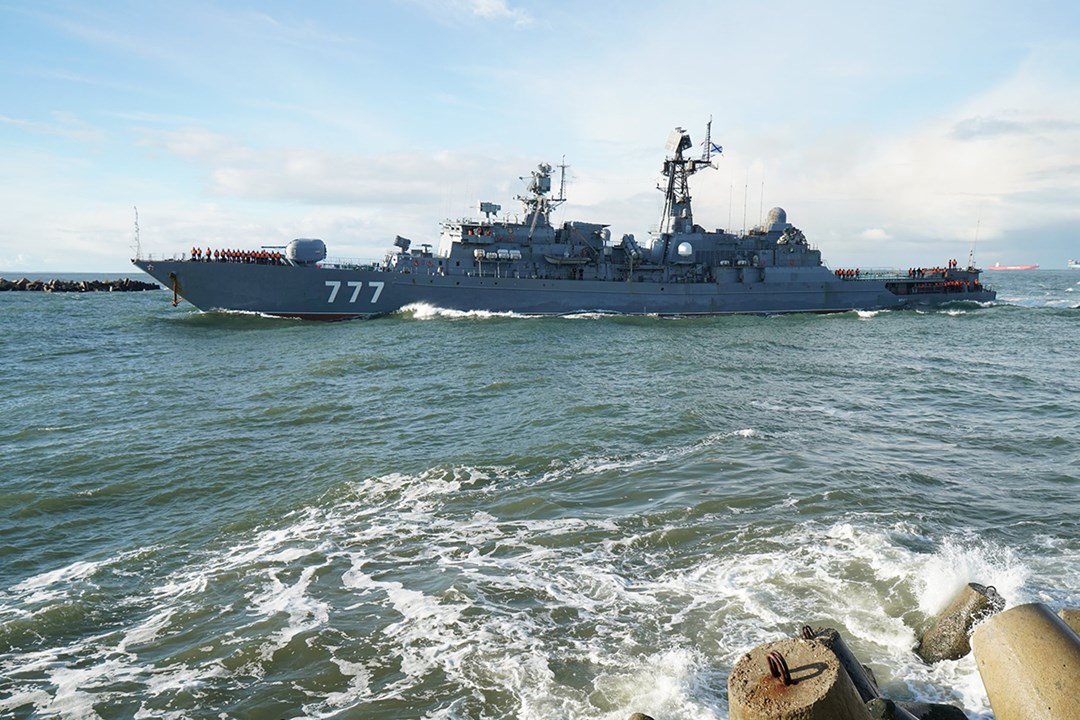

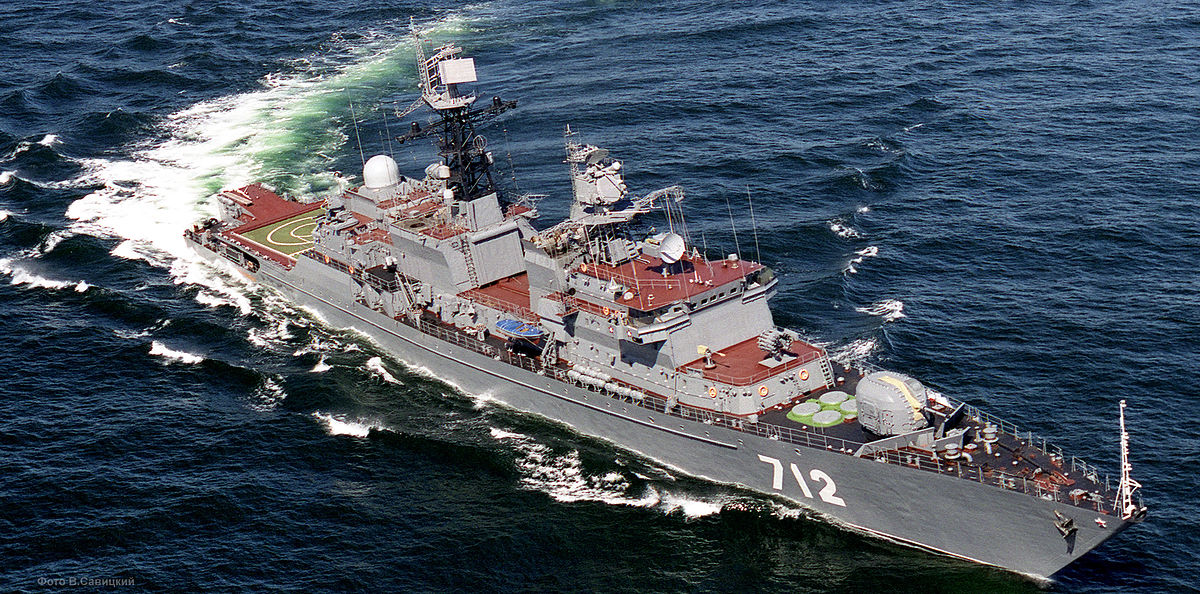

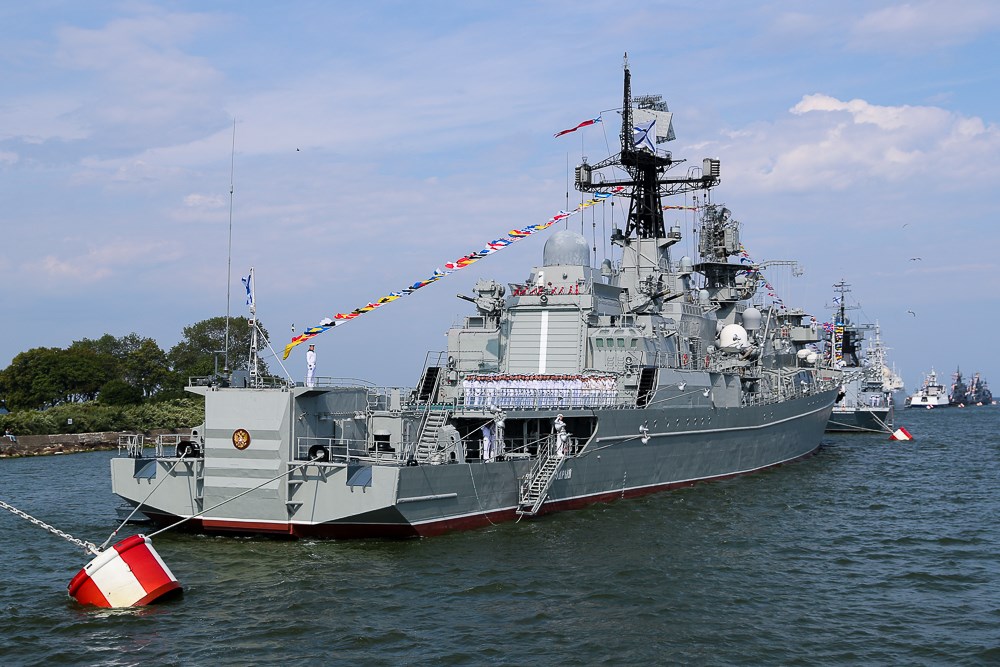

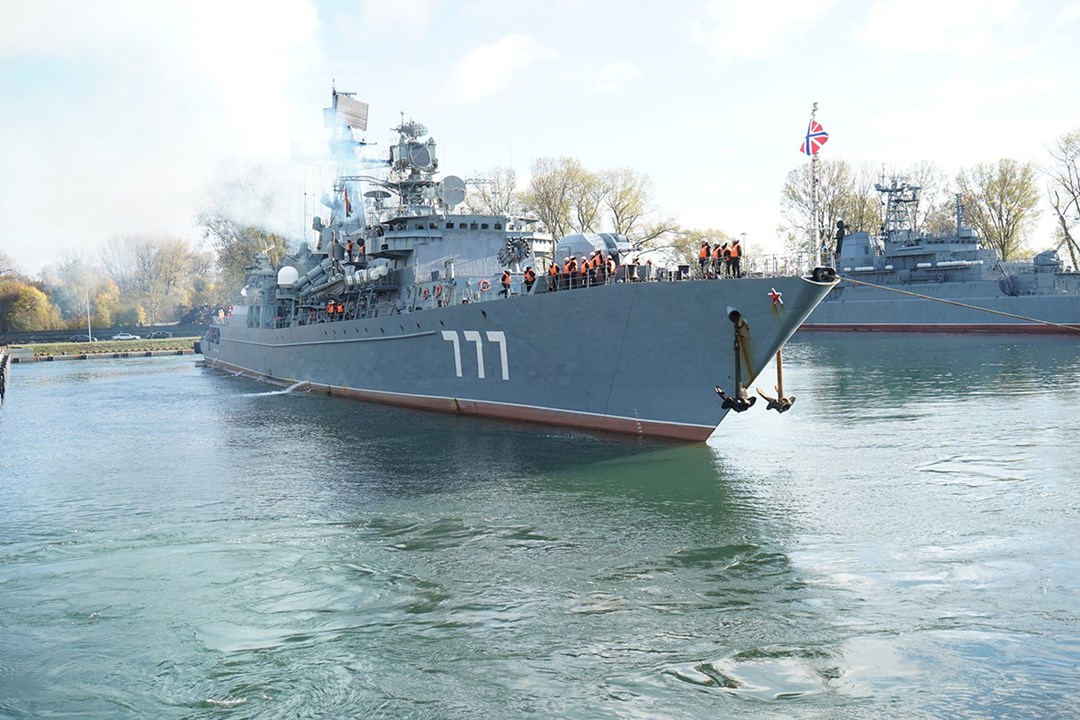

The Project 1154.0 class frigates were intended as successors for Soviet Krivak class anti-submarine warfare (ASW) frigates. Due to funds availability one or two out of three ships were scrapped before completion with only one ship, Neustrashimy, commissioned. Project 1154.0 incorporates some stealth technologies. The Neustrashimy frigate has an aft flight deck and hangar for operating one anti-submarine helicopter, typically the Ka-27 Helix. The weapons system also includes a 100mm naval gun system, 8 Uran anti-ship missiles, 32 9M330 and 64 9M311 surface-to-air missiles for ship self-defense against airborne threats, two 30mm Close-In Weapons Systems (CIWS), 6 21-inch torpedo tubes and 12 RPK-6 anti-submarine rockets.

Naval & Littoral Specifications
Crew 210
Displacement 4500.00 tonnes
Max Speed 30.1 knots
Overview (Deagel)
Group Frigates
Status Active
Also Known As Neustrashimy, Yastreb
Origin Russia
Contractors Khabarovsk Shipyard, Yantar
Initial Operational Capability (IOC) 1993
Total Production 2
Specifications (Deagel)
Crew 210
Dimensions — Length 130 meter
Dimensions — Main Gun Caliber 100 millimeter
Mass — Full Displacement 4,500 ton
Power — Total Combined Power 57,000 shp
Speed — Top Speed 15.5 mps
Gear (Deagel)
Item 1 ASW Helicopters: Ka-27 (1)
Item 2 Radar Systems: Fregat
Item 3 Sea-Based Air Defense Systems: Klinok
Item 4 Surface-to-Air Missiles: 9M311 (64)
Item 5 Surface-to-Air Missiles: 9M331 (32)
Details
Country of Origin Russia
Category Frigates
Naval > Frigates
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
130 m
Width
—
Height
—
Weight
4500000 kg
Related Equipment (1)
Operators (1)
Russia
