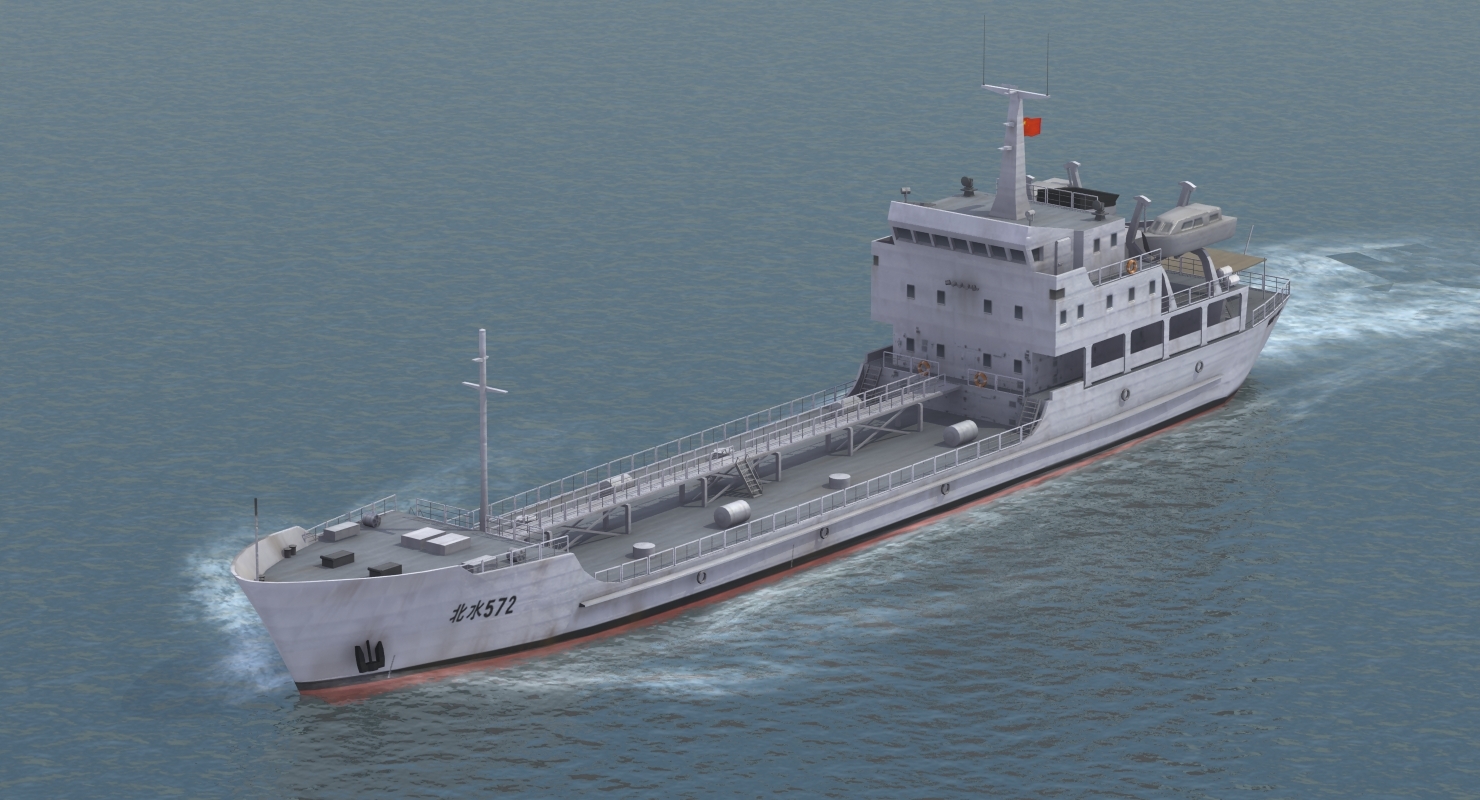

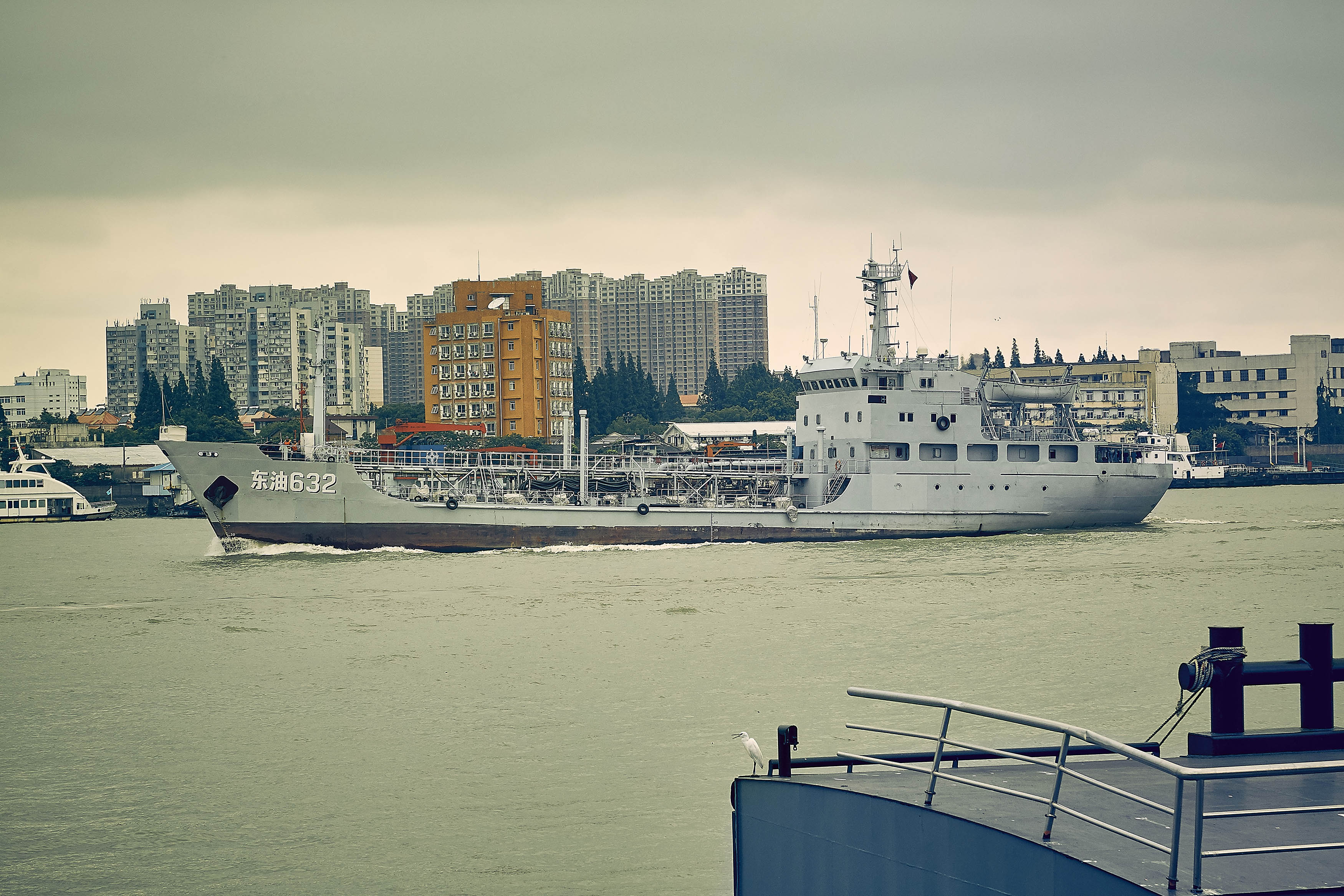

Type 632 Class (Fulin Class) Chinese Oil Tanker

Type 632 Class

Oil Tanker
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Type 632 Class (Fulin Class) Chinese Oil Tanker
Designation
Type 632 Class
Alternate Designation
Type 632 Class; Fulin Class
Equipment Type
Oil Tanker
Manufacturer
Date of Introduction
1972
Description

The Type 632 tanker is a type of naval auxiliary ship currently in service with the People's Republic of China Navy (PLAN). Designed as a type that is capable of transport both water and oil, these ships entered service from 1972 onward. Type 632 tanker has received NATO reporting name as Fulin class. After transferred to reserves, these ships begun to retire in the early 2010s. Type 632 tankers in PLAN service are designated by a combination of two Chinese characters followed by three-digit number. The second Chinese character is You (油), meaning oil in Chinese, or Shui (水), meaning water, because these ships are classified either as oil and water tankers. The first Chinese character denotes which fleet the ship is service with, with East (Dong, 东) for East Sea Fleet, North (Bei, 北) for North Sea Fleet, and South (Nan, 南) for South Sea Fleet. However, the pennant numbers may have changed due to the change of Chinese naval ships naming convention.

Naval & Littoral Specifications
Crew 30
Beam 10.00 m
Draft 4.00 m
Variants
Note 14 ships Built. (Names: INA)
System
Alternative Designation Type 632 Class; Fulin Class
Total Built 14 Built
Type Oil Tanker
Builder Hudong-Zhonghua Shipbuilding
In Service 1972-Present
Crew 30
Dimensions
Length 66 m
Beam 10 m
Draft 4 m
Displacement, Full Load 2,200 long tons
Propulsion System
Engine Name 1 × Marine Diesel Engine
Engine Type Diesel Engine
Engine Power 600 hp
Maximum Range 1,500 nmi (2,800 km; 1,700 mi) at 8 kn (15 km/h; 9.2 mph)
Maximum Speed 10 knots (19 km/h; 12 mph)
Endurance INA
Gun Weapon System
System
Name Type 61
Type Anti-Aircraft Gun
Caliber 25mm
Quantity 2 x Type 61 25mm Anti-Aircraft Gun
Barrel Length 1.5 m
Weight INA
Crew 1
Barrels Single or Dual
Elevation -10° ~ +85°
Traverse 360°
Rate of Fire Compact: 800~900 round/min
Muzzle Velocity 900 m/s
Maximum Firing Range 3,000 m
Effective Firing Range 2,700 m
Feed System Magazine
Sights Optical
Ammunition
Type Rifle
Caliber 25 mm
Shell 25 x 218 mm SR
Shell Weight INA
Basic Load INA
Fire Control
Note INA
Radar Systems
Navigation Radar 1 x Type 756 or Fine Curve radar
Protection
Active Protection System INA
Electronic Warfare INA
Decoys INA
NBC Protection Yes
Details
Country of Origin China
Category Support Ships
Naval > Support Ships
Filter Label
T
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
66 m
Width
Height
Weight
Operators (1)
China
