Leopard 1

Leopard 1

Main Battle Tanks
Spotted an error? Sign in to suggest an edit.
Leopard 1

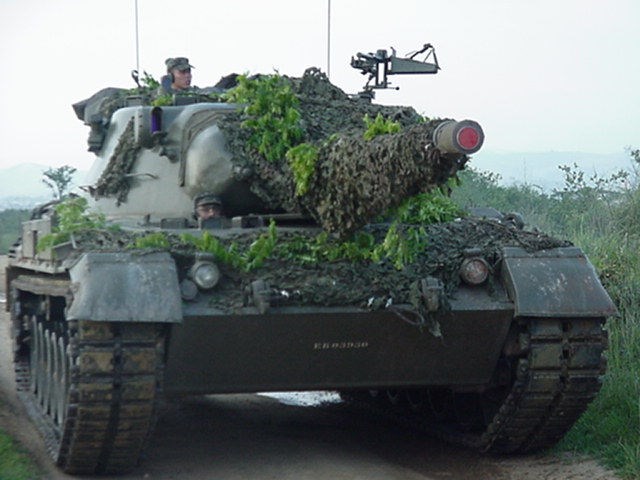

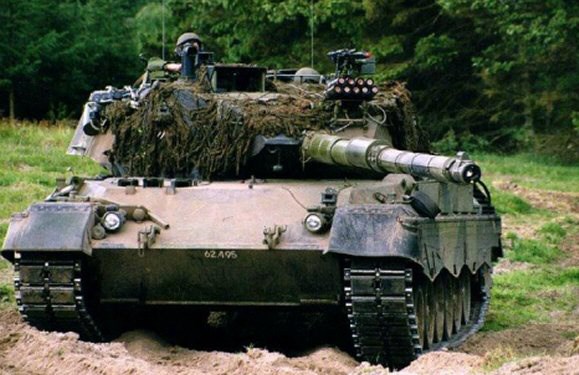

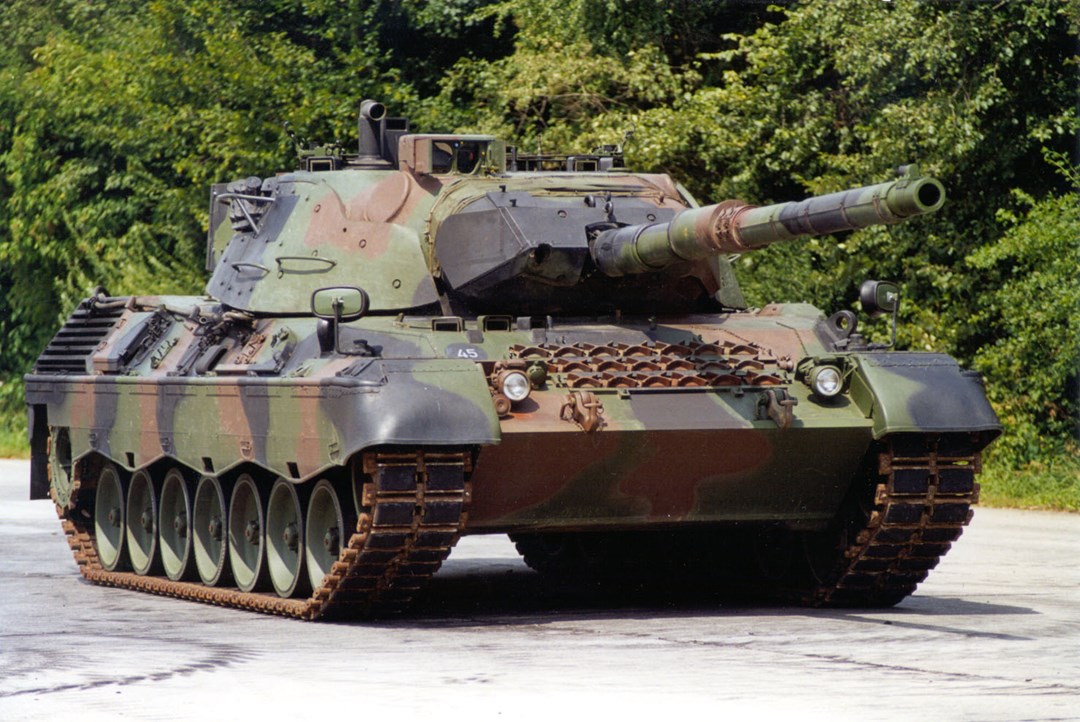

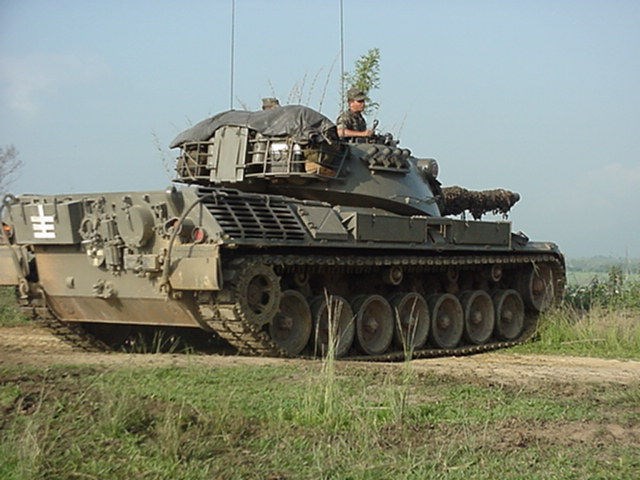

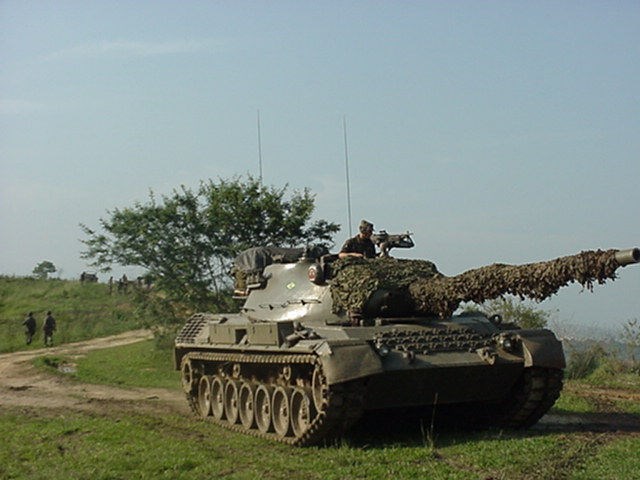

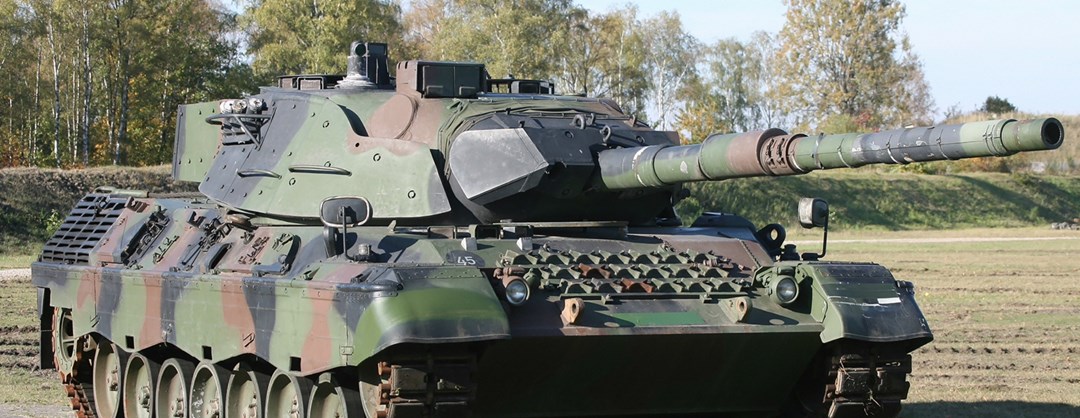

Operational Photo
deagel.com
Basic Information
Name
Leopard 1
Designation
Leopard 1
Alternate Designation
Bergepanzer 2, Biber (Bridge laying system), Dachs, Leopard 1 A1, Leopard 1 A2, Leopard 1 A3, Leopard 1 A4, Leopard 1 A5, Leopard C2
Equipment Type
Main Battle Tanks
Manufacturer
Krauss-Maffei Wegmann, Rheinmetall Defence
Date of Introduction
1963
Description

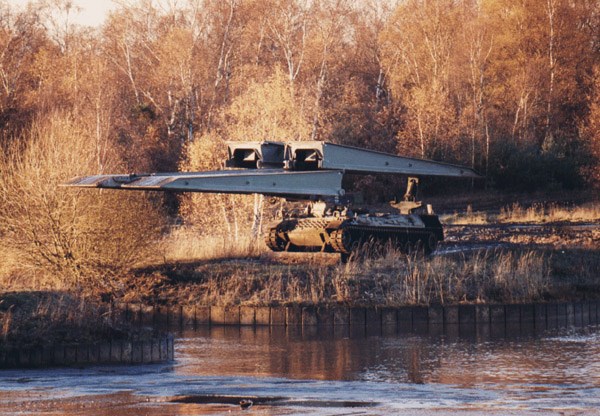

Leopard 1 is a heavyweight Main Battle Tank (MBT) developed for the Army of former German Federal Republic. Originally Leopard 1 was a joint program between France and Germany, but ultimately France left the program in favor of AMX30. More than 2,200 Leopard 1s were procured by the German Army and 3,000+ tanks were produced for international customers. Production started in the early 1960s and ceased in 1979. Leopard 1 is fitted with a stabilized 105mm cannon as primary armament, steel armor, an 830-hp diesel/multi-fuel engine, and two 7.62mm machine guns as secondary armament. In addition, Leopard 1 features NBC protection and an improved sight system. Overall, Leopard 1 was deemed the better western tank of those equipped with 105mm gun. Germany also developed recovery, engineering and bridge layer armored vehicles based on Leopard 1 tracked chassis.

Ground Specifications
Crew 4
Max Speed 65.0 km/h
Range 600.0 km
Overview (Deagel)
Group Main Battle Tanks
Status Active
Also Known As Bergepanzer 2, Biber (Bridge laying system), Dachs, Leopard 1 A1, Leopard 1 A2, Leopard 1 A3, Leopard 1 A4, Leopard 1 A5, Leopard C2
Origin Germany
Contractors Krauss-Maffei Wegmann, Rheinmetall Defence
Initial Operational Capability (IOC) 1963
Total Production 6,000
Specifications (Deagel)
Crew 4
Dimensions — Height 2.6 meter
Dimensions — Length 9.5 meter
Dimensions — Main Gun Caliber 105 millimeter
Dimensions — Width 3.4 meter
Mass — Combat Weight 42,500 kilogram
Performance — Main Gun Max Range 2,500 meter
Performance — Max Range 600 kilometer
Power — Power 830 shp
Speed — Top Speed 65 kph
Details
Country of Origin Germany
Category Tanks
Land > Tanks
Sources

deagel.com: https://www.deagel.com/x/x/a000732

Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.5 m
Width
3.4 m
Height
2.6 m
Weight
42500 kg
Operators (14)
Germany
Italy
Ukraine
Brazil
Australia
Austria
Belgium
Canada
Chile
Denmark
Greece
Jordan
Netherlands
Norway
