SNR-75 (Fan Song) Russian Fire Control and Tracking Radar
SNR-75
Field Artillery Fire Control System
Other
Basic Information
Name
SNR-75 (Fan Song) Russian Fire Control and Tracking Radar
Designation
SNR-75
Alternate Designation
SNR-75; NATO: Fan Song
Equipment Type
Field Artillery Fire Control System
Manufacturer
—
Date of Introduction
2011
Description
The SNR-75 (Fan Song) Russian Fire Control and Tracking Radar are capable of tracking a single target at a time, and can guide up to three missiles at once to it.
System
Alternative Designation
SNR-75; NATO: Fan Song
Type
Fire Control and Tracking Radar
Crew
INA
Frequency
E/F band, G band
Search Pulse Repetition Frequency (PRF)
828-1,440 Hz (E/F Band)
Tracking Pulse Repetition Frequency (PRF)
1,656-2,880 Hz (G band)
Beam Width
10x2deg (E/F band);
7.5x1.5deg (G band)
Pulse Width
0.4-1.2 μs (G band)
Maximum Range
60-120 km (E/F band);
75-145 km (G band)
Power
600 kW (E/F band);
1.0 MW (G band)
Note

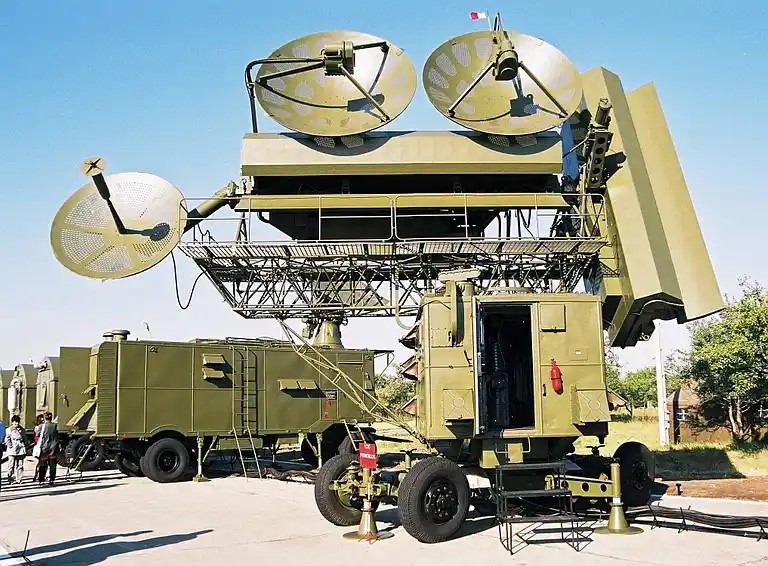

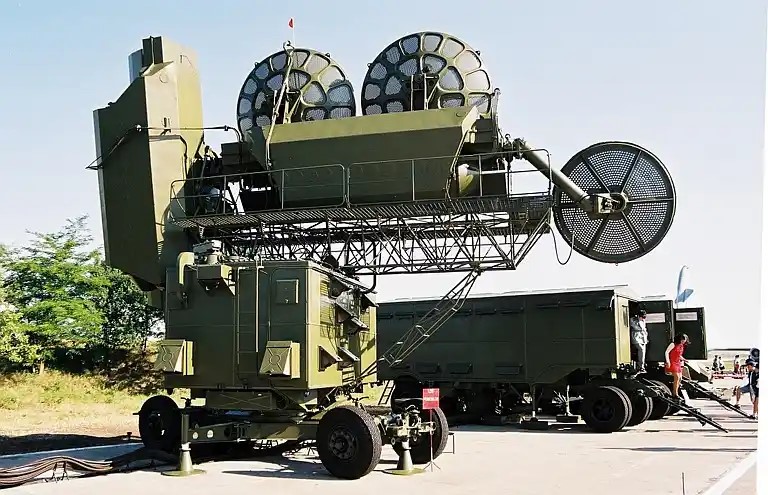

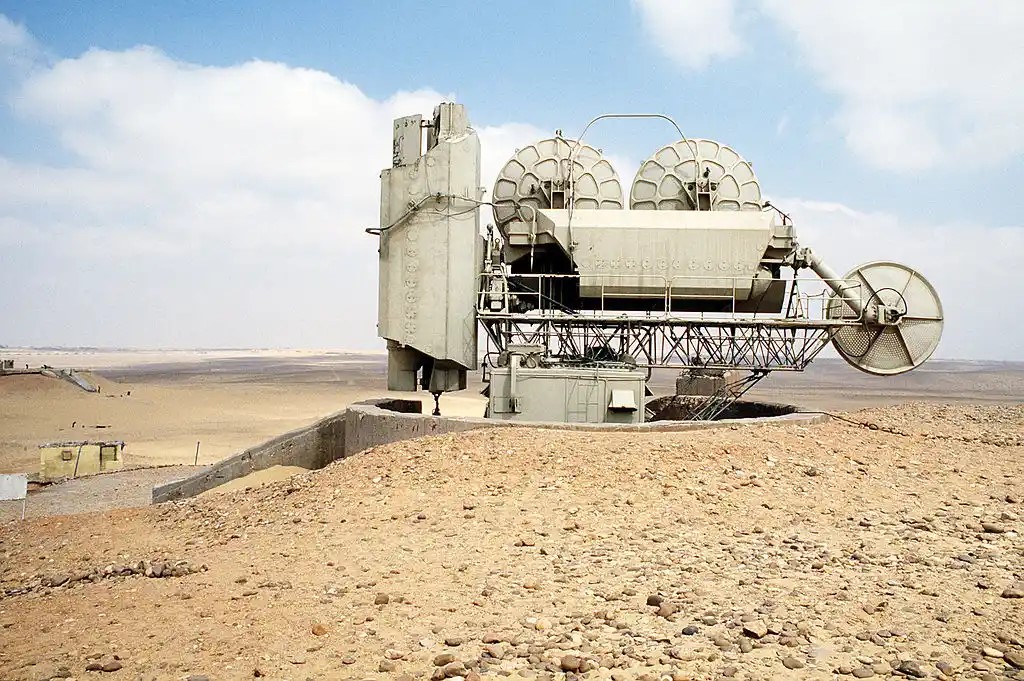

The radars feature two orthogonal antennas, one for azimuth and one for elevation, which can operate in a track-while-scan mode. These antennas transmit 10 × 2 degree or 7.5 x 1.5 degree beams and perform a 'flapping' motion as they scan their sectors.
Dimensions
Length
INA
Width
INA
Height
INA
Weight, Combat
INA
Details
Country of Origin
Russia
Category
Radars
Land > Radars
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Operators (23)
Russia
China
Iran
North Korea
Pakistan
Angola
Armenia
Azerbaijan
Bulgaria
Cuba
Egypt
Ethiopia
Kyrgyzstan
Libya
Mongolia
Myanmar
Romania
Sudan
Syria
Tajikistan
Vietnam
Yemen
Zimbabwe
