Tor-M1

Tor-M1

Local Air Defenses
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Tor-M1
Designation
Tor-M1
Alternate Designation
9K331, HQ-17, SA-15 Gauntlet, Tor M-1
Equipment Type
Local Air Defenses
Manufacturer
Almaz-Antey Concern, JSC IEMP Kupol
Date of Introduction
1991
Description

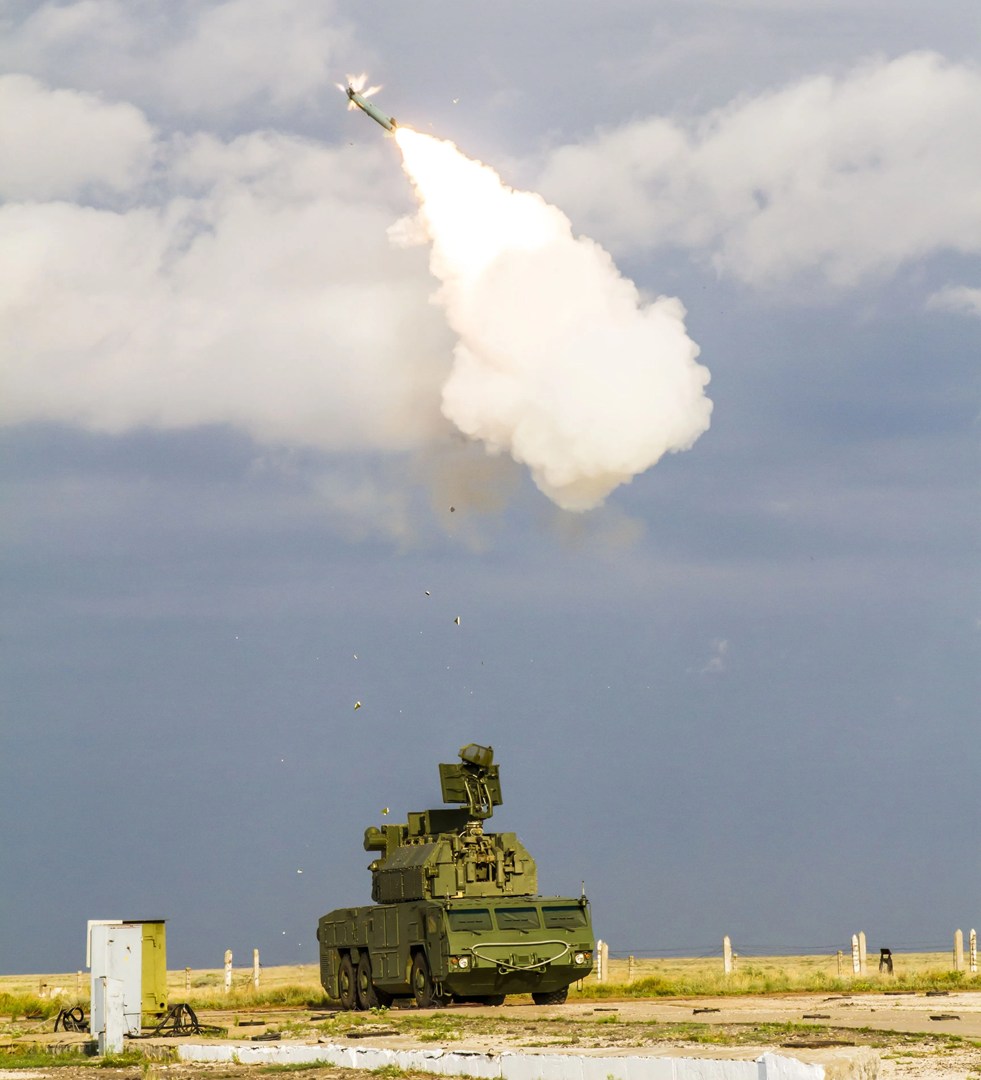

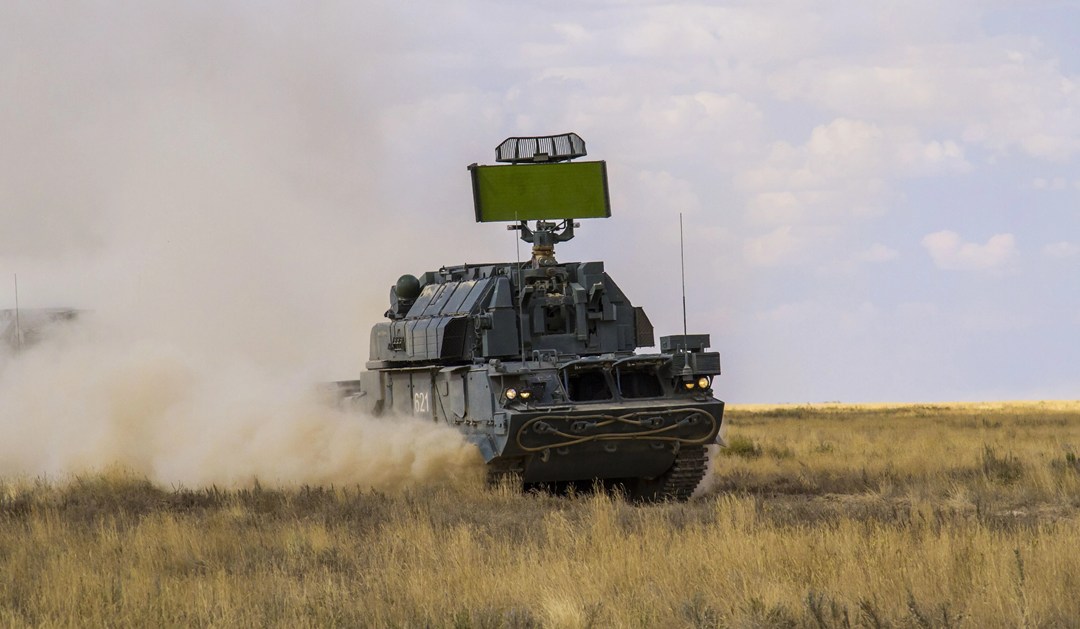

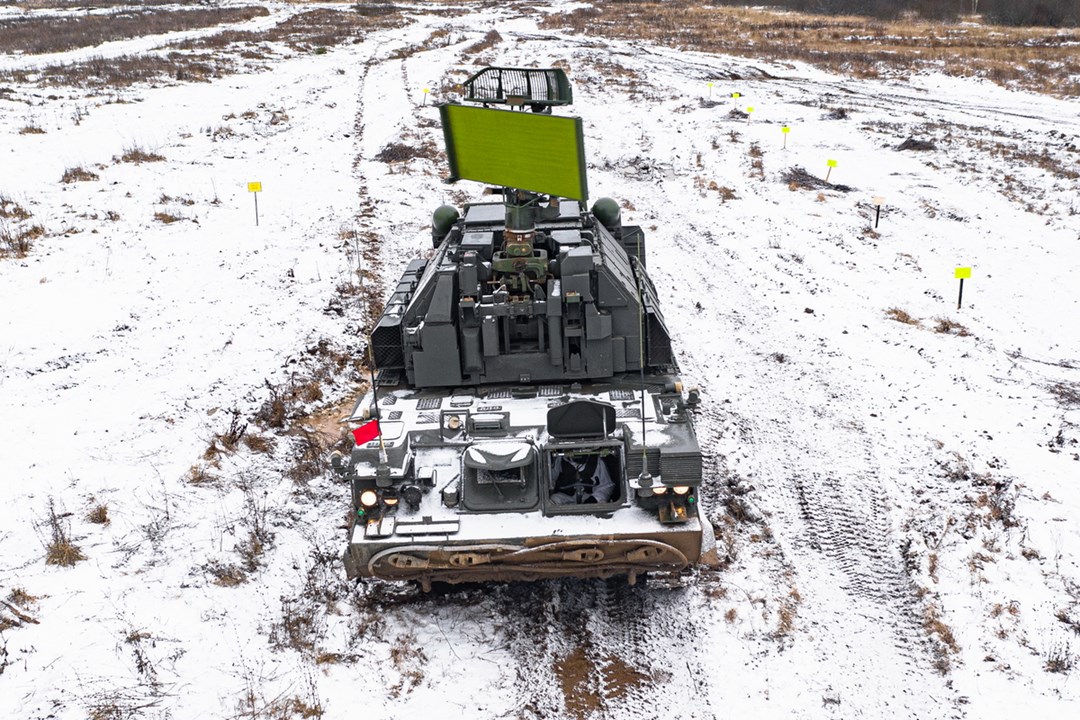

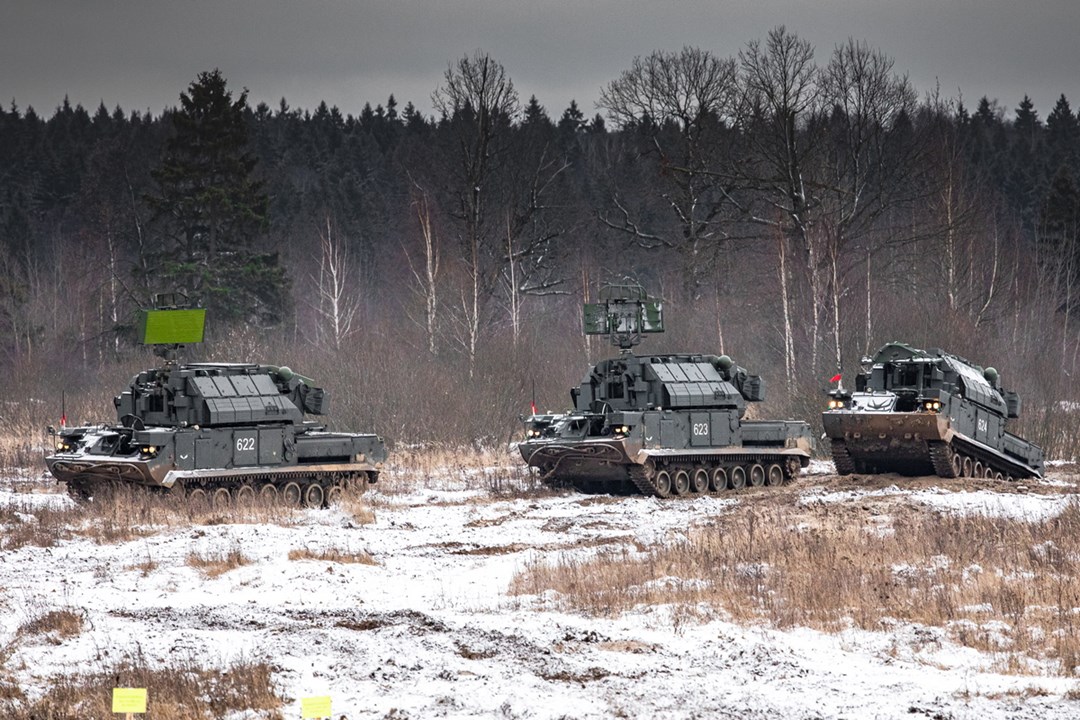

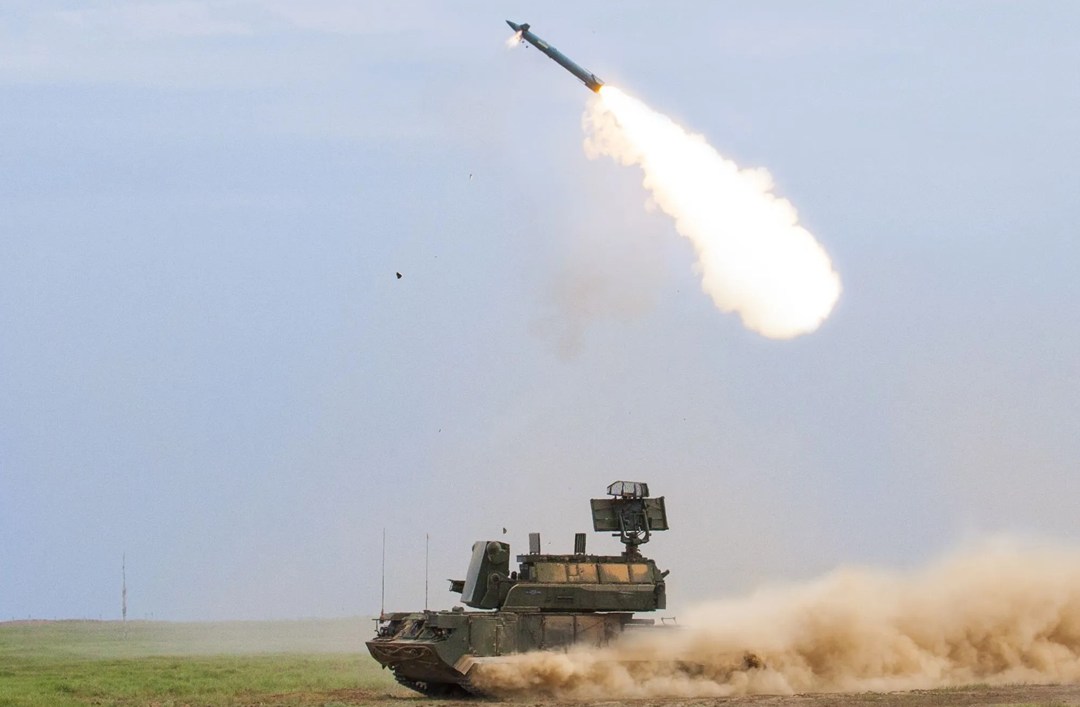

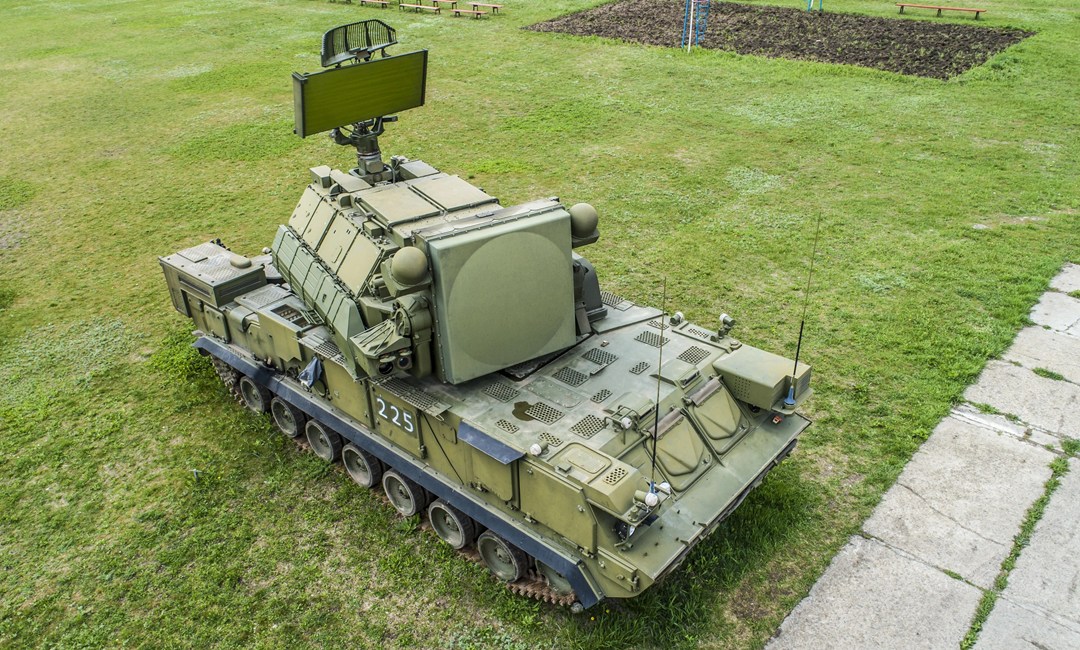

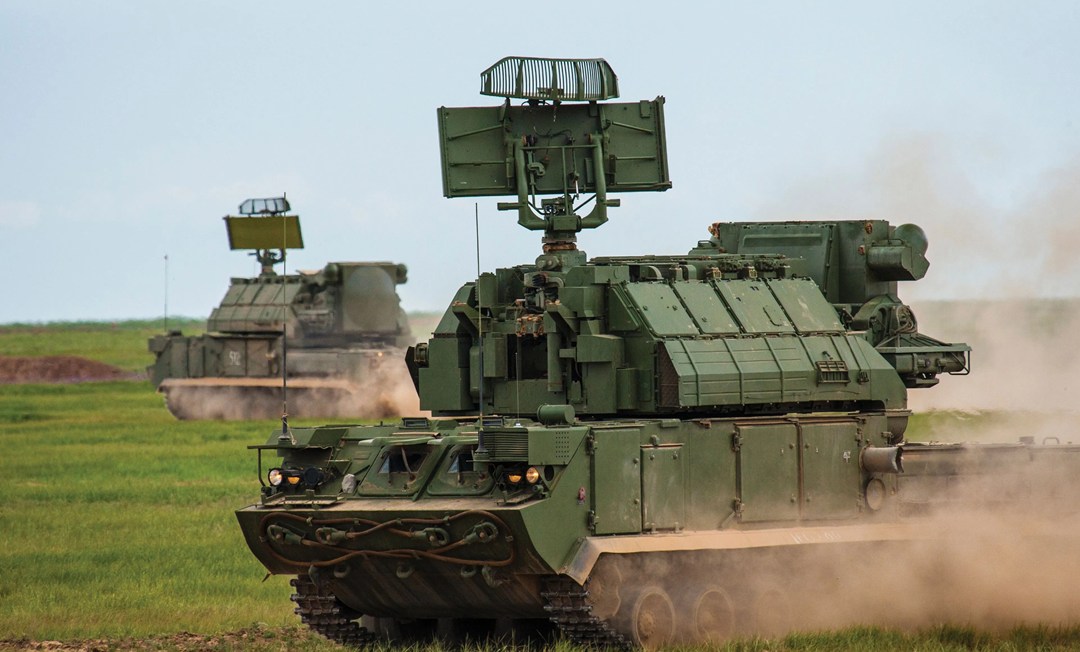

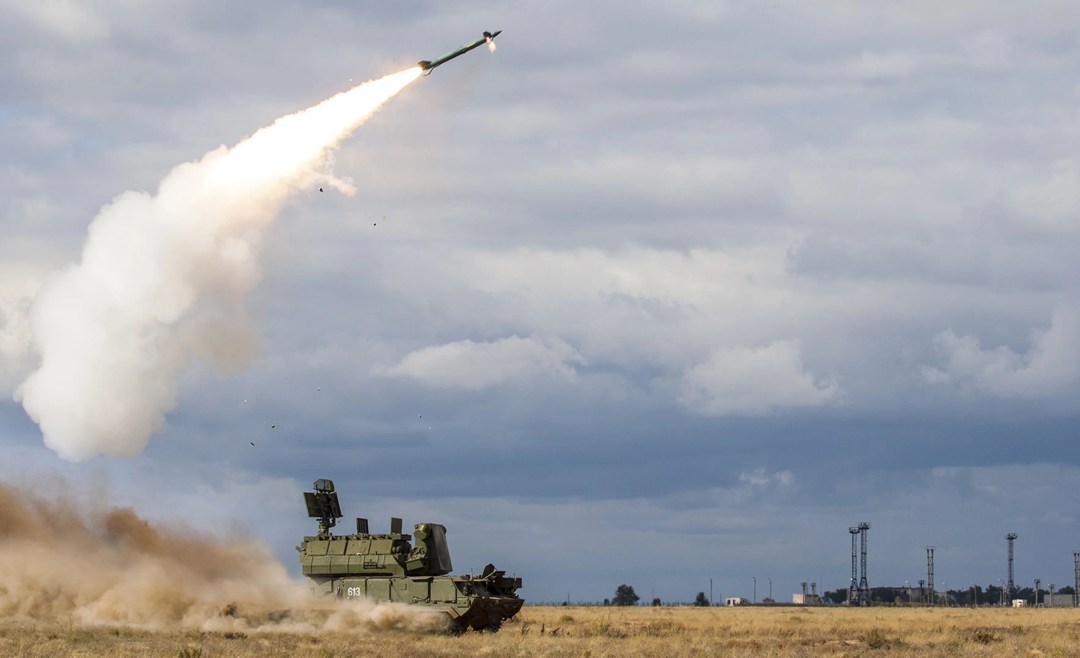

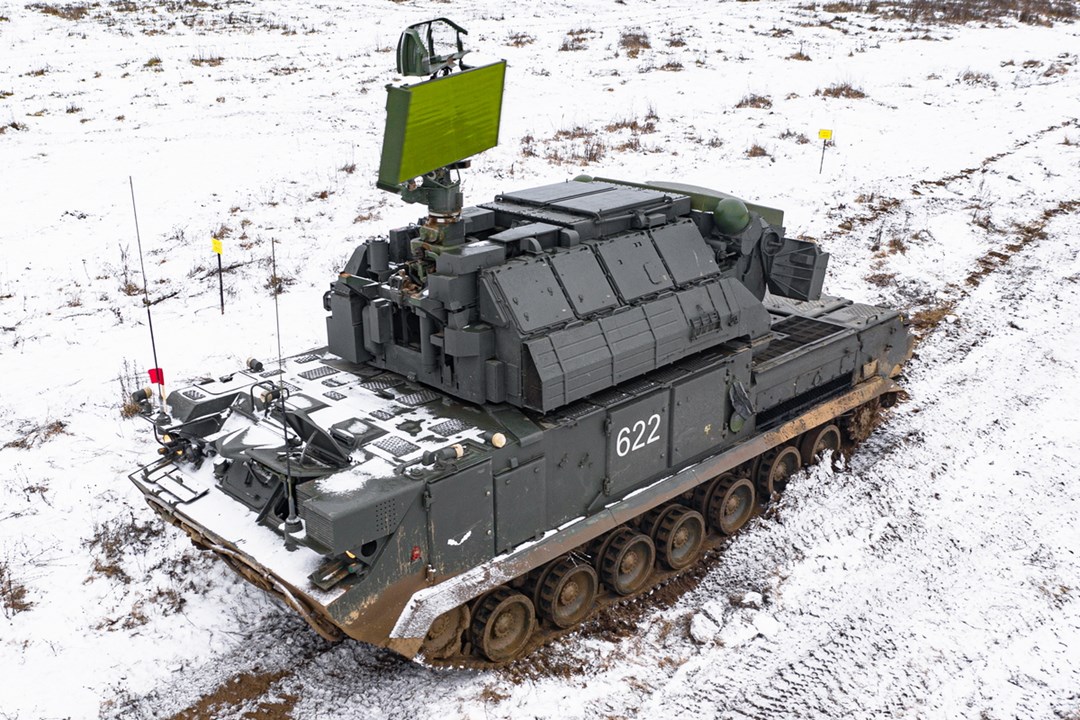

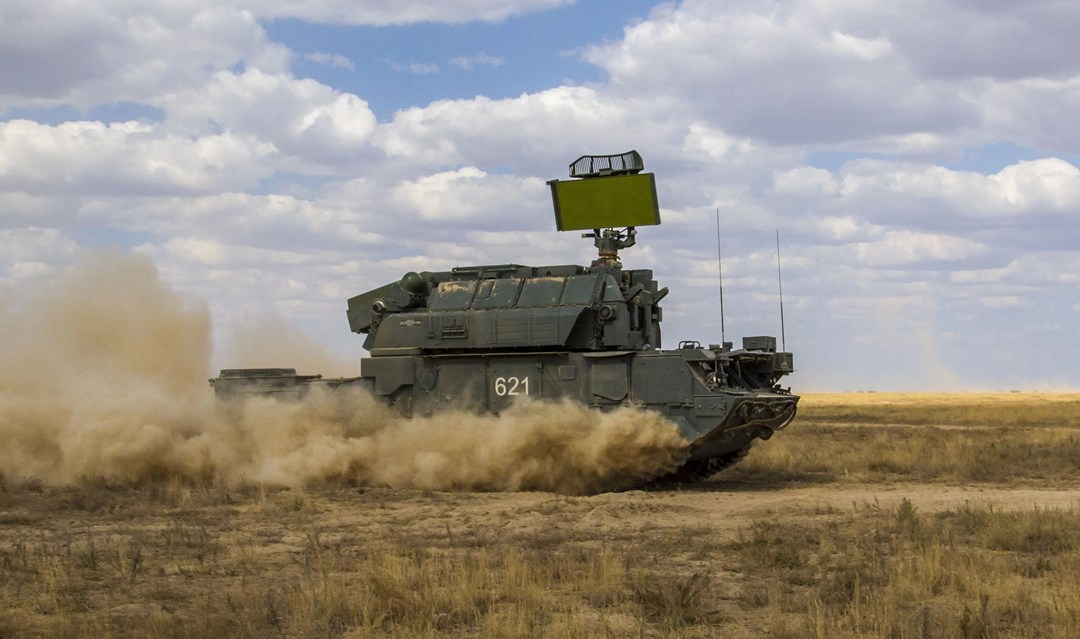

The Tor-M1 is a short range, mobile air defense system intended for engagement of fixed- and rotary-wing aircraft, UAVs, and cruise missiles flying between medium and very low altitudes even in severe countermeasures environments. It comprises radar system, command and control interface, and eight 9M331 missiles as well as associated equipment. The entire Tor-M1 Surface-to-Air Missile (SAM) system is mounted on a single tracked armored vehicle. The Tor-M1 fully automated system is able to perform air surveillance and missile firing, against two targets simultaneously, on the move. It protects Russian armored units against airborne threats. In December 2005 Iran and Russia inked the sale of 29 Tor-M1 air defense systems valued at $700 million. Iran will use these systems to shoot down cruise missiles, gliding bombs and aircraft.

Ground Specifications
Crew 3
Mobility Type Tracked
Main Weapon 9M331 missiles
Max Speed 65.0 km/h
Range 500.0 km
Overview (Deagel)
Group Local Air Defenses
Status Active
Also Known As 9K331, HQ-17, SA-15 Gauntlet, Tor M-1
Origin Russia
Contractors Almaz-Antey Concern, JSC IEMP Kupol
Initial Operational Capability (IOC) 1991
Total Production ?
Unitary Cost USD $26 million
Specifications (Deagel)
Crew 3
Engaged Aerial Targets 2
Number of Weapons 8
Rolling Rubber Wheels 7
Tracked Aerial Targets 48
Dimensions — Height 5.1 meter
Dimensions — Length 7.5 meter
Dimensions — Width 3.3 meter
Mass — Combat Weight 34,000 kilogram
Performance — Max Range 500 kilometer
Performance — Weapon Max Range 12,000 meter
Speed — Top Speed 65 kph
Time — SetUp Time 6 second
Gear (Deagel)
Item 1 Surface-to-Air Missiles: 9M331 (8)
Variants
Variant 1 Tor-M1
Variant 2 Tor-M2
Variant 3 Tor-M2KM
Variant 4 Tor-M2U

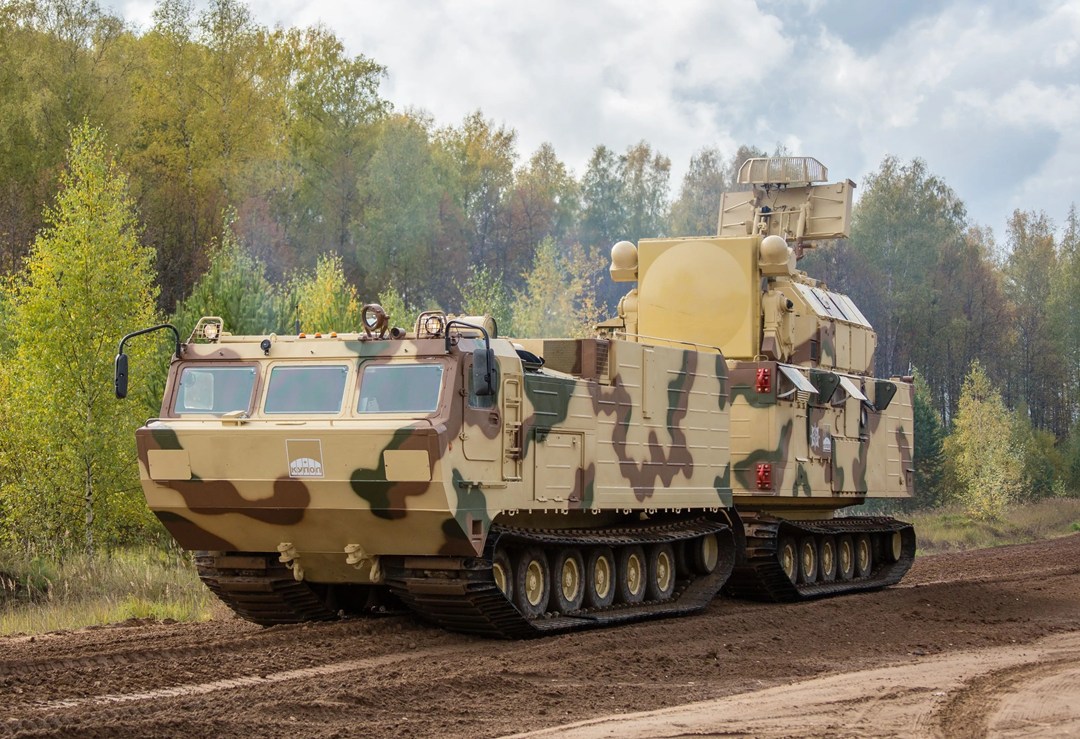

Variant 5 Tor-M2DT
Variant 6 M-Tor
Variant 7 Tor-MF
Details
Country of Origin Russia
Category Air Defense
Land > Air Defense
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.5 m
Width
3.3 m
Height
5.1 m
Weight
34000 kg
Operators (9)
Russia
China
Ukraine
Iran
Cyprus
Egypt
Greece
Saudi Arabia
Venezuela
