Azmat

Azmat

Missile Boats
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Azmat
Designation
Azmat
Alternate Designation
Equipment Type
Missile Boats
Manufacturer
China State Shipbuilding Company
Date of Introduction
2012
Description

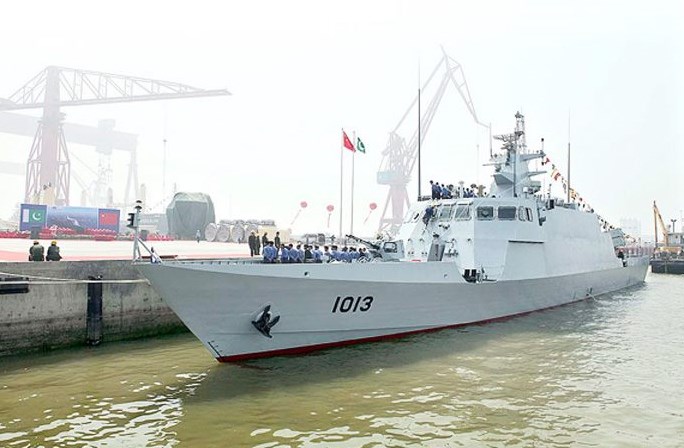

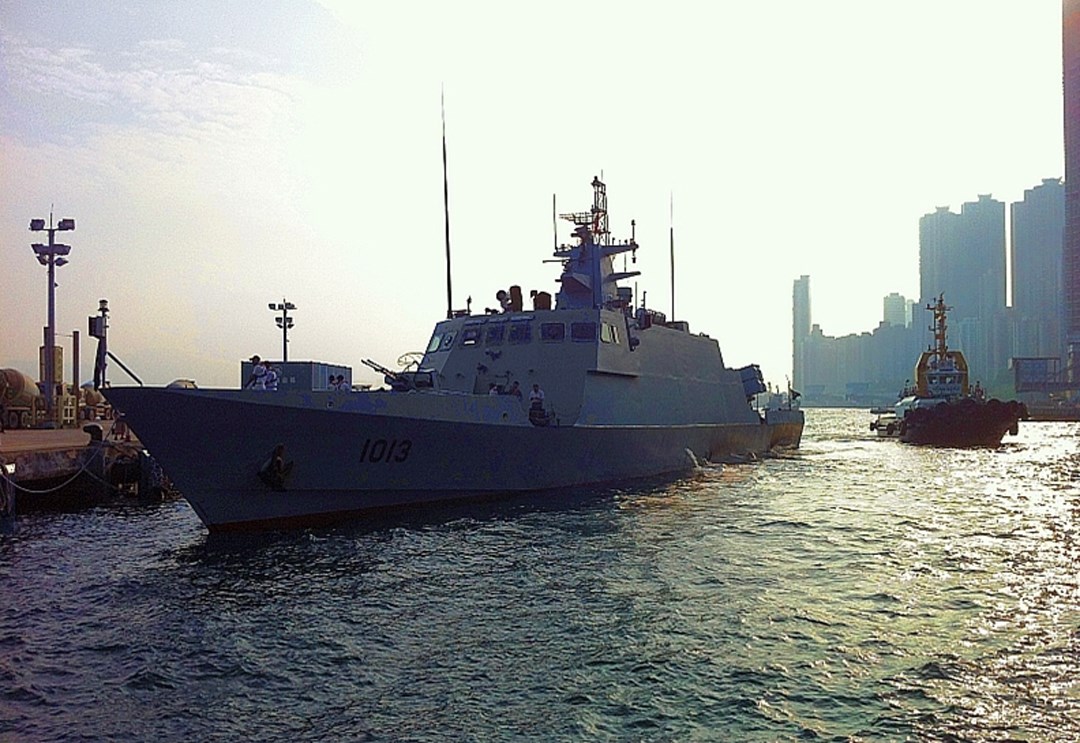

The Amzat class of fast missile boats were designed and built by China State Shipbuilding Company (CSSC) for the Pakistani Navy to perform anti-surface warfare (ASuW) in the littoral environment. The first ship, PNS Azmat, construction was completed in early 2012 and was commissioned on April 24. The second ship was commissioned in 2013. These ships feature stealth design, a dual 23mm automatic gun, a Type 730 close-in weapon system (CIWS) mounted on the bridge's roof and eight (4x2) C-802 anti-ship missiles. The second ship of the class weapon system is different with a 100mm gun at the bow, a 76mm gun at the stern and apparently only four (2x2) C-802 anti-ship missiles. The 560-ton Azmat can achieve a top speed of 30 knots and a maximum range of 1,000 nautical miles but it is not well suited for operations in blue water. The Pakistani Navy commissioned two vessels in 2013 and is rumored that could increase to eight fast attack crafts.

Naval & Littoral Specifications
Crew 14
Displacement 560.00 tonnes
Beam 8.80 m
Max Speed 30.0 knots
Overview (Deagel)
Group Missile Boats
Status Active
Origin China
Contractor China State Shipbuilding Company
Initial Operational Capability (IOC) April 24, 2012
Total Production 2
Specifications (Deagel)
Crew 14
Number of Weapons 8
Dimensions — Beam 8.8 meter
Dimensions — Length 63 meter
Dimensions — Main Gun Caliber 100 millimeter
Mass — Full Displacement 560 ton
Performance — Max Range 1,000 nautical mile
Speed — Top Speed 30 knot
Gear (Deagel)
Item 1 Anti-Ship Missiles: C-802 (8)
Item 2 Anti-Ship Missiles: Harbah (8)
Item 3 Sea-Based Air Defense Systems: Type 730 (1)
Details
Country of Origin China
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
63 m
Width
8.8 m
Height
Weight
560000 kg
Operators (1)
Pakistan
