MBT-2000 (Type 90-II) Chinese Main Battle Tank (MBT)
MBT-2000, Type 90-11, Al-Khalid
Main Battle Tank (MBT)
Other
Basic Information
Name
MBT-2000 (Type 90-II) Chinese Main Battle Tank (MBT)
Designation
MBT-2000, Type 90-11, Al-Khalid
Alternate Designation
MBT-2000, Type 90-11, Al-Khalid
Equipment Type
Main Battle Tank (MBT)
Manufacturer
NORINCO
Date of Introduction
2000
Description

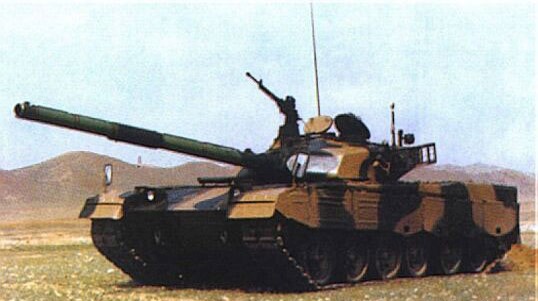

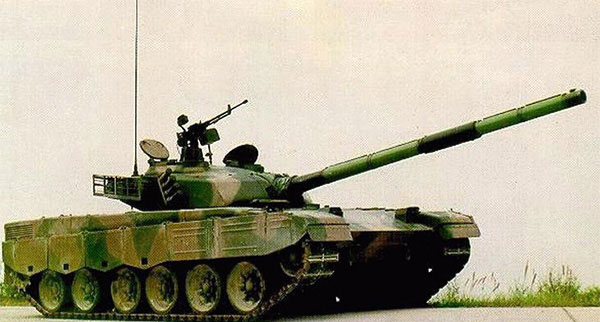

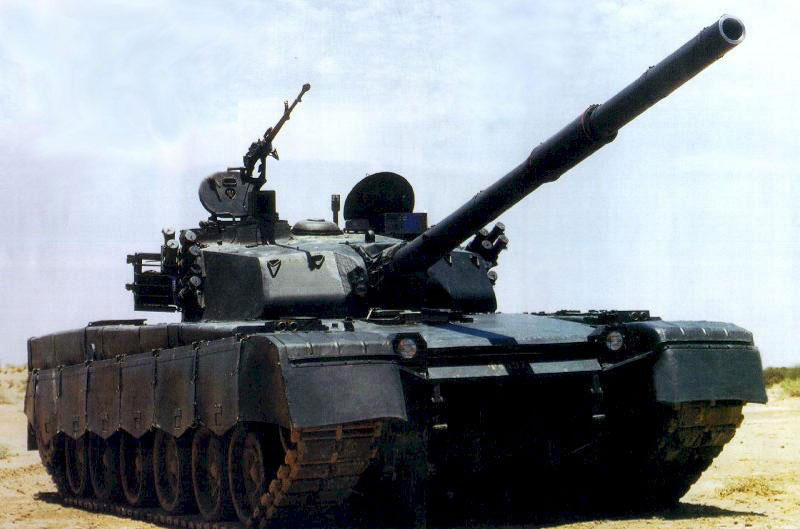

The MBT-2000 was developed in China by NORINCO, it was known as the Type 90-II and was later marketed for export as the MBT-2000. The MBT-2000 developed and offered for export by NORINCO is believed to have very similar specifications as the Al-Khalid and externally appears almost identical. The MBT-2000 has been exported by NORINCO to Bangladesh. The MBT-2000 has a crew of three, a 125 mm smoothbore gun as the main armament, and all-welded steel construction with an additional layer of composite armor over the frontal arc for protection.
Ground Specifications
Crew
3
Mobility Type
Tracked
Main Weapon
125 mm smoothbore gun
Engine
Diesel (1200 hp)
Active Protection
Yes
NBC Protection
Yes
Max Speed
65.0 km/h
Range
500.0 km
Variants
Al-Khalid
The Al-Khalid is an MBT manufactured in Pakistan by Heavy Industries Taxila (HIT) and the MBT-2000 is an MBT marketed for export by China North Industries Corporation (NORINCO).
VT-1A
Export Version of the MBT-2000. Bangladesh: 44, Morocco: 54, Myanmar: 50
System
Alternative Designation
MBT-2000, Type 90-11, Al-Khalid
Type
Main Battle Tank (MBT)
Manufacturer
NORINCO
Family
INA
Crew
3 ea
Passenger Capacity
INA
Maximum Effective Range (Road)
500 km
Maximum Effective Range (Main Gun)
5,000 m
Add on Parts
Yes, Additional Armor
Dimensions
Length
10.33 m
Width
3.5 m
Height
2.4 m
Weight, Combat
48 tons
Ground Pressure
INA
Automotive
Engine Name
Ukrainian 1,200 hp 6TD-2 six cylinder turbocharged multi-fuel diesel engine.
Engine Type
Diesel
Engine Power
1,200 hp
Cruising Range
500 km
Speed, Maximum Road
65 km/h
Speed, Average Cross
55 km/h
Speed Maximum Swim
INA km/h
Gradient
60 %
Side Slope
40 %
Vertical Step
0.85 m
Fording Depth
1.4 m
Fording with Preparation
5.0 m
Tench
2.7 m
Suspension
Torsion Bar
Hydraulic Shock Absorbers
Yes
Communications
TBR-121
VHF Transceiver
Yes
VHF Range
1 to 50 km
Proliferated
Widely
Digital Data
Yes, Full
Control
Self-Adaptive Control (Including Automatic Antenna Tuner)
Frequency Agile
Yes
Wireless Network Capabilities
Yes
Note:
Very similar in capabilities to the US SINCGARS ASIP
Main Gun
System
Name
MBT-2000 Main Gun
Type
125 mm smoothbore gun
Max Rate of Fire
6-8 rds/min
Sustain Rate of Fire
INA
Time the Max Rate of Fire can be Sustained
INA
Range Finder Type
Laser
Loader Type
Autoloader
Thermal Jacket
Yes
Fume Extractor
Yes
Ammunition (Option 1)
Type
High Explosives (HE)
Purpose
High explosive fragmentation fin stabilised. General purpose rounds, for use against infantry, bunkers and light vehicles and other "soft" targets.
Caliber
125 mm
Variants
3VOF22/3OF19, 3VOF36/3OF26, 3VOF128/3OF82
Muzzle Velocity
850 m/s
Maximum Effective Range
5,000 m
Minimum Effective Range
INA m
Armor Penetration
Yes
Max Dispersion
0.23 mrad
Tungsten Rods
450 ea
Charge
A-IX-2 (73% RDX, 23% aluminium powder, phlegmatized with 4% wax) 3.0 kg
Projectile Weight
23 kg
Fragments
2,500 ea
Basic Load
39 in total any combination
Ammunition (Option 2)
Type
High-Explosive Anti-Tank (HEAT)
Name
3VBK27/3BK31 "Start"
Caliber
125 mm
Variants
3VBK7/3BK12, 3VBK10/3BK14, 3BK12M, 3BK14M, 3VBK16/3BK18, 3BK18M, 3VBK17/3BK21, 3BK21B, 3VBK21/3BK25, 3VBK25/3BK29 "Breyk", 3VBK25M/3BK29M
Muzzle Velocity
915 m/s
Maximum Effective Range
3,000 m
Minimum Effective Range
INA m
Armor Penetration
Estimated at 800 mm triple charge HEAT
Max Dispersion
INA
Charge
INA
Charge Weight
1.62 kg
Projectile Weight
18.4 kg
Basic Load
39 in total any combination
Ammunition (Option 3)
Type
Armour-Piercing Fin-Stabilized Discarding Sabot Tracer or APFSDS-T rounds.
Name
3VBM?/3BM69 "Vacuum-1"
Caliber
125 mm
Variants
1.1 3VBM3/3BM9/10 1.2 3VBM6/3BM12/13 1.3 3VBM7/3BM15/16 1.4 3VBM8/3BM17/18 1.5 3VBM9/3BM22/23 1.6 3VBM10/3BM29/30 1.7 3VBM11/3BM26/27 1.8 3VBM13/3BM32/33 1.9 3VBM17/3BM42 (3BM44 "Mango") 1.10 3VBM19/3BM42M (3BM44M "Lekalo") 1.11 3VBM20/3BM46 (3BM48 "Svinets") 1.12 3VBM22/3BM59 (3BM59 "Svinets-1") 1.13 3VBM23/3BM60 (3BM60 "Svinets-2") 1.14 3VBM?/3BM69 "Vacuum-1" 1.15 3VBM?/3BM70 "Vacuum-2"
Muzzle Velocity
2,050 m/s
Maximum Effective Range
3,000 m
Muzzle Energy
15-24 MJ
Minimum Effective Range
INA m
Projectile Dimension
900 mm
Penetration
1,000 mm
Projectile Weight
11 kg
Note
Entered service in 2005[5] Utilising a new sabot. Reported to be uranium alloy. For 2A82/2A82-1M cannon on T-80UM-2/T-14s.
Basic Load
39 in total any combination
Tank Commander's Weapon System
System
Name
1 x W-85 12.7mm Anti-Aircraft Machine Gun
Caliber
12.7 mm
Type
Anti-Aircraft Machine Gun
Max Rate of Fire
550-600 rds/min
Sustain Rate of Fire
INA
Time the Max Rate of Fire can be Sustained
INA
Range Finder Type
Iron/Optical
Feed System
Belt
Operation
Gas Operated, Open Belt
Traverse
360 deg
Elevation Angle
90 deg
Ammunition
Type
Type 54 Round
Caliber
12.7x108 mm
Mounted
Co-axially with the 125mm Main Gun
Muzzle Velocity
850 m/s
Effective Range
2.5 km
Armor Penetration
Yes
Basic Load
750 (50 Round Belts) ea
Loader's Weapon System
System
Name
1 x 7.62mm General-Purpose Machine Gun
Fire Control
Name
INA
Computerized FCS
Yes, Image Stablished FCS
Ballistic Computer
Yes
Thermal Sight Tank Commander
Yes
Two-Axis Panoramix Sight (Commander)
Yes
Commander's sight Magnication
x6 with a 10 deg FOV
Thermal Sight Gunner
Yes
Two-Axis Stabilised Fixed Roof-Mounted Sight (Gunner)
Yes
Gunner's Sight Magnification
x3 with a 20 percent FOV and x10 with a 6 deg FOV.
Main Gun Stabilization
Yes
Auto-Tracking Function
Yes
Image-Stabilized Gunner Sight
Yes
Fire Control Computer and Sensors
Yes
Laser Rangfinder
Yes
Automatic Target Tracker (ATT)
Yes
Thermal Imager Module
Yes
Roof Mounted Crosswind/Angular Velocity Sensor
Yes
Protection
Hull Armor
all-welded steel, Protects from small arms fire and shell splintering
Turret Armor
all-welded steel, Protects from small arms fire and shell splintering
Applique Armor
Yes, Modular Armor
Explosive Reactive Armor
Yes, added to the Glacis Plate, Sides, forward roof, and Vehicle Nose
Active Protection System
Yes
Mine Clearing
No
Self-Entrenching Blade
Yes
NBC Protection
Yes
Smoke Equipment
Available
IR Reflective Paint
yes
Anti-Neutron Liner
Yes
Details
Country of Origin
China
Category
Tanks
Land > Tanks
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
10.33 m
Width
3.5 m
Height
2.4 m
Weight
48000 kg
Operators (5)
China
Pakistan
Bangladesh
Morocco
Myanmar
