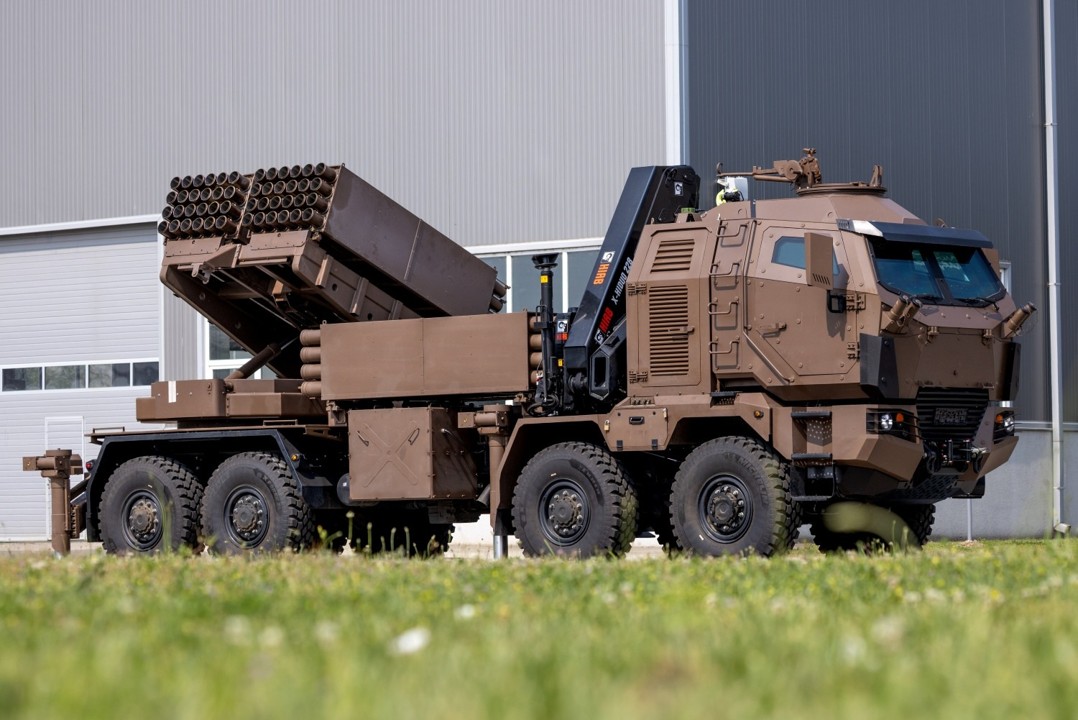

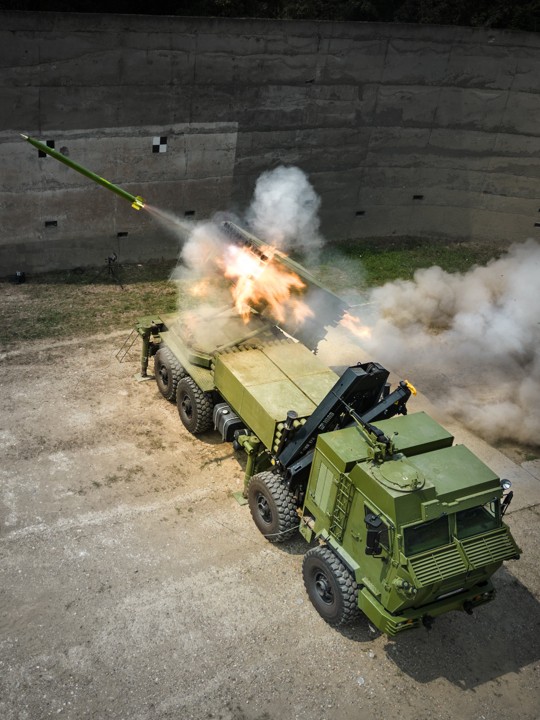

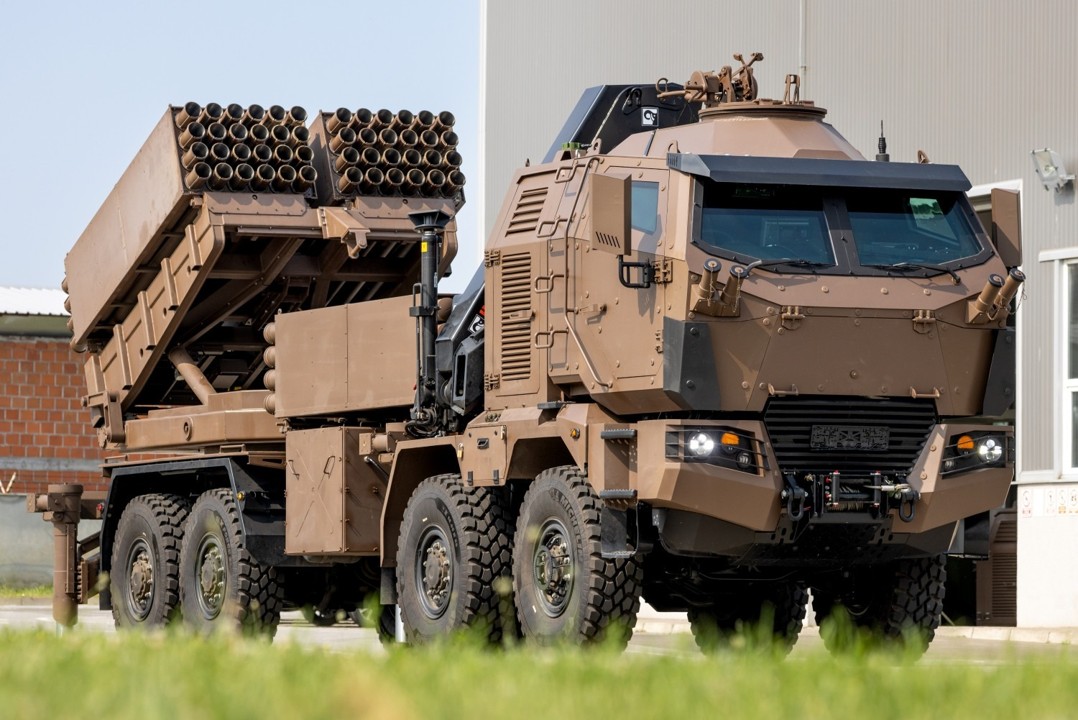

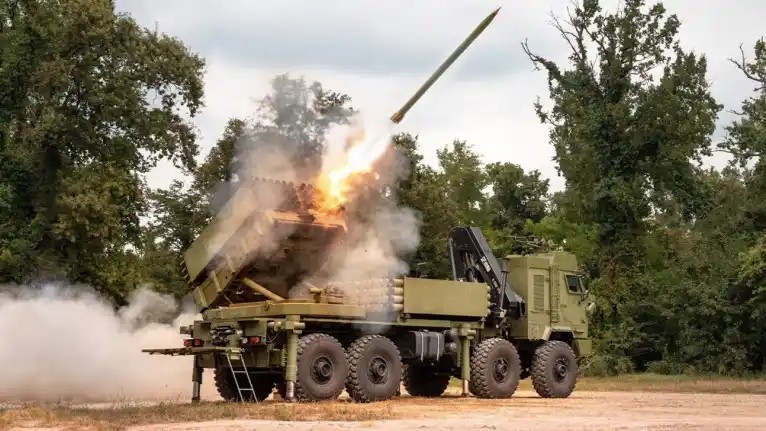

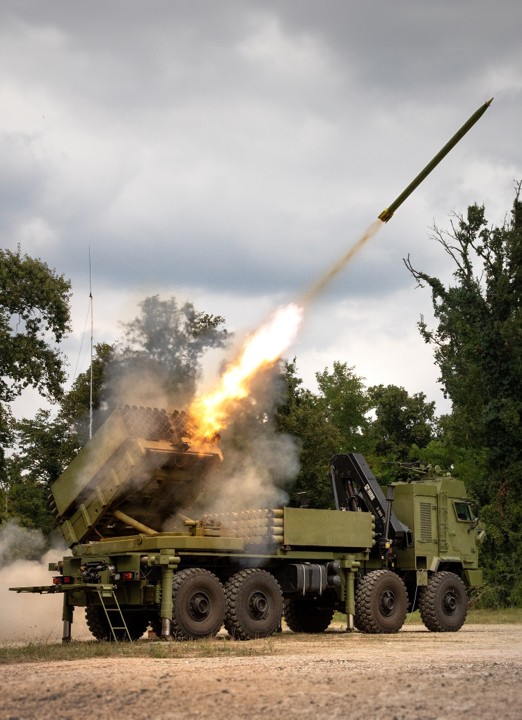

TAMNAVA-G Serbian 122mm Multiple Launch Rocket System (MLRS)
TAMNAVA-G
Multiple Launch Rocket System (MLRS)
Other
Basic Information
Name
TAMNAVA-G Serbian 122mm Multiple Launch Rocket System (MLRS)
Designation
TAMNAVA-G
Alternate Designation
TAMNAVA-G
Equipment Type
Multiple Launch Rocket System (MLRS)
Manufacturer
Yugoimport
Date of Introduction
2020
Description
The TAMNAVA-G Serbian 122mm Multiple Launch Rocket System (MLRS) S is designed to utilize launch pods that are compatible with all versions of 122mm rockets. This automated weapon system is equipped with an Inertial Navigation System (INS) and can execute preset missions with full autonomy. The basic version features disposable launch pods, but the MLRS can also accommodate two spare 122mm launch pods. The system can be loaded and unloaded using a hoisting device mounted on the platform. Additionally, there is the option to use reusable launch tubes.
Ground Specifications
Crew
3
Mobility Type
Wheeled (8x8)
Main Weapon
122mm Multiple Launch Rocket System (MLRS)
Engine
Diesel (400 hp)
NBC Protection
Yes
Max Speed
90.0 km/h
Range
1000.0 km
System
Alternative Designation
TAMNAVA-G
Type
Multiple Launch Rocket System (MLRS)
Caliber
122 mm
Manufacturer
Yugoimport
Chassis
KAMAZ 6560 with armored cabin
Configuration
8x8
Crew
3 ea
Operating Temperature
-30°C to +50°C
Dimensions
Length
10,360 mm
Width
2,850 mm
Height
3,570 mm
Weight, Combat
38 tons
Automotive
Engine Name
YaMZ-5367
Engine Type
Diesel
Engine Power
400 hp
Maximum Range
1,000 km
Maximum Speed
90 km/h
Amphibious
No
Gradient
60%
Side Slope
40%
Vertical Step
0.6 m
Trench
2.0 m
Fording
1.8 m
Main Weapon System
Type
Multiple Launch Rocket System (MLRS)
Caliber
122 mm
Launching device
Disposable launch pods/optionally with reusable launch tubes
Number of Tubes Per One Launch Module
24 ea
Elevation
0° - 60°
Traverse
±110°
Maximum Range
40.1 km (GRAD 2000); 27.5 km (GRAD M); 20.1 km (GRAD)
Accuracy of MLRS Position
±1 m
Loading
With standard loading/unloading lifting device on the utility vehicle or auto-loading the spare pods accommodated on the platform.
Weapon stabilization during firing
By means of four legs for eliminating the system elasticity
Orientation and navigation
INS and GPS
Combat mission
Autonomous
Slope correction
Automatic, using a special device – up to 5°
Time to prepare for firing
120 s
Time to retreat
60 s
Protection
Armor
Armored Cabin
Applique Armor
INA
NBC Protection
Yes
Smoke Equipment
INA
Details
Country of Origin
Serbia
Category
Rocket Artillery Systems
Land > Artillery > Rocket Artillery Systems
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
10.36 m
Width
2.85 m
Height
3.57 m
Weight
38000 kg
Operators (1)
Serbia
