Rockot

Rockot

Space Launch Systems
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Rockot
Designation
Rockot
Alternate Designation
Rokot
Equipment Type
Space Launch Systems
Manufacturer
Date of Introduction
1990
Description

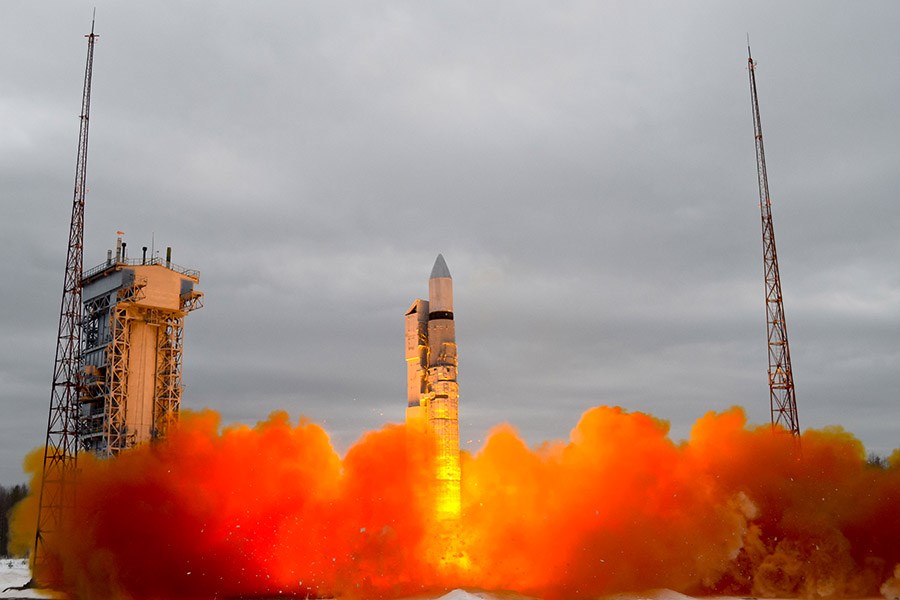

The Rockot is a three-stage light space launch vehicle based on the RS-18/SS-19 Stiletto intercontinental ballistic missile. This launch vehicle stored in a sealed canister lifts off from launch pads operational at Baikonur and Plesetsk Cosmodromes. The launch canister features filler ports for refueling. The Rockot launch vehicle comprises two rocket stages and the Breeze-KM upper stage as the third stage. The payload and the nose fairing are installed in the third stage. Breeze-KM features a re-startable liquid propellant rocket engine (up to five times) which provides support for multiple satellite injection into different orbits. The liquid propellant consists of high-boiling components of hypergolic propellant with unsymmetrical dimethyl hydrazine as fuel and nitrogen tetroxide as oxidizer. The Strela launch vehicle features inertial autonomous control system and can put a payload of 1,000 kg into a circular orbit at an altitude of 1,500 km, 1,500 kg into a circular orbit of 600 km, and 1,850 kg into a circular orbit of 200 km.

Overview (Deagel)
Group Space Launch Systems
Status Retired - No Longer Operational
Also Known As Rokot
Origin Russia
Initial Operational Capability (IOC) November 20, 1990
Total Production 34
Specifications (Deagel)
Number of Stages 3
Dimensions — Height 29.5 meter
Dimensions — Rocket Diameter 2.5 meter
Mass — Max Lift-off Weight 107 ton
Mass — Payload to LEO 1,850 kilogram
Mass — Payload to SSO 1,000 kilogram
Percentage — Reliability 97 %
Variants
Variant 1 Rockot
Variant 2 Rokot-M
Details
Country of Origin Russia
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
29.5 m
Width
2.5 m
Height
29.5 m
Weight
107000 kg
Operators (1)
Russia
