UAZ Patriot (UAZ-3163) Russian 4x4 Light Utility Vehicle

UAZ Patriot

Light Utility Vehicle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
UAZ Patriot (UAZ-3163) Russian 4x4 Light Utility Vehicle
Designation
UAZ Patriot
Alternate Designation
UAZ Patriot; UAZ-3163
Equipment Type
Light Utility Vehicle
Manufacturer
UAZ
Date of Introduction
2005
Description

The UAZ Patriot (UAZ-3163) Russian 4x4 Light Utility Vehicle is a Russian light utility vehicle. It was introduced in 2005. An updated version is produced since 2015. Originally it was developed as a civilian vehicle. This utilitarian vehicle with good cross-country capability is also used by the military. It uses 4x2 (front-wheel drive) on hard surface roads and 4X4 is engaged only when traveling over tough terrain. The UAZ patriot has been exported to Armenia, and possibly some other countries. A baseline vehicle has a fully enclosed body with 5-doors. It accommodates drivers plus 4 passengers and can carry 200 kg of cargo. There is a version, that accommodates drivers and up to 8 passengers. Also, there are 2-door and 4-door pickup versions. The full payload capacity is 525 to 800 kg, depending on the version. The firepower in the back of the vehicles will enable their operators to suppress enemy fire in a radius of up to 2 km. The weapons can be mounted aboard a rotary turret, allowing the user to instantaneously change his arc of fire. Additionally, the vehicle can be equipped with Konkurs or Kornet anti-tank missiles, capable of hitting enemy targets at distances of up to 5 km. It can also be fitted with a 120 mm mortar with an effective range of 9 km.

Ground Specifications
Crew 1
Troop Capacity 4
Mobility Type Wheeled (4x4)
Main Weapon 1 x Kord 12.7 mm Heavy Machine Gun
Engine 4-Cylinder Gasoline (128 hp)
Max Speed 150.0 km/h
Range 600.0 km
Variants

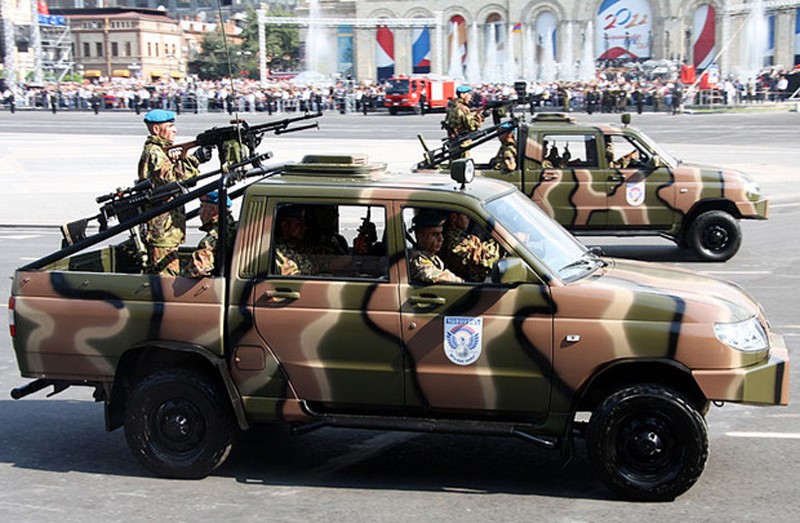

2-door version Pick-up truck
4-door version Pick-up truck
5-door version Fully enclosed
Extended version 1 Driver + 8 passengers
Mortar carrier Transport system for an 82mm mortar.
System
Alternative Designation UAZ Patriot; UAZ-3163
Type Light Utility Vehicle
Configuration 4x4
Manufacturer UAZ
Crew 1 ea
Troop Capacity 4 passengers
Wheels Central Tire Pressure Regulation System No
Wheels Size 225/75R16 or 245/70R16
Dimensions
Length 4.74 m
Width 2.0 m
Height 2.0 m
Weight 2.67 tons
Ground Clearance 210 mm
Automotive
Engine Name ZMZ-409.10
Engine Type In-line four cylinder, Gasoline
Engine Power 128 hp
Fuel A-92
Fuel Capacity 87 liters
Range 600 km
Speed, Maximum Road 150 km/h
Fording Depth 0.5 m
Cooling Water
Gradient, Loaded 60 %
Side Slope 30 %
Transmission Manual, 5-speed
Vertical Step 0.5 m
Trench 0.5 m
Brakes, Front ventilated disk-type with two cylinders and floating caliper
Brakes, Rear drum-type, with one cylinder, with automatic adjustment of the clearance between the lining and the drum
Main Weapon System
Option 1
Name 1 x Kord 12.7 mm Heavy Machine Gun
Type Heavy machine-gun
Caliber 12.7 mm
Option 2
Name 1 x AGS-17 30mm Automatic Grenade Launcher
Type Automatic Grenade Launcher
Caliber 30 mm
Option 3
Name 1 x 2B14 Podnos 82mm Mortar
Type Mortar
Caliber 82 mm
Option 4
Name 1 x Konkurs or Kornet
Type Anti-Tank Missile
Protection
Hull Armor INA
Applique Armor INA
NBC Protection System No
Smoke Equipment INA
Details
Country of Origin Russia
Category Tactical Utility Vehicles
Land > Infantry Vehicles > Tactical Utility Vehicles
Filter Label
U
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4.74 m
Width
2 m
Height
2 m
Weight
2670 kg
Operators (4)
Russia
Ukraine
Armenia
Syria
