Daring Class (Type 45 Class) British Destroyer
Daring Class
Destroyer
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
Daring Class (Type 45 Class) British Destroyer
Designation
Daring Class
Alternate Designation
Daring Class; Type 45 Class
Equipment Type
Destroyer
Manufacturer
BAE Systems Maritime – Naval Ships
Date of Introduction
2009
Description

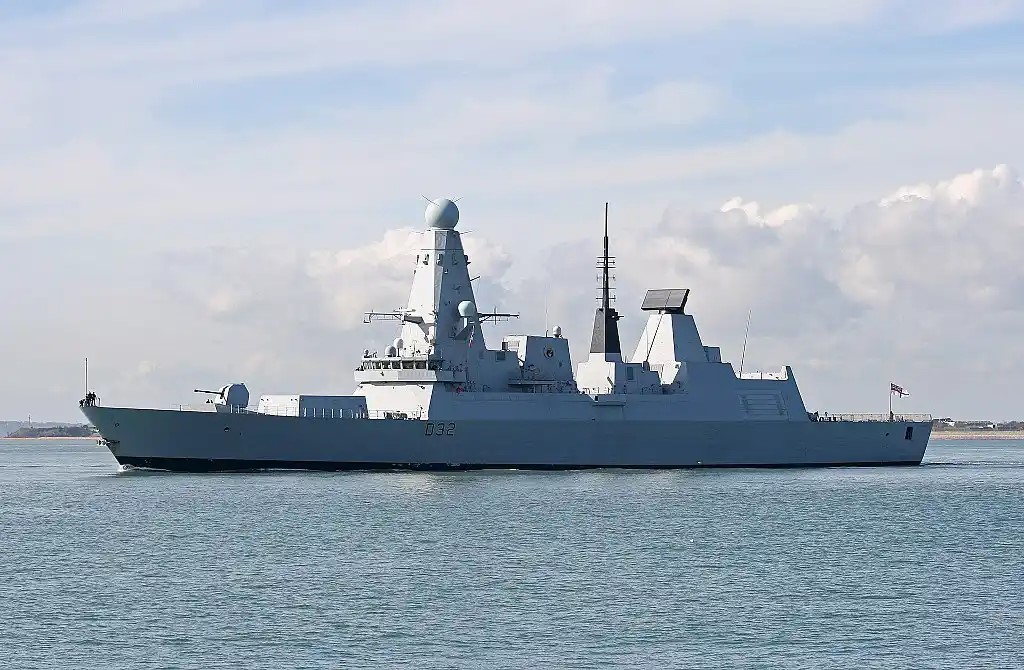

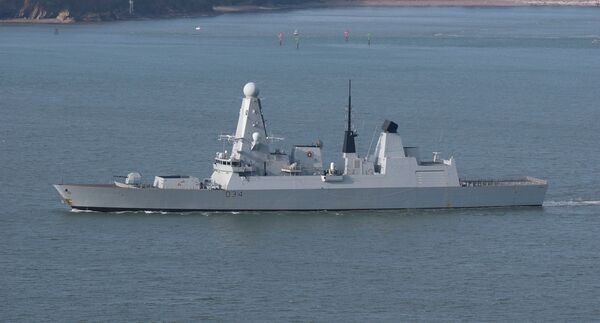

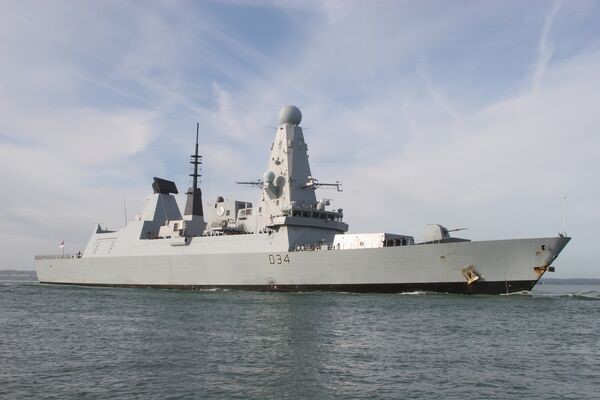

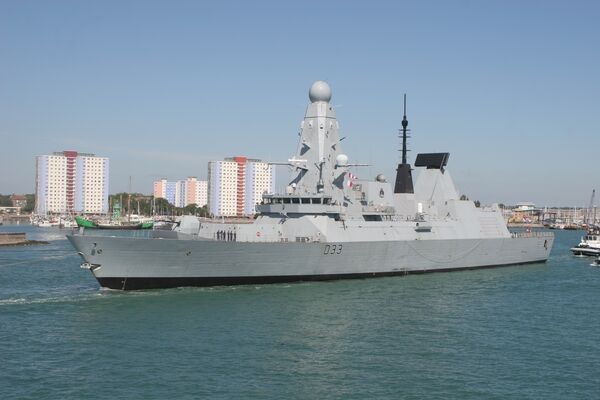

The Daring Class (Type 45 Class) British Destroyer is a class of six guided-missile destroyers built for the United Kingdom's Royal Navy in the early 21st century. The class is primarily designed for anti-aircraft and anti-missile warfare and is built around the PAAMS (Sea Viper) air-defense system utilizing the SAMPSON Active electronically scanned array (AESA) and the S1850M long-range radars.
Naval & Littoral Specifications
Crew
190
Beam
21.20 m
Draft
5.30 m
Variants
Daring Class
Commissioned: 2009
Status: Active
Dauntless
Commissioned: 2010
Status: Active
Diamond
Commissioned: 2007
Status: Active
Dragon
Commissioned: 2008
Status: Active
Defender
Commissioned: 2009
Status: Active
Duncan
Commissioned: 2010
Status: Active
System
Alternative Designation
Daring Class; Type 45 Class
Type
Destroyer
Builder
BAE Systems Maritime – Naval Ships
Crew
190 ea
Additional Berthing
41 ea
Dimensions
Length
152.4 m
Height
INA
Beam
21.2 m
Draft
5.3 m
Displacement, Standard
5,800 tons
Displacement, Full Load
8,000 tons
Propulsion System
Engine Name
2 × Rolls-Royce WR-21
Engine Type
Gas Turbines
Engine Power
28,800 shp each
Generator
2 × Wärtsilä 12V200 diesel generators
Generator Power
2,700 shp each
Maximum Range
12,038.0 km at 18 kt (33.3 km/h)
Maximum Speed
31 kt (57.4 km/h)
Missile Weapon Systems
Missile Weapon System #1
Name
8 x McDonnell Douglas RGM-84D Harpoon Block IC
Type
Surface-to-Surface Missile
Active Radar Homing
124+ km
Speed
Mach 0.85
Warhead
221.6 kg
Missile Weapon System #2
Name
1 x Sea Viper (GWS 45); DCNS Sylver A50 48-cell VLS; typical mix of 32 MBDA Aster 30
Type
Surface-to-Air Missile
Active Radar Homing
120 km
Speed
Mach 4.5
Warhead
15 kg
Gun Weapon Systems
Main Gun System #1
Name
1 x Vickers Mk 8 Mod 1
Type
Naval Gun
Caliber
114 mm
Rate of Fire
24 rds/min
Maximum Range
27.5 km
Weight of Shell
21 kg
Main Gun System #2
Note:
2 × 30 mm DS30B guns
Main Gun System #3
Note:
2 × 20 mm Phalanx CIWS
Main Gun System #4
Note:
2 × 7.62 mm Miniguns
Main Gun System #5
Note:
6 × 7.62 mm general purpose machine guns
Radar Systems
Air/Surface Search Radar
1 x Signaal/Marconi Type 1046 (S1850M); D-band.
Surveillance/Fire Control Radar
1 x BAE Systems Type 1045 (Sampson); E/F-band; multifunction.
Surface Search Radar
1 x Raytheon Type 1048. E/F-band.
Navigation Radar
2 Raytheon Type 1047; I-band.
Sonar Systems
Medium Frequency Sonar
1 x Type 2091 (EDO/Ultra MFS-7000); bow mounted; medium frequency.
Fire Control System
Combat Data Systems
BAE Systems CMS-1 (based on DNA SSCS with additional AAW functions); Links 11, 16 STDL and 22. SATCOM
Electro-Optic Systems
GSA 9 with 2 EOSP sensor heads (EOGCS) (based on Radamec 2500)
Aviation Faculties
Flight Deck
Chinook capable flight deck
Hanger
Enclosed hangar
Aircraft
1 × Wildcat HMA2 or 1 × Merlin HM2
Protection
Hull Armor
Kevlar splinter protection, 70 mm magazine/VLS
Physical Countermeasures
Outfit DLH; 4–6-barrelled launchers; IR flares, chaff and active RF decoys. DLF offboard decoys. Type 2170 torpedo defense system.
Electronic Countermeasures
1 x Thales Type UAT Mod 2; intercept; 1 x haman (Argon ST AN/SSQ-130V).
NBC Water Washdown System
Yes
Details
Country of Origin
United Kingdom
Category
Naval
Naval
Filter Label
D
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
152.4 m
Width
21.2 m
Height
—
Weight
8000000 kg
Operators (1)
United Kingdom
