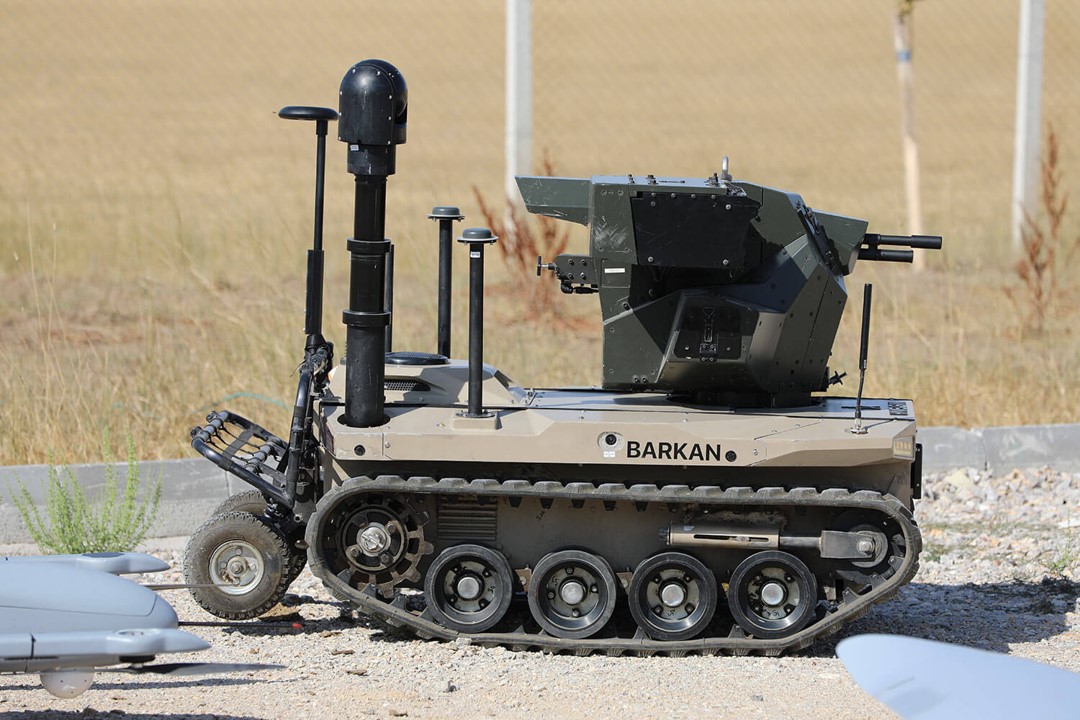

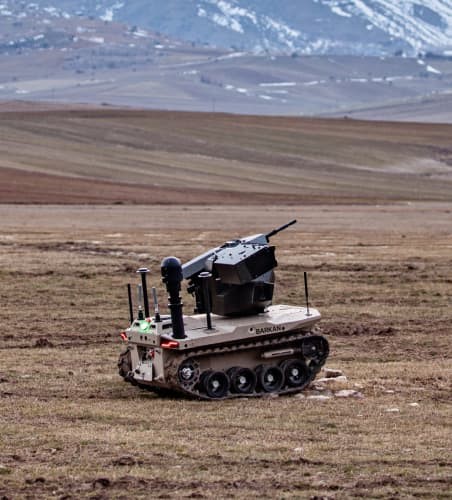

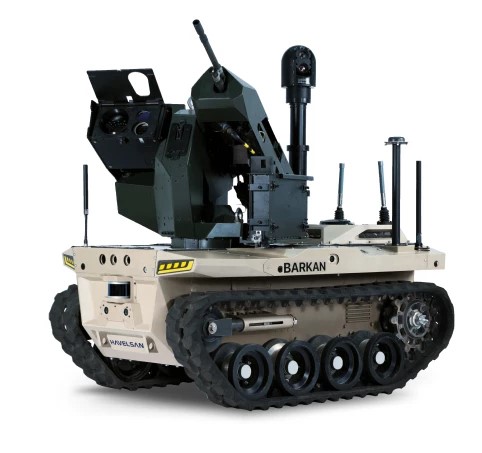

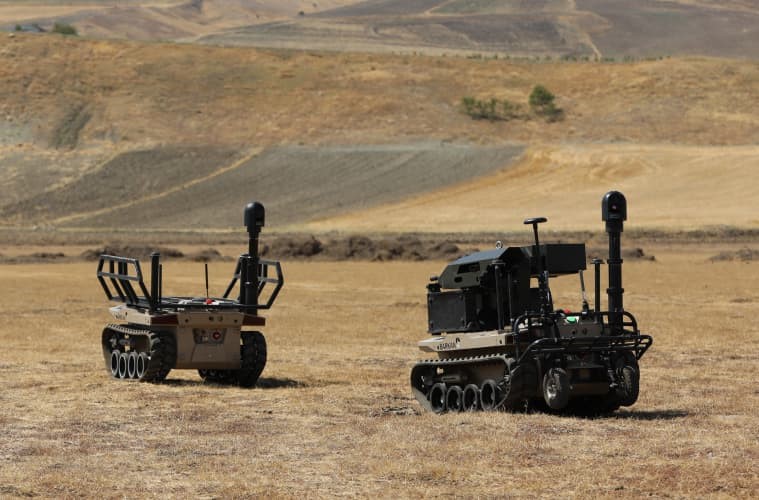

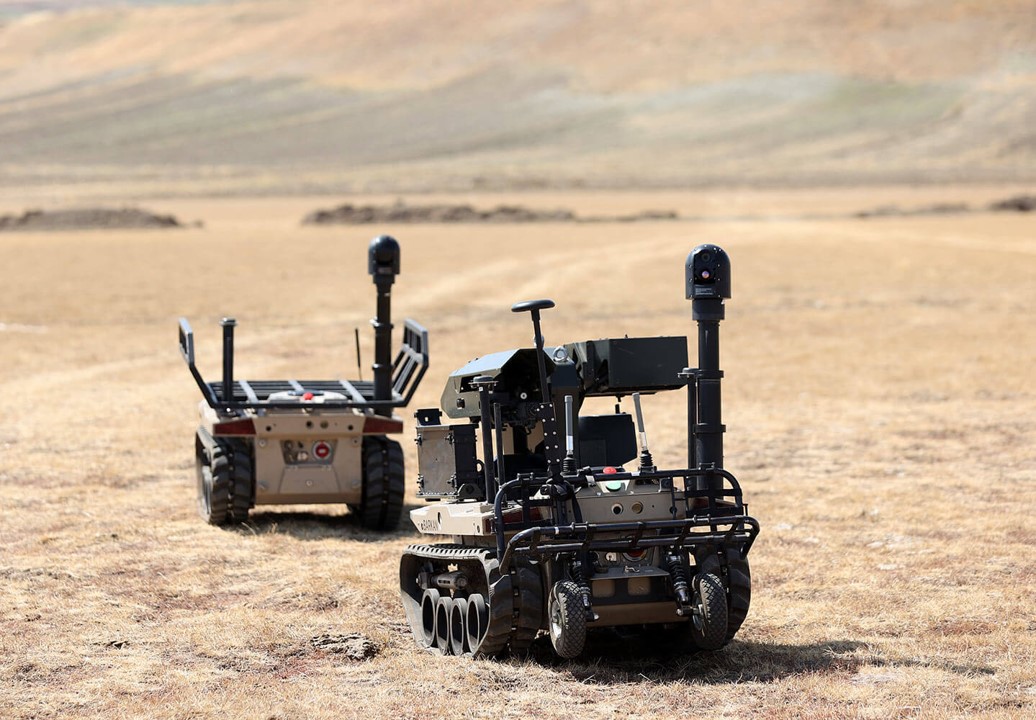

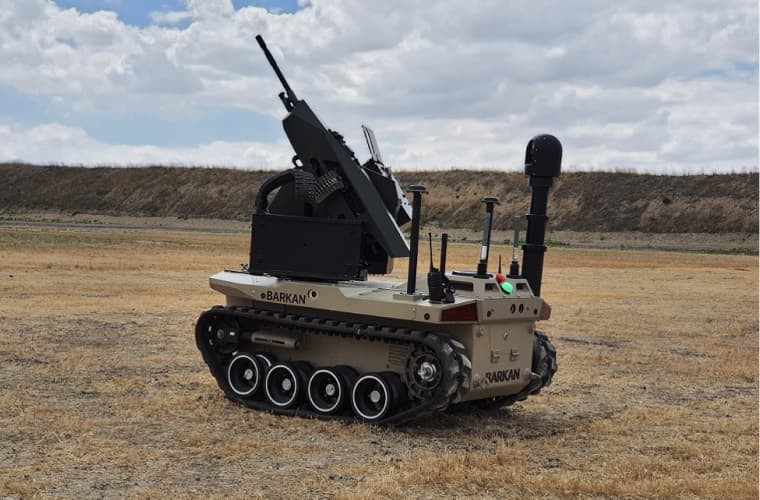

BARKAN Turkish Tracked Unmanned Ground Vehicle (UGV)

BARKAN

Unmanned Ground Vehicle (UGV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
BARKAN Turkish Tracked Unmanned Ground Vehicle (UGV)
Designation
BARKAN
Alternate Designation
BARKAN
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Havelsan
Date of Introduction
2021
Description

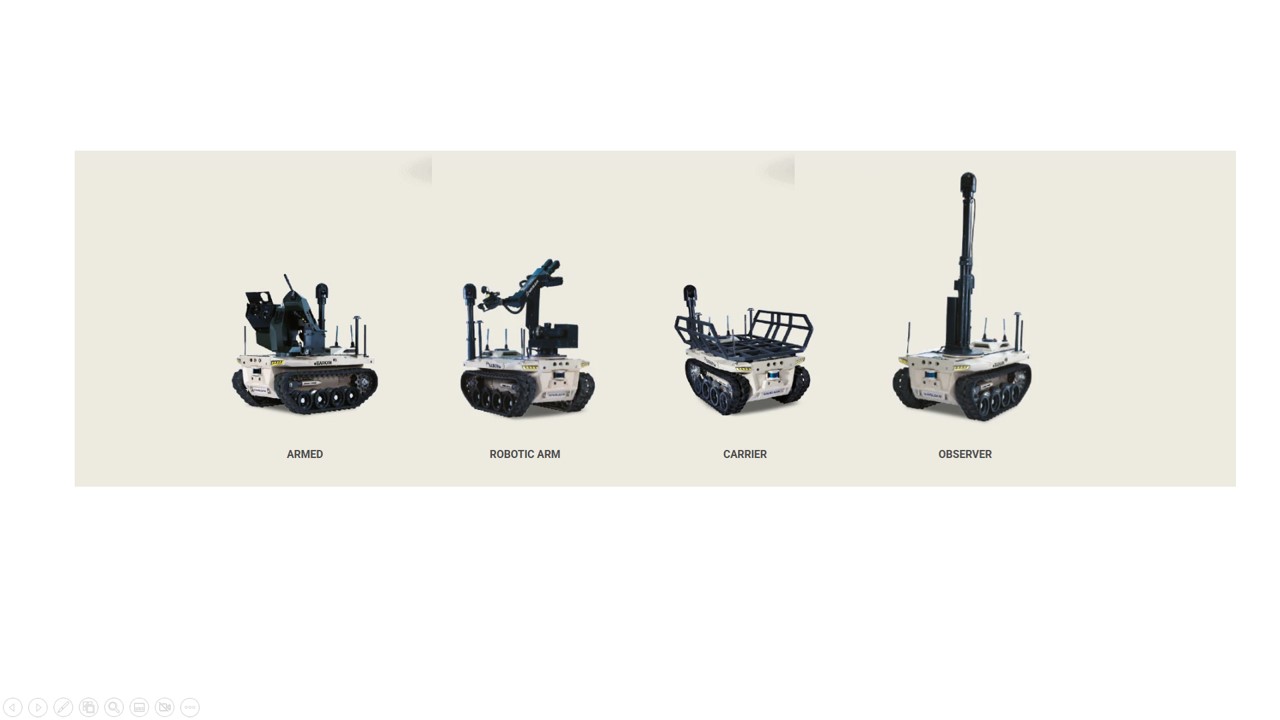

The BARKAN Turkish Tracked Unmanned Ground Vehicle (UGV) features a modular design that accommodates various payloads, making it versatile for multiple missions such as armed Intelligence, Surveillance, and Reconnaissance (ISR), close protection, and armed reconnaissance. With its stealth and agility, BARKAN is ideally suited to undertake high-risk missions, providing the necessary fire support and multi-sensor intelligence for effective operations in modern combat environments. Equipped with a remote control and autonomous mission capabilities, BARKAN is poised to be a vital asset for military units in future warfare scenarios. Additionally, its swarm infrastructure enables joint operations with other land and air vehicles from a centralized command, enhancing collaborative efforts in the field.

Ground Specifications
Mobility Type Tracked
Main Weapon 7.62 mm weapon systems to a 40 mm Genade Launcher
Engine Electric
Max Speed 13.0 km/h
System
Alternative Designation BARKAN
Type Tracked Unmanned Ground Vehicle (UGV)
Manufacturer Havelsan
Configuration Track
Crew Unmanned
Payload Capacity 200 kg
Features Front / Rear LED Lighting; Front IR Lighting; Front / Rear / Right / Left Driving Cameras; Bidirectional Audio Transmission System; Cargo and Towing Kits
Robotic Arm Yes
Surveillance System Upgradable Peripheral Surveillance System (Thermal / Day)
Dimensions
Length 140 cm
Width 90 cm
Height 110 cm
Weight Without Payload 380 kg
Automotive
Engine Name INA
Engine Type Electric Motor
Engine Power INA
Tactical Data Link Range > 1 km (In Line of Sight)
GSM Communication 150 m Wired Communication (with Fiber Optic Cable)
Maximum Speed 13 km/h
Endurance 3 hours
Main Weapon System
Note The vehicle can be mounted wirth a variety of weapons systes from 7.62 mm weapon systems to a 40 mm Genade Launcher.
Protection
Armor INA
Applique Armor INA
Details
Country of Origin Turkey
Category Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
1.4 m
Width
0.9 m
Height
1.1 m
Weight
380 kg
Operators (1)
Turkey
