H-60 Hawk

H-60 Hawk

Utility & Transport Helicopters
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
H-60 Hawk
Designation
H-60 Hawk
Alternate Designation
Equipment Type
Utility & Transport Helicopters
Manufacturer
Sikorsky Aircraft Corporation
Date of Introduction
Description

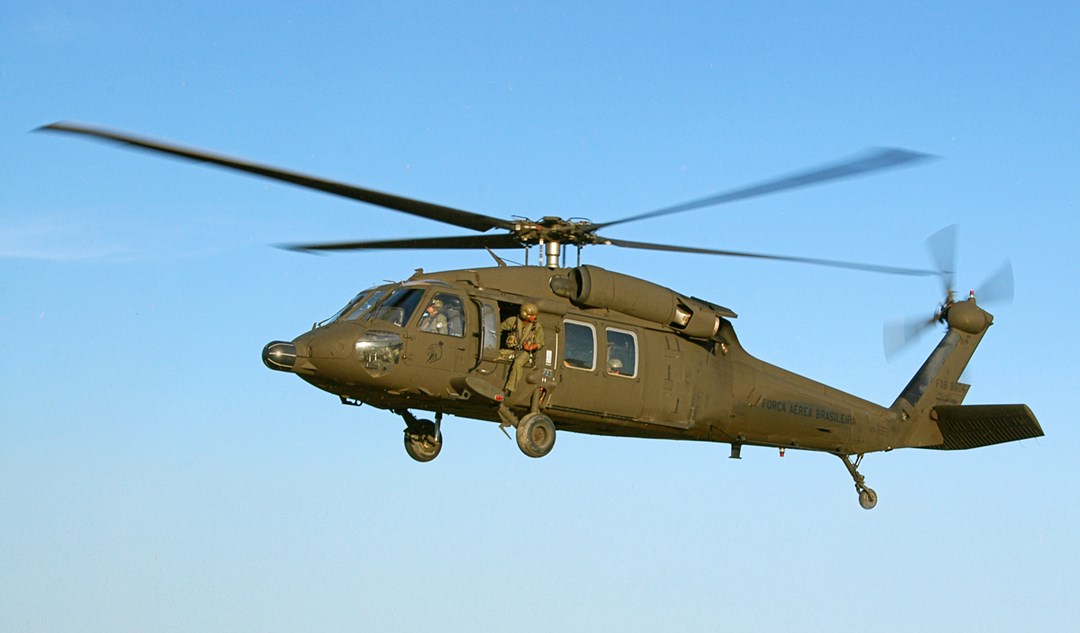

The UH-60 utility tactical transport helicopters provide air assault, general support, medial evacuation, command and control, electronic warfare, and special operations support for the US Army and allied nations. They feature lightweight armor to counter small arms fire, as well as hardened and redundant sub-systems design for improved survivability. The UH-60 airframe has been designed to progressively crush on impact, protecting the crew and the passengers. The UH-60 helicopters provide improved mobility to ground forces, due to dramatic improvements in troop capacity and cargo lift capability compared to previous utility helicopters. UH-60s also enable rapid deployment of infantry troops throughout the battlefield. Up to 11 combat ready troops and a crew of 4 can be accommodated inside a UH-60 helicopter. The UH-60 helicopter can accommodate external fuel tanks to achieve extended range, small caliber guns typically for self-defense, and even Hellfire anti-tank missiles, as well as other equipment. They can operate in almost any weather conditions even carrying a 105mm howitzer, its crew of 6-man, and up to 30 rounds of ammunition in just a single lift. It has been exported under the S-70 designation and more than 2,660 units have been produced to date. The US Army is the largest UH-60 operator with an estimated procurement of 1,725 UH-60A/L helicopters and more than 4,600 aircraft produced for domestic and foreign operators. The US Army expects to upgrade the majority of the fleet to the UH-60M standard by 2020.

Air & Air Defense Specifications
Crew 4
Max Speed 360.0 km/h
Range 593.0 km
Overview (Deagel)
Group Utility & Transport Helicopters
Status Active

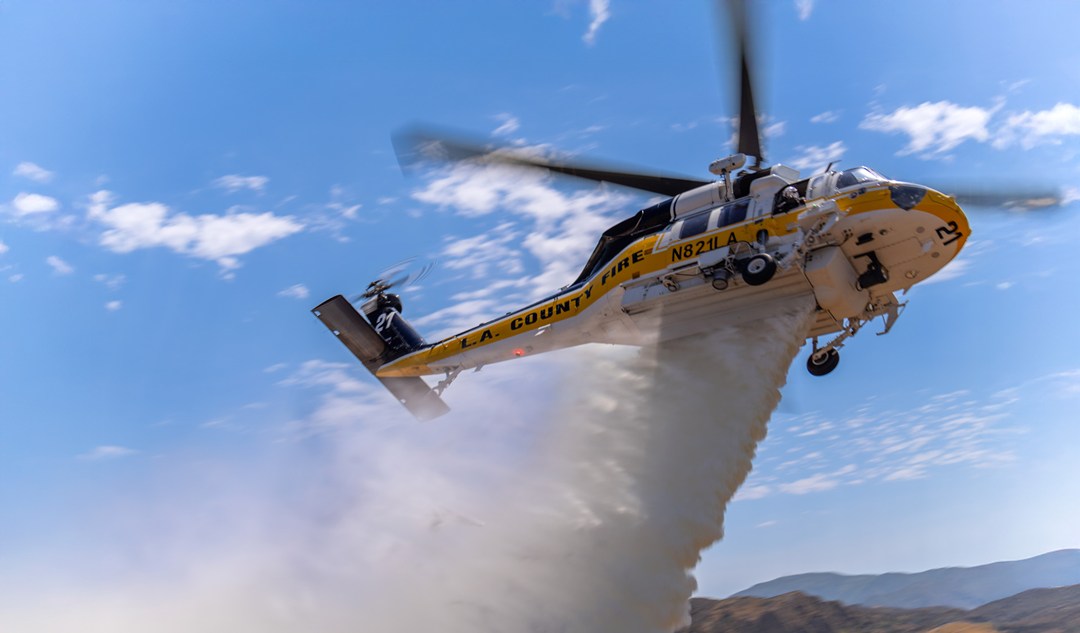

Also Known As S-70A Black Hawk, S-70A Firehawk, S-70C Bluehawk, VH-60N, Yanshuf (Israel Air Force)
Origin United States of America
Contractor Sikorsky Aircraft Corporation
Initial Operational Capability (IOC) 1979
Total Production ?
Specifications (Deagel)
Crew 4
Main Rotor Blades 4
Number of Engines 2
Troops 11
Dimensions — Height 5.1 meter
Dimensions — Length 1,976 meter
Dimensions — Main Rotor Diameter 16.4 meter
Dimensions — Width 2.4 meter
Mass — Empty Weight 5,118 kilogram
Mass — Max Takeoff Weight 9,185 kilogram
Mass — Payload 4,826 kilogram
Performance — Ceiling 5,699 meter
Performance — Max Range 593 kilometer
Power — Max Power at TakeOff 3,120 shp
Speed — Cruise Speed 71.5 mps
Speed — Top Speed at High Altitude 100 mps
Time — Flight Endurance 2.3 hour
Gear (Deagel)
Item 1 Decoy Systems: Echidna
Item 2 Jamming Systems: AN/ALQ-144A
Item 3 Turboshaft Engines: CT7-2 (2)
Item 4 Turboshaft Engines: T700-GE-700 (2)
Item 5 Turboshaft Engines: T700-GE-701 (2)
Variants
Variant 1 UH-60A Blackhawk

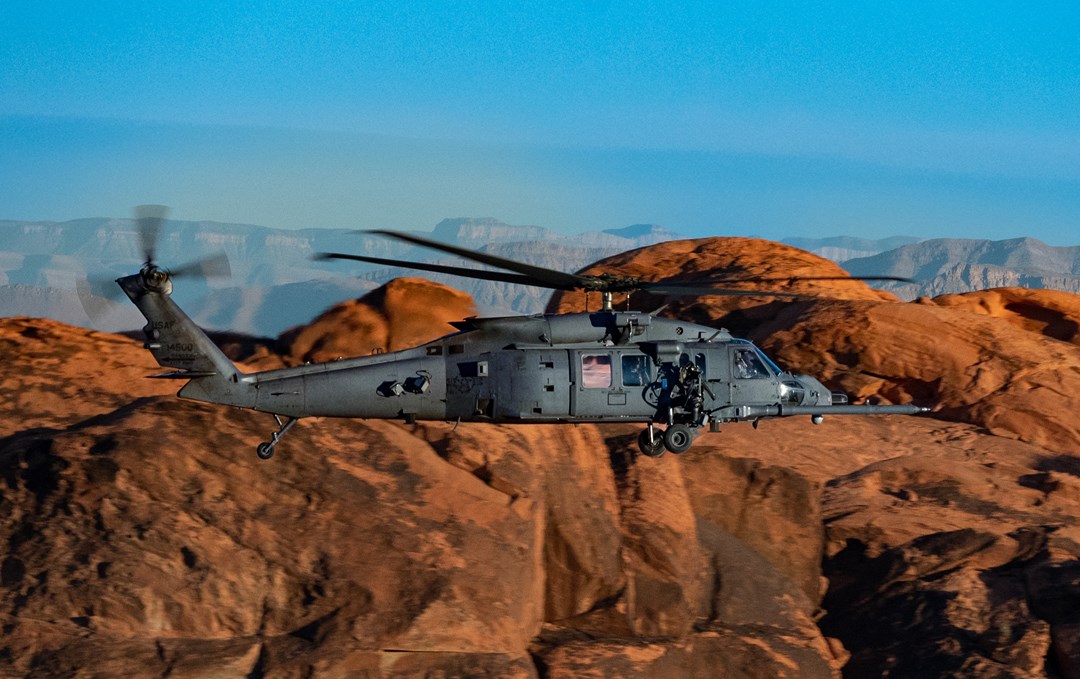

Variant 2 HH-60G Pave Hawk
Variant 3 SH-60B Seahawk
Variant 4 SH-60F Ocean Hawk
Variant 5 UH-60L Blackhawk
Variant 6 HH-60H
Variant 7 UH-60Q Medevac
Variant 8 MH-60S Knighthawk
Variant 9 A2C2S
Variant 10 MH-60R Strikehawk
Variant 11 HH-60M BlackHawk
Variant 12 UH-60M BlackHawk

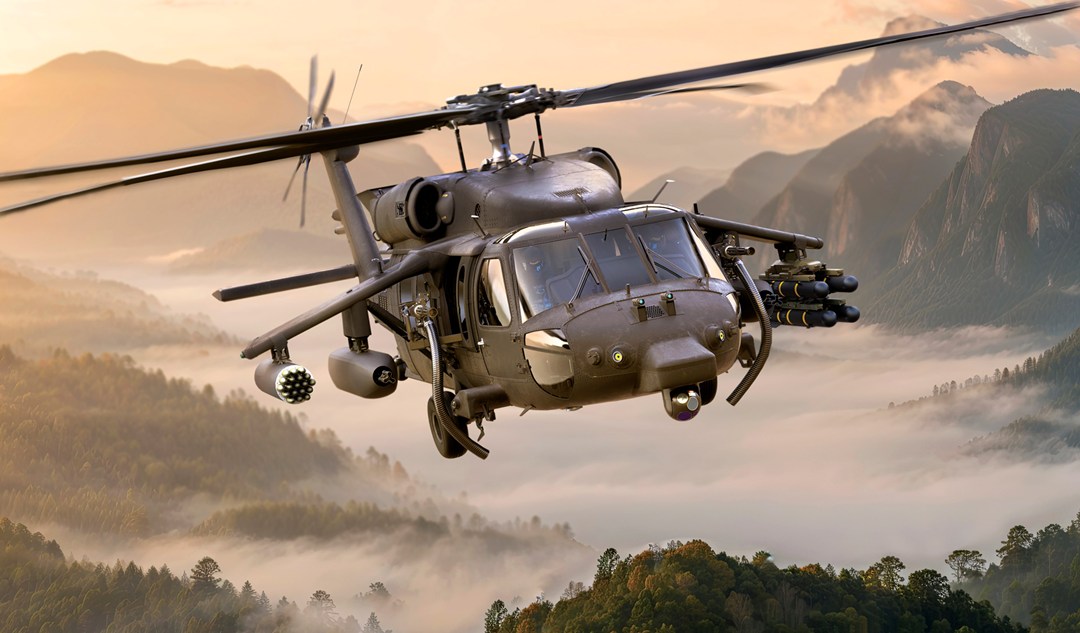

Variant 13 BattleHawk

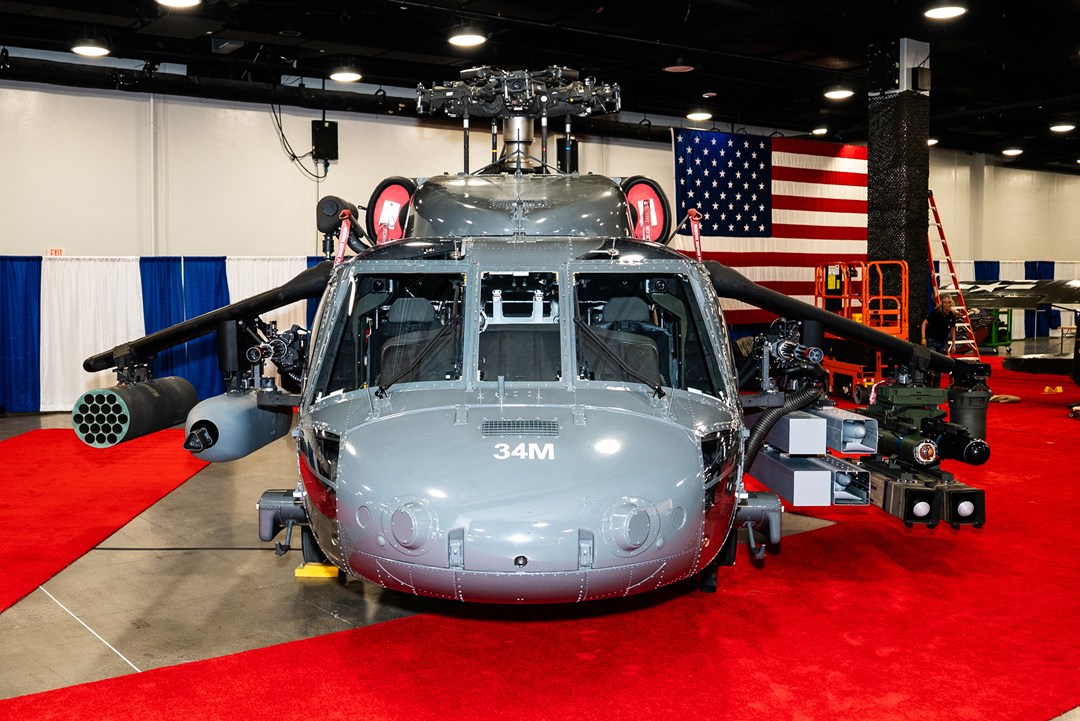

Variant 14 MH-60M BlackHawk
Variant 15 Advanced UH-60J
Variant 16 S-70i International Black Hawk
Variant 17 UH-60V Blackhawk

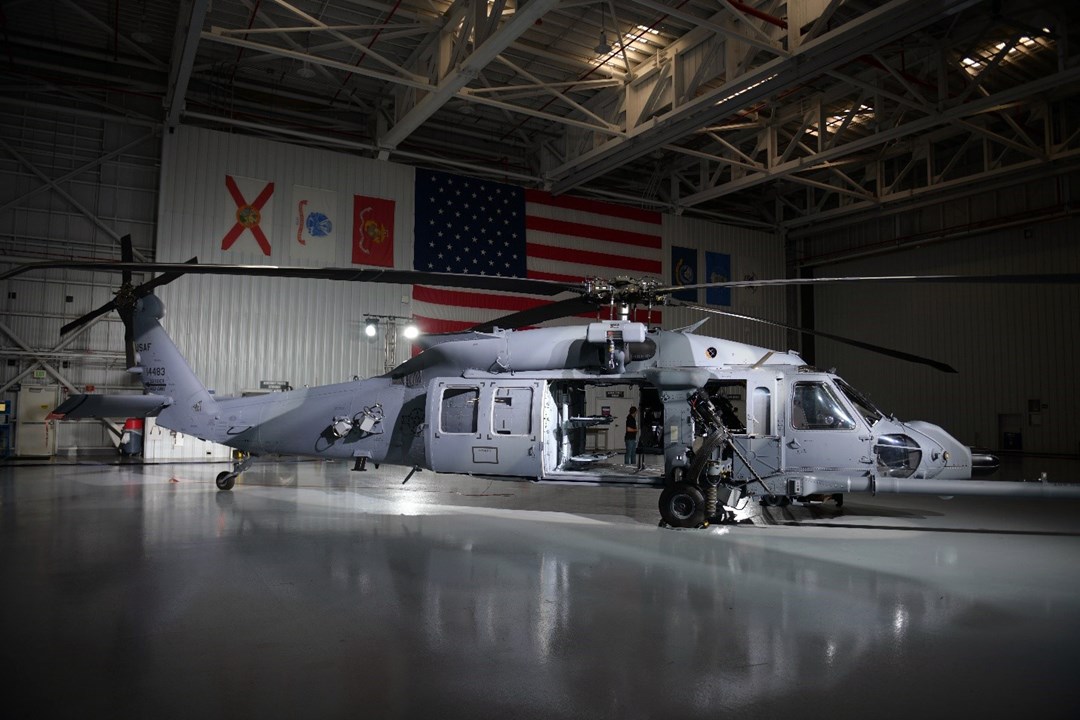

Variant 18 HH-60W Jolly Green II
Details
Country of Origin United States
Category Transport Helicopter
Air > Transport Helicopter
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
Width
2.4 m
Height
5.1 m
Weight
9185 kg
Operators (1)
United States
