NiDAR X-JOC British Command Station with Integrated Long-Range UAS Detection and Countermeasures System

NiDAR X-JOC

Counter-UAS System
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
NiDAR X-JOC British Command Station with Integrated Long-Range UAS Detection and Countermeasures System
Designation
NiDAR X-JOC
Alternate Designation
NiDAR X-JOC
Equipment Type
Counter-UAS System
Manufacturer
MARSS
Date of Introduction
2023
Description

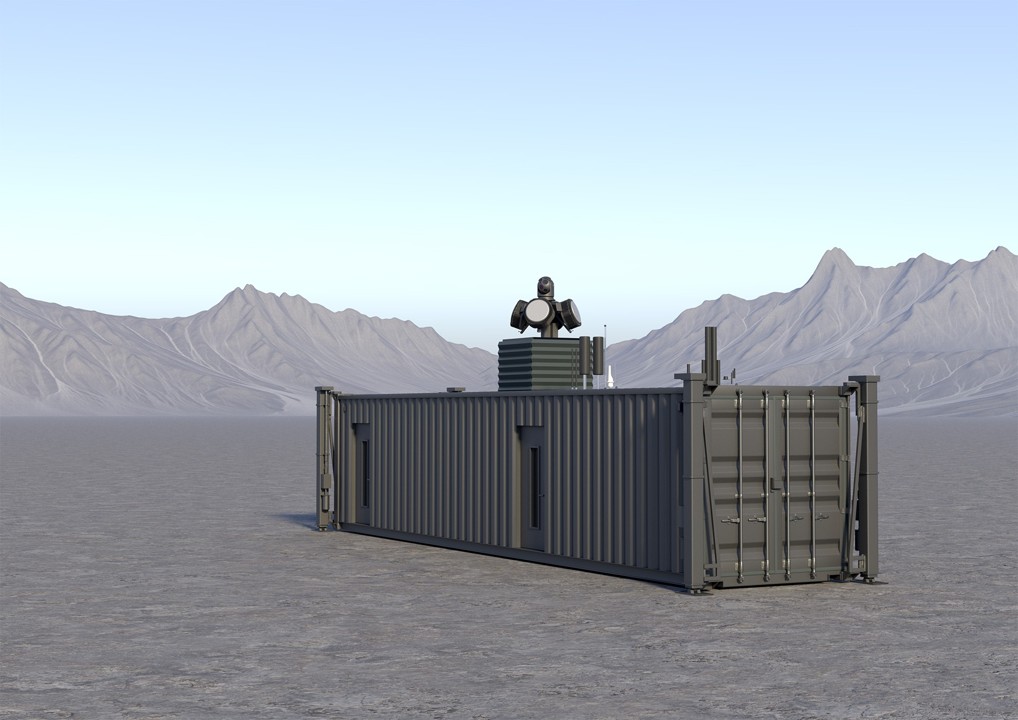

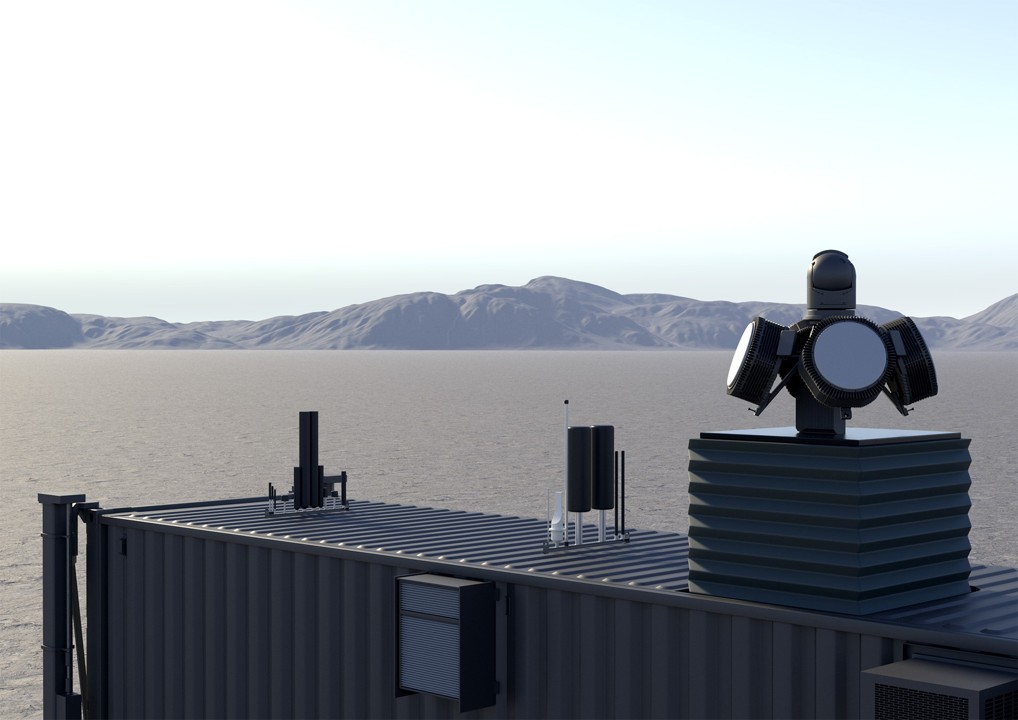

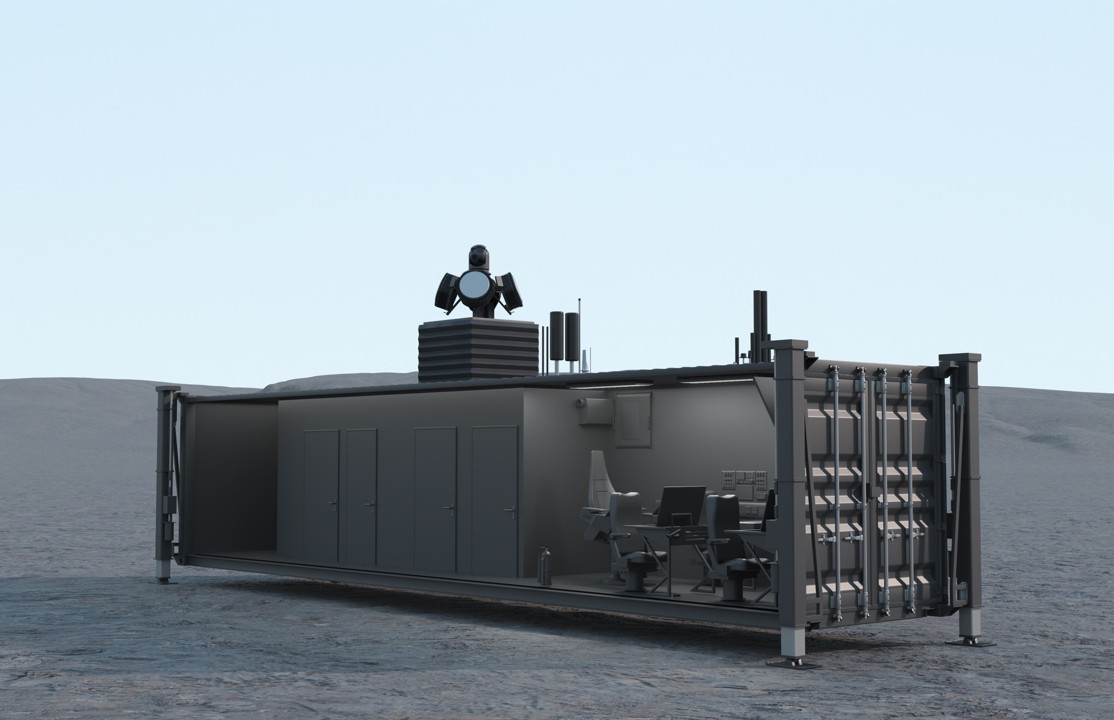

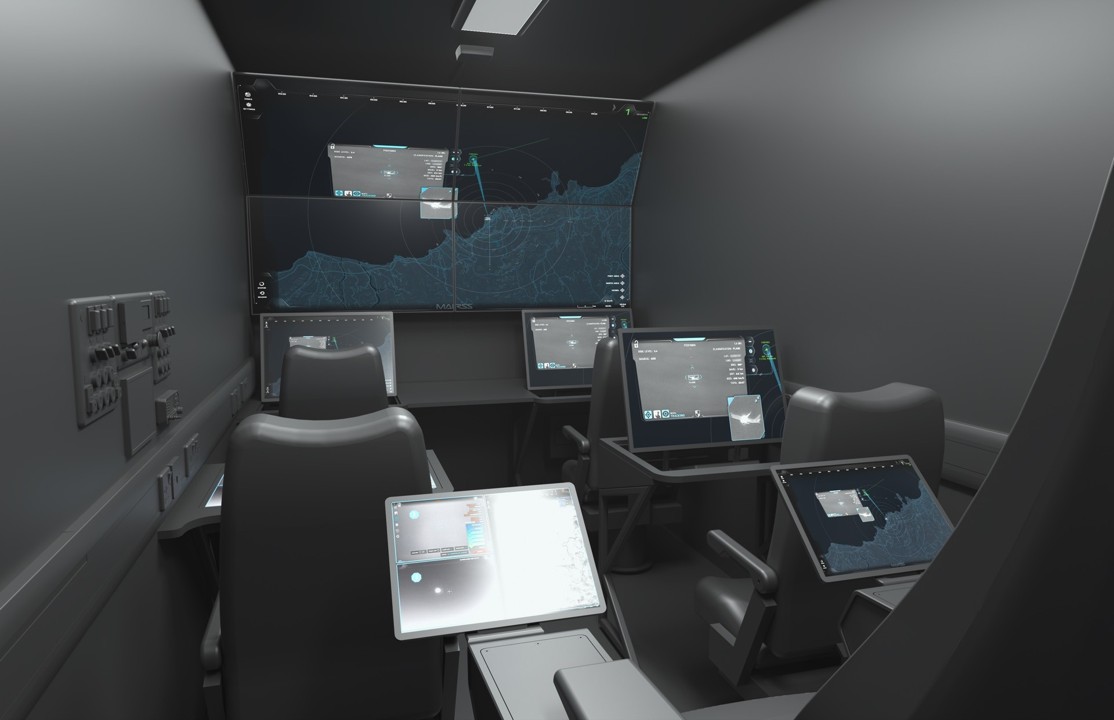

The NiDAR X-JOC British Command Station with an Integrated Long-Range UAS Detection and Countermeasures System is available in 20-foot and 40-foot units. It features interior housing for onboard command and control, accommodating up to five operators. The system can operate independently or connect to multi-vehicle networks for optimized awareness and control. X-JOC’s comprehensive capabilities include automated detection, alert monitoring, and countermeasures. It utilizes the MARSS NiDAR CORE, an advanced AI platform powered by Hybrid Intelligence, which fuses multiple sensors to create a single, accurate tactical picture. This makes X-JOC a fully equipped, expeditionary command and control unit designed to identify and neutralize land-based and airborne threats, including Unmanned Aerial Systems (UAS) and drones. NiDAR CORE, the unrivaled AI-powered IoT platform at the heart of all MARSS solutions, employs Hybrid Intelligence to enhance situational awareness, outperforming traditional defense software while maintaining high quality. UAS are particularly effective at exploiting gaps in conventional intelligence and surveillance, continually evolving in autonomy, range, and destructive payload. Equipped with advanced NiDAR CUAS capabilities, X-JOC can serve as perimeter surveillance or be deployed in the field, providing a long-range mobile defensive solution to counter UAS threats swiftly and effectively. This modular, static command and control unit integrates countermeasures, advanced capabilities, and extensive detection reach. X-JOC is designed to be custom-built to meet your specifications, from sensor and hardware configuration to software, system programming, and connectivity. X-JOC also serves as your mobile office and remote command center, featuring meeting and briefing rooms equipped with facilities for comfort and daily use, all day, 24/7.

Ground Specifications
Crew 5
Range 30.0 km
System
Alternative Designation NiDAR X-JOC
Type Command Station with Integrated Long-Range UAS Detection and Countermeasures System
Manufacturer MARSS
Crew 5 ea
Transport / Logistics Road / sea / air
Remote Capability Yes (on generator)
Generator Capacity 36 kW
Generator Autonomy (Stand-Alone) 10 to 20 hours (full load)
UPS Yes (soft shut-down)
UPS Autonomy 1 hour
Shore Power Connection Yes
Air Conditioning Capacity Operator compartment: 2 x 4.7kW; Rack compartment: 1 x 5.2kW
CCTV Perimeter Surveillance 4 cameras
Awning Optional
Detection Range 30 km
Tracking Range 8 km
Jamming Range 6 km
Retractable Mechanism Scissor lift platform - 1000kg capacity
Levelling Capability Camera: +/-0.1 degrees accuracy
Deployment Capability From low bed truck with jacks No crane required
Remote Communication Client network Via satellite (optional)
C2 Capability Yes
Maintenance Features Access to roof and all compartments
Operator Screens 2x 50” screens + 4x 26” consoles
Dimensions
20 Foot Container
Dimensions 6.10m x 2.44m x 2.59m (L x W x H)
Weight 5 tons
40 Foot Container
Dimensions 12.19m x 2.44m x 2.59m (L x W x H)
Weight 6.5 tons
Details
Country of Origin United Kingdom
Category Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Filter Label
N
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
Width
Height
2.59 m
Weight
5000 kg
Operators (1)
United Kingdom
