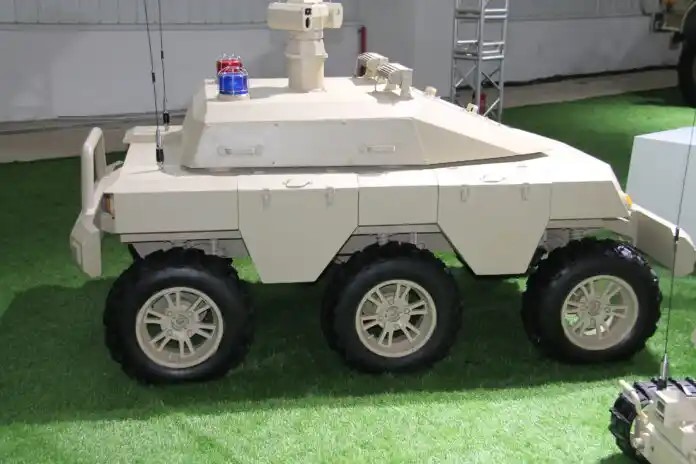

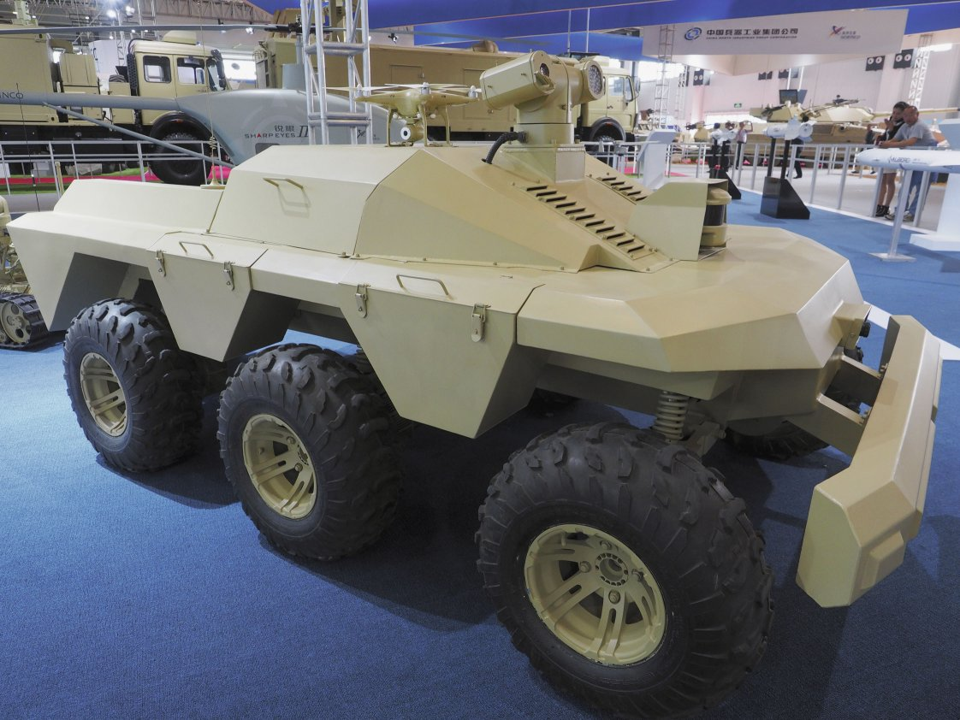

Sharp Claw II Chinese 6x6 Unmanned Ground Vehicle (UGV)
Sharp Claw II
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Sharp Claw II Chinese 6x6 Unmanned Ground Vehicle (UGV)
Designation
Sharp Claw II
Alternate Designation
Sharp Claw II
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
NORINCO
Date of Introduction
2018
Description
The Sharp Claw II Chinese 6x6 Unmanned Ground Vehicle (UGV) is designed for conducting a variety of roles including reconnaissance, surveillance, combat engineering support, logistic, and combat roles.
Ground Specifications
Mobility Type
Tracked
Engine
Electric
Max Speed
30.0 km/h
Range
50.0 km
System
Alternative Designation
Sharp Claw II
Type
Tracked Unmanned Ground Vehicle (UGV)
Manufacturer
NORINCO
Configuration
6x6
Crew
Unmanned
Control
Sharp Claw II consists of a radio communications link via remote control. The remote station is equipped with video displays, navigation and control systems, and steering mechanism.
Sensors and Emitters
Various sensors such as day/night vision systems, CCD cameras, and EO devices can be incorporated as well as thermal imaging
Note #1
Sharp Claw II is fitted with a front bumper that could possibly incorporate sensors for mine and/or IED detection.
Note #2
The platform has a cargo bay at the back to store a small UGV and can deploy a quadcopter surveillance drone. The cargo bay can also be used as a landing pad for a quadcopter drone.
Note #3
Sharp Claw II is designed to work in tandem with Sharp Claw I.
Dimensions
Length
INA
Width
INA
Height
INA
Weight
1,000 kg
Automotive
Engine Name
INA
Engine Type
Electric
Engine Power
INA
Cruising Range
50 km
Operational Range
2,500 m
Speed, Maximum Road
30 km/h
Endurance
4 hours
Communications
Note
The Sharp Claw II Chinese Tracked Unmanned Ground Vehicle (UGV) has multi-channel communication systems onboard. The Sharp II acts as a control relay station with two sets of operating systems: one for the quadcopter drone and one for operating Sharp Claw I at an effective distance of 2,500 m.
Main Weapon System
Note
The Sharp Claw II Chinese Tracked Unmanned Ground Vehicle (UGV) has been displayed with a remote weapon system.
Protection
Armor
INA
Applique Armor
INA
Details
Country of Origin
China
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
1000 kg
Operators (1)
China
