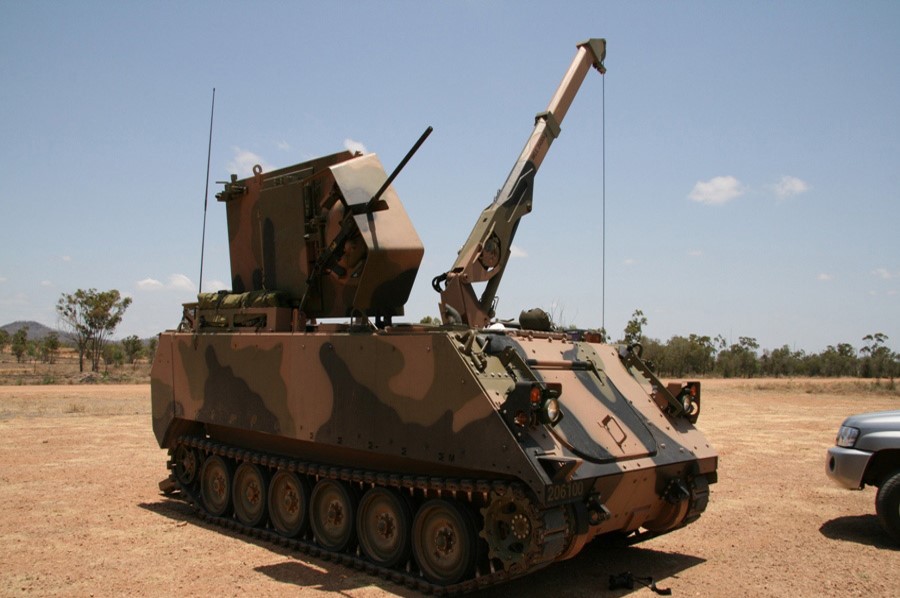

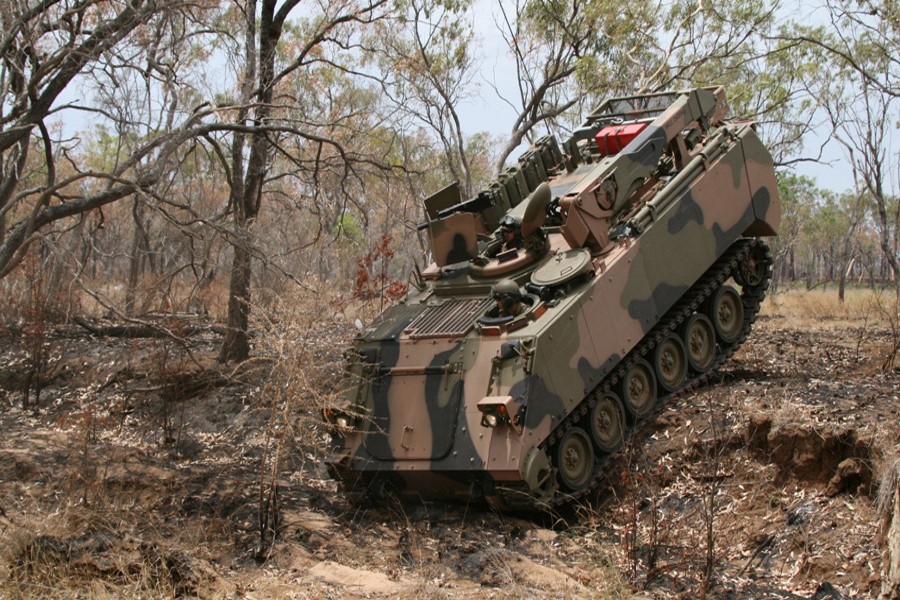

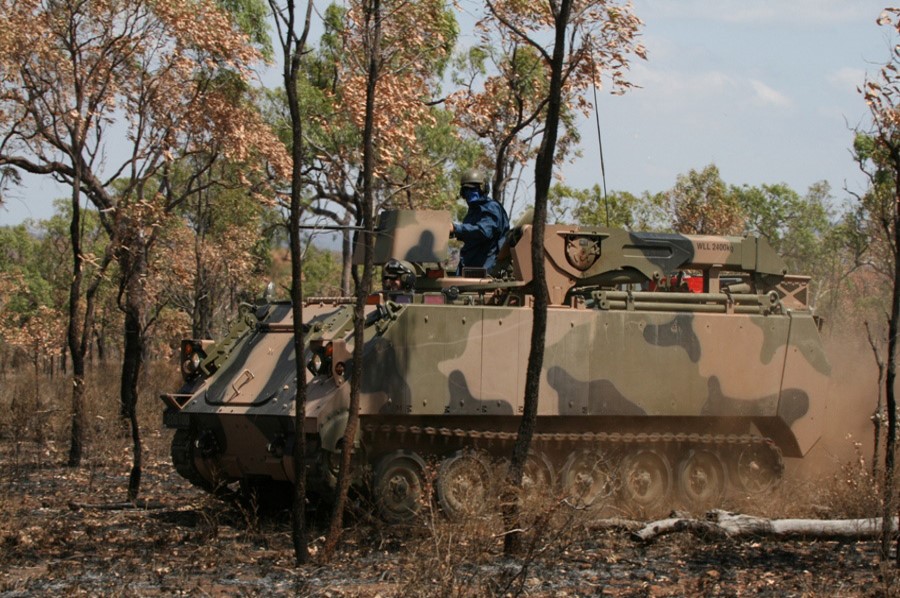

M113AS4 AF Australian Armored Personnel Carrier (APC) with Hiab Crane

M113AS4 AF

Amphibious Armored Personnel Carrier (APC)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
M113AS4 AF Australian Armored Personnel Carrier (APC) with Hiab Crane
Designation
M113AS4 AF
Alternate Designation
M113AS4 AF
Equipment Type
Amphibious Armored Personnel Carrier (APC)
Manufacturer
BAE Systems
Date of Introduction
2007
Description

M113AS4 AF armored fitted, fitted with a Hiab crane. A total of 38 of these vehicles will be delivered. The M113AS4 is an Australian-made upgrade of the old M113AS1 and M113AS3 which are based on the American M113A1 tracked armoured personnel carrier (APC), one of the most popular light tracked APC in the world. The project of Australian M113 upgrade was leaded by BAE Systems. The decade long project to upgrade 433 M113 vehicles began in 2002, with the first completed vehicle delivered to the customer in January 2007. While the upgraded Australian M113s look similar to how they would have in the 1970’s, they are ‘a generational leap ahead’ with improved firepower, protection and habitability from the original M113 A1 vehicle. The finished vehicles are also more reliable and faster following the upgrade. The Australian Army operates a fleet of some 800 members of the M113 series of full-tracked armoured personnel carriers in different variants including ambulance, fire support, command post, mortar carrier, recovery and load carrier vehicles. The M113AS4 is currently the standard tracked APC of Australian armed forces. The M113 Armoured Personnel Carrier (APC) is an all-terrain vehicle designed to protect and transport its crew and up to ten Infantry personnel. In September 1996, the Australian Department of Defence selected the now Tenix Defence Systems Pty Ltd, Australia to upgrade 364 of the Australian Army's fleet of M113A1 series of full-tracked Armoured Personnel Carriers (APCs) to extend their operational life through to the year 2010.

Ground Specifications
Crew 2
Mobility Type Tracked
Main Weapon 0.0127 m M2 Browning Heavy Machine Gun
Engine Diesel (350 hp)
Active Protection None
Max Speed 65.0 km/h
Range 500.0 km
Variants
M113AS4 AF armored fitted, fitted with a Hiab crane. A total of 38 of these vehicles will be delivered.
M113AS4 ARVL armored recovery vehicle, fitted with a 13 t capacity winch. A total of 12 of these vehicles will be delivered.
M113AS4 AA armored ambulance. A total of 15 of these vehicles will be delivered.
M113AS4 ACV armored command vehicle. A total of 43 of these vehicles will be delivered.
M113AS4 ALV armored logistics vehicle. It can take all types of combat supplies and carry them under armor. A total of 50 of these vehicles will be delivered.
System
Alternative Designation M113AS4 AF
Type Armored Personnel Carrier (APC)
Manufacturer Australia. Company: INA
Crew 2 ea
Passenger Capacity 10 ea
Dimensions
Length 6 m
Width 2.62 m
Height 2.6 m
Weight, Combat 18 tons
Automotive
Engine Name MTU 6V199TE
Engine Type Diesel
Engine Power 350 hp
Cruising Range 500 km
Speed, Maximum Road 65 km/h
Speed, Average Cross INA
Speed Maximum Swim Not Amphibious
Gradient 60
Side Slope 30 %
Vertical Step 0.6 m
Trench 1.8 ~ 1.9 m
Fording Depth 1.6 m
Main Gun
Turret The M113AS4 is fitted with a new one-man turret
System
Name M2 Browning
Type Heavy Machine Gun
Caliber 12.7 mm
Length 1,654 mm
Barrel Length 1,143 mm
Weight 38 kg (83.78 lb) 58 kg (127.87 lb) with tripod and T&E (Traverse and Elevation Mechanism)
Action Short recoil-operated
Rate of Fire 450–600 rounds/min
Muzzle Velocity 890 m/s
Maximum Firing Range 7,400 m
Effective Firing Range 1,800 m
Feed System Belt-fed (M2 or M9 links)
Ammunition
Type Rifle
Caliber 12.7 mm
Cartridge .50 BMG (12.7×99mm NATO)
Basic Load 2,000 ea
Fire Control
Name INA
Computerized FCS No
Thermal Sight Vehicle Commander INA
Thermal Sight Gunner INA
Main Gun Stabilization INA
Protection
Hull Armor Vehicle's hull provides protection against up to 14.5 mm rounds.
Turret Armor INA
Applique Armor Protection of the upgraded APC was enhanced by add-on ceramic armor tiles. Hull was reinforced for additional protection against landmines and IED blasts. Interior was fitted with spall liner.
Explosive Reactive Armor No
Active Protection System No
Mine Clearing No
Self-Entrenching Blade No
NBC Protection INA
Smoke Equipment INA
Image Sources
Notes .;
Details
Country of Origin Australia
Category Survivability
Land > Survivability
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6 m
Width
2.62 m
Height
2.6 m
Weight
18000 kg
Operators (1)
Australia
Something went wrong. Please reload the page. Reload
