Project 1124M

Project 1124M

Patrol Boats
Spotted an error? Sign in to suggest an edit.
Project 1124M

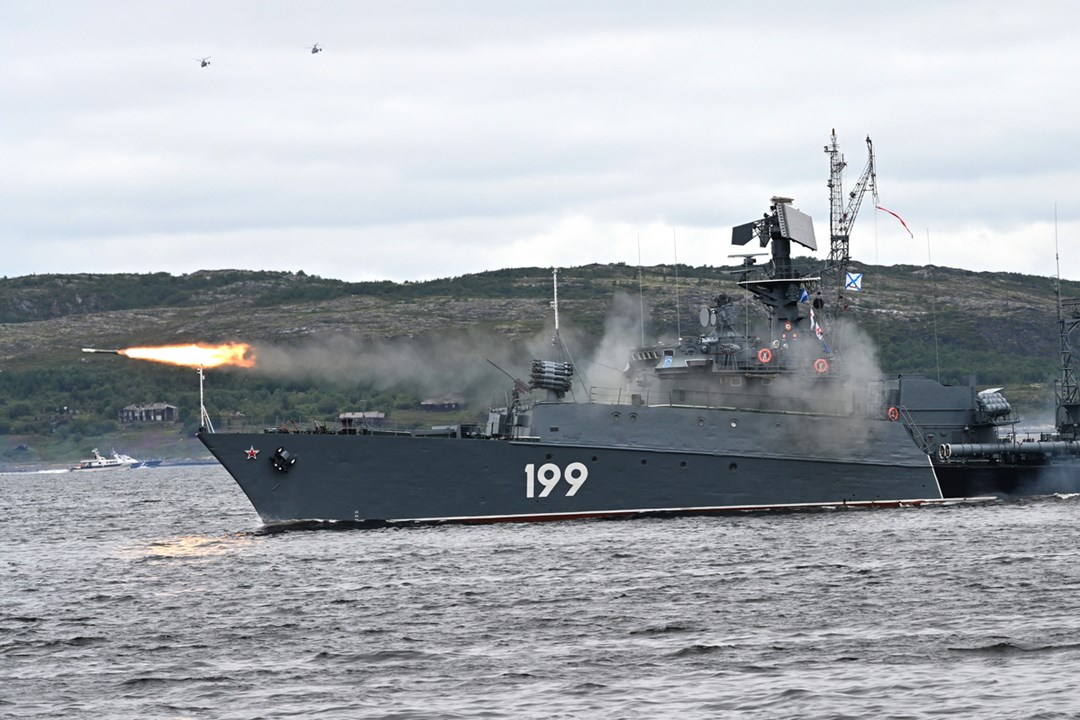

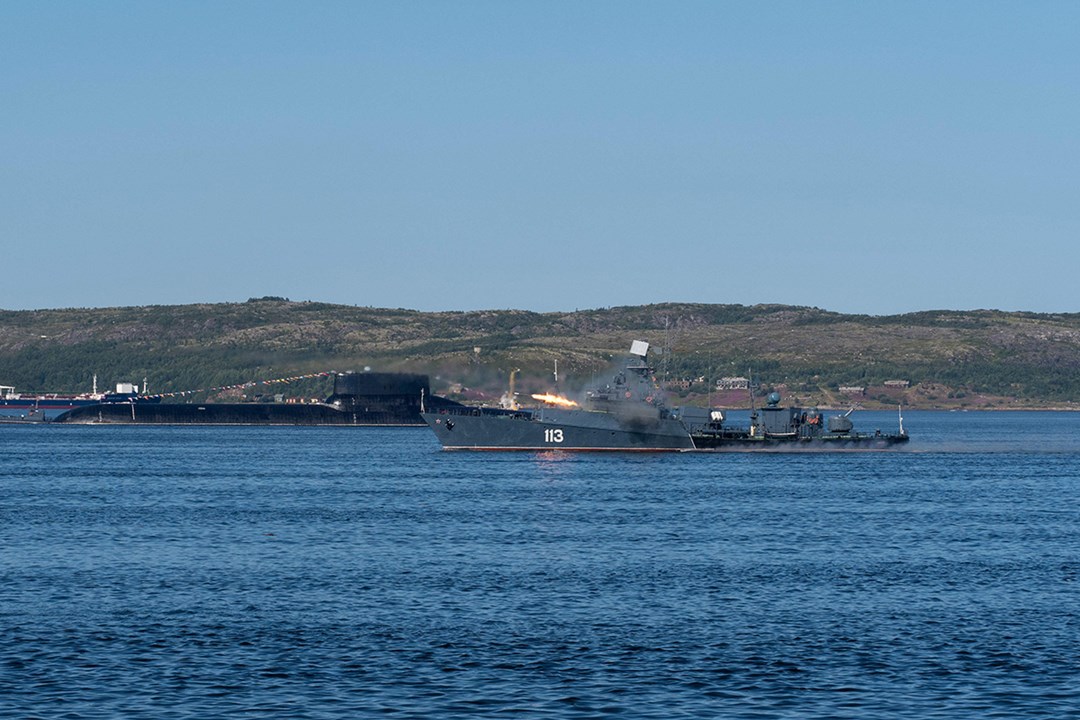

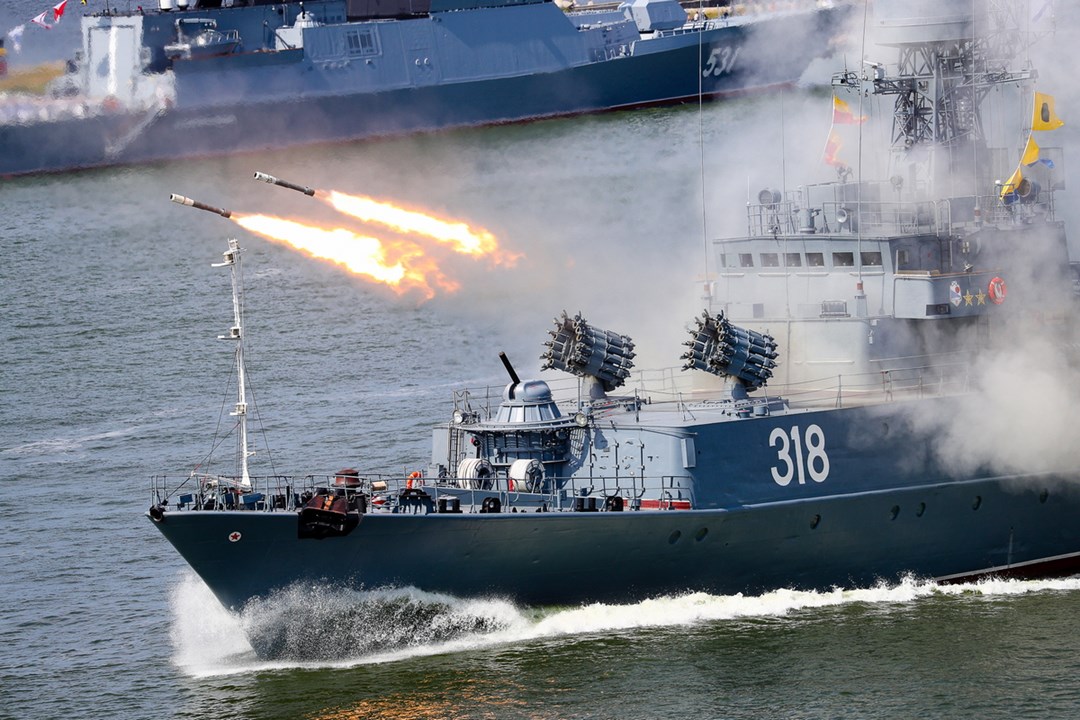

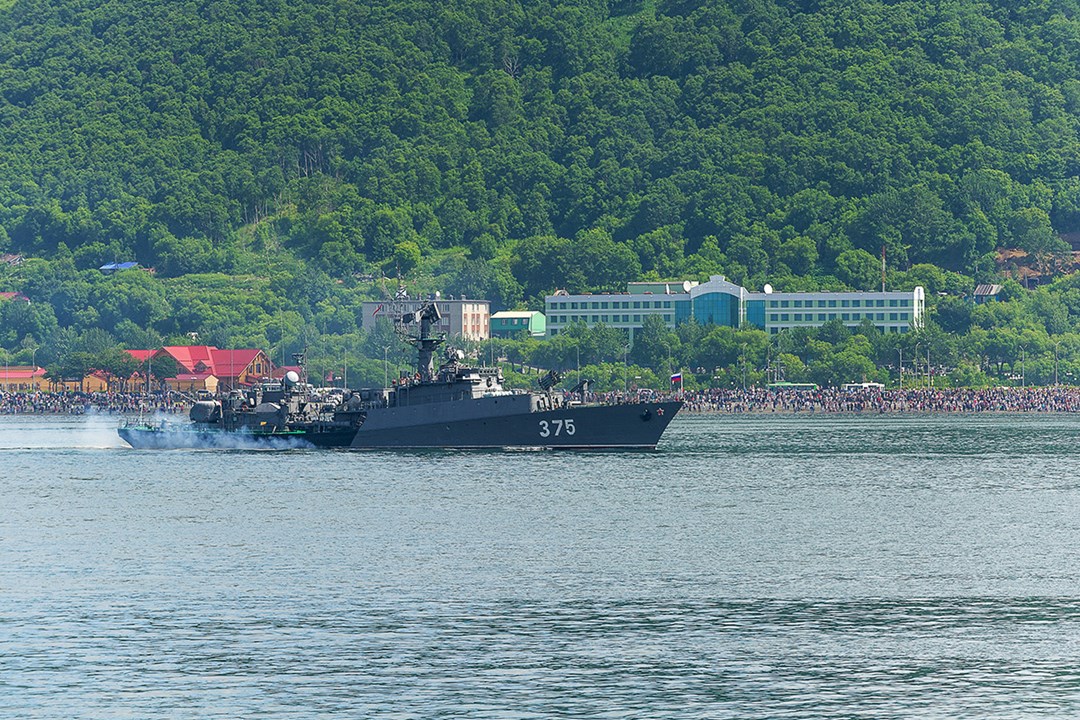

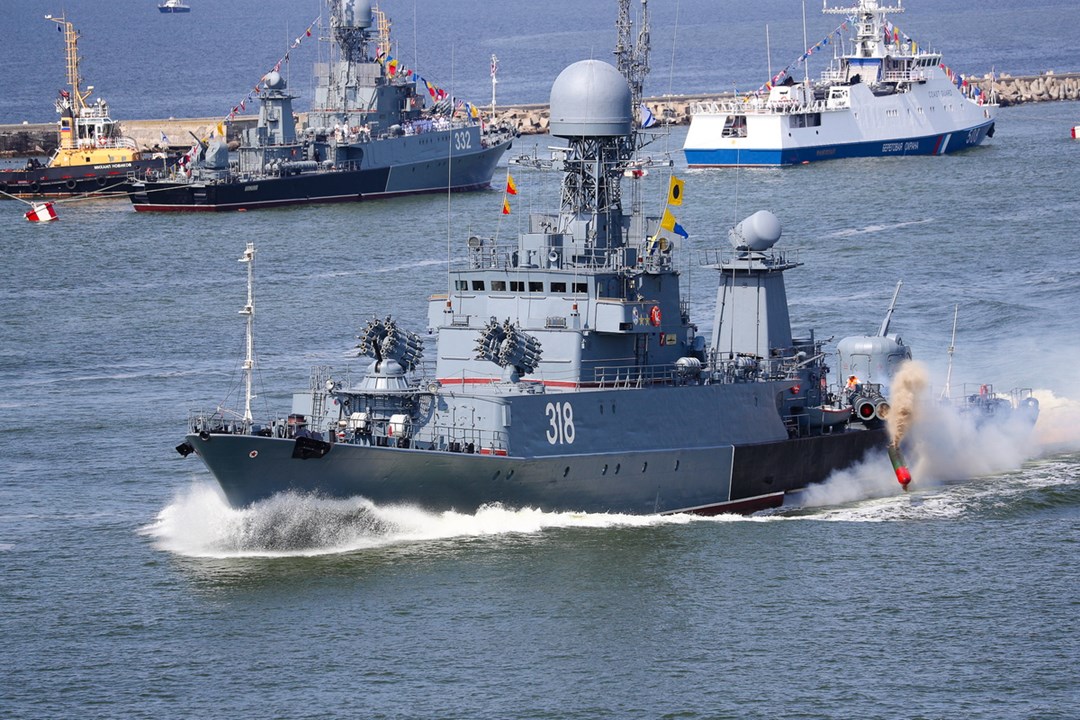

Operational Photo
deagel.com
Basic Information
Name
Project 1124M
Designation
Project 1124M
Alternate Designation
Albatros, Grisha-V, Kaszub (Poland), Lutsk (Ukraine), Zemaitis (Lithuania)
Equipment Type
Patrol Boats
Manufacturer
—
Date of Introduction
1985
Description

The Project 1124 corvettes have been designed to carry out anti-submarine warfare (ASW) missions in coastal waters. Approximately 100 of these ships have been built by the Soviet Union/Russia starting in 1968 comprising Grisha I (16), Grisha II (14), Grisha III (33), Grisha IV (1) and Grisha V (33). Project 1124M, NATO code Grisha-V and Soviet name Albatros, is an small ASW ship able to destroy surface targets, underwater targets and airborne targets autonomously protecting national borders and exclusive economic zones during escort and patrol missions. Besides, Grisha V ships can set up mine fields. Its weapon system consists of a 76.2mm AK-176M gun, a 30mm AK-630M gun, one OSA-MA2 with a two-rail launcher, two twin-tube torpedo launchers, and one RBU-6000 ASW rocket system. The propulsion system three-shaft in a Combined Diesel And Gas (CODAG) configuration which develops 2x6,620 KW (diesel) and 13,970 KW (gas).

Naval & Littoral Specifications
Crew 80
Displacement 1000.00 tonnes
Beam 10.30 m
Draft 5.50 m
Max Speed 30.0 knots
Overview (Deagel)
Group Patrol Boats
Status Active
Also Known As Albatros, Grisha-V, Kaszub (Poland), Lutsk (Ukraine), Zemaitis (Lithuania)
Origin Russia
Initial Operational Capability (IOC) 1985
Total Production 33
Specifications (Deagel)
Crew 80
Dimensions — Beam 10.3 meter
Dimensions — Draft 5.5 meter
Dimensions — Length 71.2 meter
Dimensions — Main Gun Caliber 76.2 millimeter
Mass — Full Displacement 1,000 ton
Performance — Max Range 2,500 nautical mile
Power — Total Combined Power 13,970 kW
Speed — Cruise Speed 14 knot
Speed — Top Speed 30 knot
Time — Mission Endurance 10 day
Gear (Deagel)
Item 1 Anti-Submarine Rockets: RBU-6000 (1)
Item 2 Local Air Defenses: Osa-MA2 (1)
Item 3 Naval Gun Systems: AK-176M (1)
Item 4 Naval Gun Systems: AK-630M (1)
Item 5 Radar Systems: 5P-10-03E (1)
Item 6 Surface-to-Air Missiles: 9M33 (20)
Details
Country of Origin Russia
Sources

deagel.com: https://www.deagel.com/x/x/a001957

Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
71.2 m
Width
10.3 m
Height
—
Weight
1000000 kg
Operators (4)
Russia
Ukraine
Poland
Lithuania
