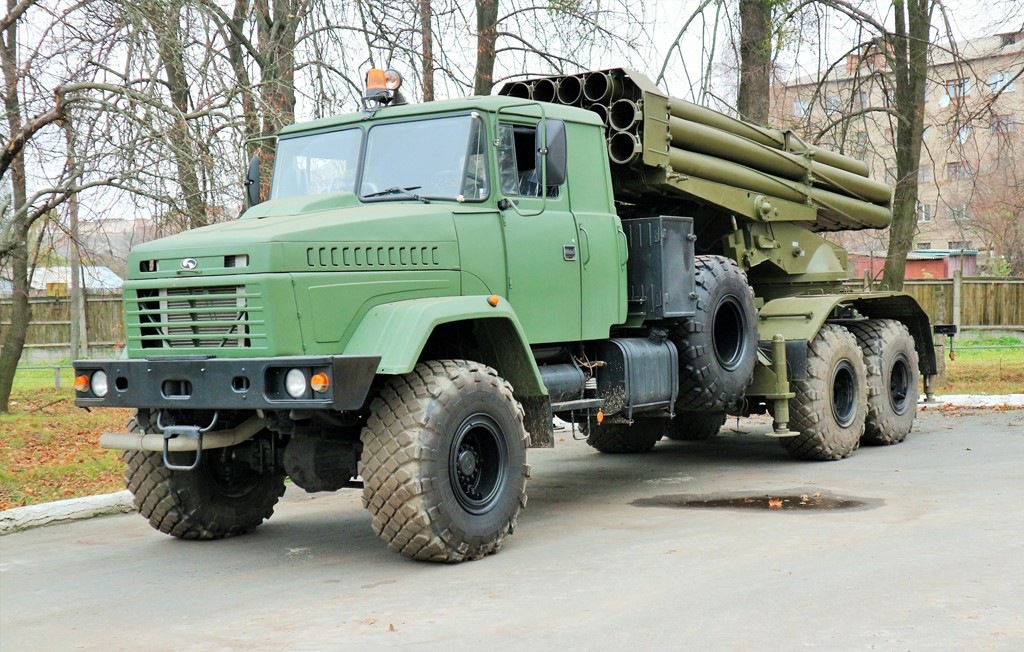

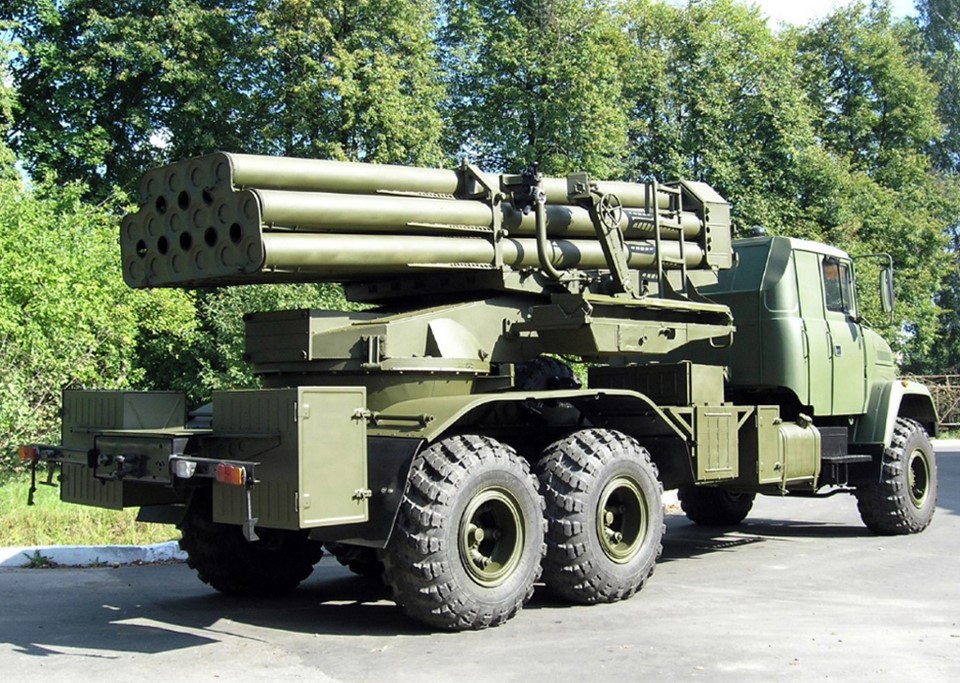

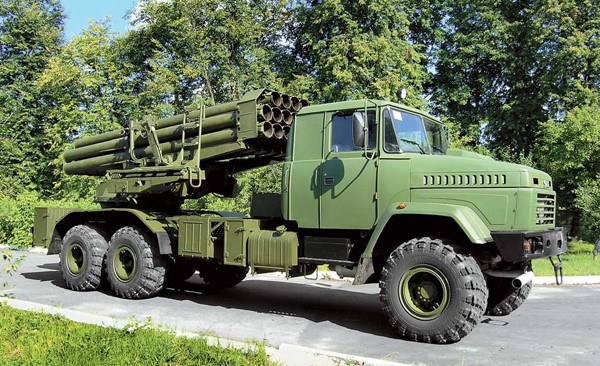

Bastion 3 Ukrainian 220mm Multiple Rocket Launcher
Bastion 3
Multiple Launch Rocket System (MLRS)
Other
Basic Information
Name
Bastion 3 Ukrainian 220mm Multiple Rocket Launcher
Designation
Bastion 3
Alternate Designation
Bastion 3
Equipment Type
Multiple Launch Rocket System (MLRS)
Manufacturer
—
Date of Introduction
2010
Description
The Bastion 3 Ukrainian 220mm Multiple Rocket Launcher is very effective against area targets.
Ground Specifications
Crew
4
Engine
Diesel (400 hp)
Max Speed
85.0 km/h
Range
400.0 km
System
Alternative Designation
Bastion 3
Type
Multiple Rocket Launcher
Caliber
220 mm
Manufacturer
INA
Crew
4 ea
Chassis
KrAZ-6322
Emplacement Time
12.5 min
Displacemnet Time
INA
Dimensions
Length
9.2 m
Width
2.7 m
Height
3.3 m
Weight, Curb
16.4 tons
Weight, Combat
21.6 tons
Automotive
Engine Name
YaMZ, Cummins
Engine Type
Diesel
Engine Power
400 hp
Maximum Range
400 km
Maximum Speed
85 km/h
Amphibious
No
Gradient
58%
Side Slope
40%
Vertical Step
0.7 m
Trench
1.0 m
Fording
1.5 m
Main Weapon System
System
Name
INA
Type
Multiple Rocket Launcher
Caliber
220 mm
Number of Tubes
16 ea
Elevation
INA
Traverse
INA
Maximum Firing Range
35 km
Full Salvo Duration
9 / 20 seconds
Reloading Time
15 minutes
Ammunition
Type
Rocket
Caliber
220 mm
Rocket Length
4.8 m
Warhead Weight
90 - 100 kg
Rocket Weight
280 kg
Basic Load
16 ea
Protection
Hull Armor
INA
Applique Armor
Depending on customer requirement the cab can be fitted with add-on armor kit.
NBC Protection
INA
Smoke Equipment
No
Image Sources
Details
Country of Origin
Ukraine
Category
Rocket Artillery Systems
Land > Artillery > Rocket Artillery Systems
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.2 m
Width
2.7 m
Height
3.3 m
Weight
21600 kg
Operators (1)
Ukraine
