RG Outrider

RG Outrider

Tactical Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
RG Outrider
Designation
RG Outrider
Alternate Designation
Equipment Type
Tactical Vehicles
Manufacturer
BAE Systems
Date of Introduction
2010
Description

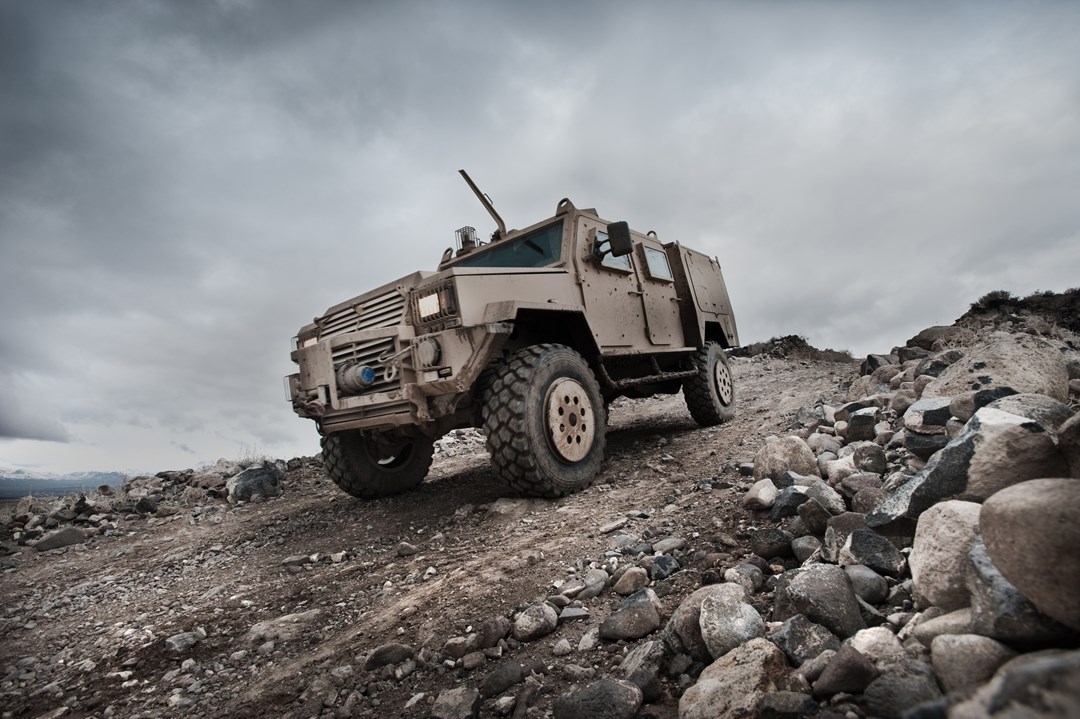

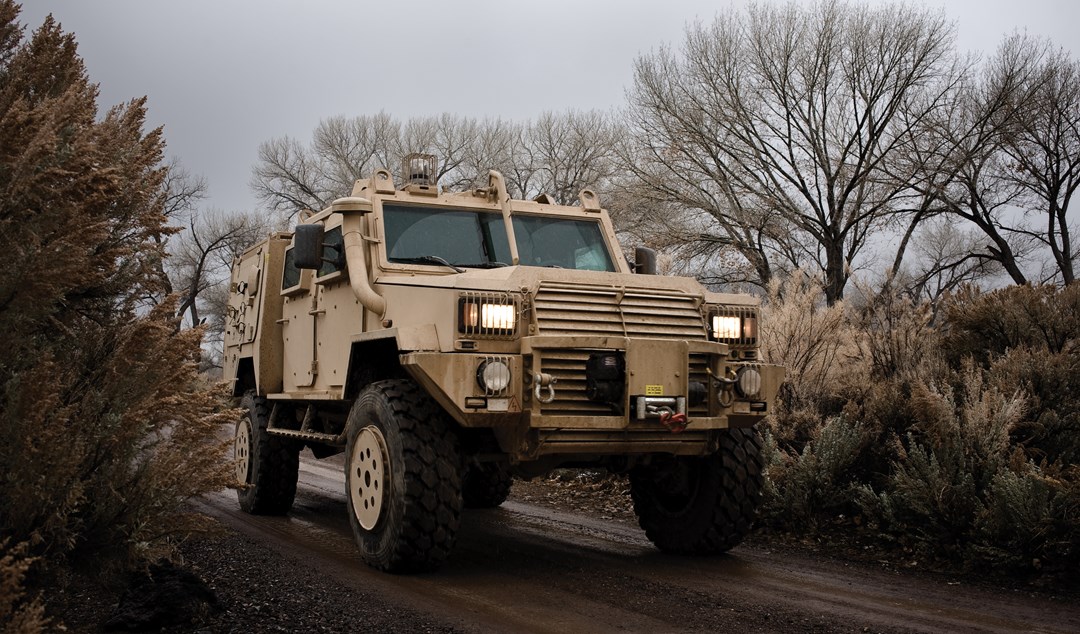

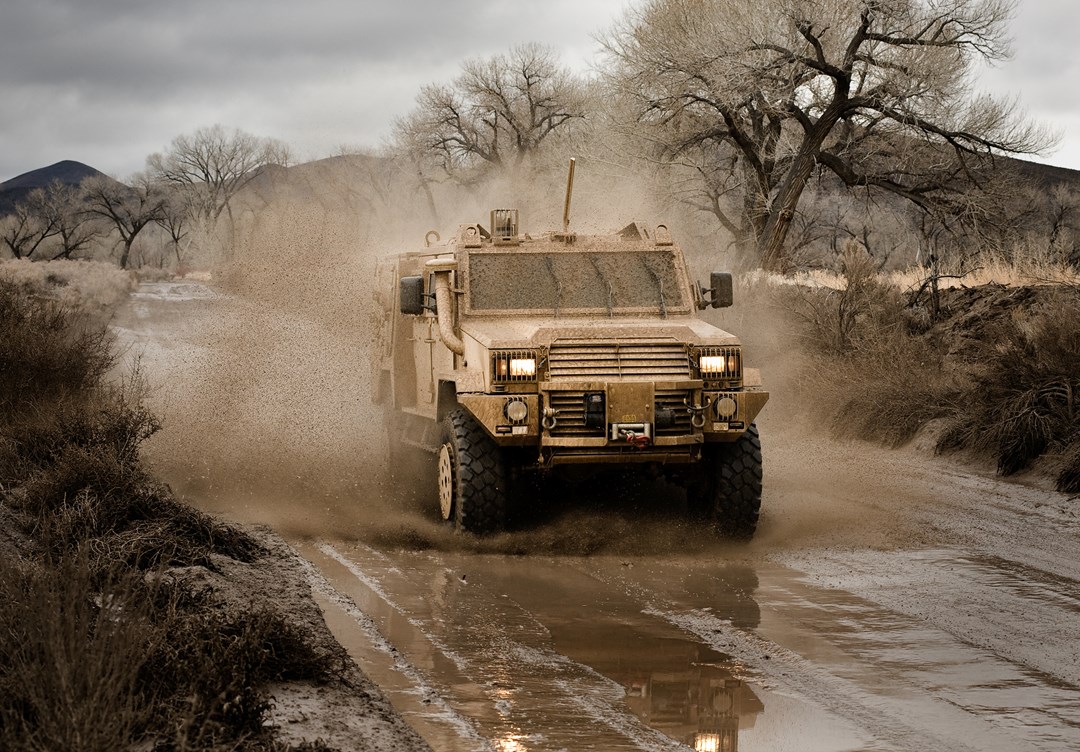

The RG Outrider is a 4x4 V-shaped hull light armored vehicle designed to protect its crew against armor piercing (AP) rifle fire and anti-tank mine detonations. It is the successor to the RG-32M and leverages its mobility and agility but offering more internal crew space and enhanced protection. Extensive use of Commercial-Off-The-Shelf (COTS) components provide cost effective through-life solution with a minimal logistics footprint. The RG Outrider was unveiled to US military leaders in February 2010 at the Nevada Automotive Test Center with the aim to be used by US special operations and coalition forces operating in Afghanistan. The RG Outrider windows are externally mounted providing improved side-blast protection while also freeing up space inside the cabin. Other features are an improved 2-ton payload capability and a newly designed load bay which can accommodate a variety of customer required mission-specific equipment, increasing its versatility. The vehicle can also be easily fitted with mission-specific communications and weapons systems, making it a highly tactical vehicle capable of operating in most climates and environmental conditions. The RG Outrider is powered by a Steyr M16SCI Turbo charged intercooled engine developing 272-hp of power and a maximum speed of 120 kph.

Ground Specifications
Crew 4
Mobility Type Wheeled (4x4)
Max Speed 120.0 km/h
Overview (Deagel)
Group Tactical Vehicles
Status Active
Origin United States of America
Contractor BAE Systems
Initial Operational Capability (IOC) February 2010
Total Production ?
Specifications (Deagel)
Crew 4
Wheel Drive 4
Wheels 4
Degree — Approach Angle 42 °
Degree — Departure Angle 30 °
Dimensions — Ground Clearance 0.43 meter
Dimensions — Height 2.2 meter
Dimensions — Length 6 meter
Dimensions — Wheelbase 3.3 meter
Dimensions — Width 2.2 meter
Energy — Max Torque 610 Nm
Mass — Max Weight 9,500 kilogram
Percentage — Gradient 60 %
Percentage — Side Slope 30 %
Performance — Turning Radius 17 meter
Power — Power 272 hp
Speed — Top Speed 120 kph
Details
Country of Origin United States
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6 m
Width
2.2 m
Height
2.2 m
Weight
9500 kg
Operators (1)
United States
