Groza-R2 Belarusian Counter-UAS Jammer
Groza-R2 Unmanned Aerial System (UAS) Jammer
Counter-UAS System
Other
Basic Information
Name
Groza-R2 Belarusian Counter-UAS Jammer
Designation
Groza-R2 Unmanned Aerial System (UAS) Jammer
Alternate Designation
Groza-R2 Unmanned Aerial System (UAS) Jammer
Equipment Type
Counter-UAS System
Manufacturer
KB Radar Design Bureau in Minsk, Belarus
Date of Introduction
2010
Description

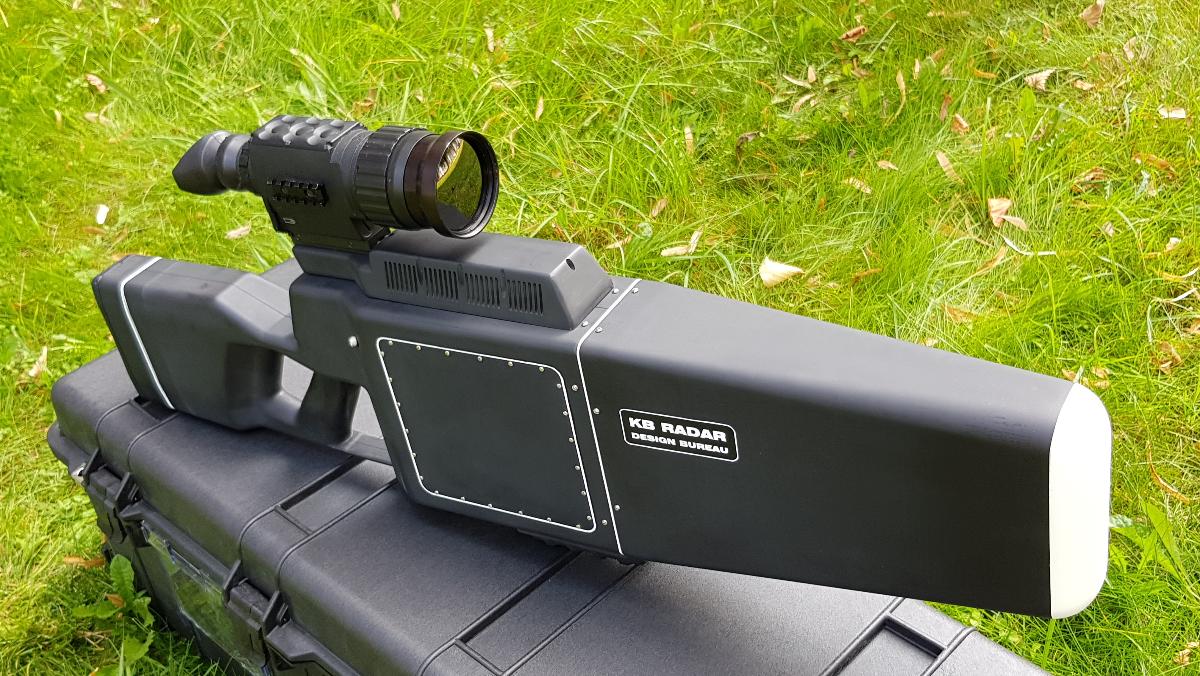

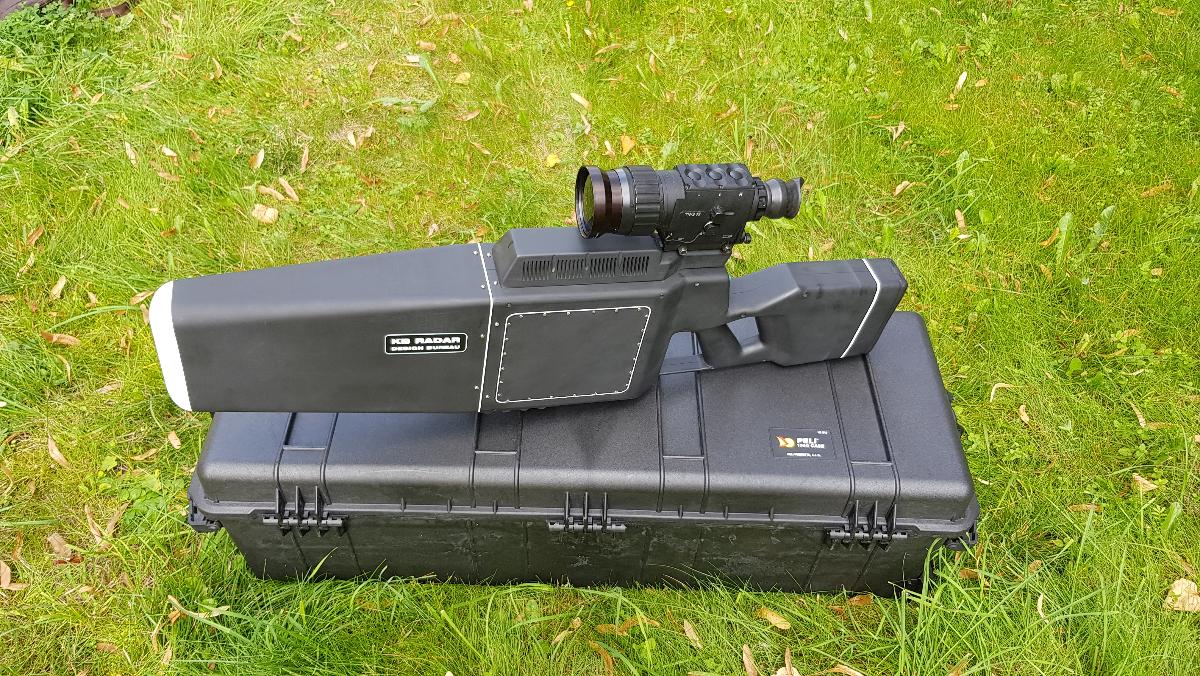

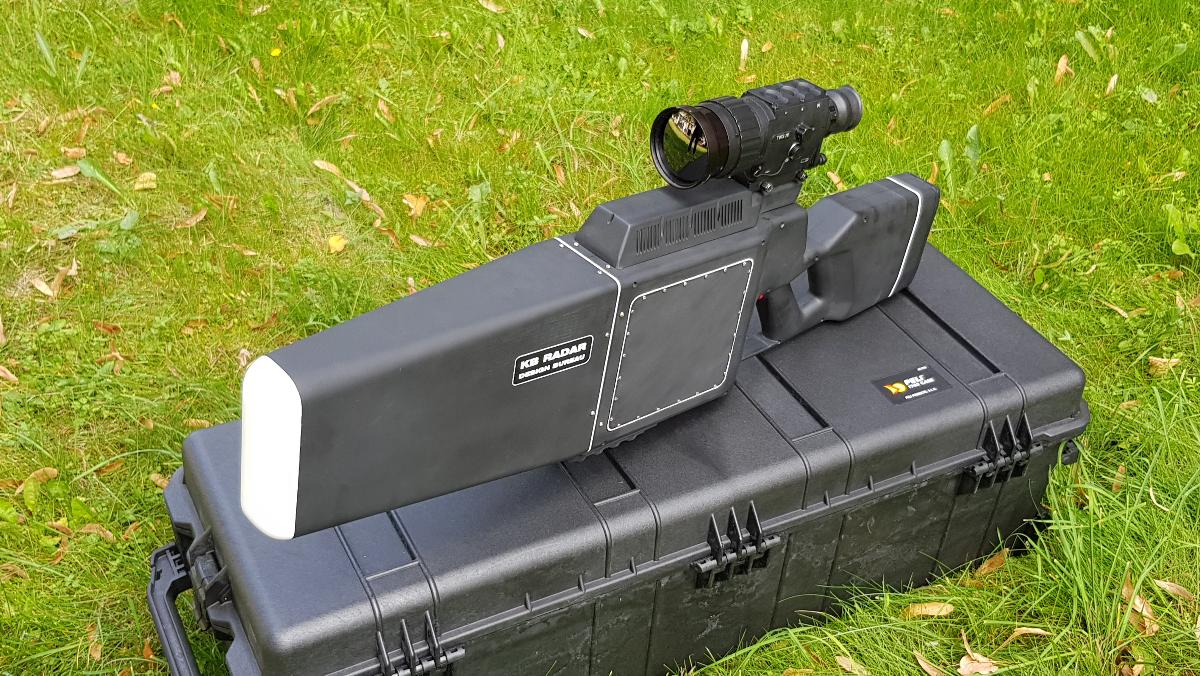

The “Groza-R2” counter-UAS jammer is a man portable system designed for short range jamming of ground to UAS uplinks and onboard UAS navigation receiver downlinks from both GPS and GLONASS satellites. Counter UAV/Counter UAS/Anti-Drone.
Ground Specifications
Crew
1
Range
1.0 km
System
Alternative Designation
Groza-R2 Unmanned Aerial System (UAS) Jammer
Type
Short-range UAS Man-portable Jammer
Manufacturer
KB Radar Design Bureau in Minsk, Belarus
Crew
1 ea
Frequency Bands of Control Channels Jammed
2400-2480 MHz
5725-5850 MHz
Frequency Band of Satellite Radio Navigation Systems Jammed
1570-1610 MHz
Jamming Range of UAS Satellite Radio Navigation Systems
minimum 1 km
Jamming Range of UAS Control Channel
up to 1 km (when a UAS is at least
200 m away from the operator’s control console)
Output Power at Frequencies of 2.4 GHz
minimum 4 W
Output Power at Frequencies of 5.8 GHz
minimum 3 W
Output Power at Frequencies of GPS and GLONASS Satellite Radio Navigation Systems
minimum 1 W
Continuous radiation time
minimum 30 min.
Power supply
storage battery
Protection rating IP
IP54
Dimensions
Length
INA
Width
INA
Height
INA
Weight, Combat
maximum 6.5 kg
Details
Country of Origin
Belarus
Category
Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Filter Label
G
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
6.5 kg
Operators (1)
Belarus
