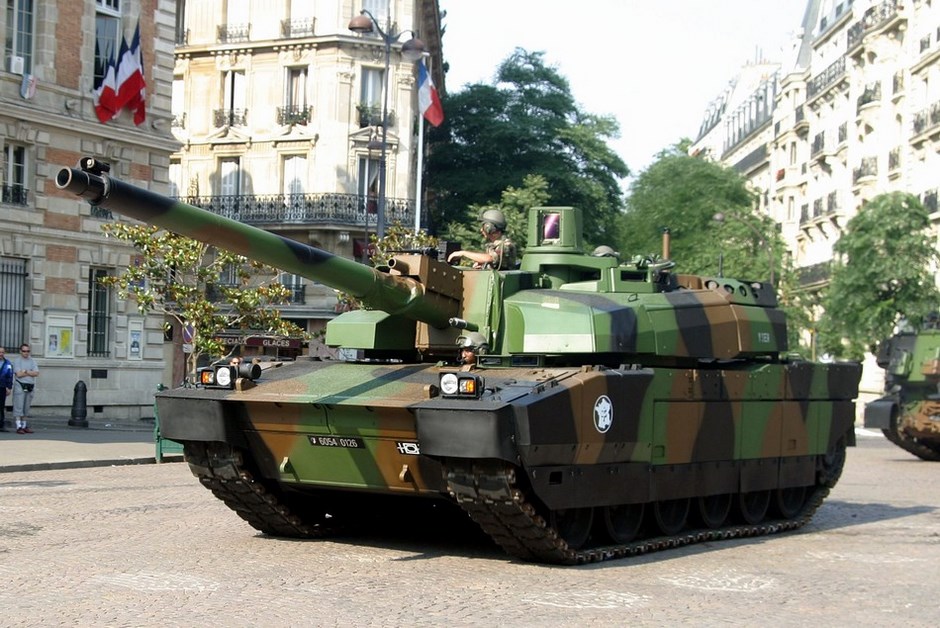

Leclerc

Leclerc

Main Battle Tanks
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Leclerc
Designation
Leclerc
Alternate Designation
AMX-56
Equipment Type
Main Battle Tanks
Manufacturer
NEXTER
Date of Introduction
1992
Description

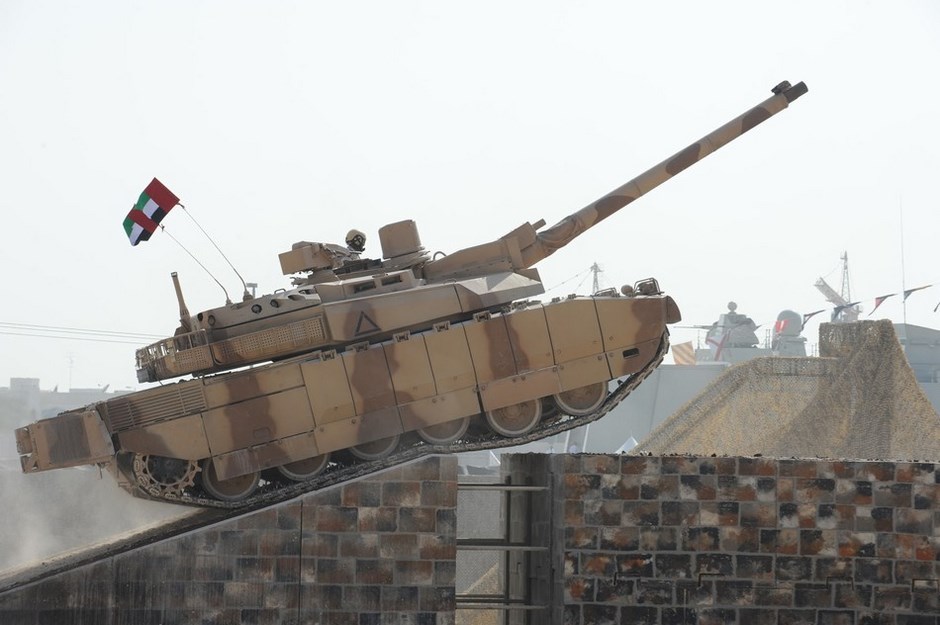

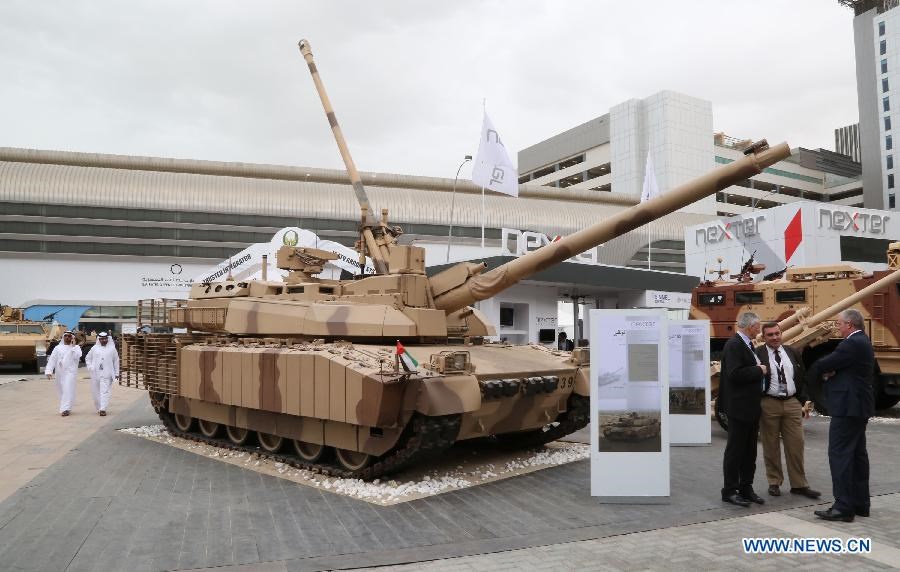

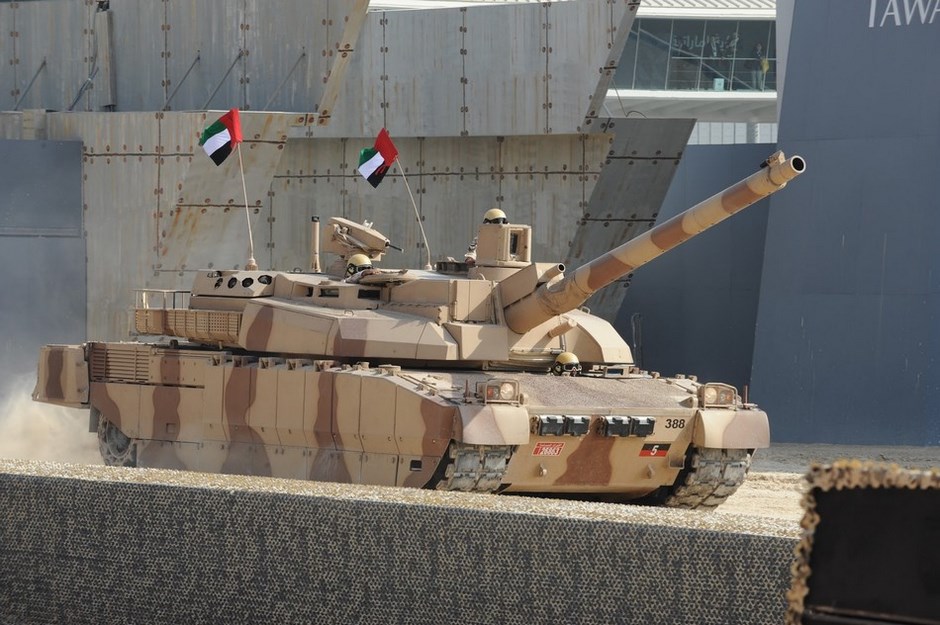

The Leclerc is a state-of-the-art main battle tank designed to meet French Army's demanding requirements for a high mobile, day and night combat ready, high firepower moving or stationary, all-weather, and high maneuverable armored vehicle. The Leclerc only has a crew of 3-man (gunner, driver and commander) due to the 120mm F1 gun automatic loading system. In addition, the FINDERS combat management and aids system allows continuous update of situational awareness and vehicle mechanical diagnosis. The advanced characteristics of the Leclerc battle tank will make possible to the French armored units to defeat current battle tanks even if they outnumbered. The Leclerc is armed with a stabilized, smooth bore, automatic feed 120mm 52-caliber F1 gun, one coaxial 12.7mm machine gun, and one 7.62mm machine gun. The modular armor, the capability to shoot stationary or moving at 50 km/h, the FINDERS system, the GALIX (18) protection system and the commander's independent thermal camera, stealthy design, make Leclerc a fearsome opponent. The Leclerc battle tank is in operational service with the French Army and has been ordered by the United Arab Emirates. UAE's Leclerc are powered by a turbo-diesel MTU 883 V12 engine with a RENK HSWL 295 TM transmission. The commander's thermal sight is the HL80 instead of the HL70 of French Leclerc. There are other minor differences between Leclercs operated by France and the UAE, but performance remains exactly the same.

Ground Specifications
Crew 3
Mobility Type Tracked
Main Weapon 120mm 52-caliber F1 gun (120mm)
Max Speed 72.0 km/h
Range 550.0 km
Overview (Deagel)
Group Main Battle Tanks
Status Active
Also Known As AMX-56
Origin France
Contractor NEXTER
Initial Operational Capability (IOC) 1992
Total Production 796
Unitary Cost EUR €4.0 million
Specifications (Deagel)
Ammunition Load 40
Crew 3
Rolling Rubber Wheels 6
Dimensions — Height 2.5 meter
Dimensions — Length 6.9 meter
Dimensions — Main Gun Caliber 120 millimeter
Dimensions — Width 3.7 meter
Mass — Combat Weight 56,500 kilogram
Percentage — Availability 50 %
Performance — Max Range 550 kilometer
Power — Power 1,500 shp
Rate — Max Rate of Fire 12 roundperminute
Speed — Cross Country Speed 55 kph
Speed — Top Speed 72 kph
Gear (Deagel)
Item 1 Combat Management Systems: SIT-V1 (1)
Item 2 Large Caliber Cannons: F1 (1)
Item 3 Projectiles: OE 120 G1
Item 4 Projectiles: OECC 120 F1
Item 5 Projectiles: OFL 120 F1-A
Item 6 Projectiles: Polynege
Variants
Variant 1 Leclerc

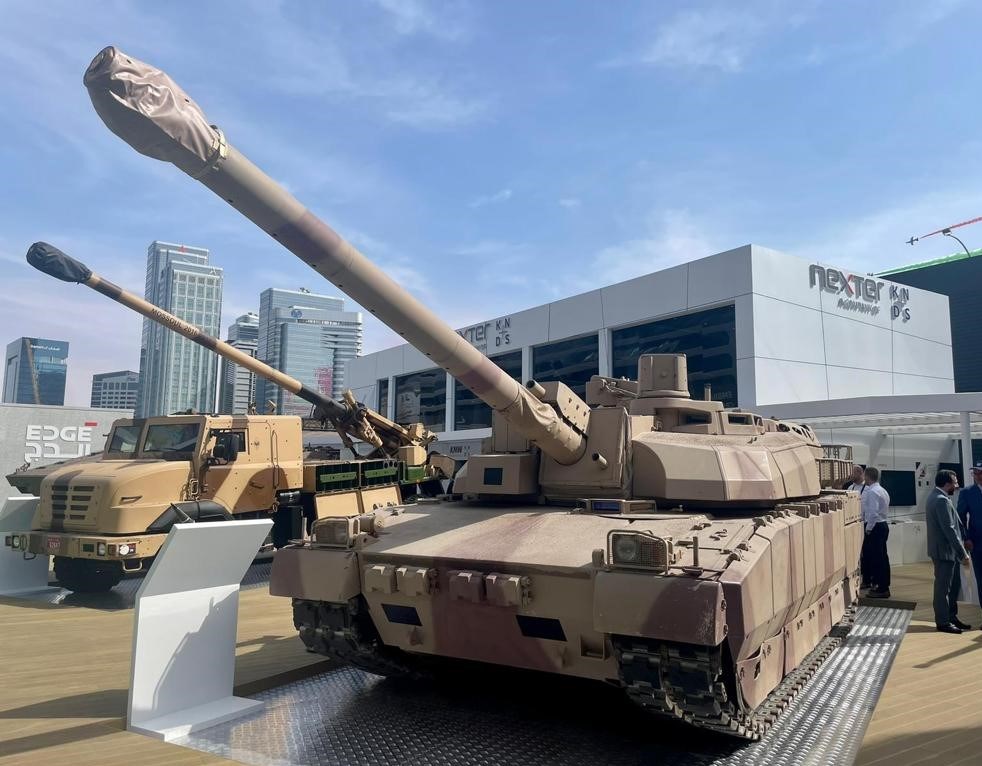

Variant 2 Leclerc Renove
Details
Country of Origin France
Category Tanks
Land > Tanks
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.9 m
Width
3.7 m
Height
2.5 m
Weight
56500 kg
Operators (2)
France
United Arab Emirates
