ZBD05

ZBD05

Tracked Armored Vehicles
Spotted an error? Sign in to suggest an edit.
ZBD05

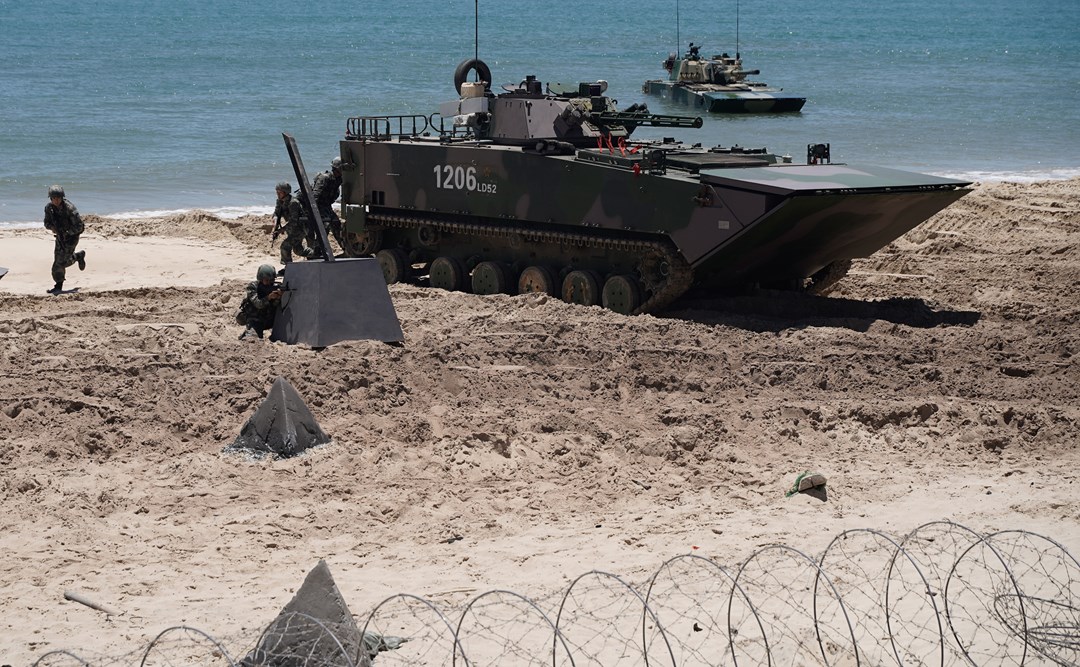

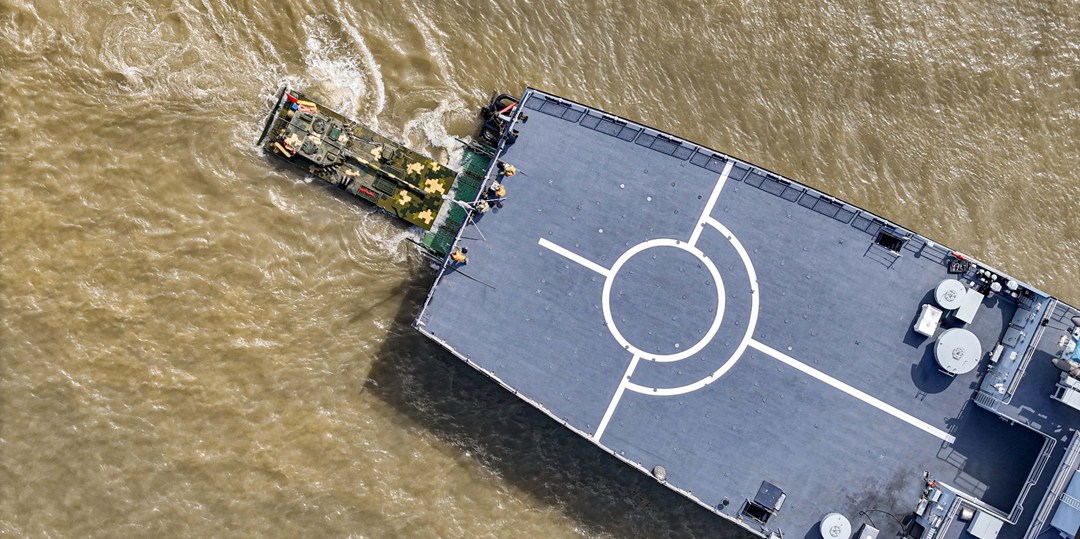

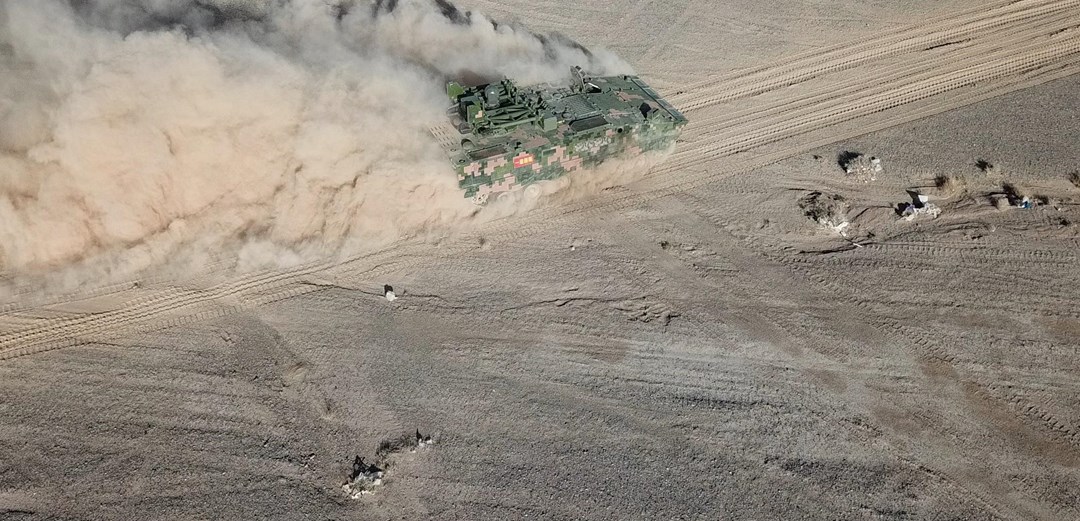

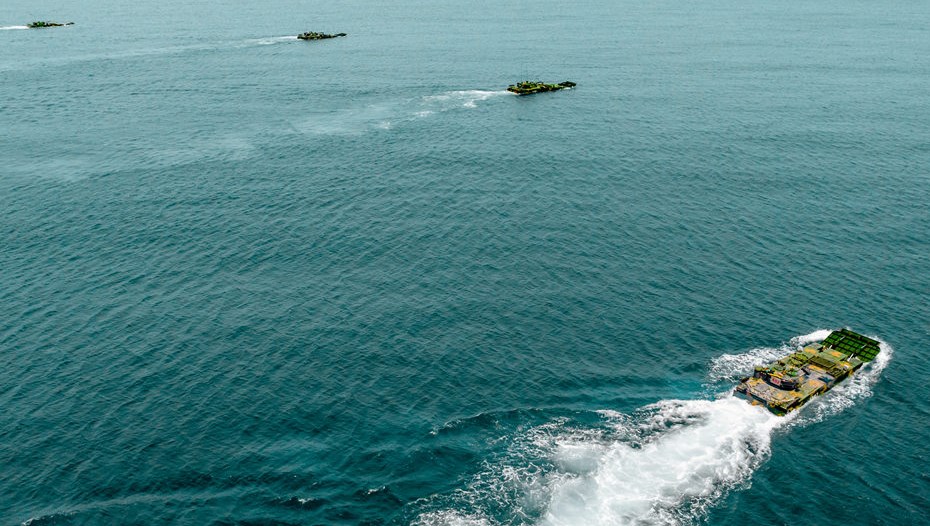

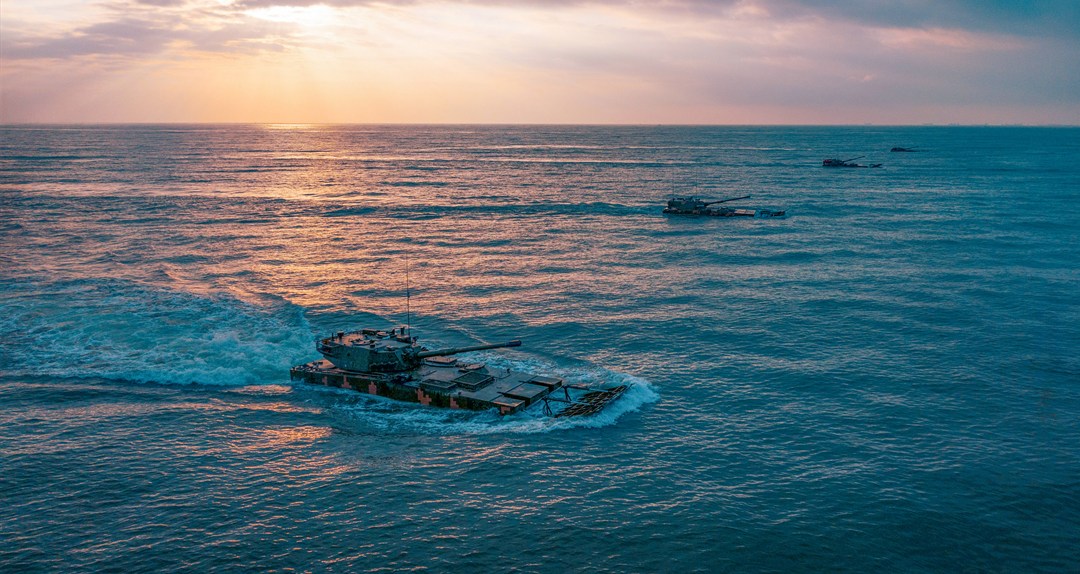

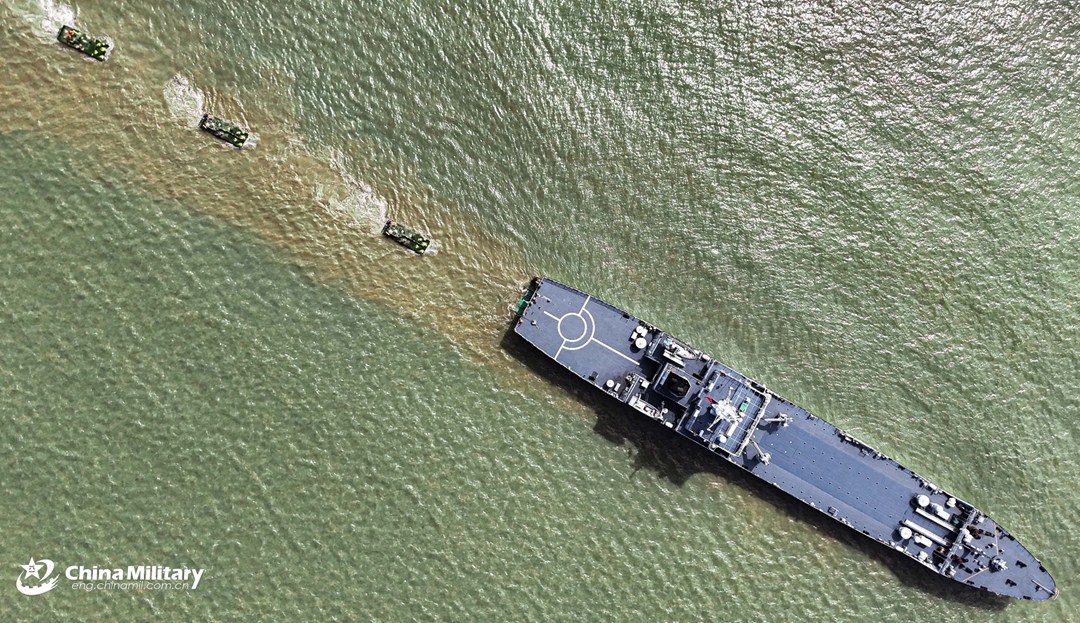

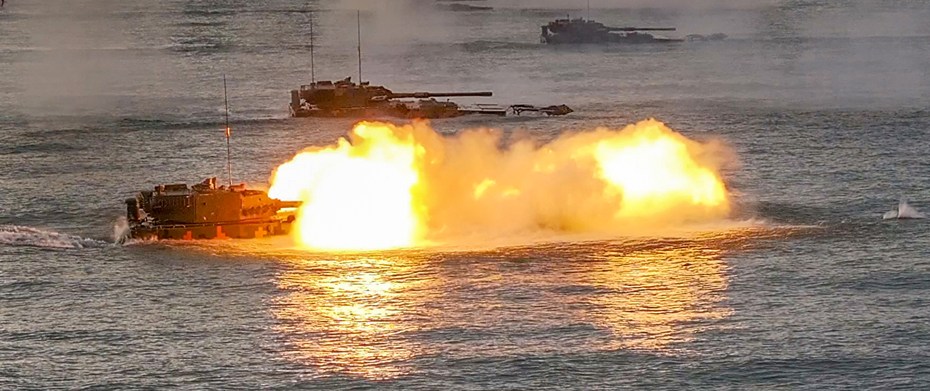

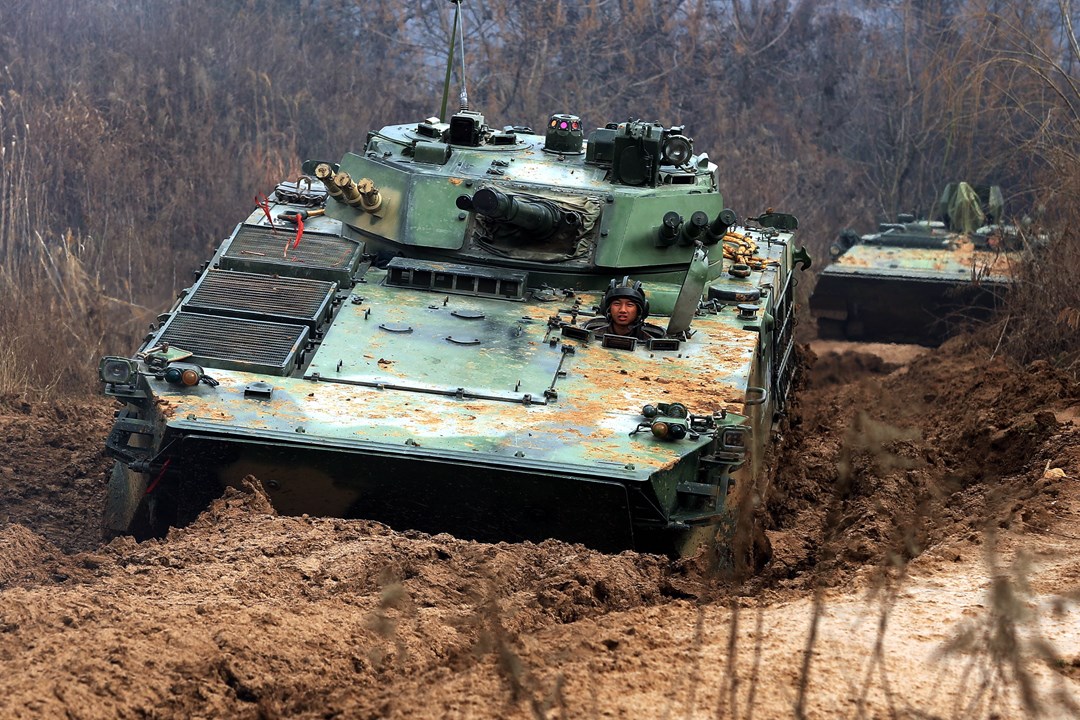

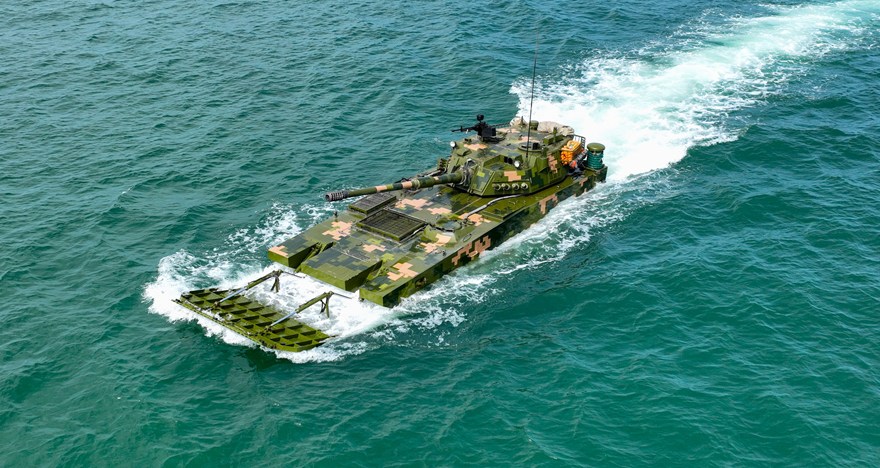

Operational Photo
deagel.com
Basic Information
Name
ZBD05
Designation
ZBD05
Alternate Designation
—
Equipment Type
Tracked Armored Vehicles
Manufacturer
NORINCO
Date of Introduction
—
Description

The ZBD05, formerly known as the ZBD2000, is an armored amphibious assault vehicle developed to meet the requirements of the People's Liberation Army (PLA) Marines. The fully-tracked ZBD05 entered service in mid-2000s with the PLA Marine Corps. Compared to Western amphibious assault vehicles, the ZBD05 has greater firepower thanks to its 105mm cannon but poor performance at sea. Externally, it looks like the US Marine Corps Expeditionary Fighting Vehicle (EFV). The ZBD05 vehicle represents a significant step forward in the PLA's building up of an effective amphibious assault force capability. The Chinese Marines have developed a vehicle family based on this armored vehicle. The basic ZBD05 has been designed to be released from amphibious assault ships at more than 10 kilometers from the shore. Powered by two waterjets, these vehicles can achieve a top speed of 16 knots on water. A ZBD05 requires a crew of four-man and carries 7 to 10 fully equipped Chinese Marines.

Ground Specifications
Crew 4
Mobility Type Tracked
Main Weapon 105mm cannon
Max Speed 29.6 km/h
Range 10.0 km
Overview (Deagel)
Group Tracked Armored Vehicles
Status Active
Also Known As VN16, ZBD05, ZBD-05, ZBD2000
Origin China
Contractor NORINCO
Initial Operational Capability (IOC) 2005
Total Production 900
Specifications (Deagel)
Crew 4
Rolling Rubber Wheels 6
Troops 7
Dimensions — Height 3.0 meter
Dimensions — Length 9.5 meter
Dimensions — Main Gun Caliber 105 millimeter
Dimensions — Width 3.4 meter
Mass — Combat Weight 29 ton
Performance — Swimming Distance 10 kilometer
Power — Power 550 hp
Power — Power in Water Mode 1,475 hp
Speed — Top Swimming Speed 25 knot
Variants
Variant 1 ZTD-05
Variant 2 ZBD05 IFV
Variant 3 ZBD05 ARV
Variant 4 PLZ-07B
Variant 5 Type 001
Variant 6 ZBD05 EV
Details
Country of Origin China
Sources

deagel.com: https://www.deagel.com/x/x/a001853

Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.5 m
Width
3.4 m
Height
3 m
Weight
29000 kg
Operators (1)
China
