Project 21820
Project 21820
Landing Crafts
Spotted an error? Sign in to suggest an edit.

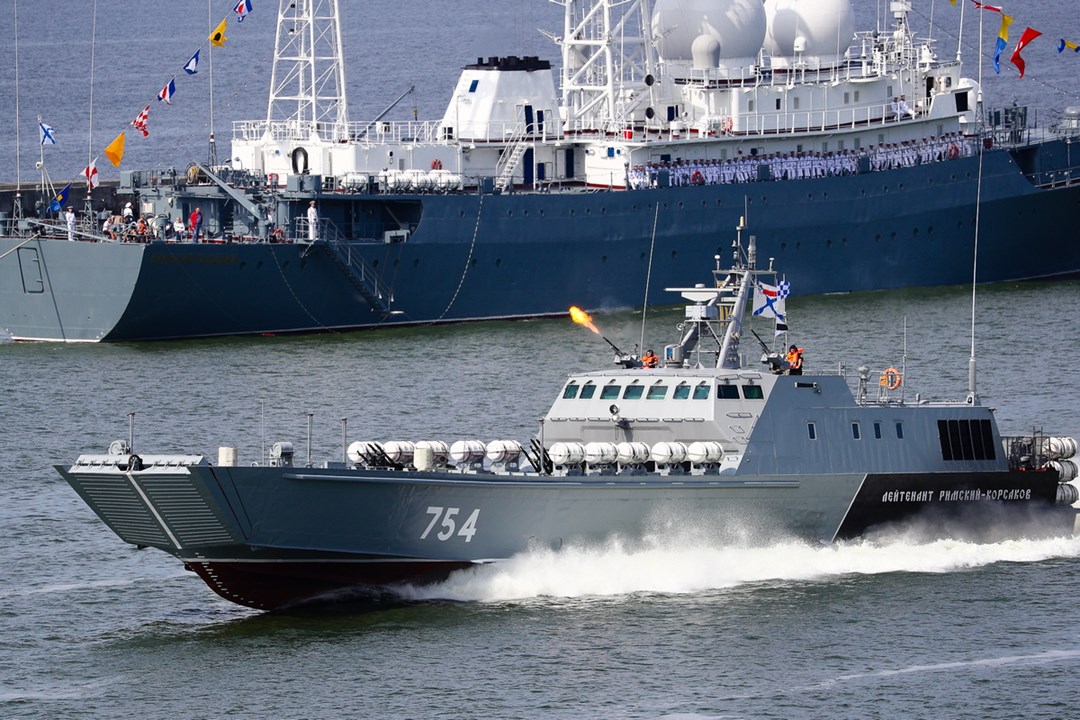

Operational Photo
Basic Information
Name
Project 21820
Designation
Project 21820
Alternate Designation
Ataman Platov, Dyugon
Equipment Type
Landing Crafts
Manufacturer
—
Date of Introduction
2010
Description

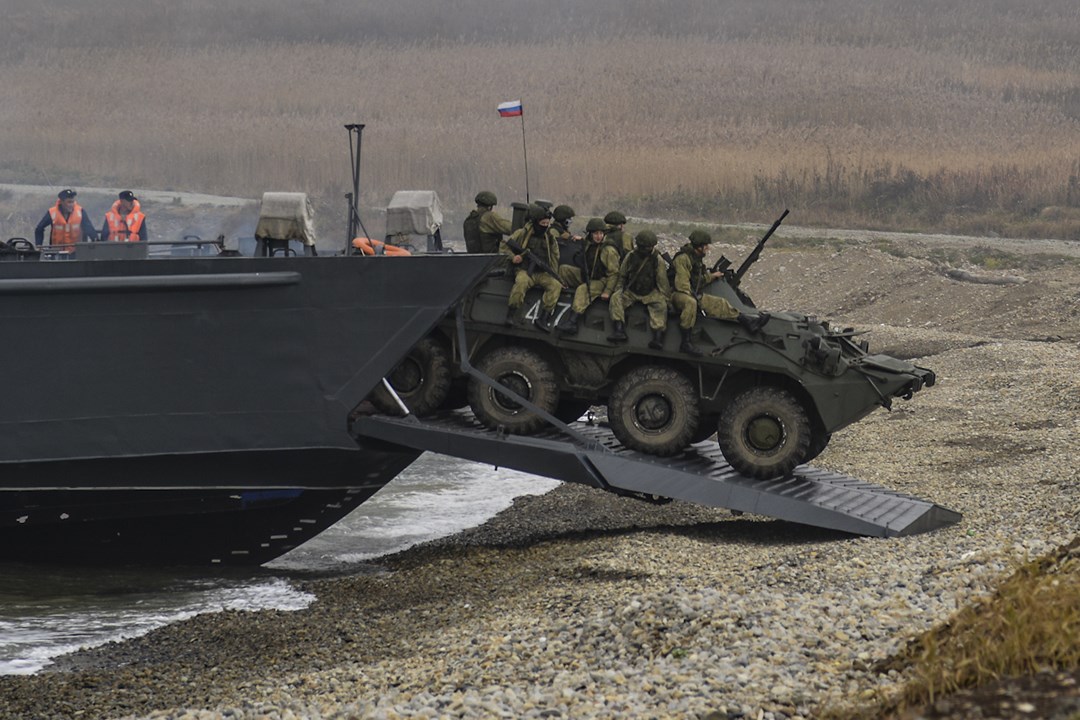

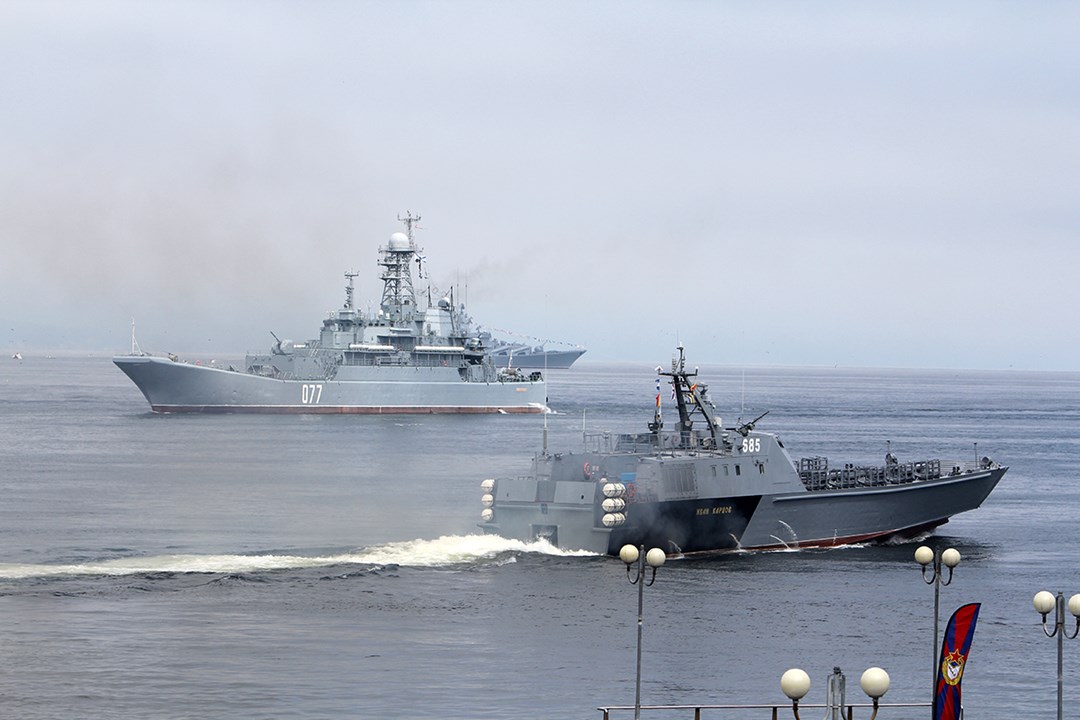

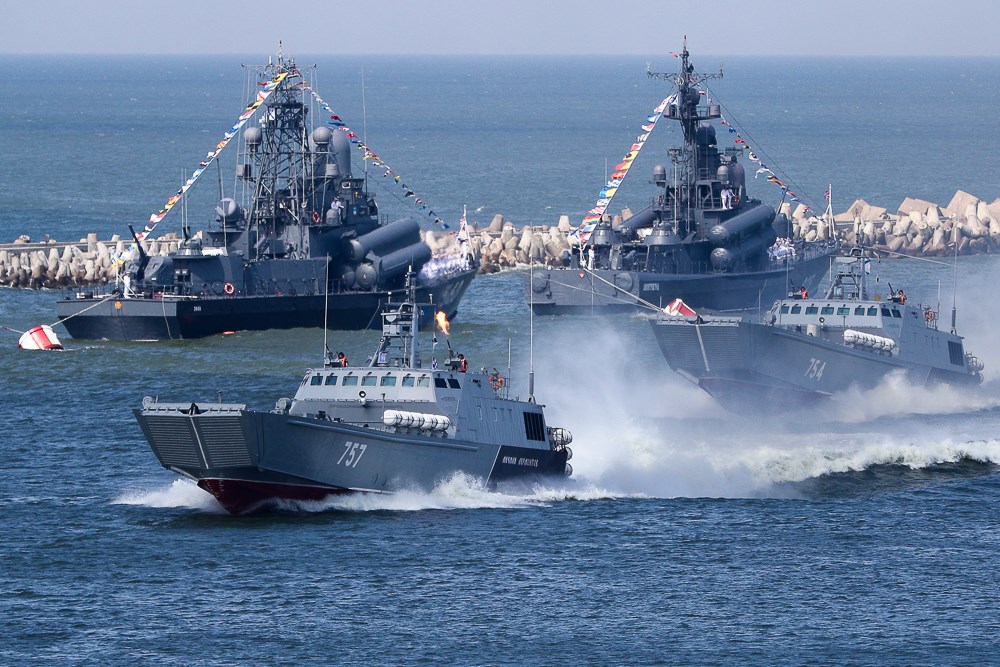

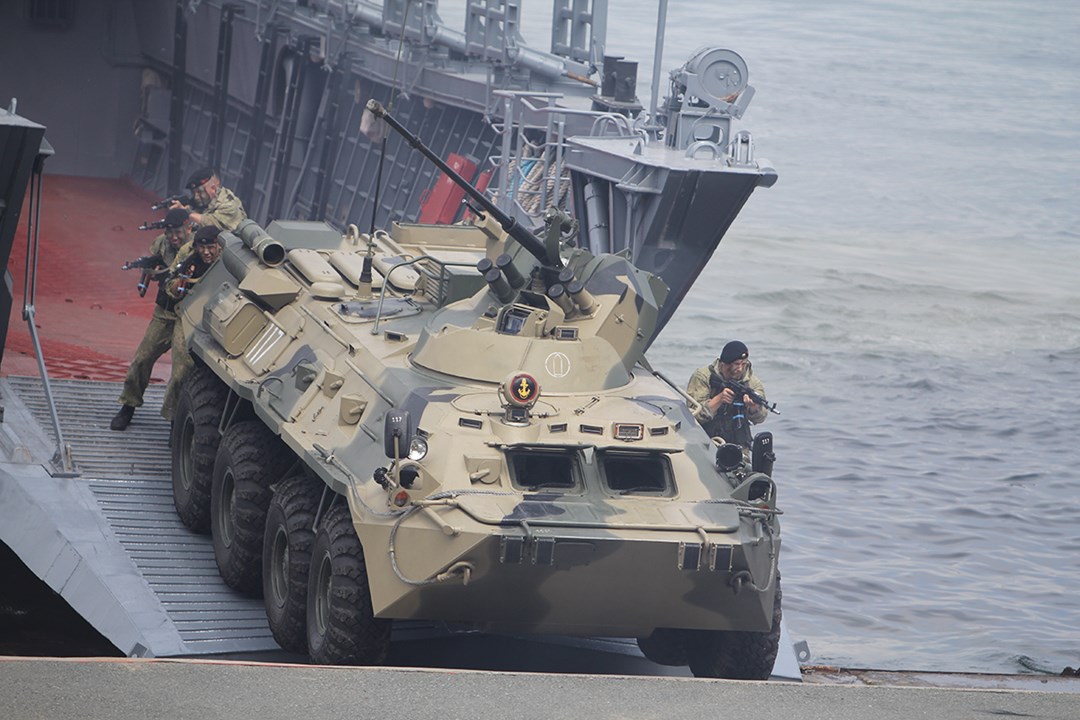

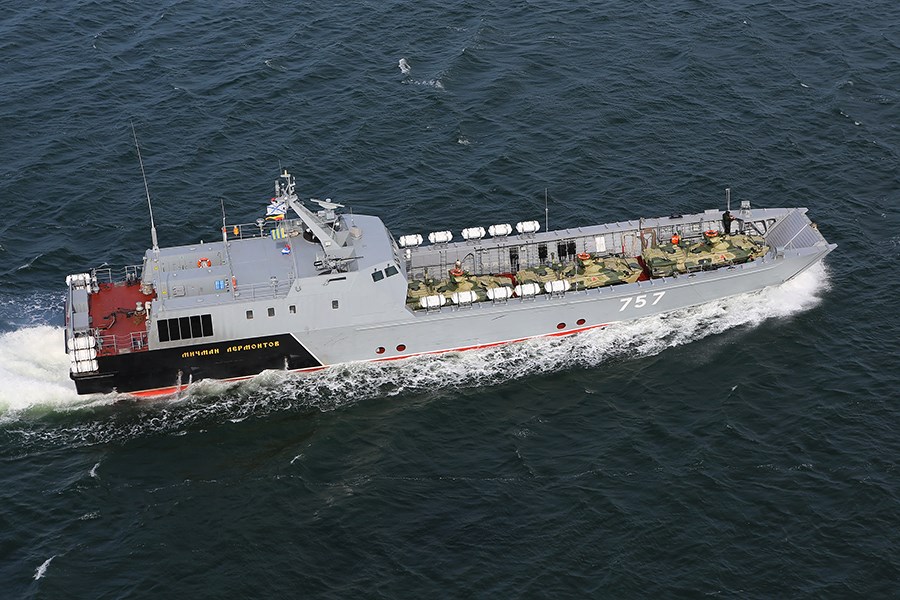

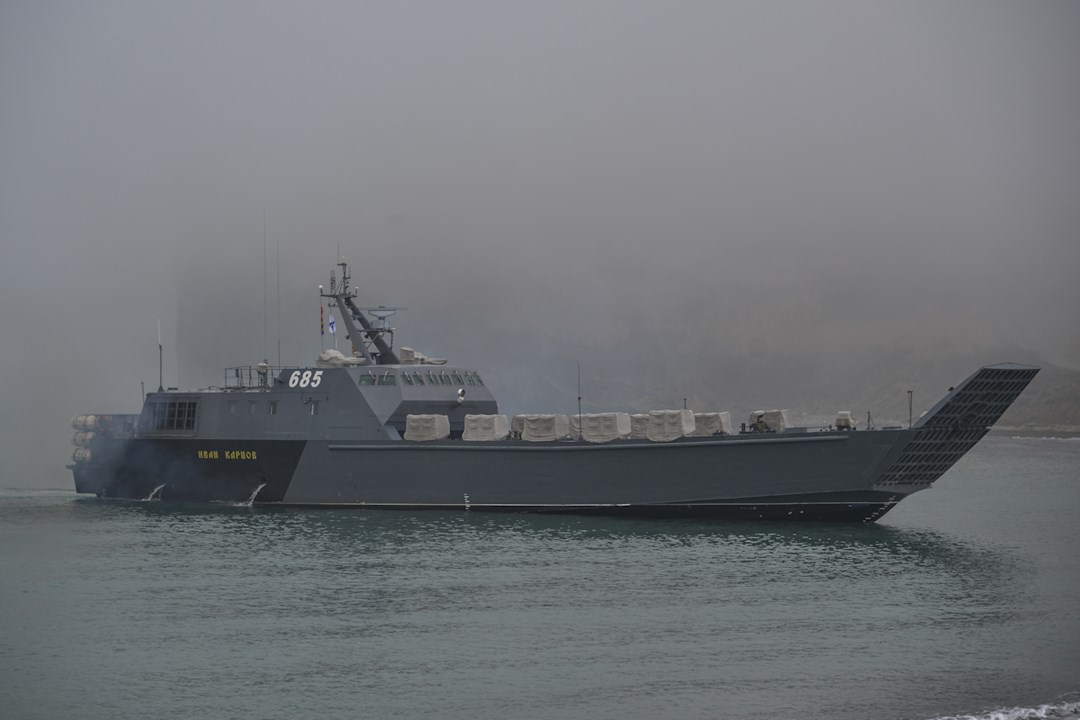

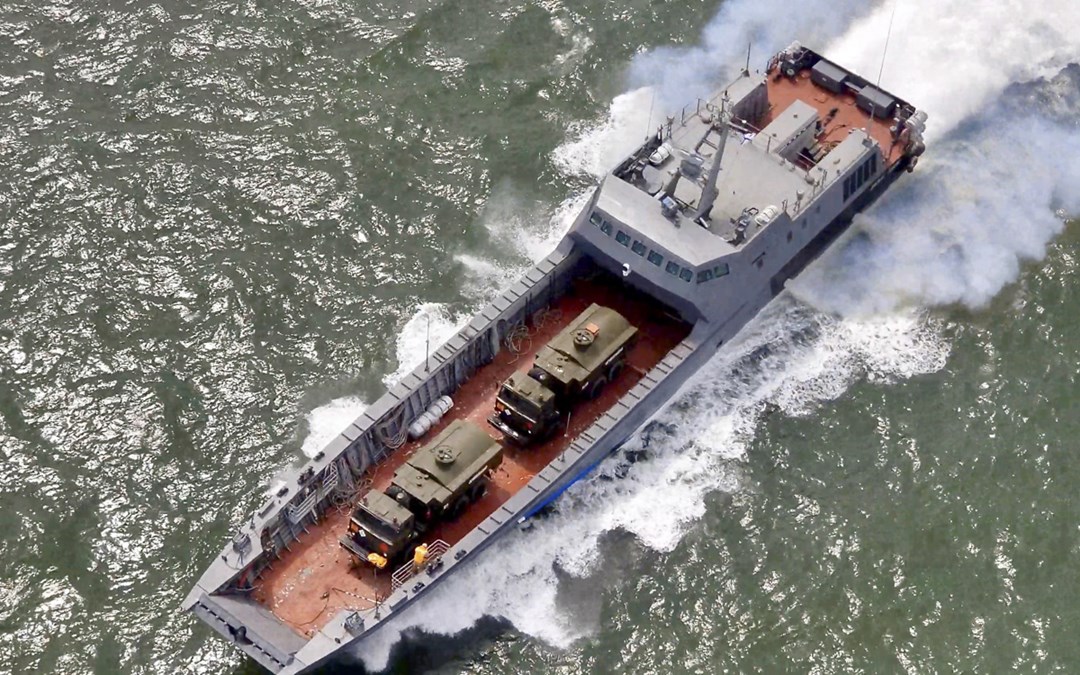

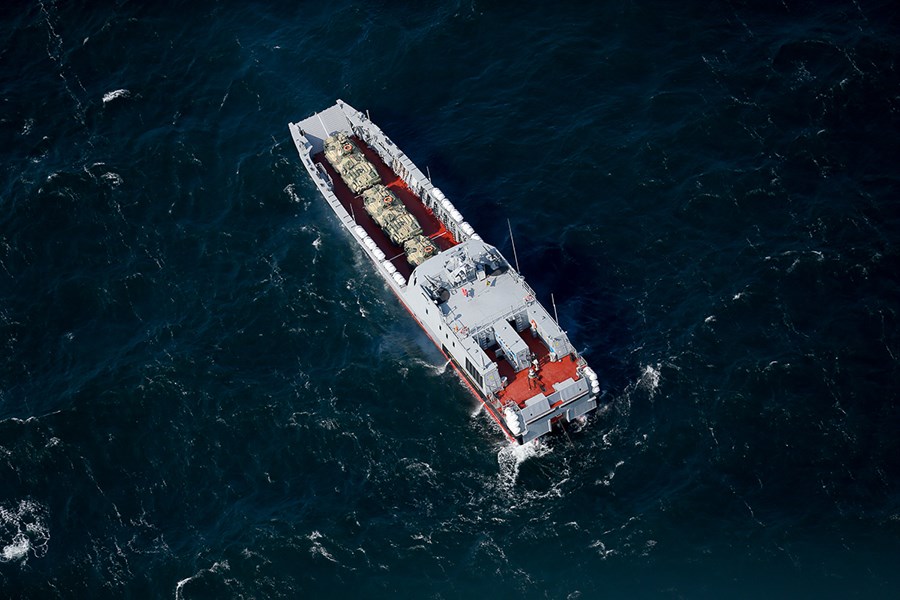

The Russian Navy Project 21820, also known as Dyugon or Ataman Platov, is a class of landing craft designed to deliver three main battle tanks (T-72B, T-80 or T-90) or five wheeled armored vehicles (BTR-80 or BTR-82). The 280-ton class Dyugon landing craft carries 140 tons of cargo over a range of 500 nautical miles and is equipped with two KPV 14.5mm machine guns. The propulsion system consists of two 9,000-hp M507A-2D diesel engines developing a top speed of 35 knots using waterjets. These boats can deal with waves as high as 0.75 meters at full speed. The Russian Navy commissioned the lead ship of this class, the Ataman Platov, in 2010 and four more vessels are planned for 2015.
Ground Specifications
Crew
6
Range
926.0 km
Overview (Deagel)
Group
Landing Crafts
Status
Active
Also Known As
Ataman Platov, Dyugon
Origin
Russia
Initial Operational Capability (IOC)
2010
Total Production
5
Specifications (Deagel)
Crew
6
Number of Engines
2
Dimensions — Beam
8.6 meter
Dimensions — Cargo Compartment Height
2.3 meter
Dimensions — Cargo Compartment Length
27 meter
Dimensions — Cargo Compartment Width
6.8 meter
Dimensions — Draft
1.9 meter
Dimensions — Length
46 meter
Dimensions — Main Gun Caliber
14.5 millimeter
Dimensions — Ship's Height
5.1 meter
Mass — Cargo
140 ton
Mass — Full Displacement
280 ton
Performance — Max Range
500 nautical mile
Power — Total Combined Power
18,000 hp
Speed — Top Speed
35 knot
Gear (Deagel)
Item 1
Main Battle Tanks: T-72 (3)
Item 2
Wheeled Armored Vehicles: BTR-82A (5)
Details
Country of Origin
Russia
Category
Naval
Naval
Sources
deagel.com: https://www.deagel.com/x/x/a003010
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
46 m
Width
8.6 m
Height
—
Weight
280000 kg
Related Equipment (1)
Operators (1)
Russia
