P-15 (Flat Face A) Russian Mobile 2D UHF Radar

P-15

3D Air Surveillance and Acquisition Radar

Spotted an error? Sign in to suggest an edit.

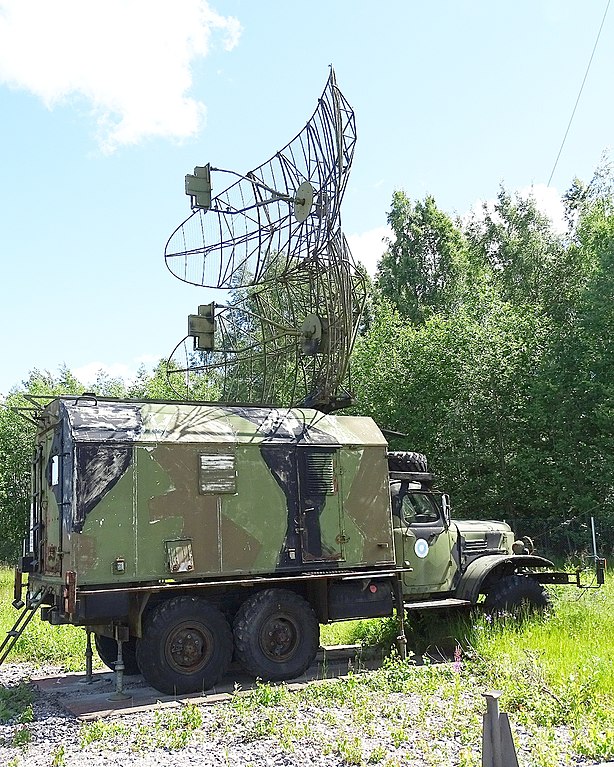

P-15 (Flat Face A) Russian Mobile 2D UHF Radar — Flatface_(C).jpgTRADOC ODIN WEG

Basic Information

Name

P-15 (Flat Face A) Russian Mobile 2D UHF Radar

Designation

P-15

Alternate Designation

P-15; NATO: Flat Face

Equipment Type

3D Air Surveillance and Acquisition Radar

Manufacturer

—

Date of Introduction

1958

Description

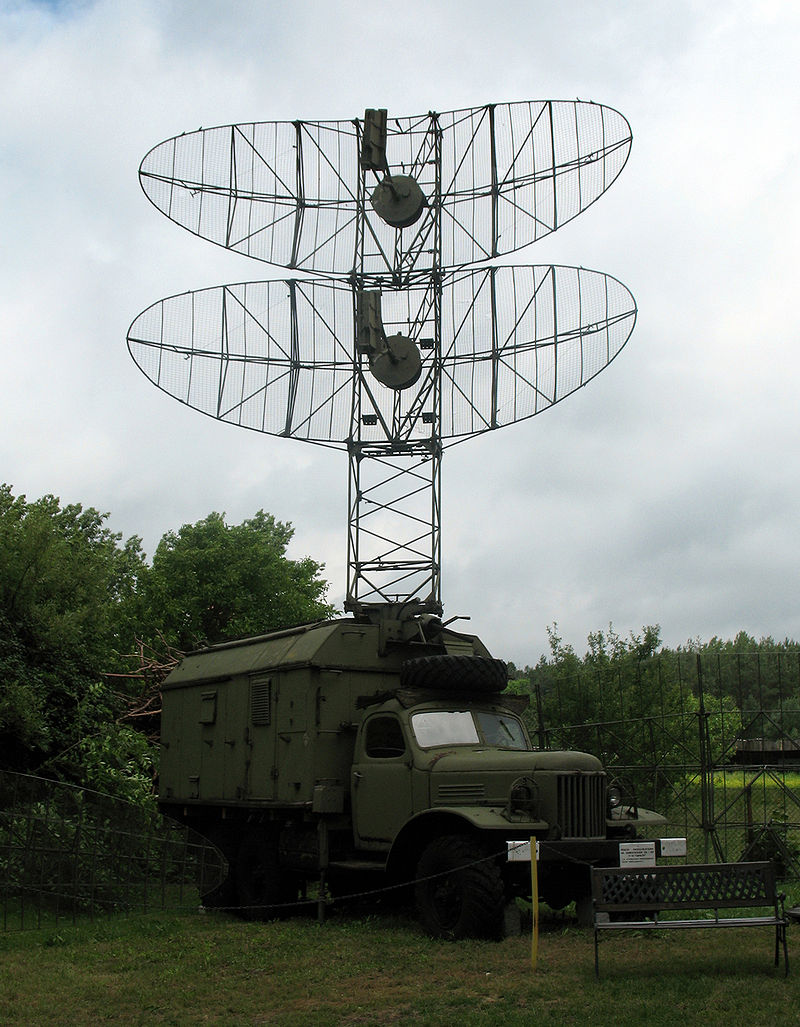

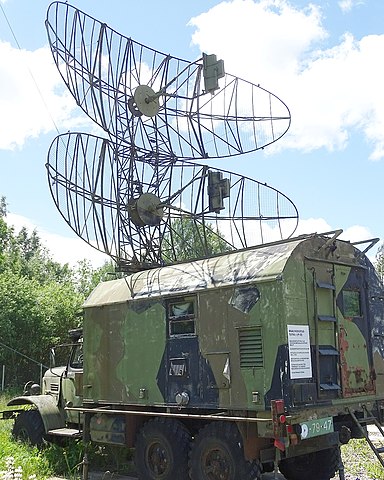

The P-15 is a high mobility radar. With the antenna mounted directly on the single truck (Zil-157) used for transport, the system could be deployed and taken down in no more than 10 minutes. The P-15 uses two open frame elliptical parabolic antenna accomplishing both transmission and reception, each antenna being fed by a single antenna feed. The radar can rapidly shift its frequency to one of four preset frequencies to avoid active interference, with passive interference being removed by a coherent doppler filter. Azimuth was determined by mechanical scanning with an associated accompanying PRV-11 (NATO reporting name "Side Net") used to determine elevation. A secondary radar for IFF is generally used in conjunction with the P-15, generally the 1L22 "Parol".

Ground Specifications

Crew 3

Active Protection None

Variants

Flat Face B (Russian P-19) This radar was developed from the Flat Face A. It is associated with SA-2 Guideline, SA-3 Goa, SA-6 Gainful, and SA-8 Gecko SAM systems. It is also designated the 1RL134. The P-19 is truck-mounted on a 6 x 6 chassis and employs an antenna array with two elliptical reflectors mounted one above the other. Like the P-15, it uses the 1L22 Parol IFF equipment. Digital plot processing has been fitted.

System

Alternative Designation P-15; NATO: Flat Face

Type 2D UHF Radar

Manufacturer INA

Chassis ZIL-157

Crew 3

Dimensions (Chassis: ZIL-157)

Length 6.93 m

Width 2.32 m

Height 2.74 m

Weight, Empty 5,540 kg

Antenna Width 6.00 m

Antenna Height 2.15 m

Radar System

Band C (810-850 or 880-905 MHz)

Maximum Range 250 km

Peak Power 900 kW

Beam WIdth Azimuth 10 deg

Beam Width Elevation 5 deg

Accuracy Angular 5 deg

Accuracy Range 90 m

Pulse Width 2-3 microseconds

Pulse Repetition Frequency 200-800 Hz; 600-880 Hz

Parabolic Reflectors Two elliptical parabolic reflectors measuring 11x5.5 m. Reflectors arranged one above the other on van roof.

Associated Missiles and Radars SA-3 GOA, SA-8 GECKO SAM, and LOW BLOW missile control radar.

Automotive (Chassis: ZIL-157)

Engine Name ZIL-157

Engine Type Diesel

Engine Power 1041 hp

Transmission 5 speed X 2 range transfer case

Cruising Range INA

Speed, Maximum Road 40 km/h

Speed, Average Cross INA

Speed Maximum Swim Not Amphibious

Gradient INA

Side Slope INA

Vertical Step INA

Trench INA

Fording Depth INA

Protection

Armor INA

Applique Armor No

Active Protection System No

Mine Clearing No

NBC Protection INA

Smoke Equipment No

Image Sources

Notes https://commons.wikimedia.org/wiki/File:03-Mobile_radar_Danuta-LMW.jpg; https://commons.wikimedia.org/wiki/File:081_-_ZIL-157_P15_Radar_%2838511976936%29.jpg;

Details

Country of Origin Russia

Category Radars

Land > Radars

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

—

Width

—

Height

—

Weight

5540 kg

Operators (3)

Russia

Czech Republic

Algeria
