Khrizantema

Khrizantema

Anti-Tank Guided Missiles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Khrizantema
Designation
Khrizantema
Alternate Designation
9M123, AT-15 Springer, Khrisantema-S
Equipment Type
Anti-Tank Guided Missiles
Manufacturer
KBM
Date of Introduction
2005
Description

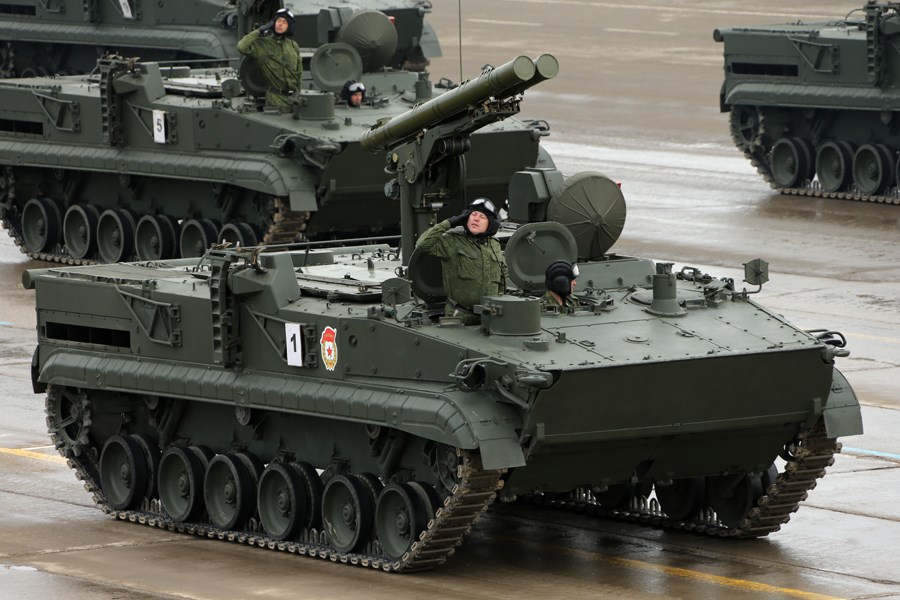

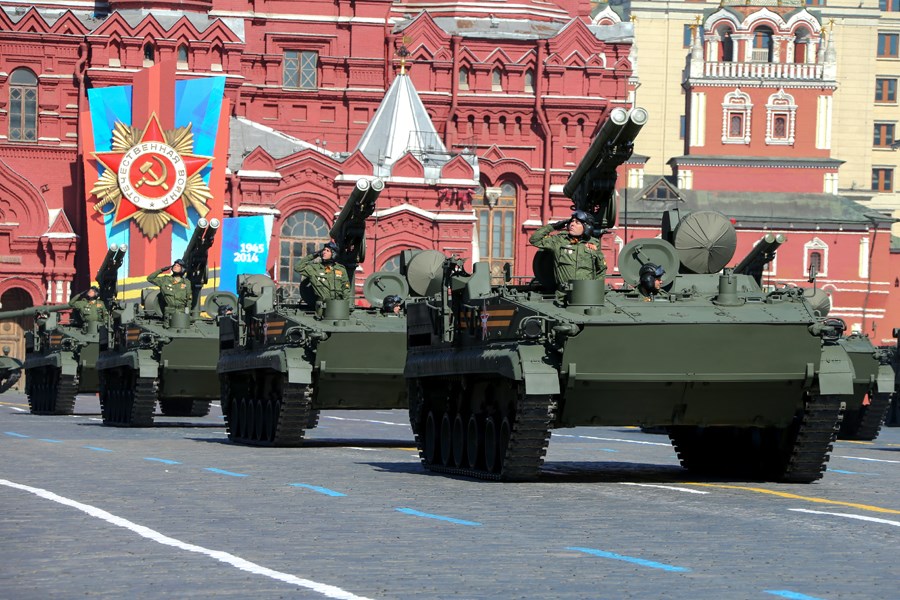

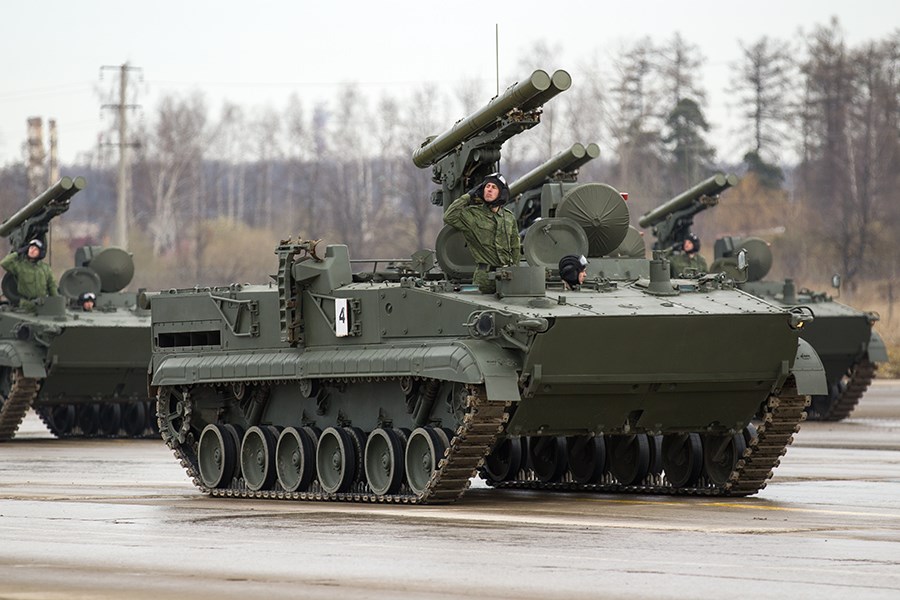

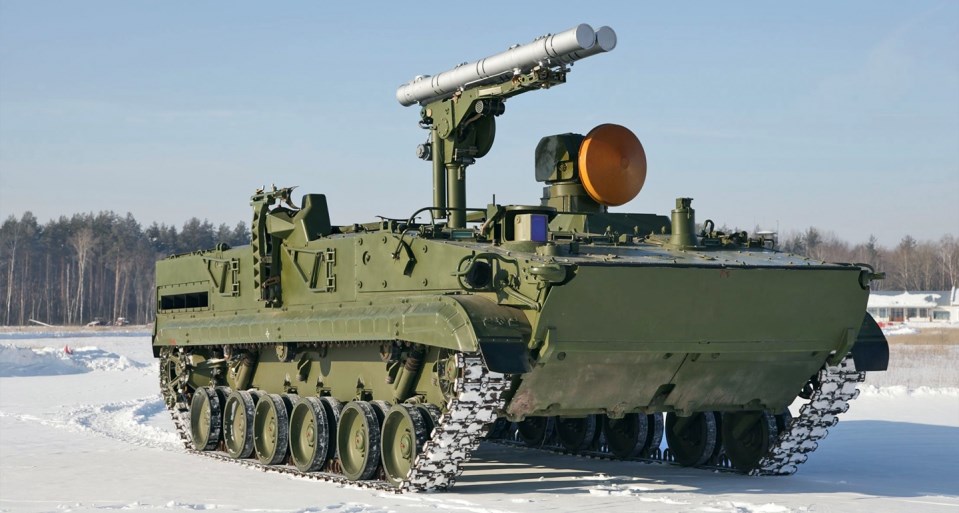

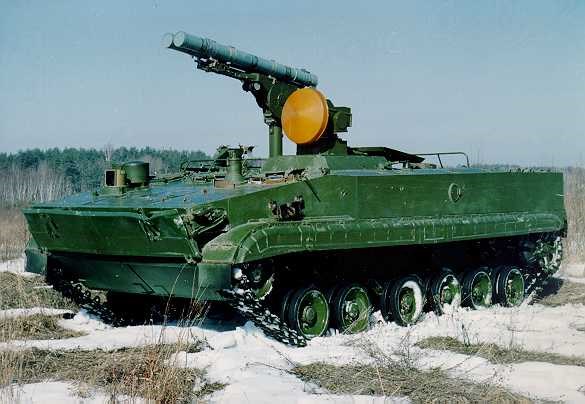

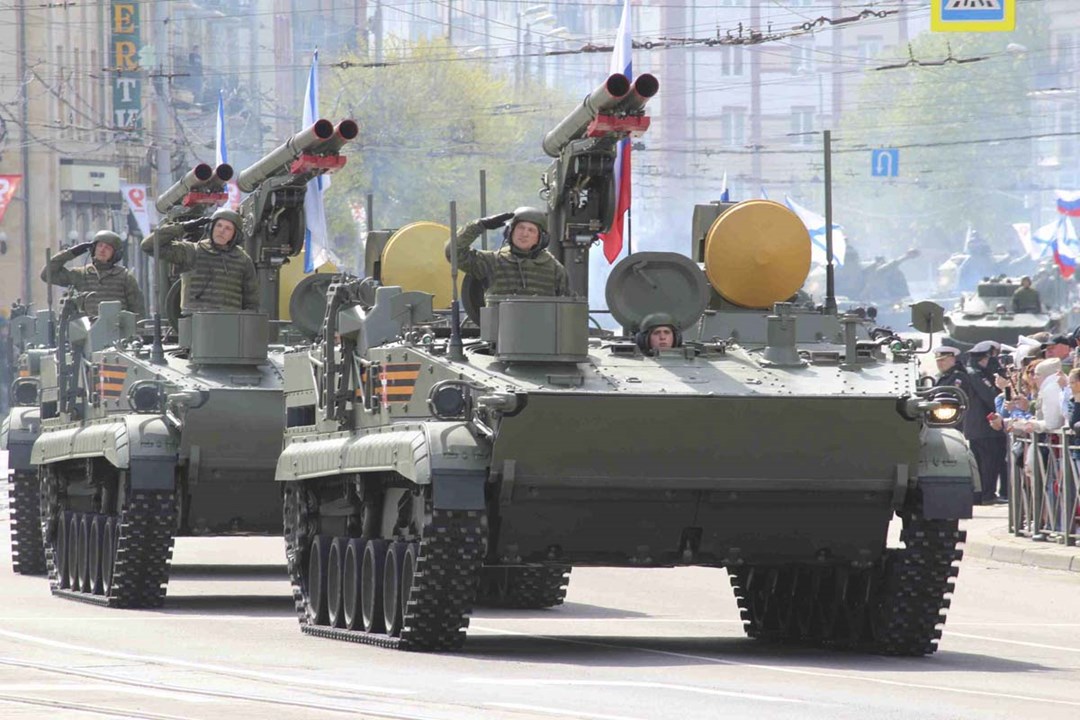

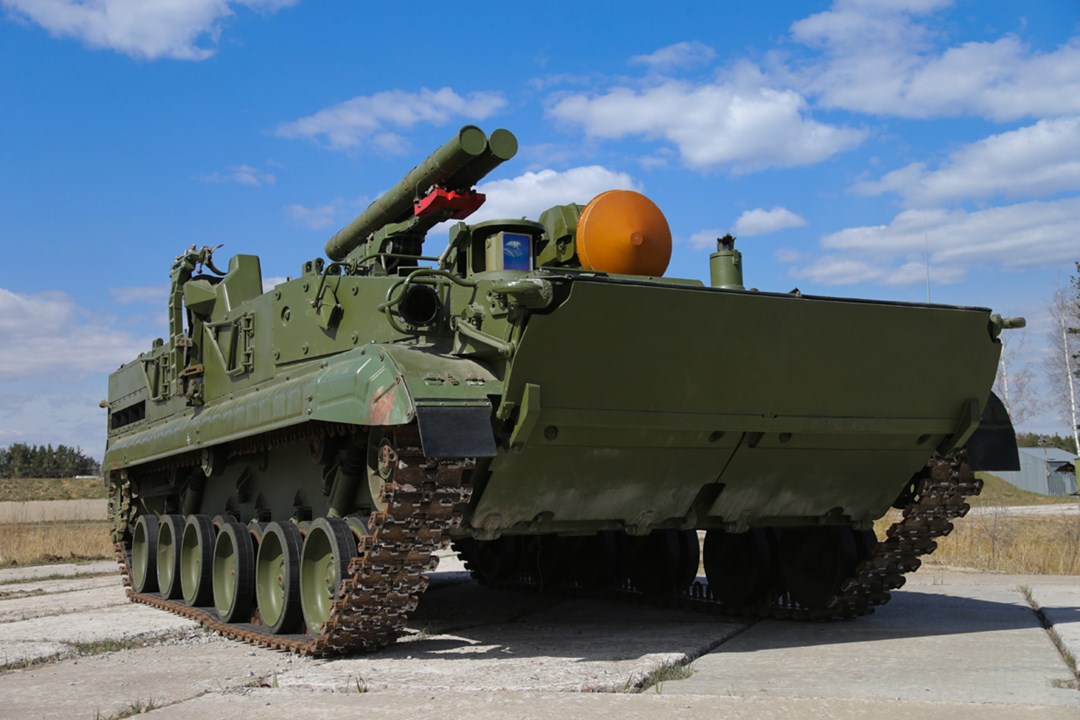

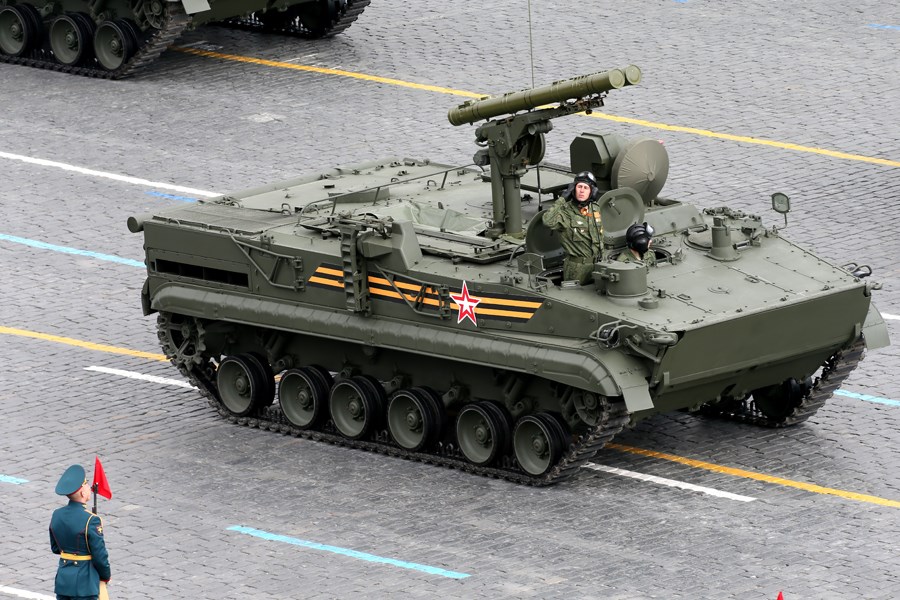

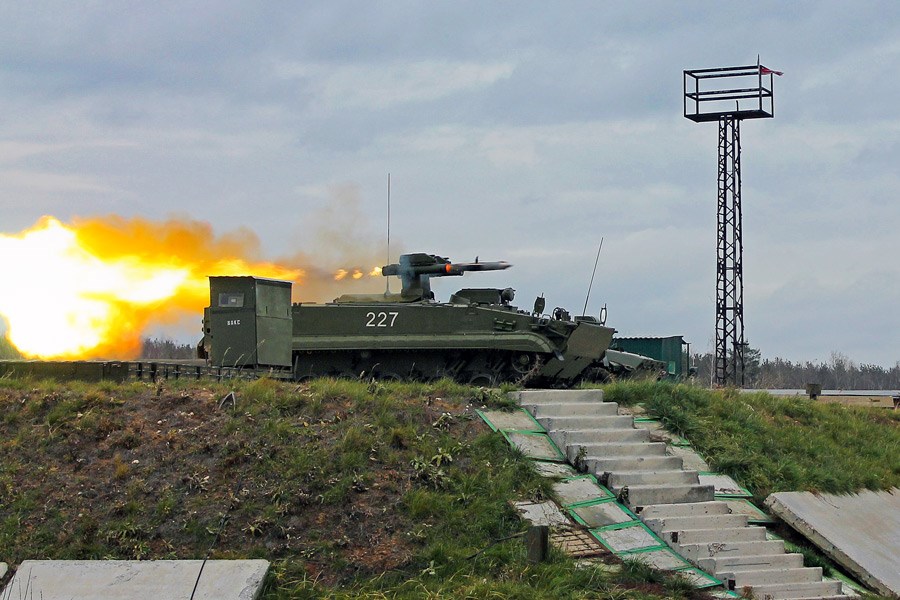

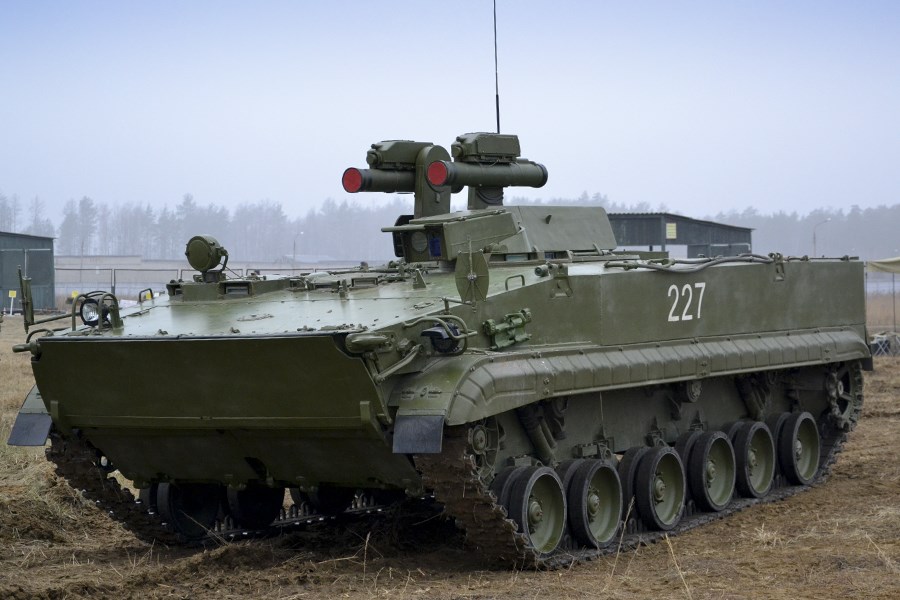

The Khrizantema is an advanced, long range, supersonic anti-tank missile system intended for operation in day/night, all weather, and severe natural and man-made countermeasures environments. It can effectively engage last generation tanks such as Abrams, Leopard 2 and Challenger thanks to its tandem shaped charge warhead. The Khrizantema missile can accommodate a high explosive warhead too. It features two independent guidance modes: automatic through millimeter waves and semi-automatic through a laser beam riding guidance system. The Khrizantema supersonic missile can also engage bunkers and low flying helicopters. The missile system has been designed to engage up to 15 targets within a few minutes, while 2 Khrizantema missiles can be fired simultaneously employing different guidance modes. The Khrizantema was deployed with the Russian Army in 1998 aboard modified BMP-3 armored vehicles with a roof mounted radar system as well as other equipment and sensors. The modified BMP-3 Khrizantema carrier vehicle only needs a crew of 2-man with 2 Khrizantema missiles ready-to-fire. Reloading operations can be done automatically under armor protection.

Ground Specifications
Crew 2
Max Speed 1440.0 km/h
Range 6.0 km
Overview (Deagel)
Group Anti-Tank Guided Missiles
Status Active
Also Known As 9M123, AT-15 Springer, Khrisantema-S
Origin Russia
Contractor KBM
Initial Operational Capability (IOC) 2005
Total Production ?
Specifications (Deagel)
Dimensions — Length 1,500 millimeter
Mass — Warhead 10 kilogram
Mass — Weight 40 kilogram
Performance — Max Range 6,000 meter
Performance — Piercing in Armor 1,000 millimeter
Speed — Top Speed 400 mps
Variants
Variant 1 Khrizantema
Variant 2 Khrizantema-M
Variant 3 Khrizantema-MF
Details
Country of Origin Russia
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
1.5 m
Width
Height
Weight
40 kg
Related Equipment (2)
Operators (3)
Russia
Azerbaijan
United Arab Emirates
