Supply Class Australian Replenishment Oiler
Supply Class
Repair Ship
Other
Basic Information
Name
Supply Class Australian Replenishment Oiler
Designation
Supply Class
Alternate Designation
Supply Class
Equipment Type
Repair Ship
Manufacturer
—
Date of Introduction
2021
Description

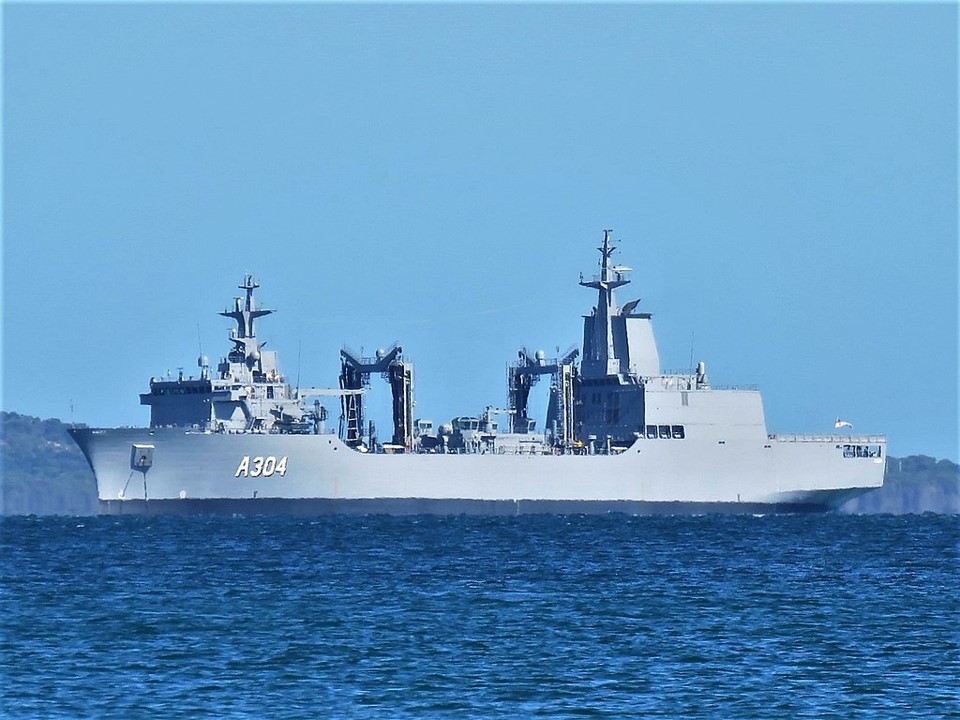

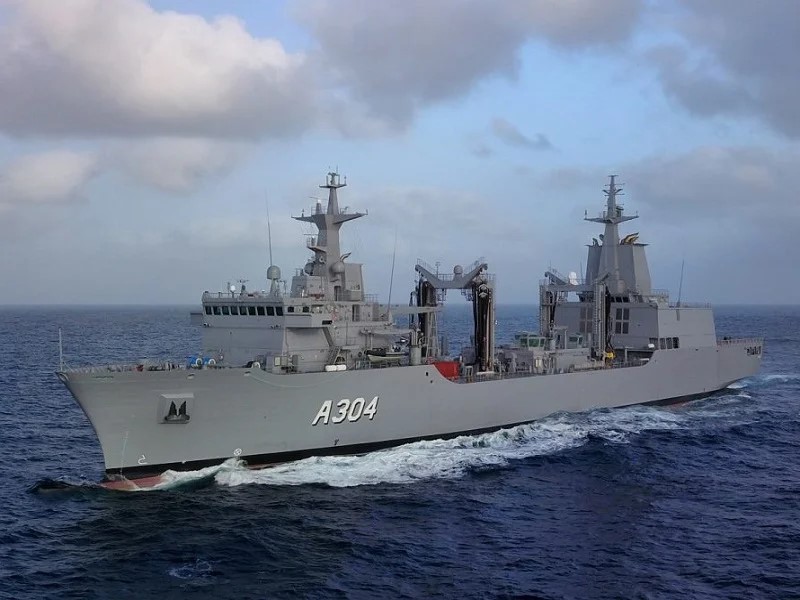

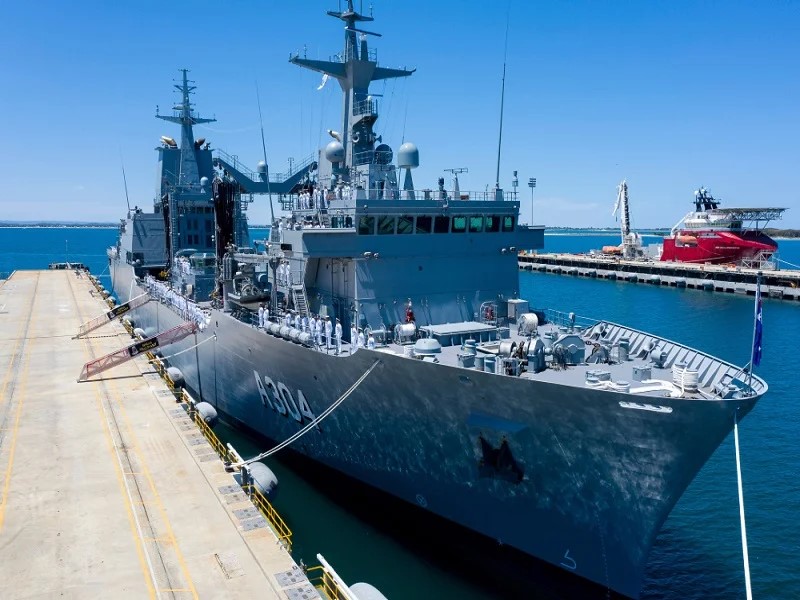

The Supply Class Australian Replenishment Oiler is a class of two new vessels built by the Spanish company Navantia for the Royal Australian Navy (RAN). The vessels can be used to supply dry cargo, fuel, food, water, ammunition, equipment, and spare parts to deployed naval or combat forces during missions on the high seas.
Naval & Littoral Specifications
Crew
122
Beam
23.00 m
Draft
8.00 m
Variants
Supply
Commissioned: 2021
Status: Active
Stalwart
Commissioned: 2021
Status: Active
System
Alternative Designation
Supply Class
Type
Replenishment Oiler
Builder
Navantia, Ferrol
Crew
The vessel can accommodate up to 122 personnel, including the crew. The operators are seated in an enclosed, integrated bridge located in the forward portion of the ship.
Cargo Capacity
The Supply Class Australian Replenishment Oiler can supply 470t of provisions and has the ability to hold 1,450m³ of JP-5 jet fuel, 8,200m³ of marine diesel fuel, 140m³ of fresh water and 270t of ammunition.
Dimensions
Length
173.9 m
Height
INA
Beam
23.0 m
Draft
8.0 m
Displacement, Standard
19,500 tons
Displacement, Full Load
9,800 tones (full load deadweight)
Propulsion System
Engine Name
2 x MAN 18V 32/40 main engines
Engine Type
four-stroke, in-line MAN 18V 32/40 main engines
Engine Power
Each engine develops an output power of 9,000kW at speeds ranging between 720rpm and 750rpm.
Generator
4 x MAN 7L21/31 IMO Tier II marine generating sets.
Generator Power
The power generating capacity of each generating set is 1,500kW at 1,000rpm.
Maximum Range
6,000 nmi (11,000 km) at 13 knots (24 km/h)
Maximum Speed
20 knots (37 km/h)
Main Weapon System
System
Name
1 × Phalanx CIWS
Type
Close-In Weapon System (CIWS)
Caliber
20 mm
Barrel Length
1,520 mm
Weight
6,200 kg
Barrels
6-barrel (progressive RH parabolic twist, 9 grooves)
Guidance System
Ku-band radar and FLIR[
Elevation
−20°/+80°
Traverse
150° from either side of centerline
Rate of Fire
3,000 rpm
Muzzle Velocity
1,100 m/s
Maximum Firing Range
5,500 m
Effective Firing Range
1,486 m
Ammunition
Type
Projectile
Caliber
20×102mm
Shell
Naval: Armor-piercing tungsten penetrator rounds with discarding sabots.
Land: High-explosive incendiary tracer, self-destruct
Auxiliary Weapon System
System #1
Note
2 × 25 mm Typhoon Weapon Stations
System #2
Note
4 × 12.7 mm heavy machine guns
Aviation Facility
Flight Deck
The ship has a flight deck at the stern to support the operation of a single helicopter.
Aircraft
1 x helicopter
Protection
Countermeasures
No
NBC Water Washdown System
Yes
EW Intercept
No
Details
Country of Origin
Australia
Category
Support Ships
Naval > Support Ships
Filter Label
S
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
173.9 m
Width
—
Height
—
Weight
—
Operators (1)
Australia
