AS 350

AS 350

Civil Helicopters
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
AS 350
Designation
AS 350
Alternate Designation
Equipment Type
Civil Helicopters
Manufacturer
Date of Introduction
Description

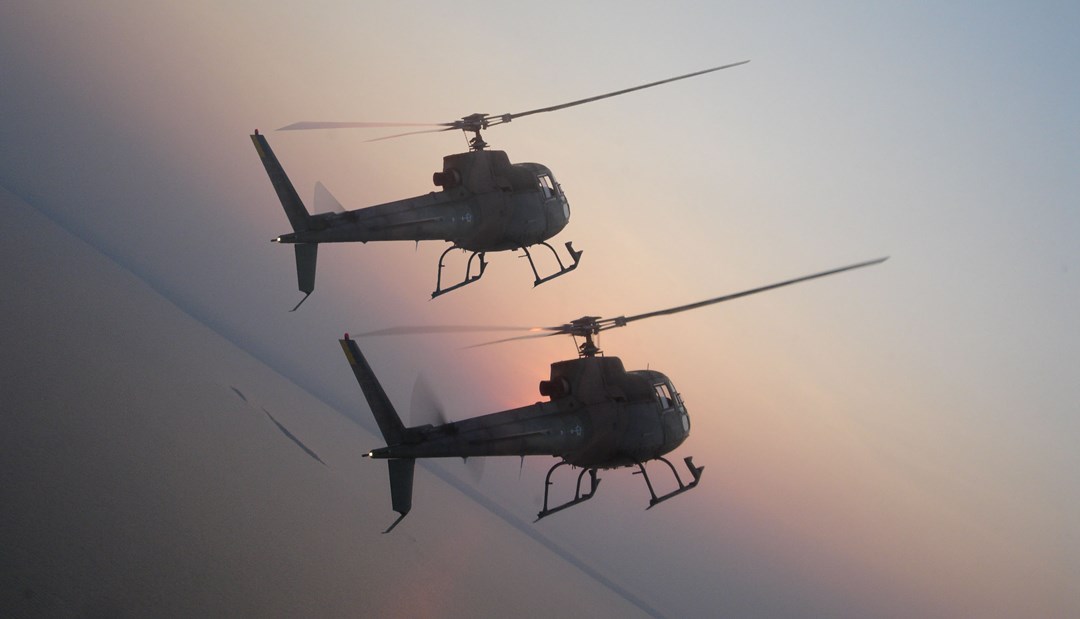

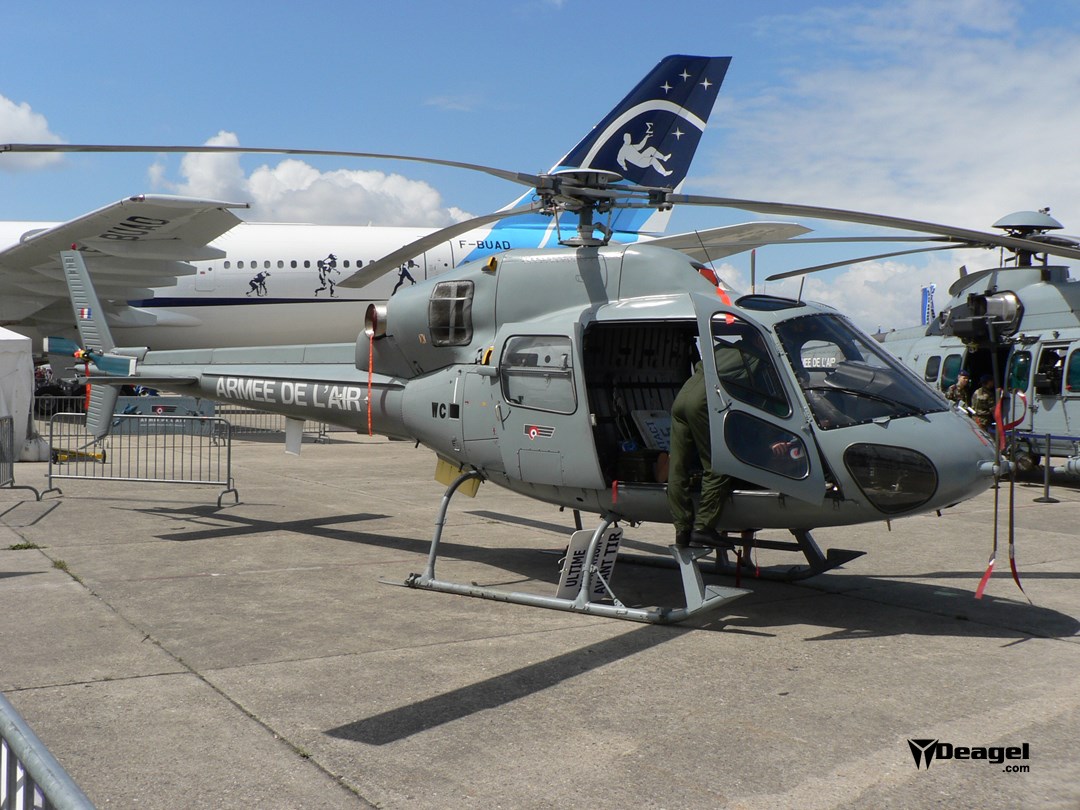

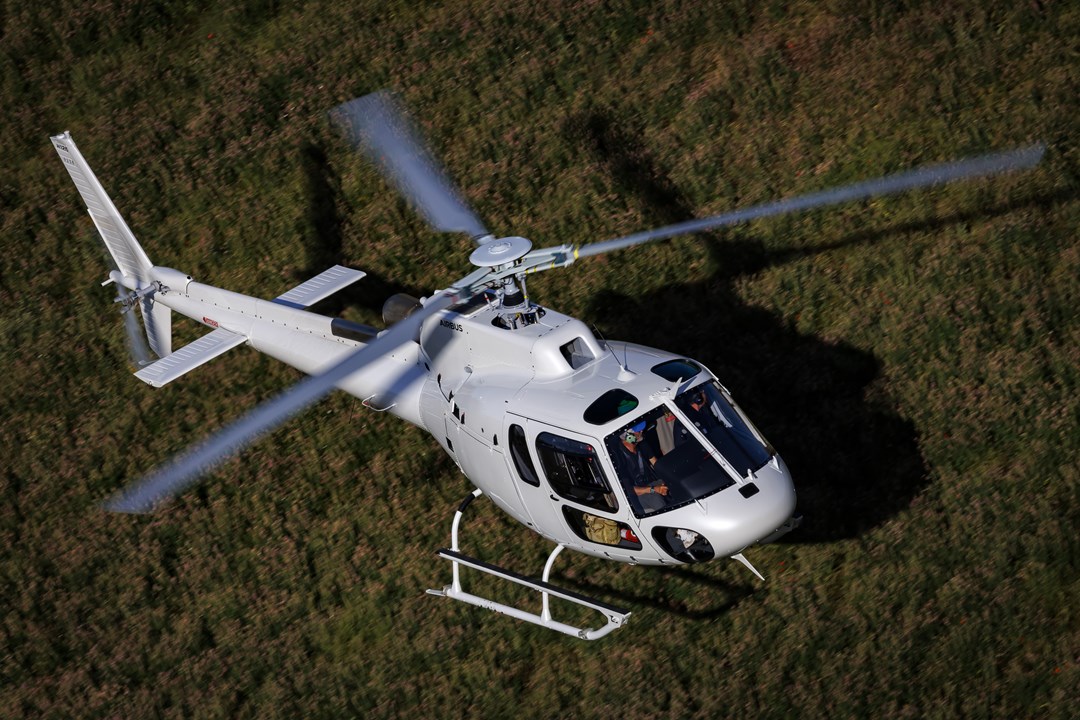

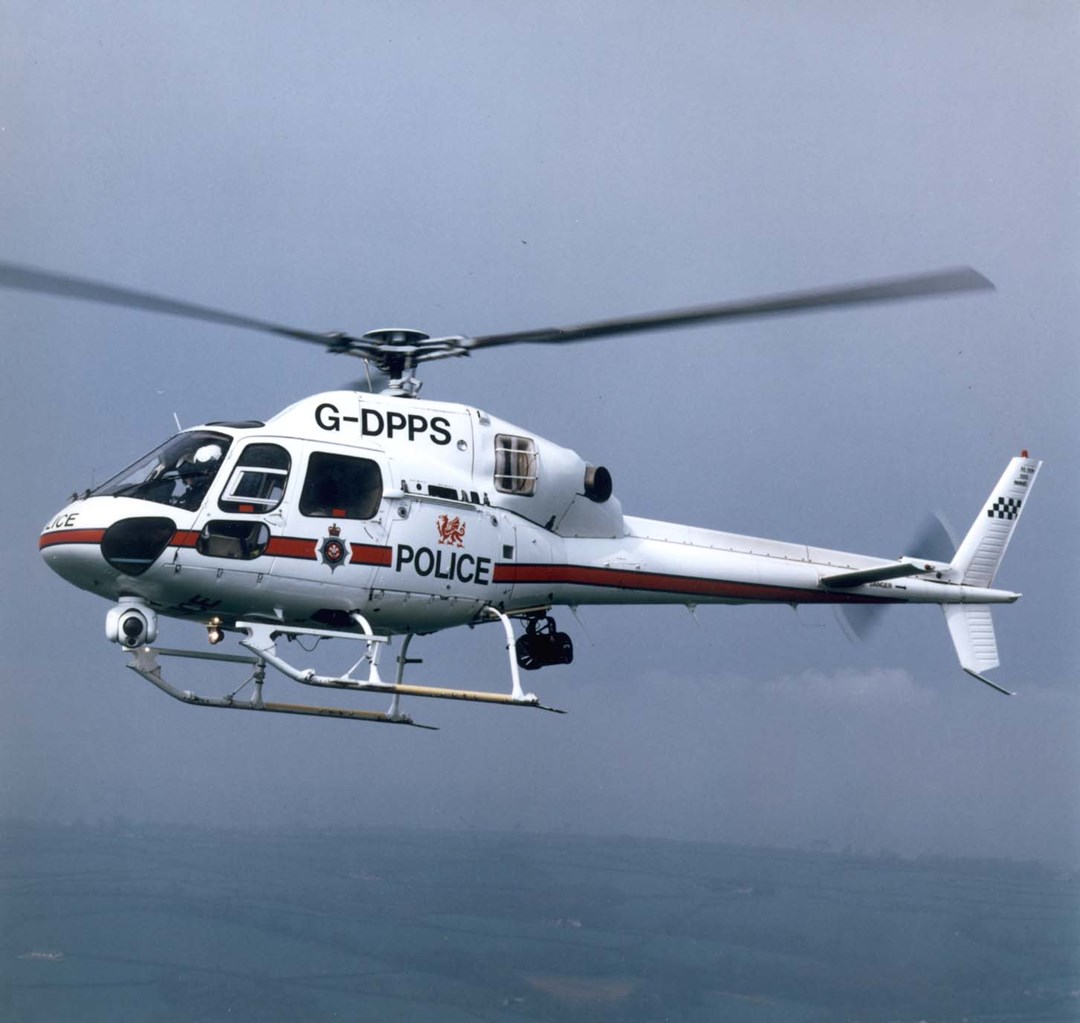

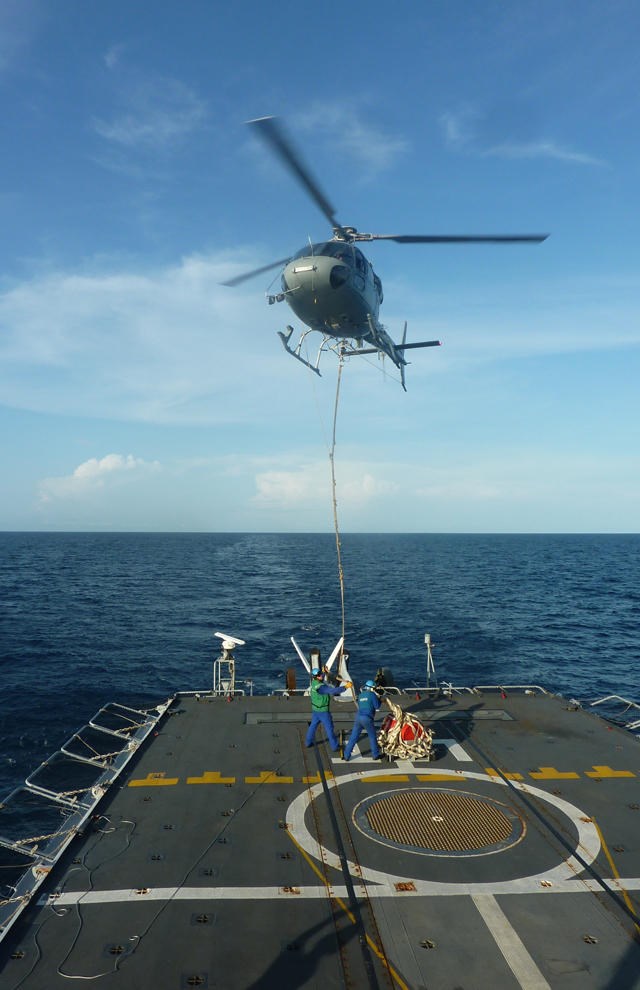

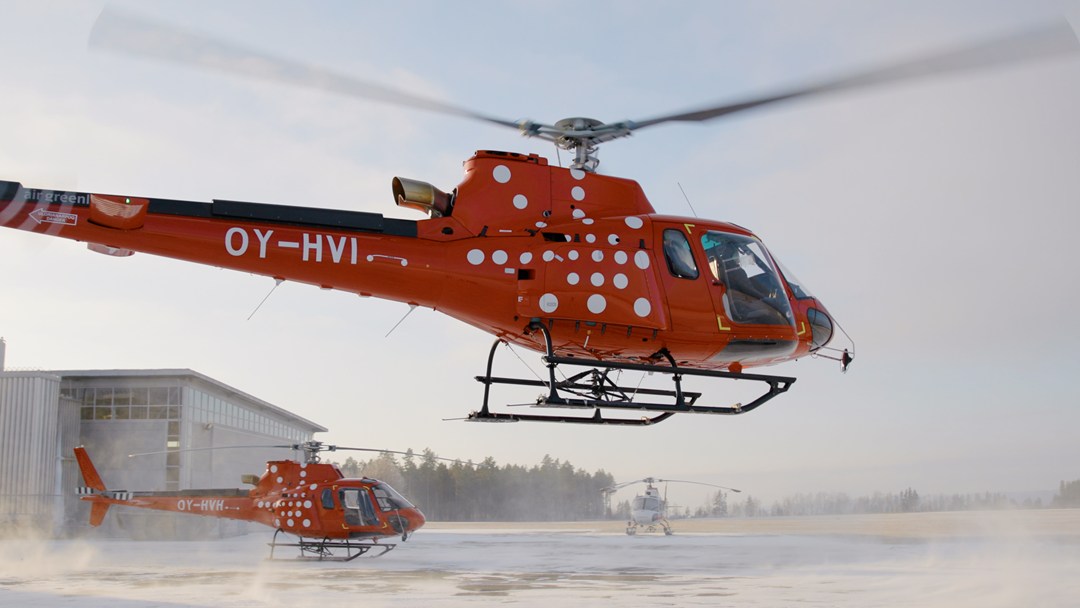

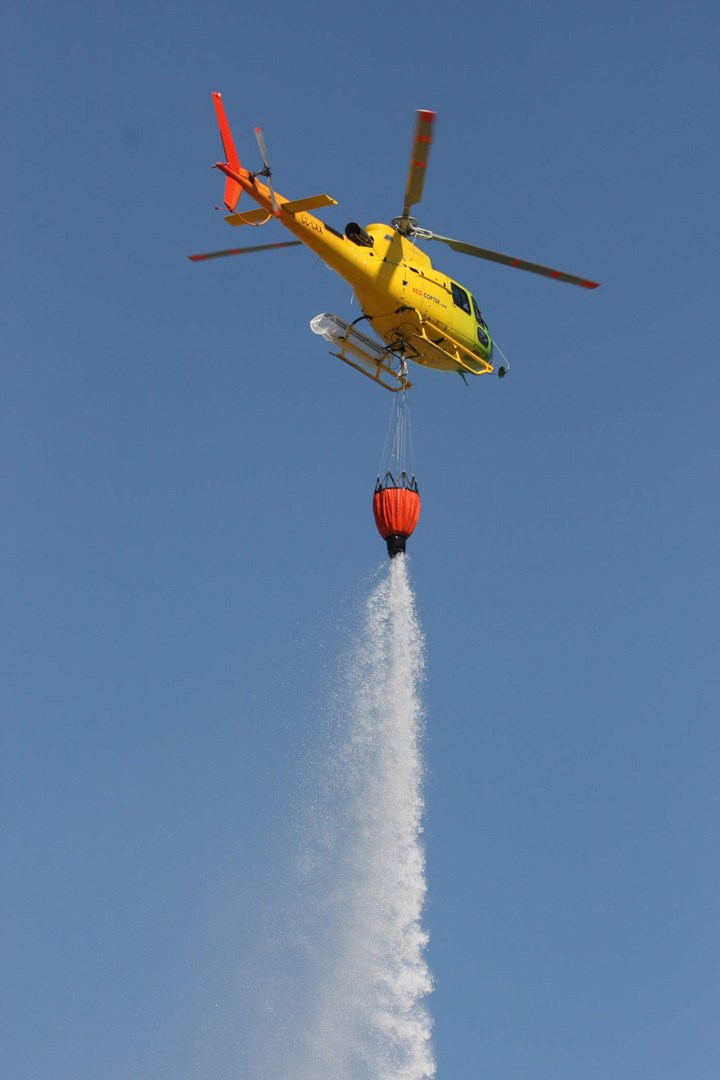

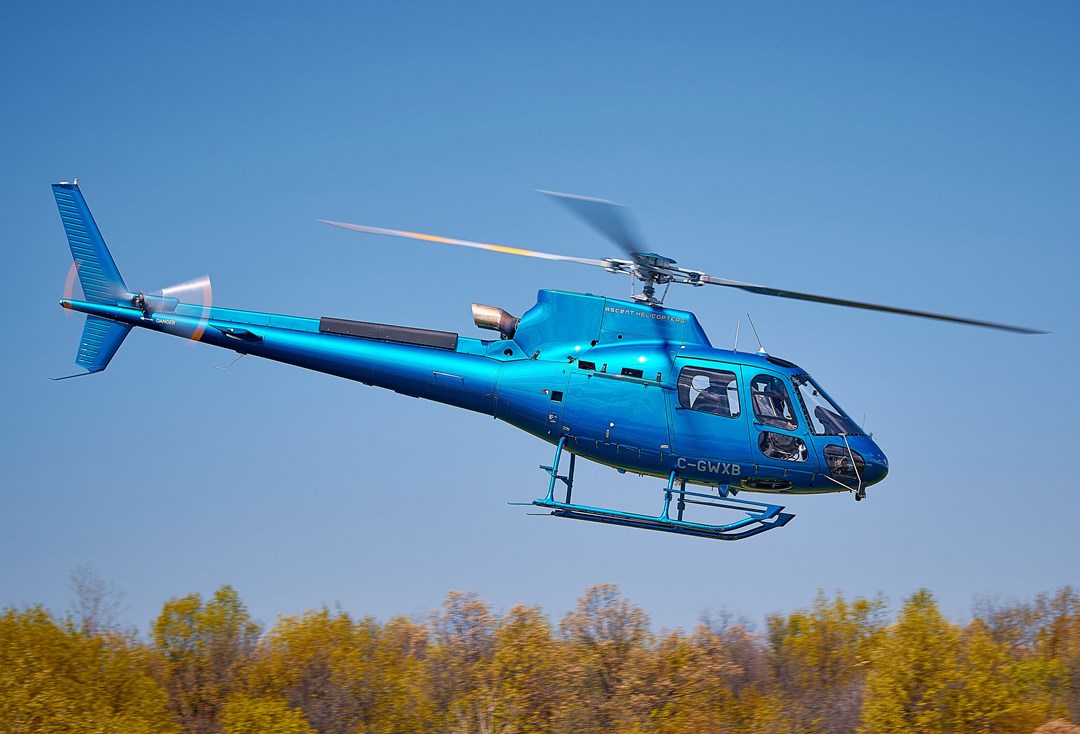

The Fennec/Ecureuil is a family of multi-role helicopters featuring design simplicity, reliability and high performance. The aircraft was developed in the 1970s by Aerospatiale, thereafter Eurocopter and now Airbus Helicopters, as a replacement for the Allouette II. These lightweight helicopters are intended for both commercial and military markets. Fennec designation applies to military helicopters and Ecureuil, which means 'Squirrel' in English, applies to commercial helicopters. These platforms can be powered either by a single turboshaft engine or by two engines (AS 350/550 and AS 355/555 series). Composite materials have been used extensively in the aircraft design making it more durable and lighter. There are many variants of Fennec/Ecureuil helicopter family primarily due to the use of different power plants such as Arriel and Arrius family of engines. The characteristics of Fennec/Ecureuil helicopters also translate into low acquisition costs and low costs of maintenance and operation. Eurocopter has scored a big success through this helicopter family with more than 4,000 aircraft (2,400+ single engine models) sold around the globe so far. First flight was carried out in 1974 and the first delivery in April 1978.

Overview (Deagel)
Group Civil Helicopters
Status Active
Also Known As AS 350B2 Ecureuil, AS 350B3 Ecureuil, AS 350D AStar (USA version), Z-11 (Chinese-built version)
Origin France
Contractor Airbus Helicopters
Initial Operational Capability (IOC) April 1978
First Flight June 27, 1974
Total Production 2,992
Unitary Cost EUR €2.3 million
Specifications (Deagel)
Crew 1
Main Rotor Blades 3
Number of Engines 1
Passengers 6
Tail Rotor Blades 2
Dimensions — Height 3.2 meter
Dimensions — Length 10.9 meter
Dimensions — Main Rotor Diameter 10.7 meter
Dimensions — Width 1.9 meter
Mass — Empty Weight 1,232 kilogram
Mass — Max Takeoff Weight 2,800 kilogram
Performance — Ceiling 7,000 meter
Performance — Max Range 467 kilometer
Power — Max Power at TakeOff 728 shp
Speed — Cruise Speed 238 kph
Speed — Top Speed at High Altitude 288 kph
Time — Flight Endurance 3.3 hour
Gear (Deagel)
Item 1 Turboshaft Engines: Arriel 1D1 (1)
Item 2 Turboshaft Engines: Arriel 2B (1)
Item 3 Turboshaft Engines: LTS101 (1)
Variants
Variant 1 AS350 Ecureuil
Variant 2 AS355 Ecureuil

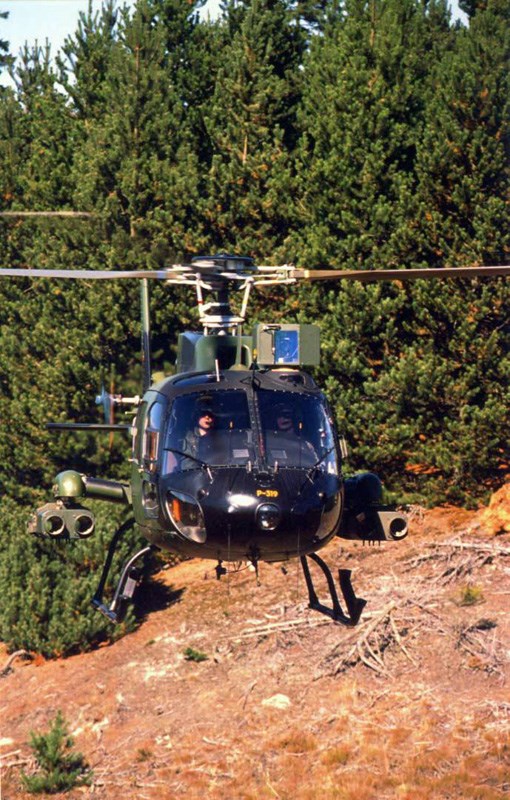

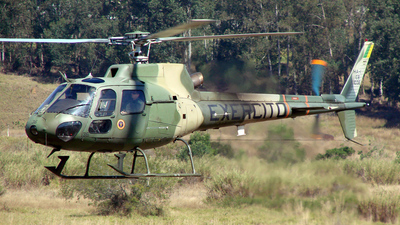

Variant 3 AS550 Fennec
Variant 4 AS555 Fennec
Variant 5 AS555 SN Fennec

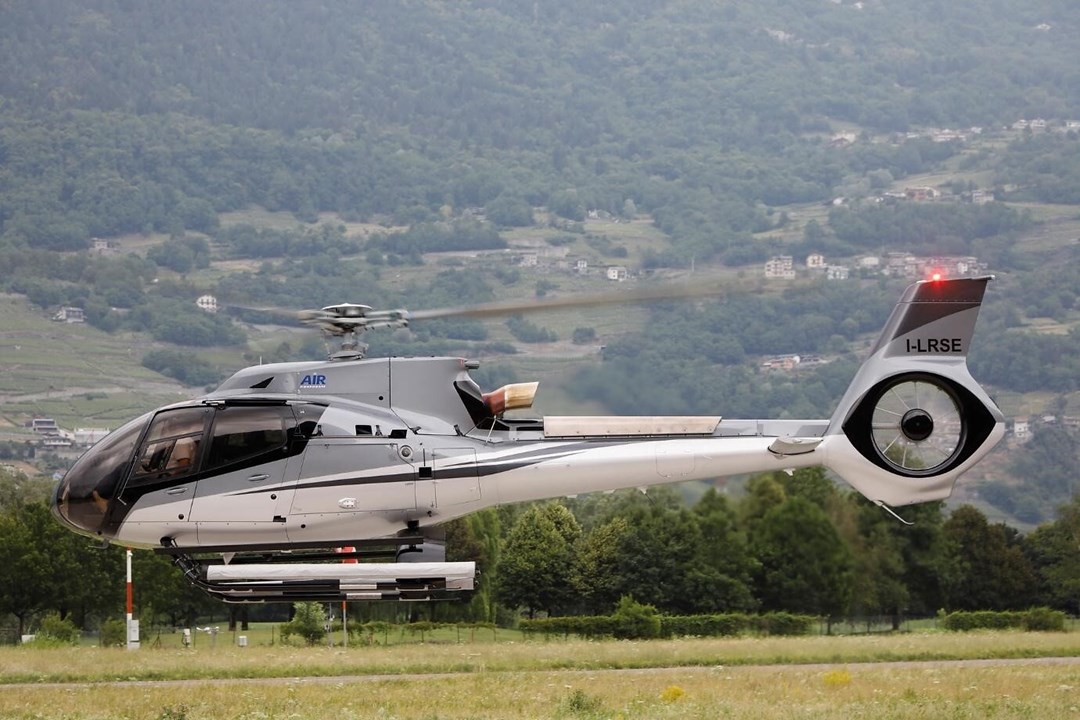

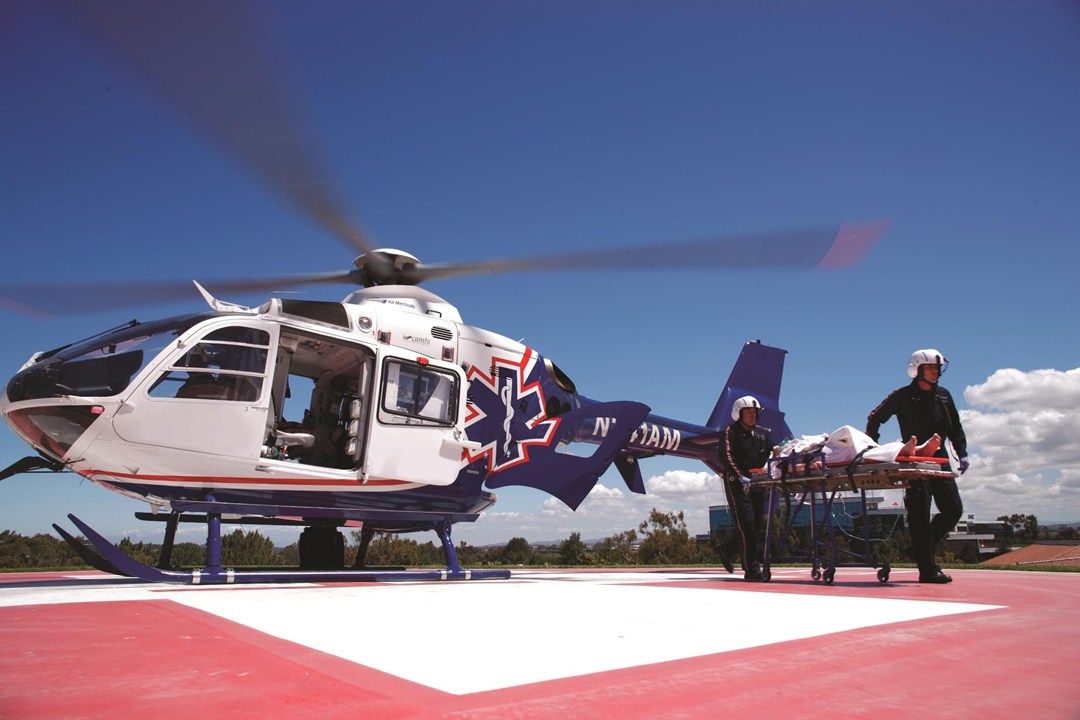

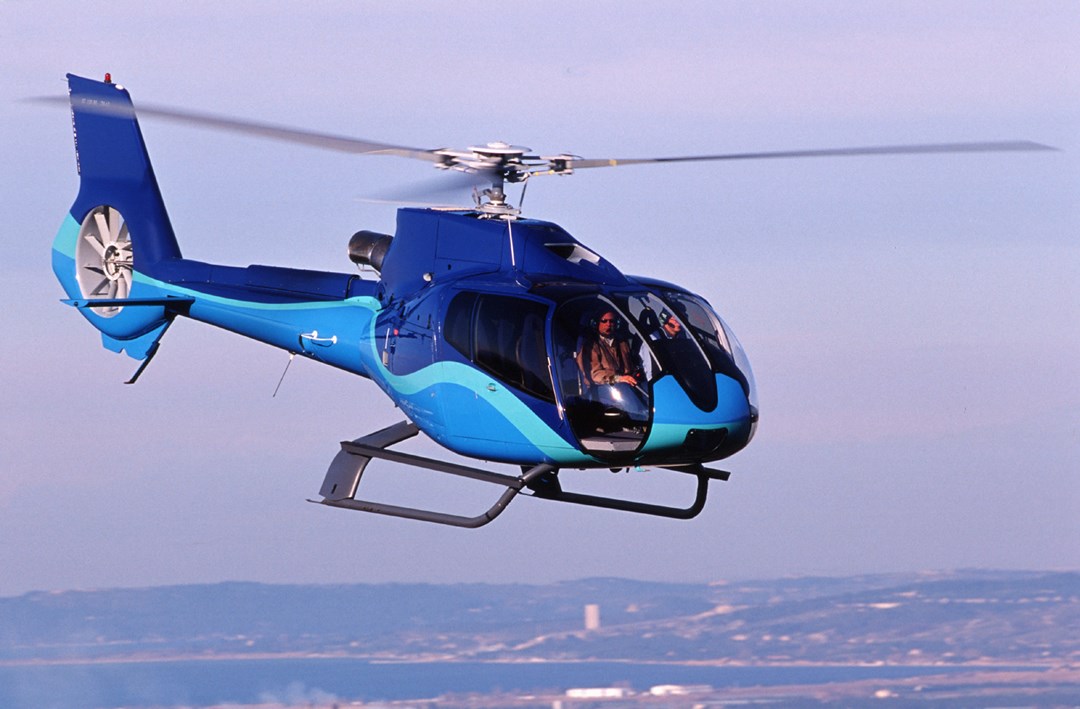

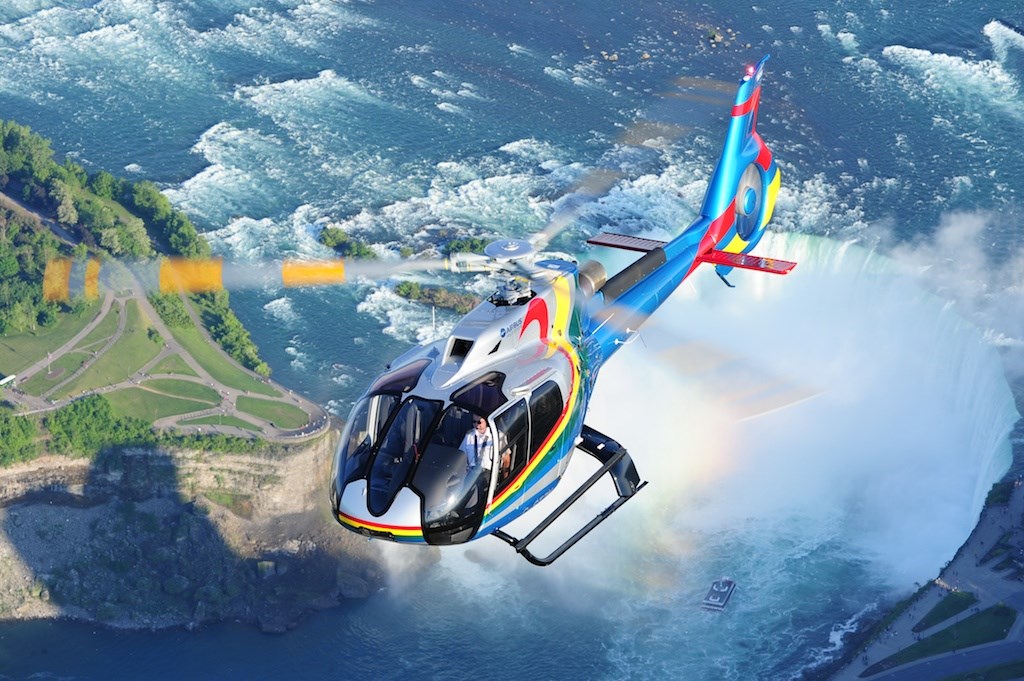

Variant 6 EC130
Variant 7 AS355 NP Ecureuil

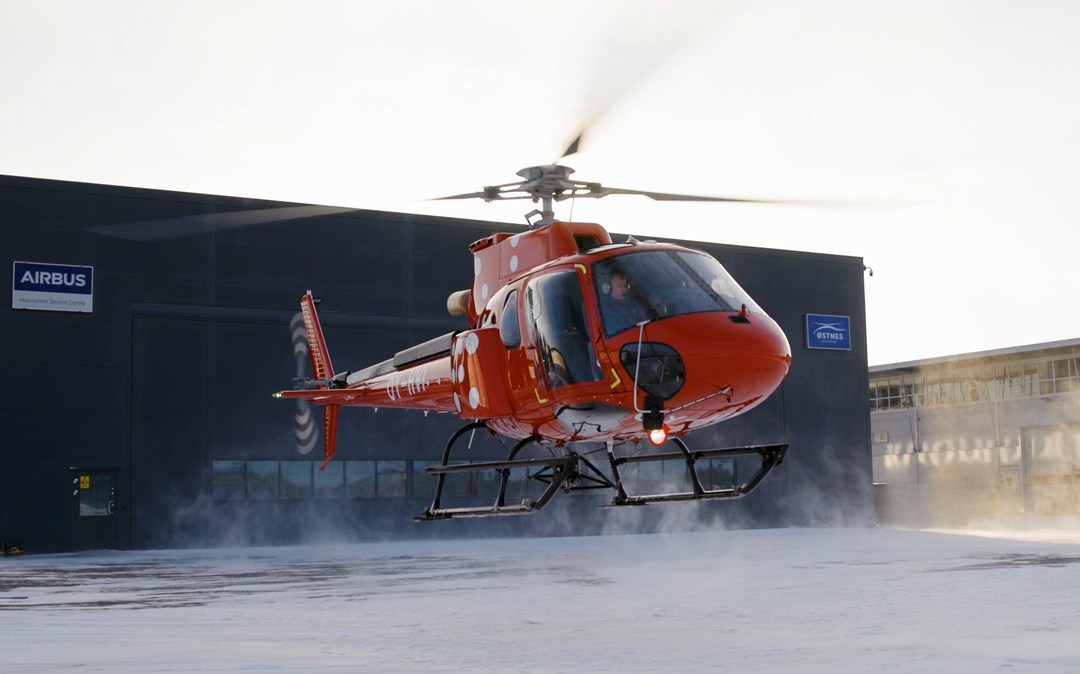

Variant 8 H125

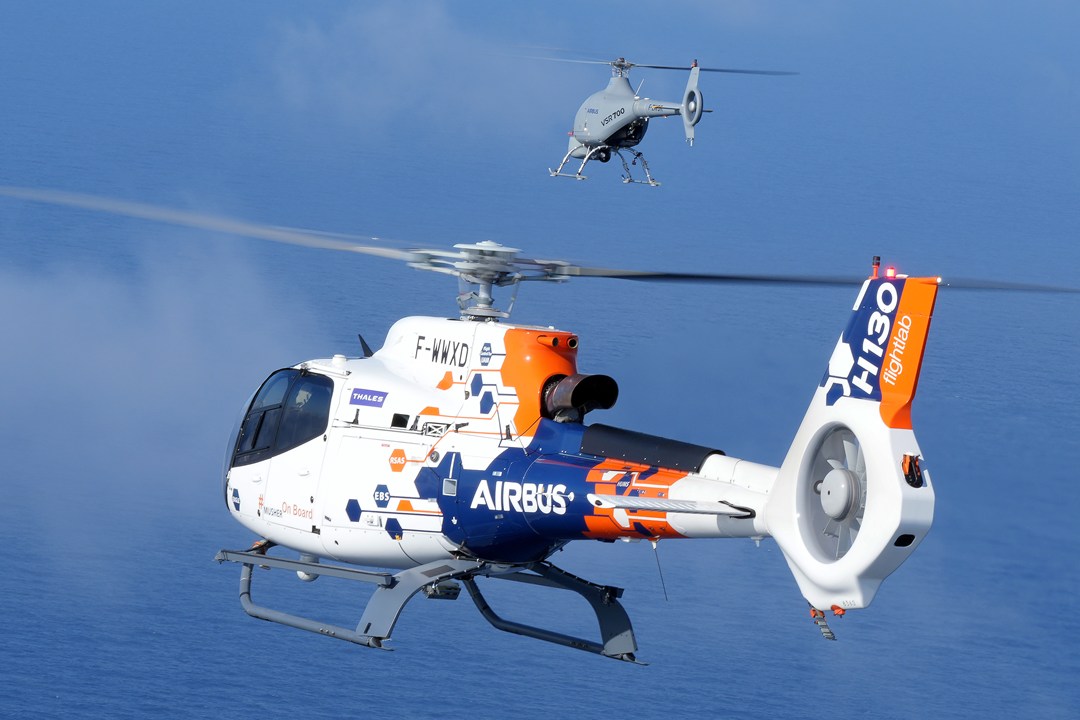

Variant 9 H130
Variant 10 H125M
Details
Country of Origin France
Category Rotary Wing Aircraft
Air > Rotary Wing Aircraft
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
2800 kg
