Cormorant

Cormorant

Utility & Transport Helicopters
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Cormorant
Designation
Cormorant
Alternate Designation
AirMule
Equipment Type
Utility & Transport Helicopters
Manufacturer
Tactical Robotics
Date of Introduction
2020
Description

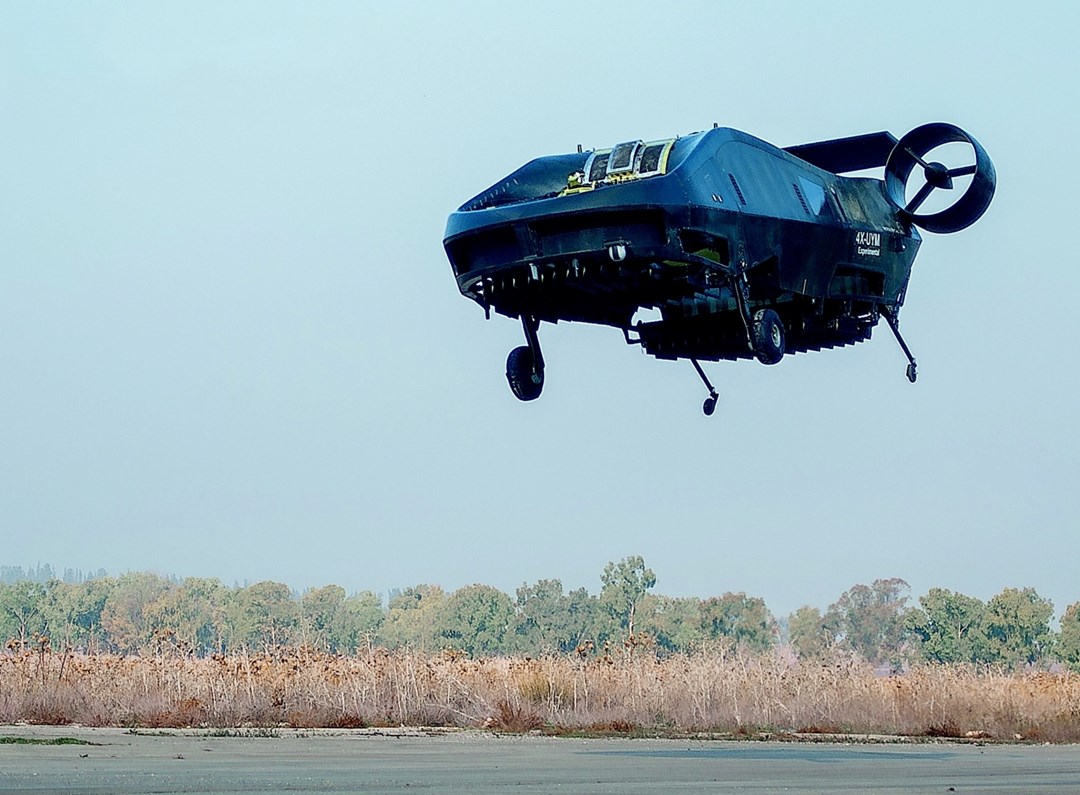

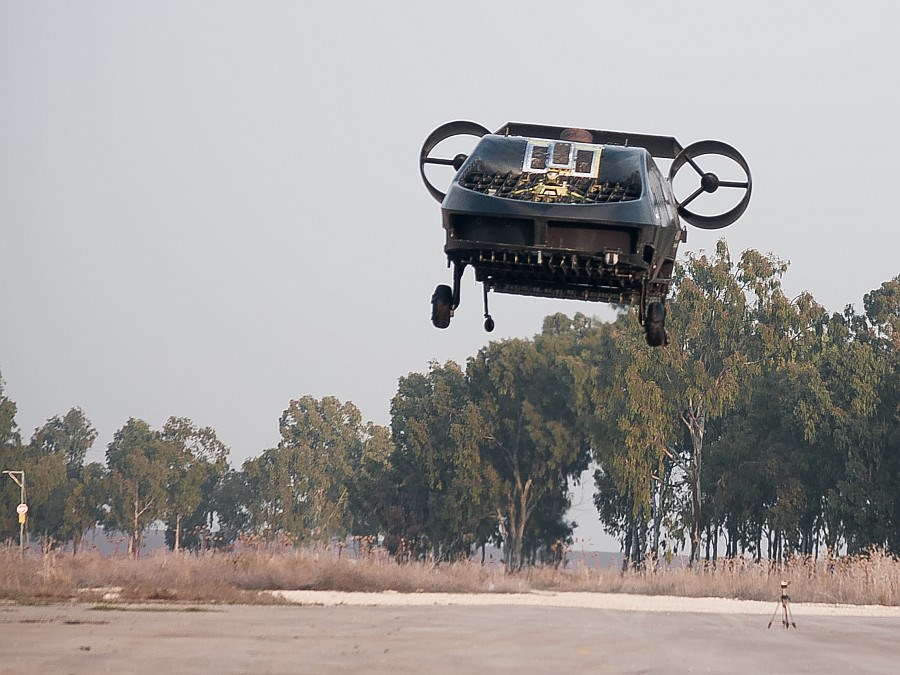

The Cormorant, also known as AirMule, is a compact, unmanned, single-engine, Vertical Take-Off and Landing (VTOL) aircraft developed by Tactical Robotics to operate in obstructed terrain such as mountain, woods and urban areas. Compared with traditional helicopters the Cormorant features internal rotors which make it compact enough to operate in areas forbidden for other rotorcrafts. The Cormorant is intended for both civilian and military customers performing inspection, evacuation and cargo transport missions. The aircraft is powered by a single Turbomeca Arriel 2N engine allowing a top speed of 180 kilometers per hour. The Cormorant fancraft can evacuate or transport up to two persons or carrying a payload of up to 700 kilogram (minimum range) over ranges in excess of 600 kilometers (minimum payload). The Israel Defence Force (IDF) may become the prime operator of the Cormorant aircraft in the early 2020s.

Air & Air Defense Specifications
Max Speed 180.0 km/h
Range 660.0 km
Overview (Deagel)
Group Utility & Transport Helicopters
Status Under Development
Also Known As AirMule
Origin Israel
Contractor Tactical Robotics
Initial Operational Capability (IOC) 2020
Total Production ?
Specifications (Deagel)
Crew 0
Number of Engines 1
Passengers 2
Stretchers 2
Dimensions — Height 2.3 meter
Dimensions — Length 6.2 meter
Dimensions — Main Rotor Diameter 1.9 meter
Dimensions — Width 3.5 meter
Mass — Empty Weight 918 kilogram
Mass — Max Takeoff Weight 1,682 kilogram
Mass — Payload 764 kilogram
Performance — Max Range 660 kilometer
Power — Max Power at TakeOff 985 shp
Speed — Cruise Speed 180 kph
Time — Flight Endurance 2.6 hour
Volume — Mission Bay Volume 2,400 liter
Gear (Deagel)
Item 1 Turboshaft Engines: Arriel 2N (1)
Details
Country of Origin Israel
Category Transport Helicopter
Air > Transport Helicopter
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
6.2 m
Width
3.5 m
Height
2.3 m
Weight
1682 kg
Operators (1)
Israel
