2S35 Koalitsiya-SV Russian 152mm Self-Propelled Howitzer (SPH)
2S35 Koalitsiya-SV
Self-Propelled Howitzer (SPH)
Other
Basic Information
Name
2S35 Koalitsiya-SV Russian 152mm Self-Propelled Howitzer (SPH)
Designation
2S35 Koalitsiya-SV
Alternate Designation
2S35 Koalitsiya-SV
Equipment Type
Self-Propelled Howitzer (SPH)
Manufacturer
Central Research Institute Burevestnik
Date of Introduction
2016
Description

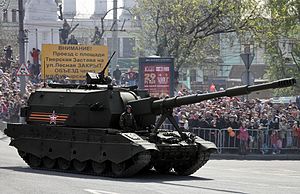

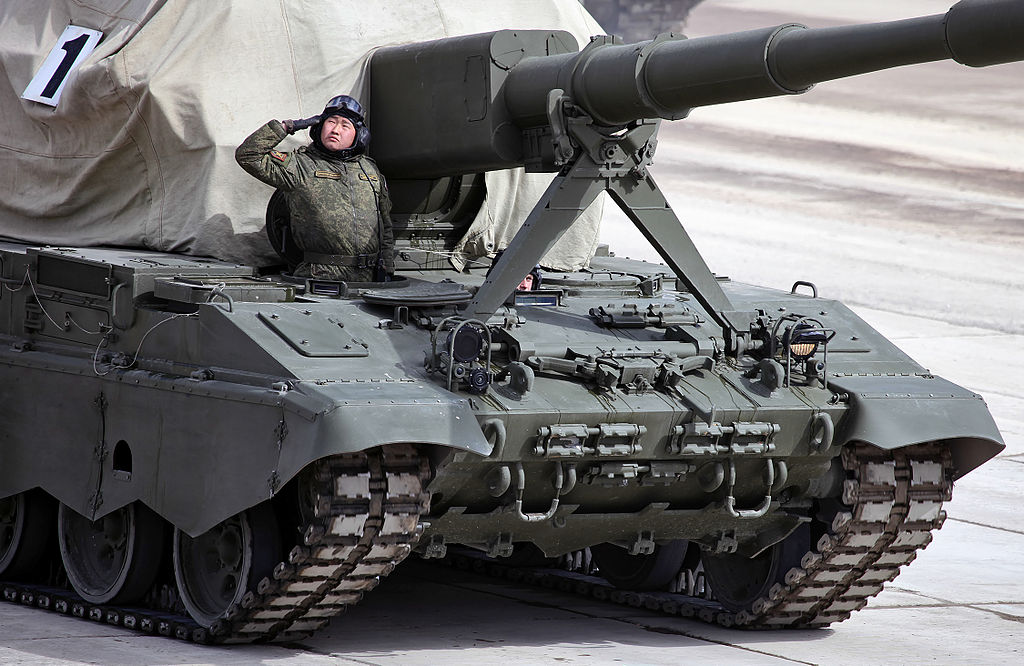

The 2S35 Koalitsiya-SV is a self-propelled howitzer designed and manufactured in Russia by Ural Vagon Zavod (UVZ) to provide the Russian Ground Troops with its next generation of field artillery systems. It is a successor to the 2S19 Msta-S. It is also intended to replace ageing Russian 152 mm artillery systems. Currently it is one of the most capable howitzers in the world. The first demonstration was conducted in 2006. It used a number of components from the previous 2S19 Msta-S.
Ground Specifications
Crew
3
Mobility Type
Tracked
Main Weapon
152 mm/L52 2A88 Howitzer
Engine
Diesel (1000 hp)
Max Speed
65.0 km/h
Range
800.0 km
Variants
S35-1 Koalitsiya-SV-KSh
The Koalitsiya-SV KSh is a new Russian self-propelled howitzer. It uses the ordnance of the 2S35 Koalitsiya-SV, but is based on 8x8 military truck chassis. A prototype of this artillery system was ready by 2013. Public pictures of this artillery system first appeared in 2017. The Koalitsiya-SV KSh is a very capable artillery system.
Since the early 1980s Soviets developed a 152 mm howitzer, based on an 8x8 wheeled chassis. It was known as the 2S21 Msta-K. A couple of prototypes were built, however this artillery system never reached production and the program was cancelled in 1987. It was a failure mainly because at that time Soviets had no suitable trucks to carry this howitzer, that would have sufficient payload capacity, be powerful enough and could withstand the violent recoil. The new 2S35-1 Koalitsiya-SV KSh can be seen as an evolution of the 2S21 Msta-K.
The 2S35-1 Koalitsiya-SV KSh utilizes the unmanned turret with 152 mm ordnance of the 2S35 Koalisiya-SV self-propelled howitzer. It is based on a modified KamAZ-6560 military truck with 8x8 configuration. This artillery system can be seen as a less expensive and more mobile alternative to the tracked version. Though it looses to tracked version in terms of off-road mobility and armor protection. It is planned that this truck-mounted howitzer will be mainly used by units, that are equipped with wheeled combat vehicles, while the tracked version will be used by units equipped with tracked combat vehicles.
System
Alternative Designation
2S35 Koalitsiya-SV
Manufacturer
Burevestnik Central Scientific Research Institute
Type
Self Propelled Howitzer (SPH)
Family
2S35
Crew
3 ea
Chassis
Modified T-90
Estimated Service Life
30 years
Note
The S35 Koalitsiya-SV is a a next-generation system capable of providing overmatch in a modern battle space
Dimensions
Length
9.63 m
Width
3.78 m
Height
2.2 m
Weight, Combat
48-55 tons
Ground Pressure
INA kg/m
Note
The 2S35 chassis is based off of the T-90 MBT
Automotive
Engine Name
V92-S2
Engine Type
Diesel
Engine Power
1,000 hp
Cruising Range
800 km
Speed, Maximum Road
65 km/h
Speed, Maximum Off-Road
INA
Speed Maximum Swim
Not Amphibious
Gradient
60 deg
Side Slope
30 deg
Vertical Step
0.8 m
Trench
2.8 m
Fording Depth
2.1 m
Fuel Capacity
1,200 liters
Suspension
Torsion bars have been upgraded with 45KhNGMFA-3 steel that permits greater operating stress
Communications
TBR-142
VHF FM Transceiver
Yes, TBR-142(I)
VHF Range
1 to 50 km
Megahertz
40.000 to 59.975 MHz
Output Power
1 to 0.3 Watts
Power
12V Ni-Ca Rechargeable Battery or external 12V DC power source
Dimensions
217x135x58 mm
Weight
2.7 kg
Antennas
3 Total: a 1.3m whip antenna, a 0.3m short antenna, and a 10m wire antenna
Proliferated
Widely with Artillery/Gun/Missile/Reconnaissance/C2 Units
Control Device
TBR-142(II)
Multi-function Field Phone
TBR-142(IIID)
Anti-Aircraft Control Unit
TBR-142(IIIG)
ZXY88-200 C2 Capable
Yes
Messaging
Limited Capability
Amplifier
Available
Physical Conditions Limitations
Terrain and Weather favorable
Main Gun
System
Name
152 mm/L52 2A88 Howitzer
Type
152 mm
Breech Type
Vertical sliding wedge
Length, Barrel
INA
Loader Type
Automated with a pneumatic rammer
Max Rate of Fire
16 rds/min
Normal Rate of Fire
12 rds/min
Muzzle Brake
Double baffle
Recoil System
Yes
Bore Evacuator
Yes
Max Elevation
+70 deg
Min Elevation
-7 deg
Traverse Range
360 deg
Maximum Firing Range (Precision-Guided Rounds)
80 km
Maximum Firing Range (Standard Rounds)
40 km
Time to Fully Reload
15 min
Ignition System
Microwave ignition system
Ammunition (Option 1)
Type
152-mm Frag-HE, OF-72
Caliber
152 mm
Muzzle Velocity
864 m/s
Fuse Type
RGM-2 PD
Basic Load
65 Total Rounds of any 152mm combination projectile ea
Effective Range
24 km
Projectile Weight
43 kg
Ammunition (Option 2)
Type
152-mm Frag-HEAT, BP-540
Caliber
152 mm
Muzzle Velocity
655 m/s
Fuze Type
GPV-3 PD
Basic Load
65 Total Rounds of any 152mm combination projectile
Maximum Effective Range
27 km
Complete Projectile Weight
27 kg
Ammunition (Option 3)
Type
152-mm Frag-HE BB, OF-91
Caliber
152 mm
Muzzle Velocity
828 m/s
Fuze Type
KZ-88 PD
Basic Load
65 Total Rounds of any 152mm combination projectile
Maximum Effective Range
29 km
Complete Projectile Weight (OF-61)
42.86 kg
Note
The 2S19 can fire the additional 152mm projectiles: 9K25 Krasnopol guided projectile and the 3-RB-30 radio jamming round
Coaxial Weapon System
System
Name
12.7×108mm ZiD Kord Remote weapon station
Type
12.7 mm
Manufacturer
V.A. Degtyarev Plant
In Service
1998-Present
Length
1,980 mm
Max Rate of Fire
650-600 rds/min
Sustain Rate of Fire
550-600 rds/min
Action
Gas-operated, rotating bolt
Feed System
50-round linked belt
Sights
Iron Sights with two sighting options, known as CAM and CAM1
CAM 1 Capability
TV/IR camera and a laser rangefinder
CAM 2 Capability
TV camera, Thermal Camera and laser rangefinder
Variants
6P50-1, 6P50-2, 6P50-3, 6P49
Note
Remote weapon cocking capability
Ammunition
Type
Rifle
Caliber
12.7 mm
Cartridge
12.7×108 mm
Muzzle Velocity
860 m/s
Basic Load
2,500 ea
Effective Range
2,000 m
Fire Control
Name
INA
Computerized FCS
INA
Thermal Sight Vehicle Commander
Yes, CAM 1 (TV/IR camera, Thermal Camera and a laser rangefinder)
Thermal Sight Gunner
Yes, CAM 2 (TV/IR camera, Thermal Camera and a laser rangefinder)
Main Gun Stabilization
INA
Multiple Round, Simultaneous Impact (MRSI) Capable
Yes
Direct Fire
Yes
Indirect Fire
Yes
Radars
2 ea
Radar Type
Doppler
Protection
Hull Armor
Composite laminate design up to 200mm thick
Turret Armor
Composite laminate design up to 200mm thick. The Turret is not heavily Armored
Applique Armor
Available
Explosive Reactive Armor
Available, the Kontakt-V Explosive Reactive Armour.
Active Protection System
INA
Mine Clearing
No
Self-Entrenching Blade
Yes, can dig 12m × 5.5m × 1.5m entrenchment in sandy soil within 12 to 15 minutes.
NBC Protection
Reported to be the GO-27 PRKhR (NBC) System
Fire Suppression System
Reported to be the Raduga-2 Fire Suppression System
Smoke Equipment
Yes, 2 bundles of 902B Tucha smoke grenade launchers
Smoke Grenade Range
250-300 m
Smoke Screen
30m wide and 10m high for 60 seconds per grenade
IR Signature
INA
Details
Country of Origin
Russia
Category
Self-Propelled Gun/Howitzer Artillery Systems
Land > Artillery > Self-Propelled Gun/Howitzer Artillery Systems
Filter Label
2
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.63 m
Width
3.78 m
Height
2.2 m
Weight
48000 kg
Operators (2)
Russia
China
