BGM-71 TOW

BGM-71 TOW

Anti-Tank Guided Missiles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
BGM-71 TOW
Designation
BGM-71 TOW
Alternate Designation
Equipment Type
Anti-Tank Guided Missiles
Manufacturer
Date of Introduction
Description

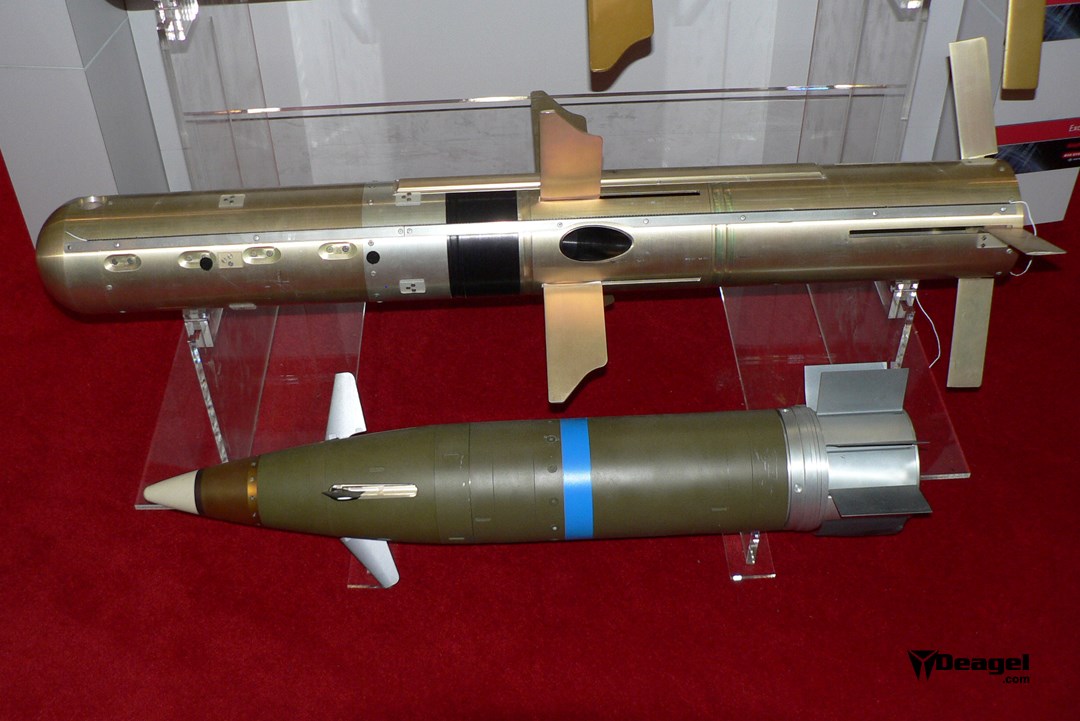

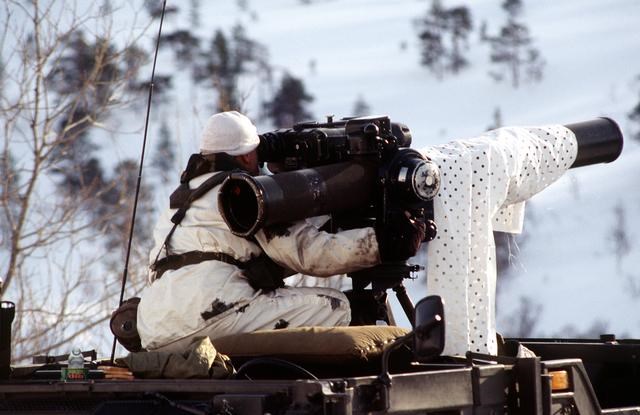

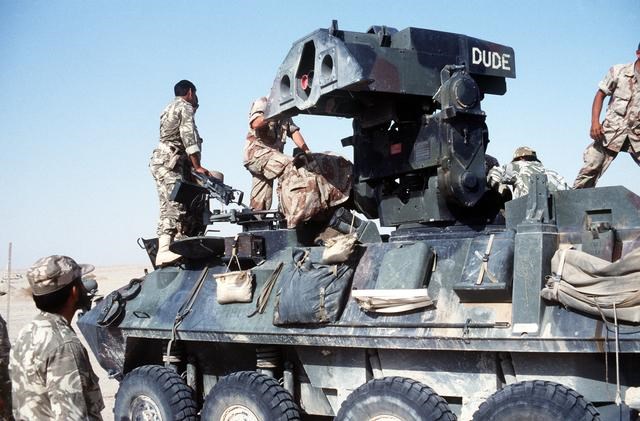

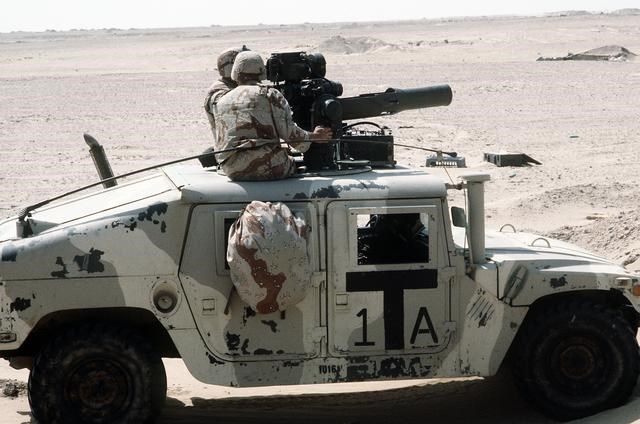

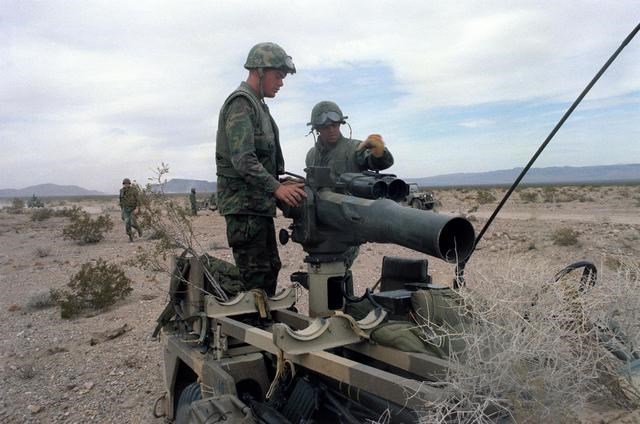

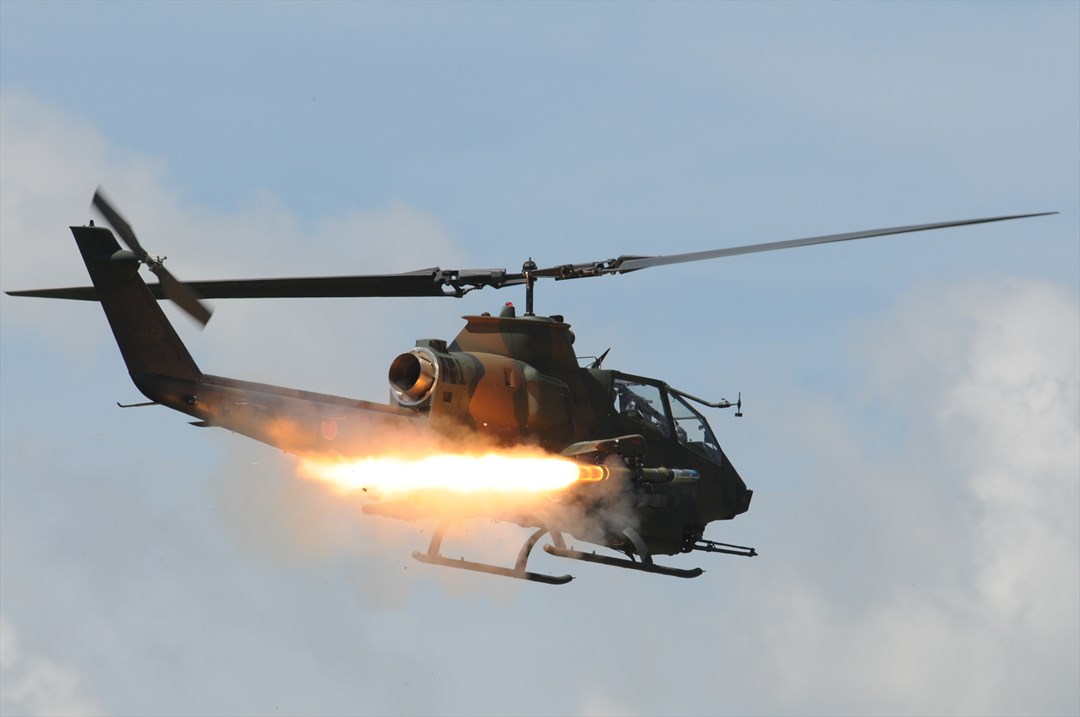

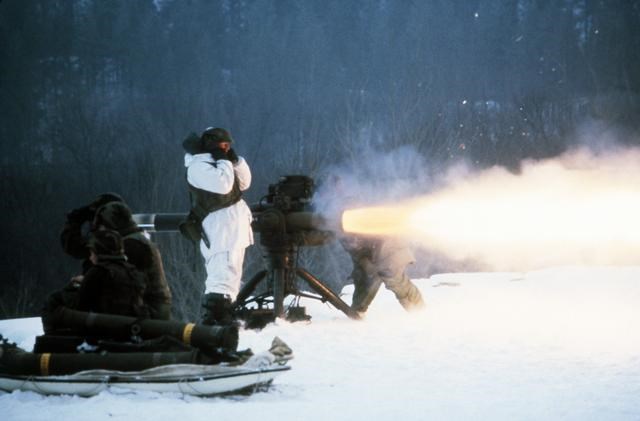

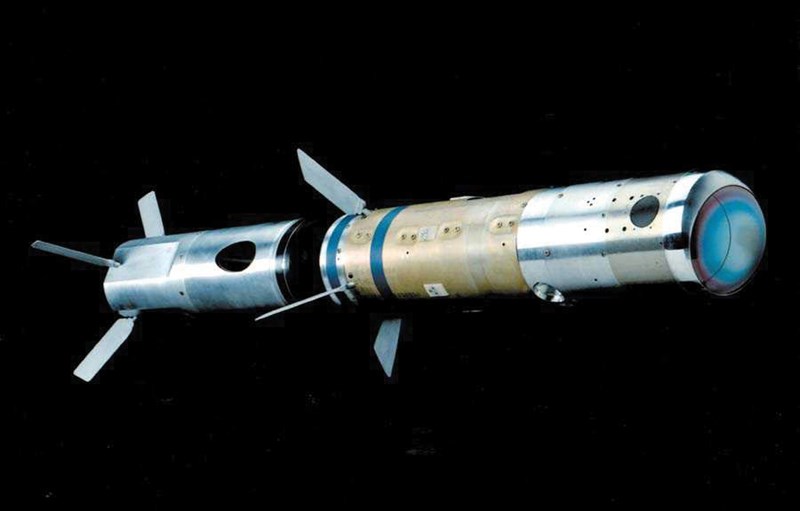

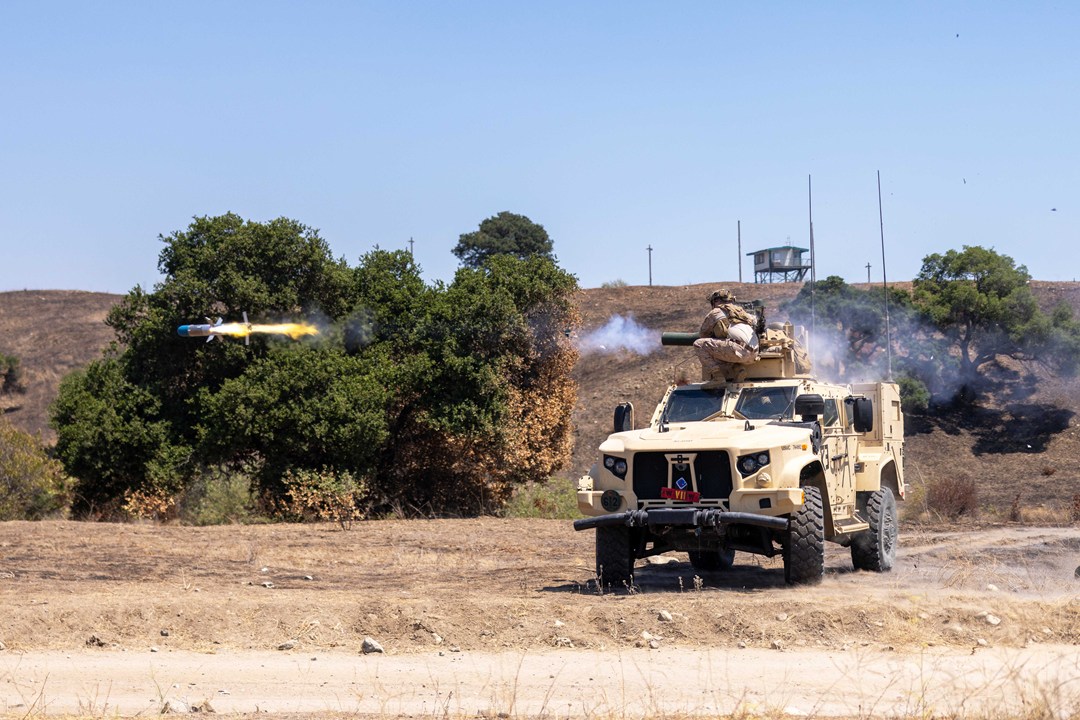

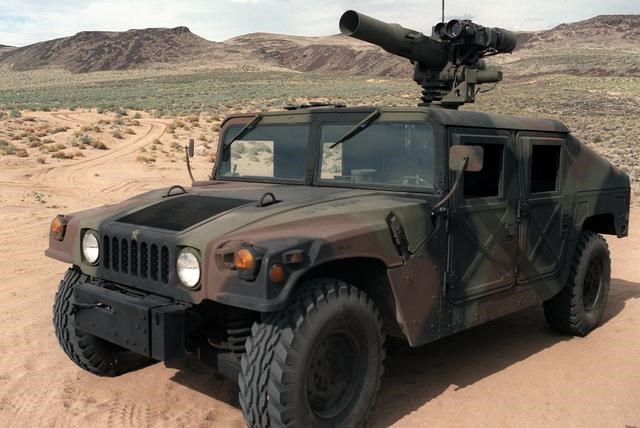

The BGM-71 TOW (Tube-launched, Optically-tracked and Wire-guided) missiles are designed to accurately destroy armored vehicles, fortifications and bunkers from safe ranges. Raytheon has produced more than 600,000 TOW missiles over the last 30 years for more than 40 international armed forces around the globe. The TOW missiles have been integrated in more than 15,000 ground vehicles and helicopters. The TOW was introduced in 1970 and can be fired by the infantry (4 men) using a tripod, ground vehicles (HMMWV, M2) and helicopters (AH-1 Cobra). It is a wire guided weapon with a range in excess of 3,000 meters. The TOW's CLU (Command Launch Unit) allows operations in all weather day or night conditions, after the firing the gunner must keep the sight on the target to ensure the impact. The TOW missile was widely used during the Vietnam (1970s) war, the Iran-Iraq (1980-88) war, the Desert Storm (1991) operation and most recently during the Iraqi Freedom (2003) operation.

Overview (Deagel)
Group Anti-Tank Guided Missiles
Status Retired - No Longer Operational
Origin United States of America
Contractor Raytheon
Initial Operational Capability (IOC) 1970
Total Production 314,000
Specifications (Deagel)
Dimensions — Diameter 127 millimeter
Dimensions — Length 1,160 millimeter
Mass — Warhead 2.5 kilogram
Mass — Weight 18.8 kilogram
Performance — Max Range 3,000 meter
Speed — Top Speed 299 mps

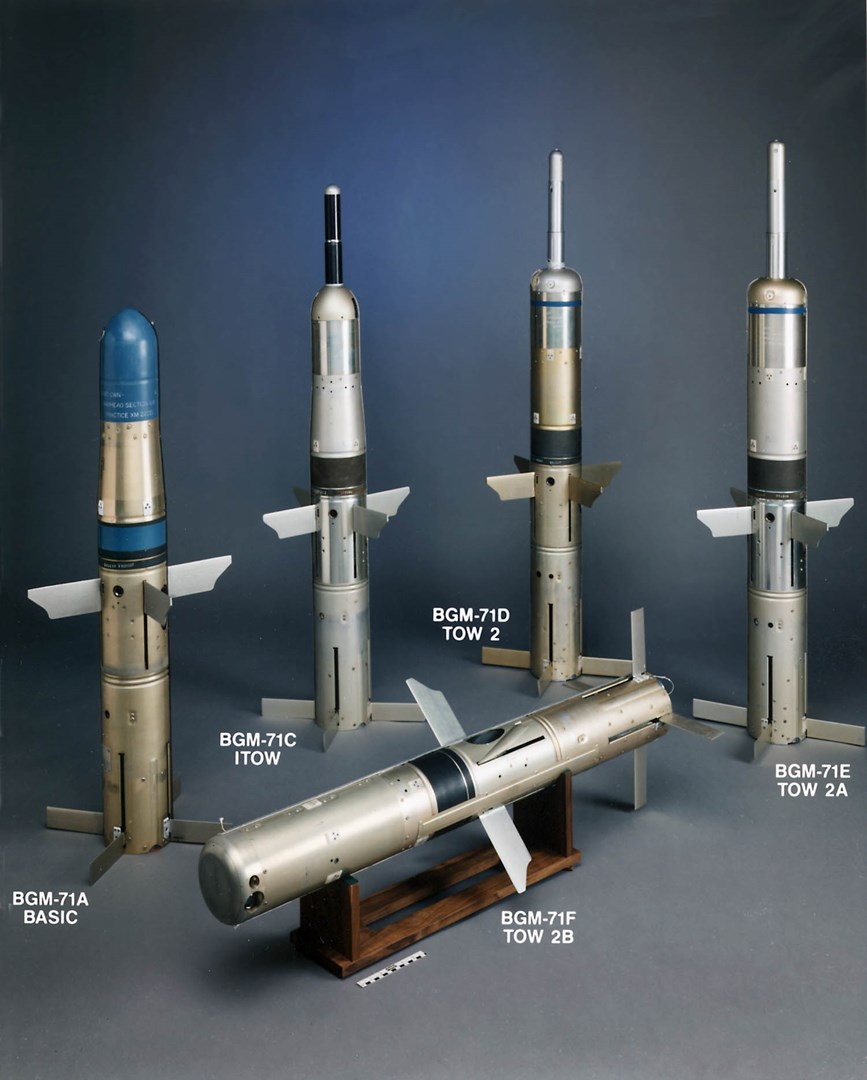

Variants
Variant 1 BGM-71A TOW
Variant 2 BGM-71C ITOW
Variant 3 BGM-71D TOW 2
Variant 4 BGM-71E TOW 2A
Variant 5 BGM-71F TOW 2B
Variant 6 BGM-71G TOW
Variant 7 BGM-71H Bunker Buster
Details
Country of Origin United States
Classification
Domain
Ground
Equipment Status
Active
