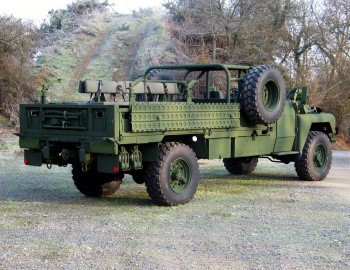

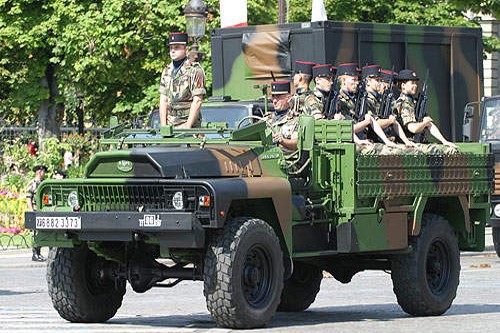

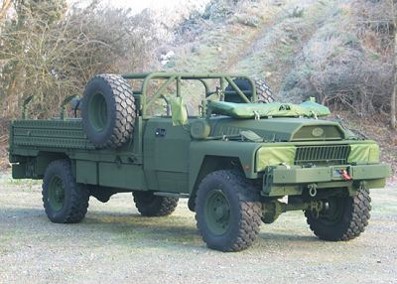

ACMAT VLRA French 4x4 Light Utility Truck

ACMAT VLRA

Light Utility Vehicle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
ACMAT VLRA French 4x4 Light Utility Truck
Designation
ACMAT VLRA
Alternate Designation
ACMAT VLRA
Equipment Type
Light Utility Vehicle
Manufacturer
ACMAT
Date of Introduction
2012
Description

ACMAT (Ateliers De Construction Mécanique De L'atlantique, also known as ALM-ACMAT) since 22 May 2006 is a wholly-owned subsidiary of Renault Trucks. Known for their reliability, simplicity, ruggedness, and their 80% (over 3,500) commonality of parts across the entire product line, these vehicles were originally targeted at African and Asian countries that could not afford more expensive vehicles. The ACMAT company built their vehicles based on standardization, commonality of parts and components, and on interchangeability; parts are interchangeable with vehicles built 30 years ago. Parts commonality includes cabs, structural components, engines, and drive trains. ACMAT uses many of the same parts for all of its line of vehicles. The VLRA series of tactical military trucks has been developed especially for reconnaissance, escort, and support duties. It is also used as a heavy patrol vehicle, equipped for long reconnaissance missions. All VLRA variants have full-time all-wheel drive and an integrated water tank that holds 200 liters of drinking water.

Ground Specifications
Crew 1
Troop Capacity 12
Engine 6-Cylinder Turbocharged Diesel (145 hp)
Range 1200.0 km
Variants
TPK 4.15 SM3 12 man transport.
TPK 4.15 STL General purpose transport truck.
TPK 4.15 FSP Long Range Patrol Vehicle.
TPK 4.15 LRM Multiple rocket launcher carrier.
TPK 4.15 ASPIC Weapons carrier.
TPK 4.15 PACF Weapons carrier.
TPK 4.20 BL Armored variant.
TPK 4.20 SC 2500-liter tanker version.
TPK 4.20 PCR Radio Command Post.
TPK 4.20 SL7 Light recovery duty vehicle.
TPK 4.20 SM2 Troop Carrier.
TPK 4.20 SAM Ambulance.
TPK 4.20 SM3 2.5 ton gun truck.
TPK 4.20 VCT Command and transmission vehicle.
TPK 4.20 VPL2 Scout car.
TPK 4.20M ALM Cargo truck.
TPK 4.25 SAM Ambulance.
TPK 4.25 Pamela Surface-to-Air Missile carrier.
TPK 4.30 BUS 28 or 34 passenger bus. Available in command vehicle conversion.
TPK 4.30 SAM Workshop truck.
TPK 4.35 SCM Mechanical handling vehicle.
TPK 4.35 SM Troop carrier.
TPK 4.35 SM2 General purpose utility truck.
TPK 4.35 VPC Convoy protection vehicle/weapons carrier.
System
Alternative Designation ACMAT VLRA
Type Light Utility Truck
Manufacturer ACMAT
Configuration 4x4
Crew 1 (driver) ea
Cab Seating 2 ea
Troop Capacity 12 Soldiers in troop compartment.
Trailer Payload On 1.7 tons
Winch Optional 6.8 ton front electric winch.
Dimensions
Length 6.3 m
Width 2.1 m
Height 2.56 m
Weight Short Chassis: 1.5 to 2.5 tons Long chassis: 2.5 to 3.5 tons
Ground Clearance 500 mm
Automotive
Engine Name Perkins 6.354.4
Engine Type 6-cylinder turbodiesel direct injection
Engine Power 145 hp
Fuel Capacity 360 liters
Fuel capacity, Left Tank 180 liters
Fuel capacity, Right Tank 180 liters
Speed 100 km/h
Range 1,200 km
Gradient 60 %
Trench 0.5 m
Fording Depth 0.9 m without preparation m
Main Weapon System
Note #1 ACMAT VLRA French 4x4 Light Utility Truck can be armed with a 7.62mm general 1purpose machine gun mounted on a swivel station and a 12.7mm heavy machine gun mounted on 360° or 3/4 ring mount.
Note #2 Based on the mission requirements, the vehicle can carry a range of weapons such as medium and heavy machine guns, rocket-propelled and automatic grenade launchers, and shoulder-launched missile systems in the rear cargo area. Cabin and platform reinforcements are also available for weapons supports.
Protection
Hull Armor INA
Applique Armor Optional VFI systems can withstand the ballistic attack with 7.62mm NATO
Explosive Reactive Armor No
Mine Clearing No
NBC Equipment Yes
Smoke Equipment INA
Details
Country of Origin France
Category Tactical Utility Vehicles
Land > Infantry Vehicles > Tactical Utility Vehicles
Filter Label
A
Classification
Domain
Ground
Equipment Status
Active
Operators (11)
France
United Kingdom
Botswana
Chad
Chile
Cyprus
Ireland
Kenya
Mali
Morocco
Zimbabwe
