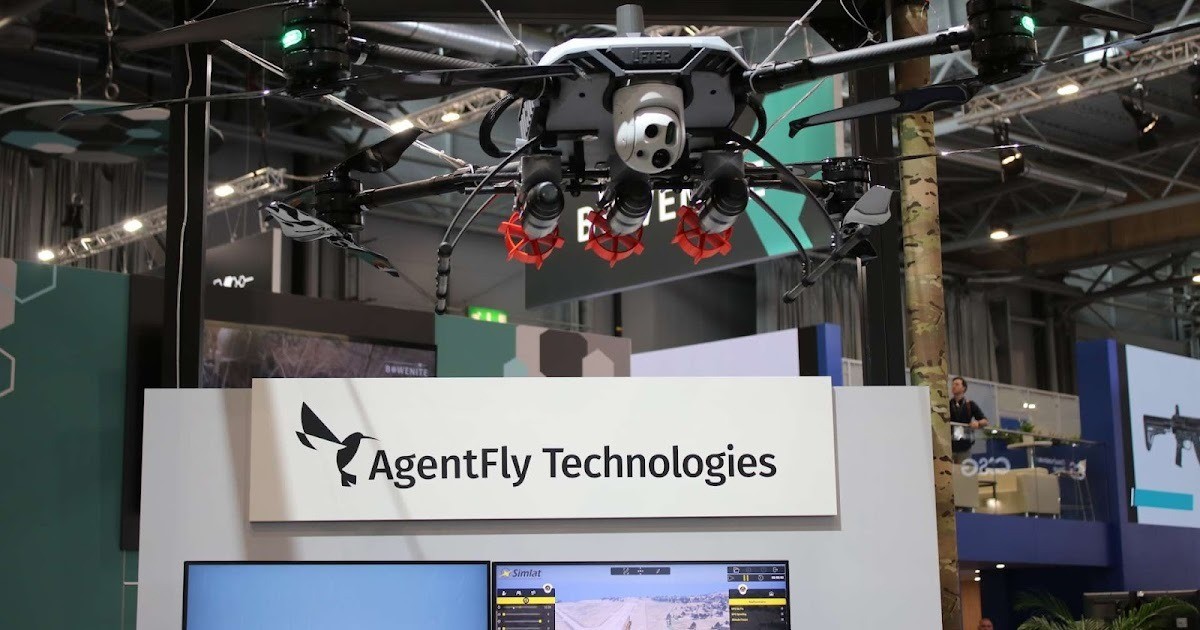

Gorgon X8 Czechoslovakian Unmanned Aerial Vehicle (UAV)
Gorgon X8
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Gorgon X8 Czechoslovakian Unmanned Aerial Vehicle (UAV)
Designation
Gorgon X8
Alternate Designation
Gorgon X8
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
AgentFly Technologies
Date of Introduction
2019
Description
The Gorgon X8 Czechoslovakian Unmanned Aerial Vehicle (UAV) is used for ammunition drop and reconnaissance. Its key features are advanced localization and navigation capabilities supported by anti-jamming and ant spoofing modules combined with a resilient and robust communication system. The system is designed for easy transport and rapid deployment using a foldable frame and antenna mast. Protection of the operator is increased by the decoupling of radios from the ground control station. The drone allows a modular payload combining different ammunition or other cargo types, e.g. supplies, and medical kits.
Air & Air Defense Specifications
Engine
Battery
Max Speed
54.0 km/h
Range
8.0 km
Endurance
60.00 hrs
Service Ceiling
3500 m
Payload Capacity
12 kg
System
Alternate Designation
Gorgon X8
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
AgentFly Technologies
Payload Capacity
12 kg
Features
Improved resilience against electronic warfare systems;
Rugged design for deployment in harsh conditions;
Autopilot for autonomous missions and complex failsafe mechanisms;
Modular payload mounting and ammunition drop system;
Horizontal ammunition mounting for optimal flight characteristics;
Foldable body for easy transport and fast deployment;
Transportable in a small vehicle;
UAS operator and maintenance training program.
Onboard Equipment
Robust localization and navigation system with anti-jamming and anti spoofing capabilities;
EW protected digital communication system for C2 and video;
EO/IR camera with 10x optical zoom for reconnaissance and targeting;
Optional external localization system;
Optional pilot view camera.
Dimensions
Length
100 cm
Width
95 cm
Height
31 cm
Diagonal Wheelbase
132 cm
Weight, with Batteries
13 kg
Maximum Takeoff Weight
25 kg
Automotive
Engine Name
INA
Engine Type
Battery
Engine Power
INA
Max. Horizontal Speed
15 m/s
Ascend Speed
5 m/s
Descend Speed
3 m/s
Maximum Range
8 km
Service Ceiling
3,500 m
Operational Altitude
300 m
Endurance
60 min
Details
Country of Origin
Czech Republic
Category
UAVs
Air > UAVs
Filter Label
G
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1 m
Width
0.95 m
Height
0.31 m
Weight
25 kg
Operators (1)
Czech Republic
