PMV Survivor II

PMV Survivor II

Tactical Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
PMV Survivor II
Designation
PMV Survivor II
Alternate Designation
Equipment Type
Tactical Vehicles
Manufacturer
Achleitner
Date of Introduction
2011
Description

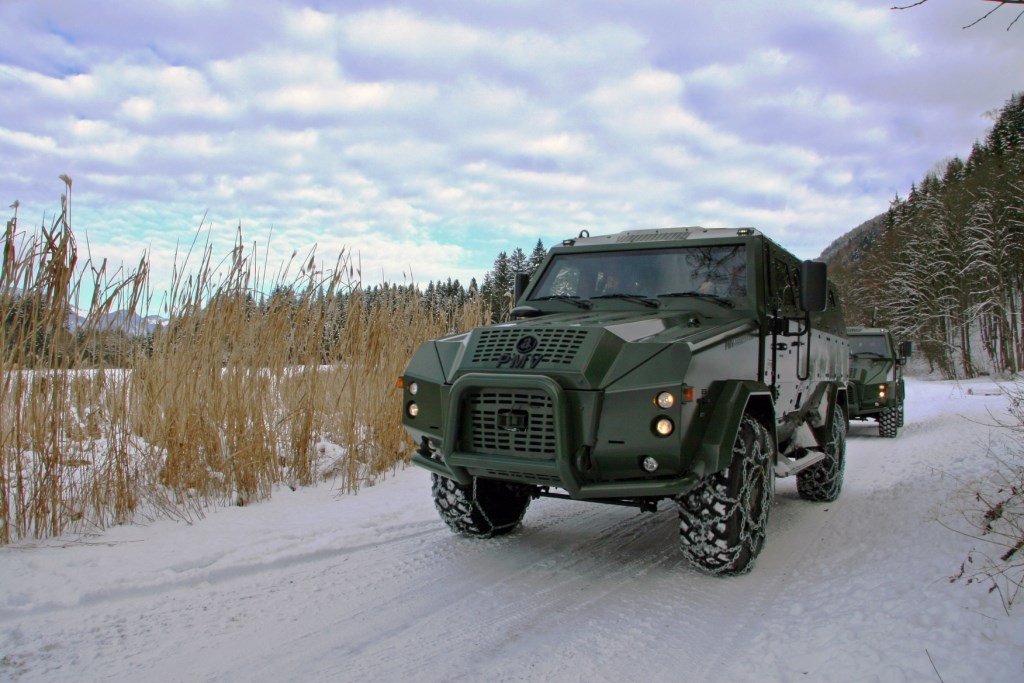

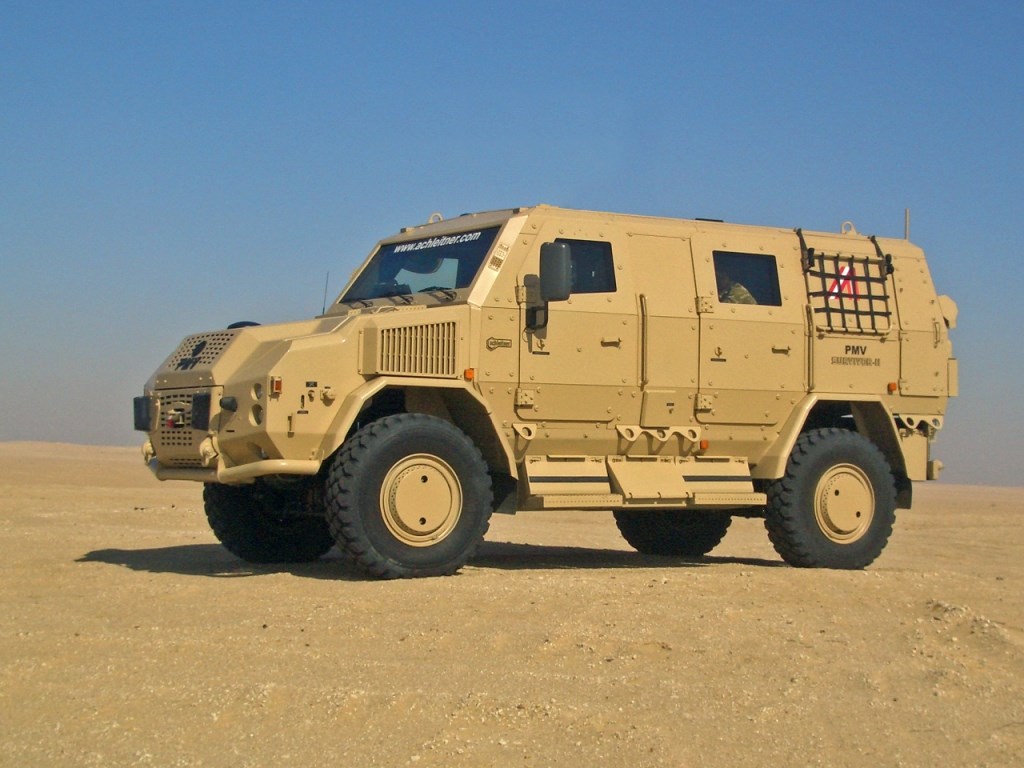

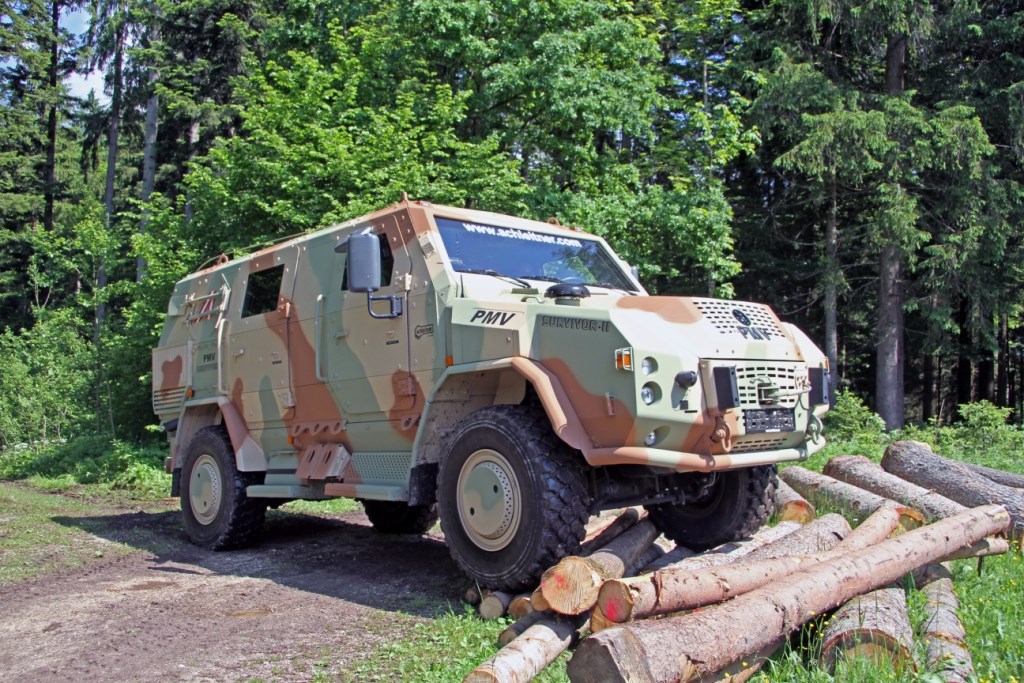

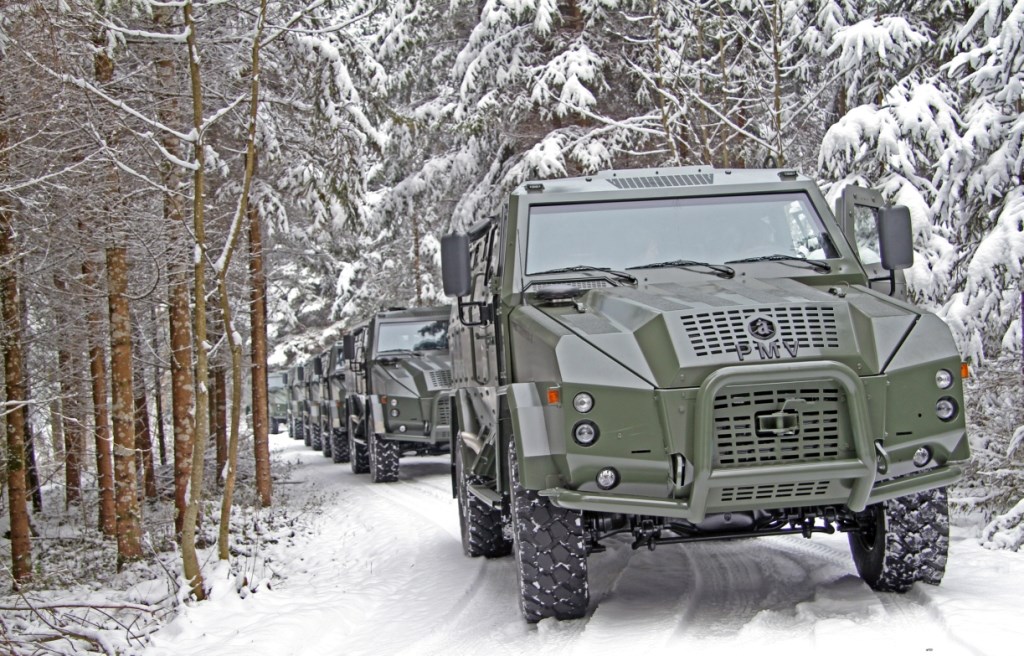

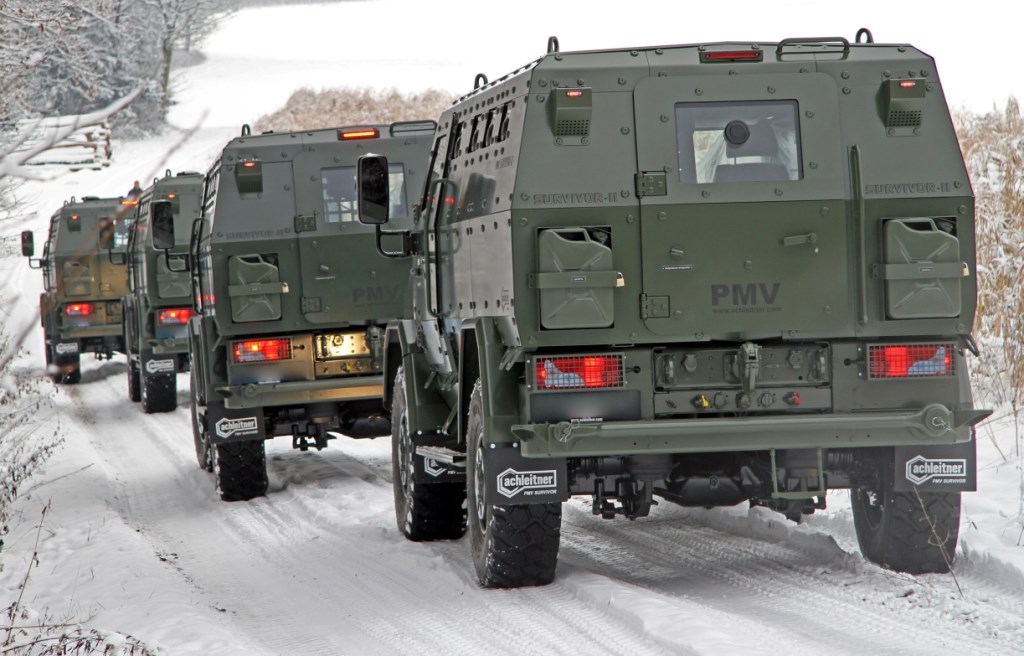

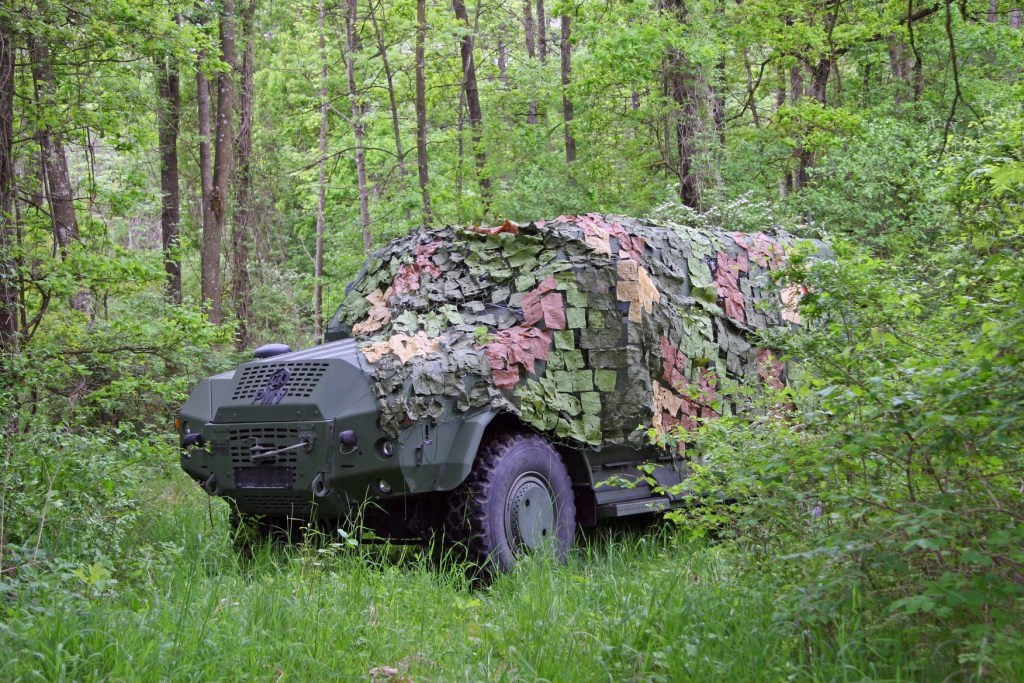

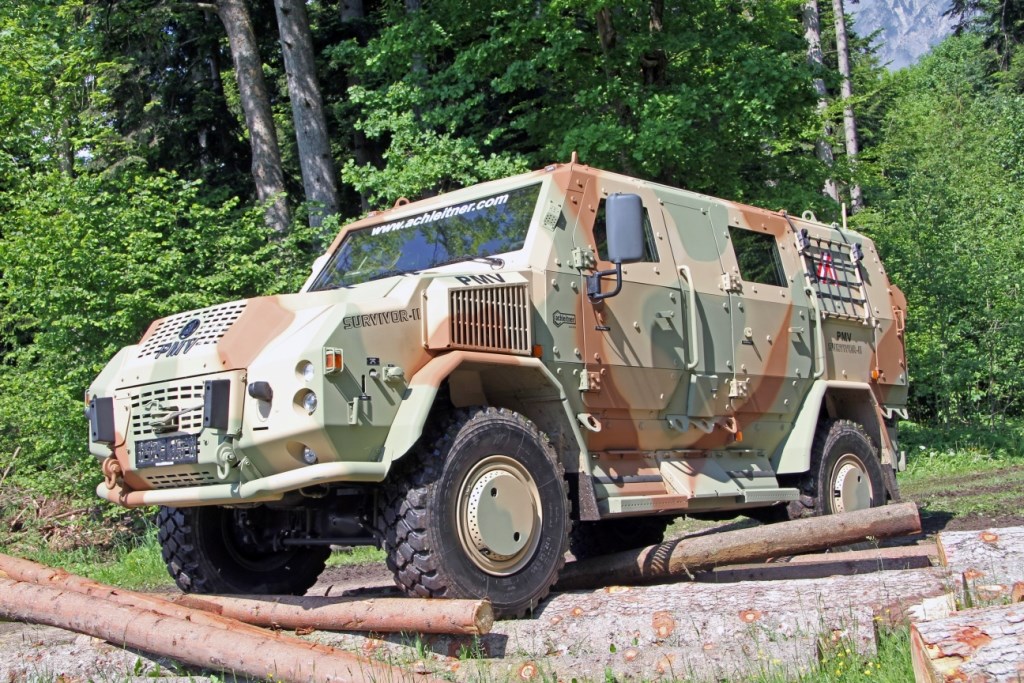

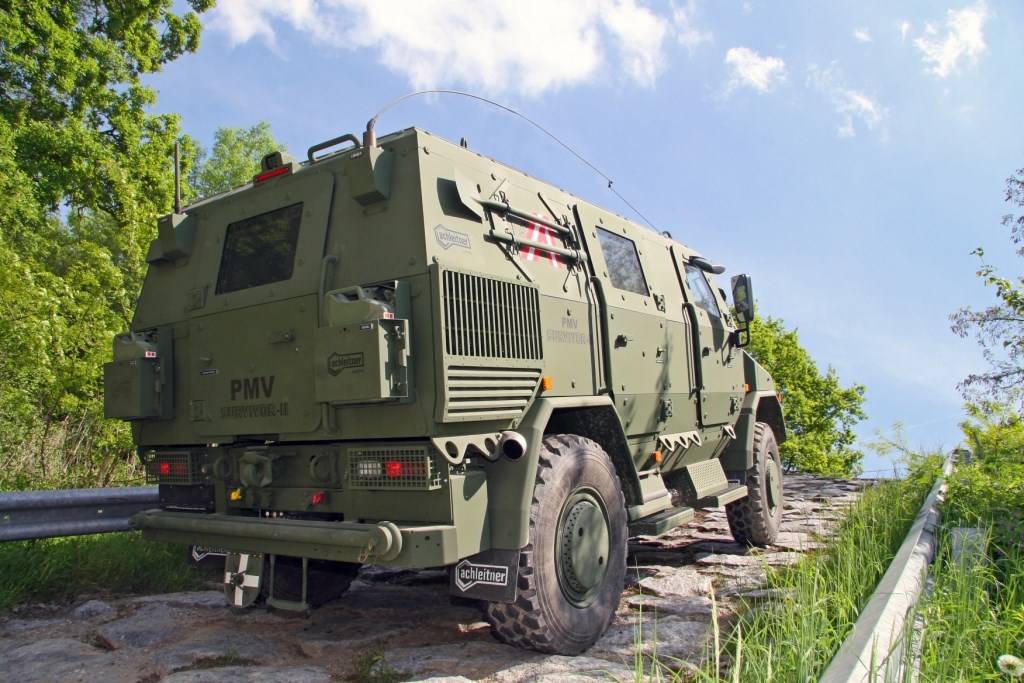

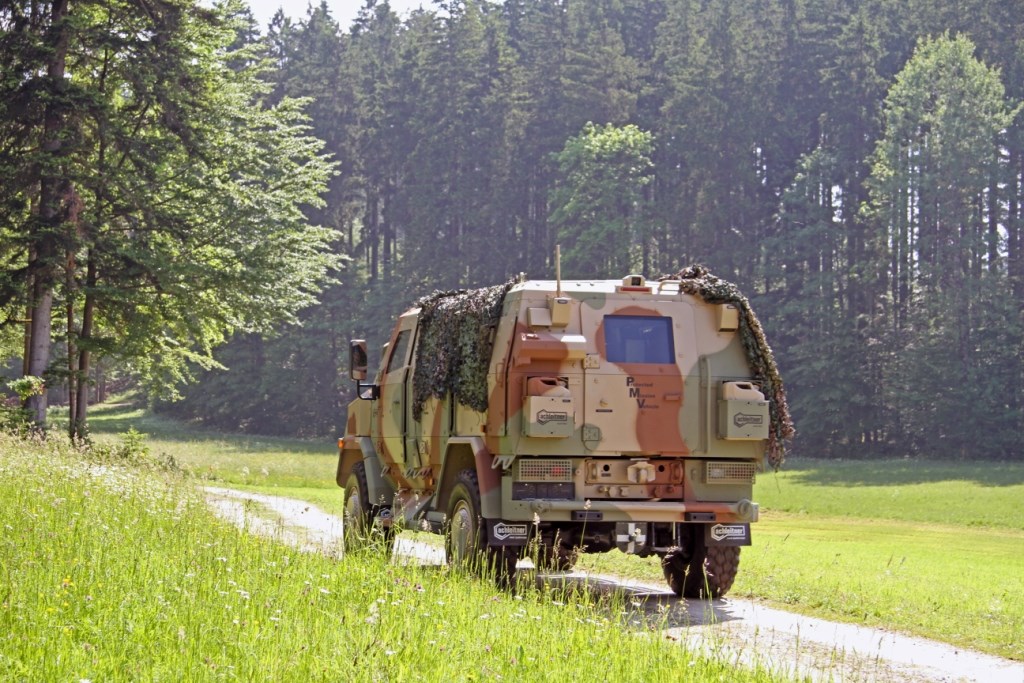

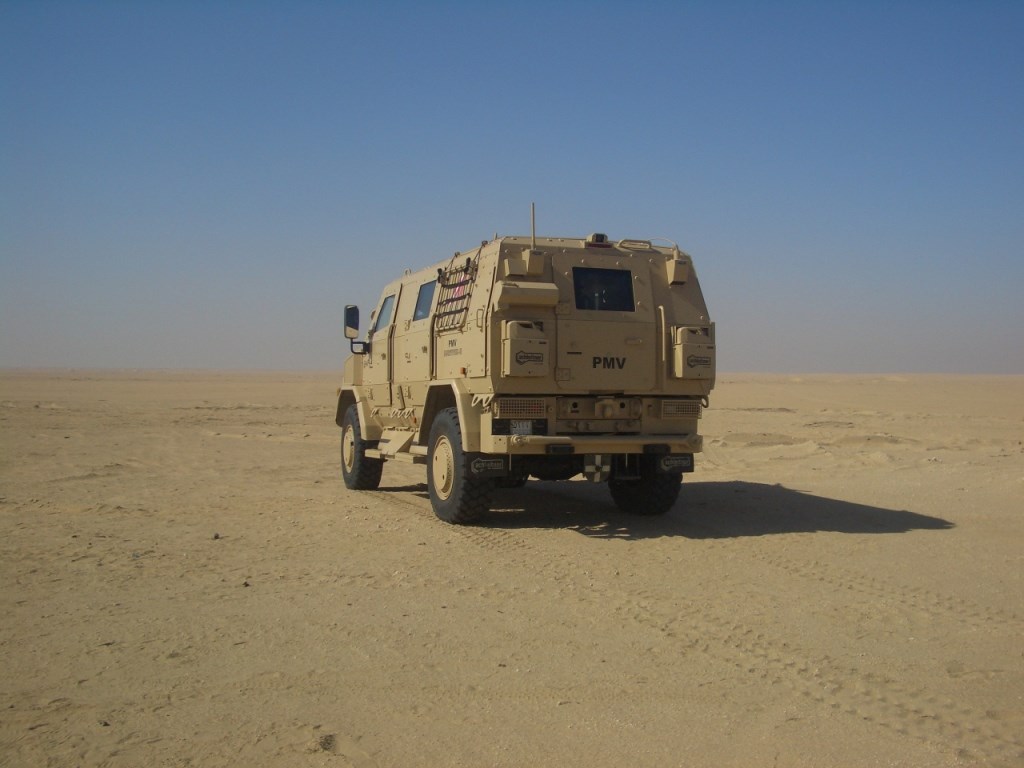

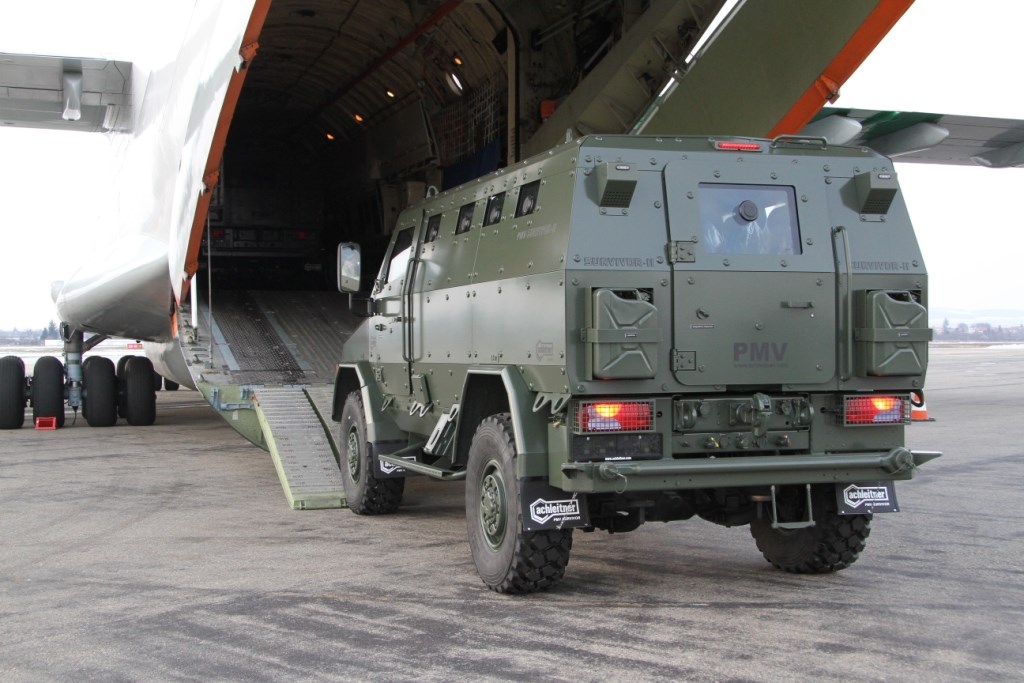

The Protected Mission Vehicle (PMV) Survivor II is a 4x4, 10-ton class, modular armored utility vehicle being developed by Austrian company Achleitner for military customers. It features a monocoque steel hull and high mobility thanks to its all wheel drive. It is powered by a 320-hp diesel engine developing a top speed of 100 kilometers per hour on road. PMV Survivor II features STANAG 4569 level protection with modular add-on armor kits providing Level 3 protection against bombardment and Level 4a/3b against mines and improvised explosive devices (IEDs). Two Survivor II vehicles can be airlifted by a single C-130 or C-160 transport aircraft. The PMV Survivor II vehicle can be equipped with Kongsberg's Protector station and other remote weapon stations operated under armor as well as a man-hatch with ladder cage. The basic configuration includes seating for five-man but can be expanded to up to 10-man with eight-man in the rear compartment. The PMV Survivor II is available as command and control vehicle, patrol vehicle, reconnaissance vehicle and ambulance with two stretches for injured.

Ground Specifications
Crew 2
Troop Capacity 8
Mobility Type Wheeled (4x4)
Max Speed 100.0 km/h
Range 1000.0 km
Overview (Deagel)
Group Tactical Vehicles
Status Active
Origin Austria
Contractor Achleitner
Initial Operational Capability (IOC) 2011
Total Production ?
Specifications (Deagel)
Crew 2
Troops 8
Wheel Drive 4
Wheels 4
Degree — Approach Angle 36 °
Degree — Departure Angle 38 °
Dimensions — Ground Clearance 400 millimeter
Dimensions — Height 2.7 meter
Dimensions — Length 6.4 meter
Dimensions — Wheelbase 3.7 meter
Dimensions — Width 2.4 meter
Energy — Max Torque 1,250 Nm
Mass — Max Weight 15,000 kilogram
Mass — Payload 4,000 kilogram
Percentage — Gradient 60 %
Percentage — Side Slope 35 %

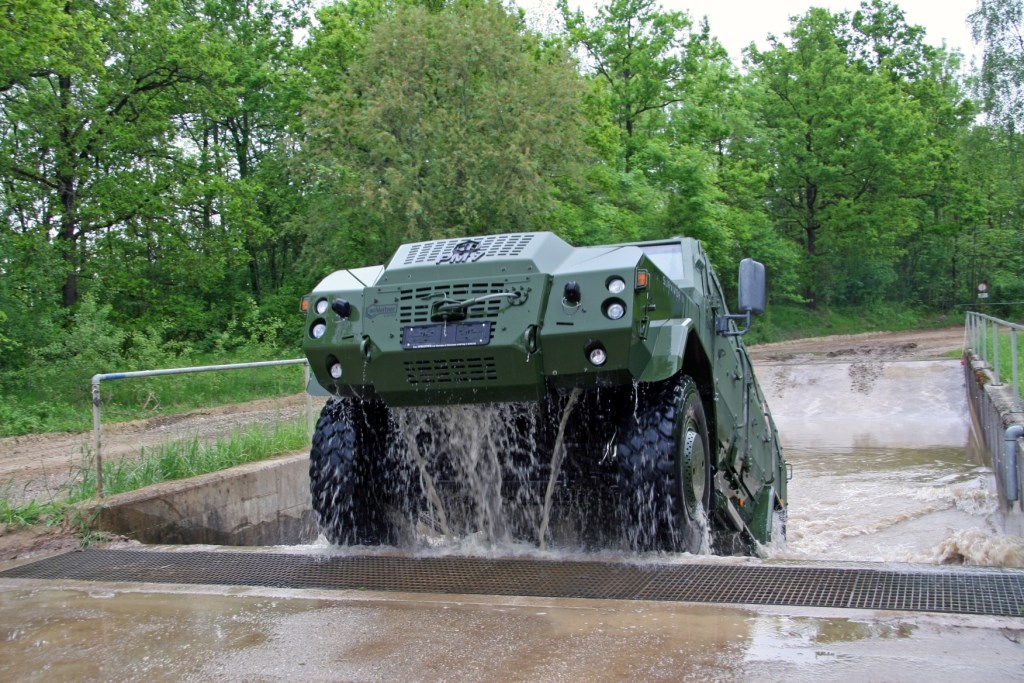

Performance — Fording Depth 1.1 meter
Performance — Max Range 1,000 kilometer
Performance — Turning Radius 9 meter
Power — Power 320 hp
Speed — Top Speed 100 kph
Gear (Deagel)
Item 1 Weapon Stations: Protector (1)
Details
Country of Origin Austria
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.4 m
Width
2.4 m
Height
2.7 m
Weight
15000 kg
Operators (1)
Austria
