CV9030 MkII

Tracked Armored Vehicles

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

CV9030 MkII

Designation

CV9030 MkII

Alternate Designation

—

Equipment Type

Tracked Armored Vehicles

Manufacturer

Alvis Plc, United Defense

Date of Introduction

2001

Description

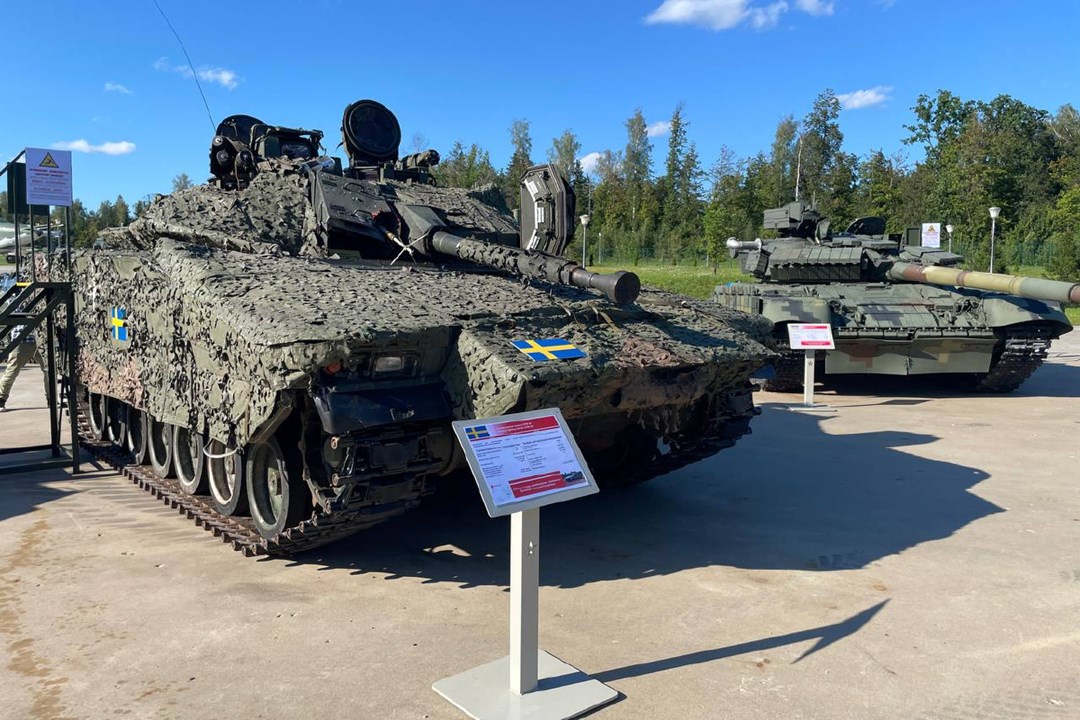

The CV9030 MkII is an upgraded model of the well-proven CV9030 to satisfy the Swiss and Finnish requirements. The MkII armored vehicle can be armed with a 30mm Bushmaster II or a 30mm Mk44 fully stabilized automatic cannons in addition of the 7.62mm machine gun. It also features an improved digitized vehicle control system. In early November 2004, Switzerland ordered CV90 combat vehicle training simulators in addition of 186 CV90s order placed in 2000. Each simulator comprises a chassis and a turret simulator aimed at providing training for the crew and technical staff.

Ground Specifications

Crew 3

Troop Capacity 8

Mobility Type Tracked

Main Weapon 30mm Bushmaster II or a 30mm Mk44 fully stabilized automatic cannons (30mm)

Max Speed 70.0 km/h

Range 600.0 km

Overview (Deagel)

Group Tracked Armored Vehicles

Status Active

Origin Sweden

Contractors Alvis Plc, United Defense

Initial Operational Capability (IOC) 2001

Total Production 243

Specifications (Deagel)

Crew 3

Rolling Rubber Wheels 7

Troops 8

Dimensions — Height 2.8 meter

Dimensions — Length 6.6 meter

Dimensions — Main Gun Caliber 30 millimeter

Dimensions — Width 3.2 meter

Mass — Combat Weight 28,000 kilogram

Mass — Empty Weight 24,000 kilogram

Performance — Max Range 600 kilometer

Power — Power 600 shp

Rate — Max Rate of Fire 400 roundperminute

Speed — Top Speed 70 kph

Gear (Deagel)

Item 1 Medium Caliber Cannons: Mk 44 (1)

Item 2 Optronic Systems: UTAAS (1)

Variants

Variant 1 CV9040

Variant 2 CV9040C

Variant 3 CV9040 AAV

Variant 4 CV90120

Variant 5 CV90 FOV

Variant 6 CV90 FCV

Variant 7 CV90105

Variant 8 CV9030

Variant 9 CV9030 MkII

Variant 10 CV9035 MkIII

Variant 11 CV9030 COM

Variant 12 CV90 AMOS

Variant 13 CV90 Sting

Variant 14 CV90 Armadillo

Variant 15 CV90 FMV

Variant 16 CV90 MkIV

Variant 17 CV90 CEV

Details

Country of Origin Sweden

Sources

deagel.com: https://www.deagel.com/x/x/a000589

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

6.6 m

Width

3.2 m

Height

2.8 m

Weight

28000 kg

Operators (2)

Finland

Switzerland
