2S22 Bogdana Ukrainian 155mm Self-Propelled Howitzer
2S22 Bogdana
Self-Propelled Howitzer (SPH)
Other
Basic Information
Name
2S22 Bogdana Ukrainian 155mm Self-Propelled Howitzer
Designation
2S22 Bogdana
Alternate Designation
2S22 Bogdana
Equipment Type
Self-Propelled Howitzer (SPH)
Manufacturer
—
Date of Introduction
2019
Description

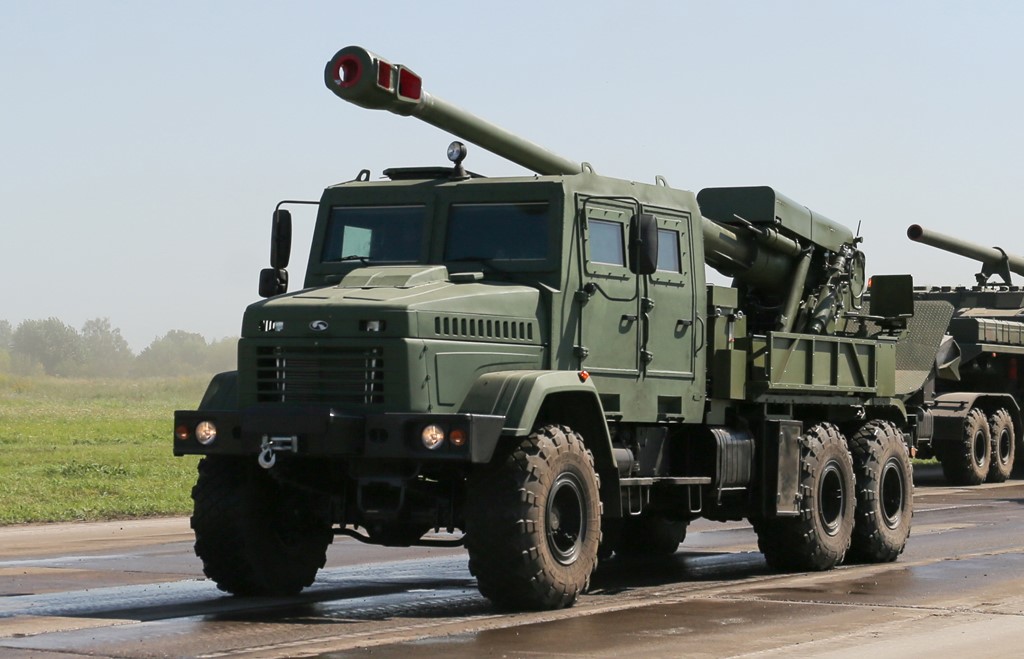

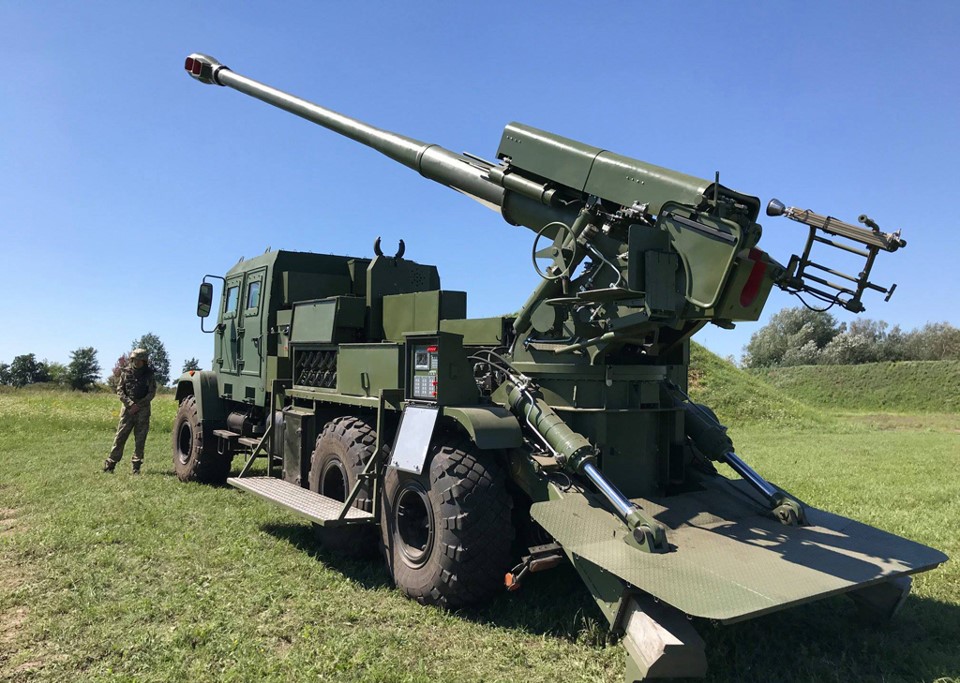

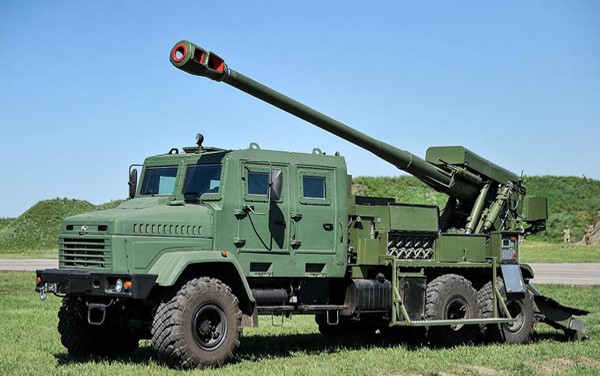

The 2S22 Bogdana Ukrainian 155mm Self-Propelled Howitzer s based on the 6×6 chassis of the KrAZ-6322. It has an armoured cabin and enough storage for around 20 shells.
Ground Specifications
Crew
5
Mobility Type
Wheeled (6x6)
Main Weapon
155 mm howitzer
Engine
Diesel
Max Speed
80.0 km/h
Range
1000.0 km
System
Alternative Designation
2S22 Bogdana
Type
Self-Propelled Howitzer
Caliber
155 mm
Chassis
KrAZ-6322
Crew
5 ea
Emplacement Time
INA
Displacement Time
INA
Dimensions
Length
8.5 m
Width
2.7 m
Height
4.0 m
Weight, Combat
25 tons
Automotive
Engine Name
INA
Engine Type
Diesel
Engine Power
INA
Maximum Range
1,000 km
Speed, Maximum Road
80 km/h
Speed, Average Cross
INA
Speed Maximum Swim
Not Amphibious
Gradient
60%
Side Slope
30%
Vertical Step
0.7 m
Trench
1.0 m
Fording
1.2 m
Main Weapon System
System
Type
Howitzer
Caliber
155 mm
Length, Barrel
INA
Weight
INA
Traverse
INA
Elevation
5° to 65°
Maximum Range
50 km using rocket-assisted projectiles. When using a high-explosive fragmentation projectile, the maximum range is 40–42 km, with a minimum range of 780 m.
Maximum Rate of Fire
4 rpm
Load Assist Device
Yes
Note
The howitzer is compatible with all standard NATO 155 mm ammunition.
Ammunition
Type
Projectile
Caliber
155 mm
Fire Control System
Computerized FCS
Yes
Main Gun Stabilization
Yes
Ballistic Calculator
Yes
Automatic Gun Laying System
Yes, powered by Siemens SIPLUS automated data driver.
Navigation System
Yes, which enables the vehicle to establish its own location and conduct engagements with greater speed.
Protection
Hull Armor
It is fitted with an armored cab.
Applique Armor
INA
NBC Protection
INA
Smoke Equipment
No
Image Sources
Details
Country of Origin
Ukraine
Category
Self-Propelled Gun/Howitzer Artillery Systems
Land > Artillery > Self-Propelled Gun/Howitzer Artillery Systems
Filter Label
2
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8.5 m
Width
2.7 m
Height
4 m
Weight
25000 kg
Operators (1)
Ukraine
